Geospatial transforms
We provide a very powerful list of transforms that were designed to work seamlessly with geospatial data. These transforms are implemented in different packages depending on how they interact with geometries.
The list of supported transforms is continuously growing. The following code can be used to print an updated list in any project environment:
# packages to print type tree
using InteractiveUtils
using AbstractTrees
using TransformsBase
# packages with transforms
using GeoStats
# define the tree of types
AbstractTrees.children(T::Type) = subtypes(T)
# print all currently available transforms
AbstractTrees.print_tree(TransformsBase.Transform)
Transform
├─ GeometricTransform
│ ├─ Bridge
│ ├─ CoordinateTransform
│ │ ├─ Affine
│ │ ├─ LengthUnit
│ │ ├─ Morphological
│ │ ├─ Proj
│ │ ├─ Rotate
│ │ ├─ Scale
│ │ ├─ Stretch
│ │ └─ Translate
│ ├─ LambdaMuSmoothing
│ ├─ Repair
│ ├─ Shadow
│ ├─ Slice
│ ├─ StdCoords
│ └─ ValidCoords
├─ Identity
├─ TableTransform
│ ├─ Aggregate
│ ├─ Detrend
│ ├─ Downscale
│ ├─ FeatureTransform
│ │ ├─ EigenAnalysis
│ │ ├─ Remainder
│ │ ├─ ColwiseFeatureTransform
│ │ │ ├─ Center
│ │ │ ├─ Coalesce
│ │ │ ├─ LowHigh
│ │ │ ├─ Quantile
│ │ │ └─ ZScore
│ │ └─ StatelessFeatureTransform
│ │ ├─ AbsoluteUnits
│ │ ├─ Assert
│ │ ├─ Closure
│ │ ├─ Coerce
│ │ ├─ ColTable
│ │ ├─ Compose
│ │ ├─ DropConstant
│ │ ├─ DropExtrema
│ │ ├─ DropMissing
│ │ ├─ DropNaN
│ │ ├─ DropUnits
│ │ ├─ Filter
│ │ ├─ Functional
│ │ ├─ Indicator
│ │ ├─ Learn
│ │ ├─ Levels
│ │ ├─ Map
│ │ ├─ OneHot
│ │ ├─ ProjectionPursuit
│ │ ├─ Reject
│ │ ├─ Rename
│ │ ├─ Replace
│ │ ├─ RowTable
│ │ ├─ Sample
│ │ ├─ Satisfies
│ │ ├─ Select
│ │ ├─ Sort
│ │ ├─ StdFeats
│ │ ├─ StdNames
│ │ ├─ LogRatio
│ │ │ ├─ ALR
│ │ │ ├─ CLR
│ │ │ └─ ILR
│ │ ├─ Unit
│ │ └─ Unitify
│ ├─ ClusteringTransform
│ │ ├─ GHC
│ │ ├─ GSC
│ │ └─ SLIC
│ ├─ Interpolate
│ ├─ InterpolateNeighbors
│ ├─ Potrace
│ ├─ Rasterize
│ ├─ ParallelTableTransform
│ ├─ Transfer
│ ├─ UniqueCoords
│ └─ Upscale
└─ SequentialTransform
Transforms at the leaves of the tree above should have a docstring with more information on the available options. For example, the documentation of the Select
transform is shown below:
TableTransforms.Select
— TypeSelect(col₁, col₂, ..., colₙ)
Select([col₁, col₂, ..., colₙ])
Select((col₁, col₂, ..., colₙ))
The transform that selects columns col₁
, col₂
, ..., colₙ
.
Select(col₁ => newcol₁, col₂ => newcol₂, ..., colₙ => newcolₙ)
Selects the columns col₁
, col₂
, ..., colₙ
and rename them to newcol₁
, newcol₂
, ..., newcolₙ
.
Select(regex)
Selects the columns that match with regex
.
Examples
Select(1, 3, 5)
Select([:a, :c, :e])
Select(("a", "c", "e"))
Select(1 => :x, 3 => :y)
Select(:a => :x, :b => :y)
Select("a" => "x", "b" => "y")
Select(r"[ace]")
Transforms of type FeatureTransform
operate on the attribute table, whereas transforms of type GeometricTransform
operate on the underlying geospatial domain:
TableTransforms.FeatureTransform
— TypeFeatureTransform
A transform that operates on the columns of the table containing features, i.e., simple attributes such as numbers, strings, etc.
Meshes.GeometricTransform
— TypeGeometricTransform
A method to transform the geometry (e.g. coordinates) of objects. See https://en.wikipedia.org/wiki/Geometric_transformation.
Other transforms such as Detrend
are defined in terms of both the geospatial domain and the attribute table. All transforms and pipelines implement the following functions:
TransformsBase.isrevertible
— Functionisrevertible(transform)
Tells whether or not the transform
is revertible, i.e. supports a revert
function. Defaults to false
for new transform types.
Transforms can be revertible and yet don't be invertible. Invertibility is a mathematical concept, whereas revertibility is a computational concept.
See also isinvertible
.
TransformsBase.isinvertible
— Functionisinvertible(transform)
Tells whether or not the transform
is invertible, i.e. whether it implements the inverse
function. Defaults to false
for new transform types.
Transforms can be invertible in the mathematical sense, i.e., there exists a one-to-one mapping between input and output spaces.
See also inverse
, isrevertible
.
TransformsBase.inverse
— FunctionTransformsBase.apply
— Functionnewobject, cache = apply(transform, object)
Apply transform
on the object
. Return the newobject
and a cache
to revert the transform later.
TransformsBase.revert
— Functionobject = revert(transform, newobject, cache)
Revert the transform
on the newobject
using the cache
from the corresponding apply
call and return the original object
. Only defined when the transform
isrevertible
.
TransformsBase.reapply
— Functionnewobject = reapply(transform, object, cache)
Reapply the transform
to (a possibly different) object
using a cache
that was created with a previous apply
call. Fallback to apply
without using the cache
.
Feature transforms
Please check the TableTransforms.jl documentation for an updated list of feature transforms. As an example consider the following features over a Cartesian grid and their statistics:
using DataFrames
# table of features and domain
tab = DataFrame(a=rand(1000), b=randn(1000), c=rand(1000))
dom = CartesianGrid(100, 100)
# georeference table onto domain
Ω = georef(tab, dom)
# describe features
describe(values(Ω))
Row | variable | mean | min | median | max | nmissing | eltype |
---|---|---|---|---|---|---|---|
Symbol | Float64 | Float64 | Float64 | Float64 | Int64 | DataType | |
1 | a | 0.5056 | 5.09529e-5 | 0.504134 | 0.997701 | 0 | Float64 |
2 | b | 0.000376204 | -3.00326 | 0.0313427 | 2.81183 | 0 | Float64 |
3 | c | 0.495024 | 0.00139366 | 0.493161 | 0.99919 | 0 | Float64 |
We can create a pipeline that transforms the features to their normal quantile (or scores):
pipe = Quantile()
Ω̄, cache = apply(pipe, Ω)
describe(values(Ω̄))
Row | variable | mean | min | median | max | nmissing | eltype |
---|---|---|---|---|---|---|---|
Symbol | Float64 | Float64 | Float64 | Float64 | Int64 | DataType | |
1 | a | 0.00309023 | -3.09023 | 0.00125332 | 3.09023 | 0 | Float64 |
2 | b | 0.00309023 | -3.09023 | 0.00125332 | 3.09023 | 0 | Float64 |
3 | c | 0.00309023 | -3.09023 | 0.00125332 | 3.09023 | 0 | Float64 |
We can then revert the transform given any new geospatial data in the transformed sample space:
Ωₒ = revert(pipe, Ω̄, cache)
describe(values(Ωₒ))
Row | variable | mean | min | median | max | nmissing | eltype |
---|---|---|---|---|---|---|---|
Symbol | Float64 | Float64 | Float64 | Float64 | Int64 | DataType | |
1 | a | 0.506105 | 0.000830944 | 0.504403 | 0.997638 | 0 | Float64 |
2 | b | 0.00327679 | -2.99593 | 0.032213 | 2.70878 | 0 | Float64 |
3 | c | 0.495518 | 0.00453002 | 0.494074 | 0.998762 | 0 | Float64 |
Geometric transforms
Please check the Meshes.jl documentation for an updated list of geometric transforms. As an example consider the rotation of geospatial data over a Cartesian grid:
# geospatial domain
Ω = georef((Z=rand(10, 10),))
# apply geometric transform

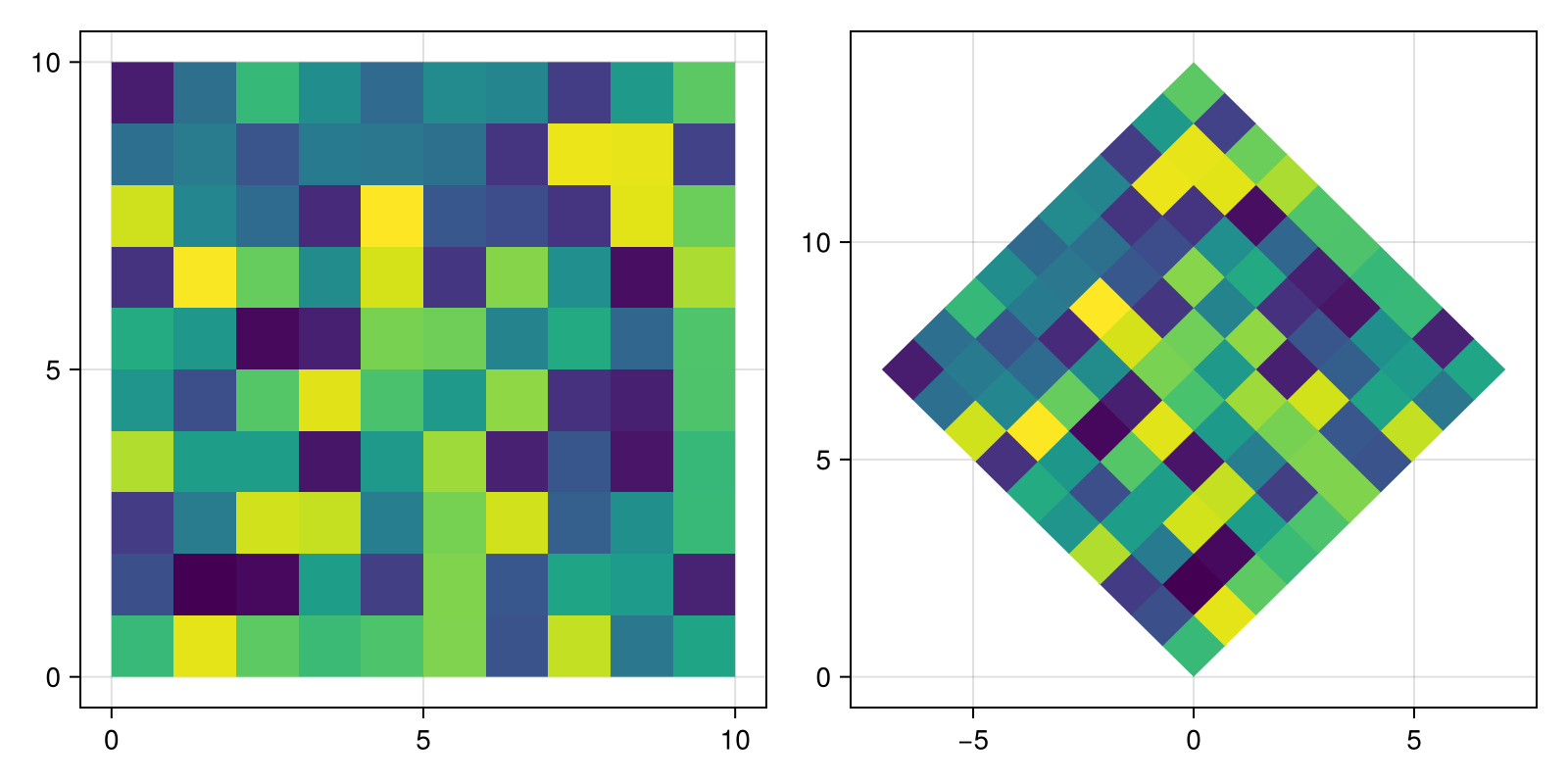

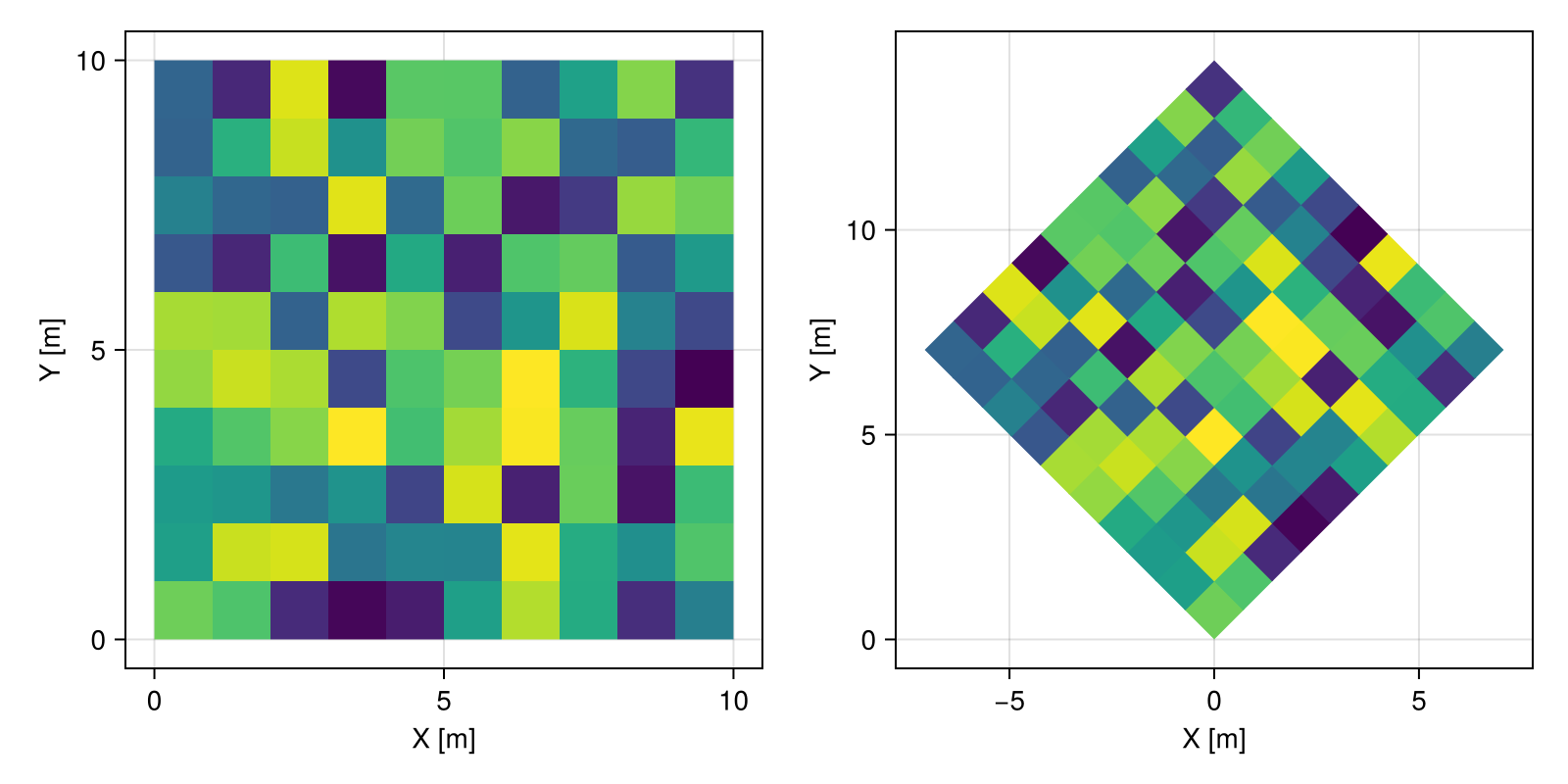

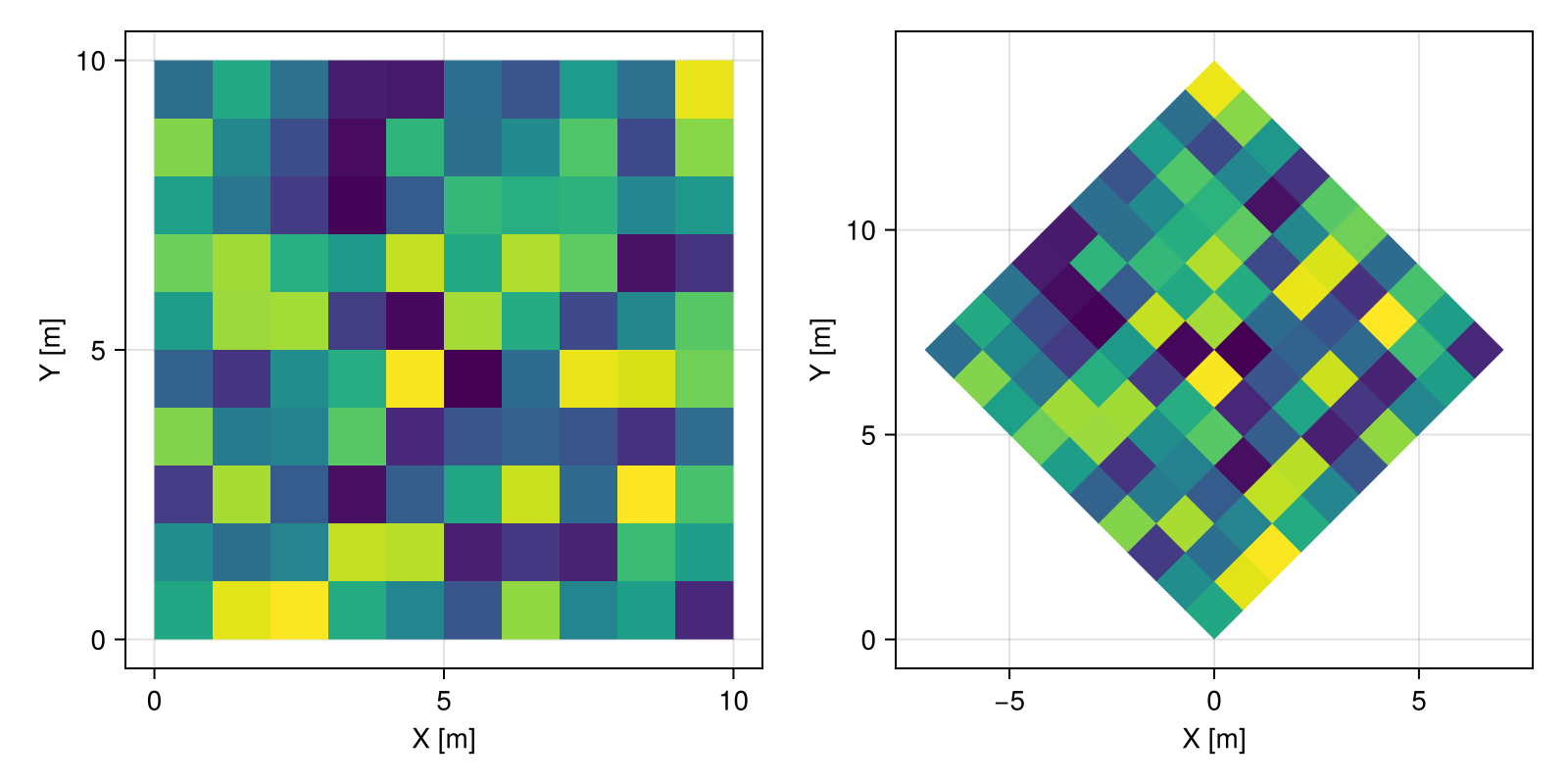

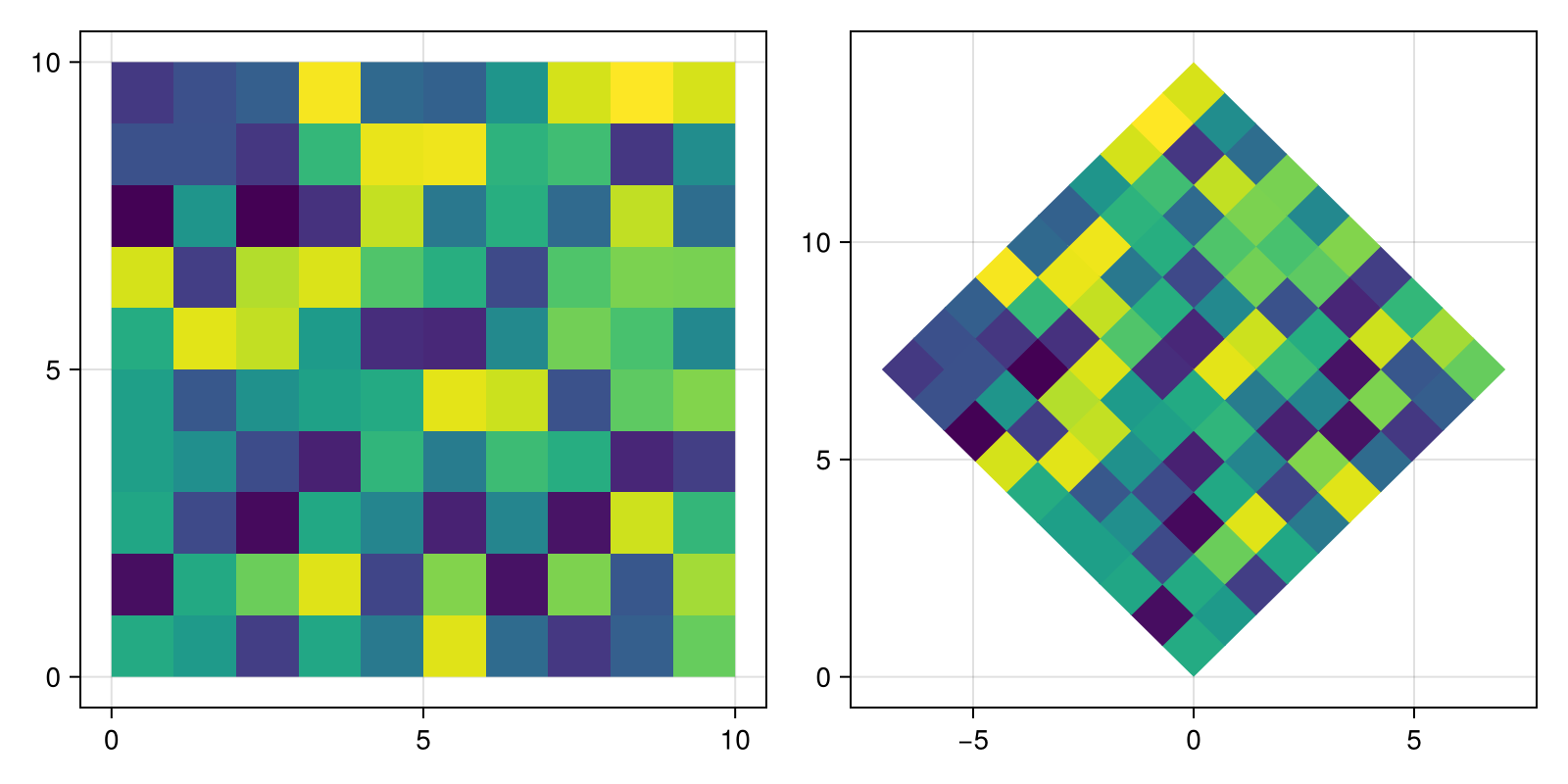

Ωr = Ω |> Rotate(π/4)
fig = Mke.Figure(size = (800, 400))
viz(fig[1,1], Ω.geometry, color = Ω.Z)
viz(fig[1,2], Ωr.geometry, color = Ωr.Z)
fig

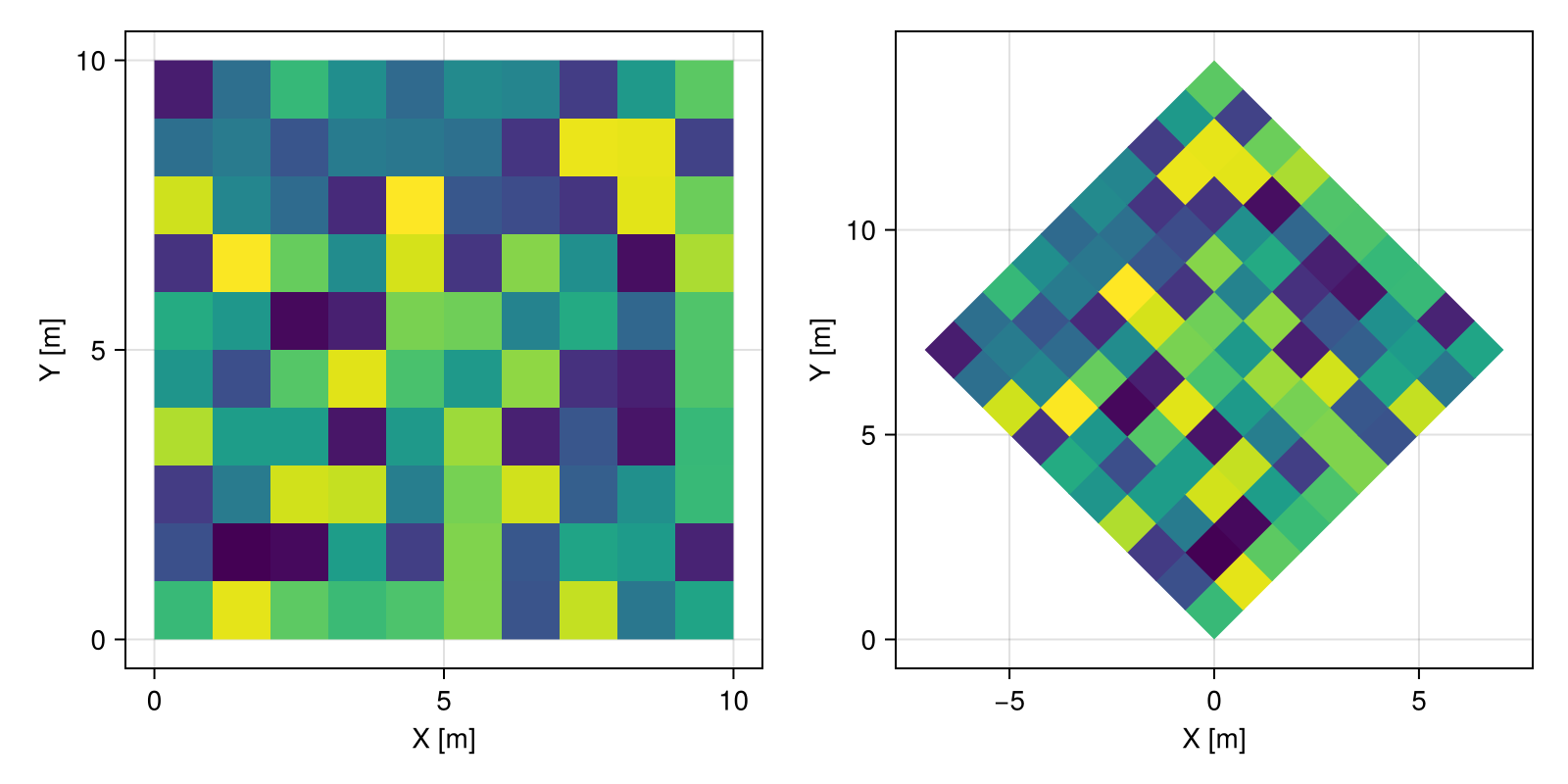

![Example block output](0d1bcf33.png)
Geostatistical transforms
Bellow is the current list of transforms that operate on both the geometries and features of geospatial data. They are implemented in the GeoStatsBase.jl package.
UniqueCoords
GeoStatsTransforms.UniqueCoords
— TypeUniqueCoords(var₁ => agg₁, var₂ => agg₂, ..., varₙ => aggₙ)
Retain locations in data with unique coordinates.
Duplicates of a variable varᵢ
are aggregated with aggregation function aggᵢ
. If an aggregation function is not defined for variable varᵢ
, the default aggregation function will be used. Default aggregation function is mean
for continuous variables and first
otherwise.
Examples
UniqueCoords(1 => last, 2 => maximum)
UniqueCoords(:a => first, :b => minimum)
UniqueCoords("a" => last, "b" => maximum)
# point set with repeated points
p = rand(Point, 50)
Ω = georef((Z=rand(100),), [p; p])
Z | geometry |
---|---|
Continuous | Point |
[NoUnits] | 🖈 Cartesian{NoDatum} |
0.478016 | (x: 0.815521 m, y: 0.434568 m, z: 0.703501 m) |
0.56295 | (x: 0.124533 m, y: 0.907696 m, z: 0.36937 m) |
0.352043 | (x: 0.792637 m, y: 0.821407 m, z: 0.975597 m) |
0.791411 | (x: 0.447635 m, y: 0.790791 m, z: 0.0183913 m) |
0.0595895 | (x: 0.0826312 m, y: 0.0798377 m, z: 0.525962 m) |
0.251043 | (x: 0.0487548 m, y: 0.980991 m, z: 0.739716 m) |
0.212703 | (x: 0.243145 m, y: 0.28123 m, z: 0.518337 m) |
0.327558 | (x: 0.47038 m, y: 0.735805 m, z: 0.733122 m) |
0.34889 | (x: 0.782202 m, y: 0.0962442 m, z: 0.0657916 m) |
0.714239 | (x: 0.241544 m, y: 0.881138 m, z: 0.878898 m) |
⋮ | ⋮ |
# discard repeated points
𝒰 = Ω |> UniqueCoords()
Z | geometry |
---|---|
Continuous | Point |
[NoUnits] | 🖈 Cartesian{NoDatum} |
0.536171 | (x: 0.815521 m, y: 0.434568 m, z: 0.703501 m) |
0.707335 | (x: 0.124533 m, y: 0.907696 m, z: 0.36937 m) |
0.437504 | (x: 0.792637 m, y: 0.821407 m, z: 0.975597 m) |
0.677722 | (x: 0.447635 m, y: 0.790791 m, z: 0.0183913 m) |
0.386083 | (x: 0.0826312 m, y: 0.0798377 m, z: 0.525962 m) |
0.205564 | (x: 0.0487548 m, y: 0.980991 m, z: 0.739716 m) |
0.28043 | (x: 0.243145 m, y: 0.28123 m, z: 0.518337 m) |
0.649145 | (x: 0.47038 m, y: 0.735805 m, z: 0.733122 m) |
0.360961 | (x: 0.782202 m, y: 0.0962442 m, z: 0.0657916 m) |
0.731694 | (x: 0.241544 m, y: 0.881138 m, z: 0.878898 m) |
⋮ | ⋮ |
Detrend
GeoStatsTransforms.Detrend
— TypeDetrend(col₁, col₂, ..., colₙ; degree=1)
Detrend([col₁, col₂, ..., colₙ]; degree=1)
Detrend((col₁, col₂, ..., colₙ); degree=1)
The transform that detrends columns col₁
, col₂
, ..., colₙ
with a polynomial of given degree
.
Detrend(regex; degree=1)
Detrends the columns that match with regex
.
Examples
Detrend(1, 3, 5)
Detrend([:a, :c, :e])
Detrend(("a", "c", "e"))
Detrend(r"[ace]", degree=2)
Detrend(:)
References
- Menafoglio, A., Secchi, P. 2013. A Universal Kriging predictor for spatially dependent functional data of a Hilbert Space
# quadratic trend + random noise
r = range(-1, stop=1, length=100)
μ = [x^2 + y^2 for x in r, y in r]
ϵ = 0.1rand(100, 100)
Ω = georef((Z=μ+ϵ,))
# detrend and obtain noise component

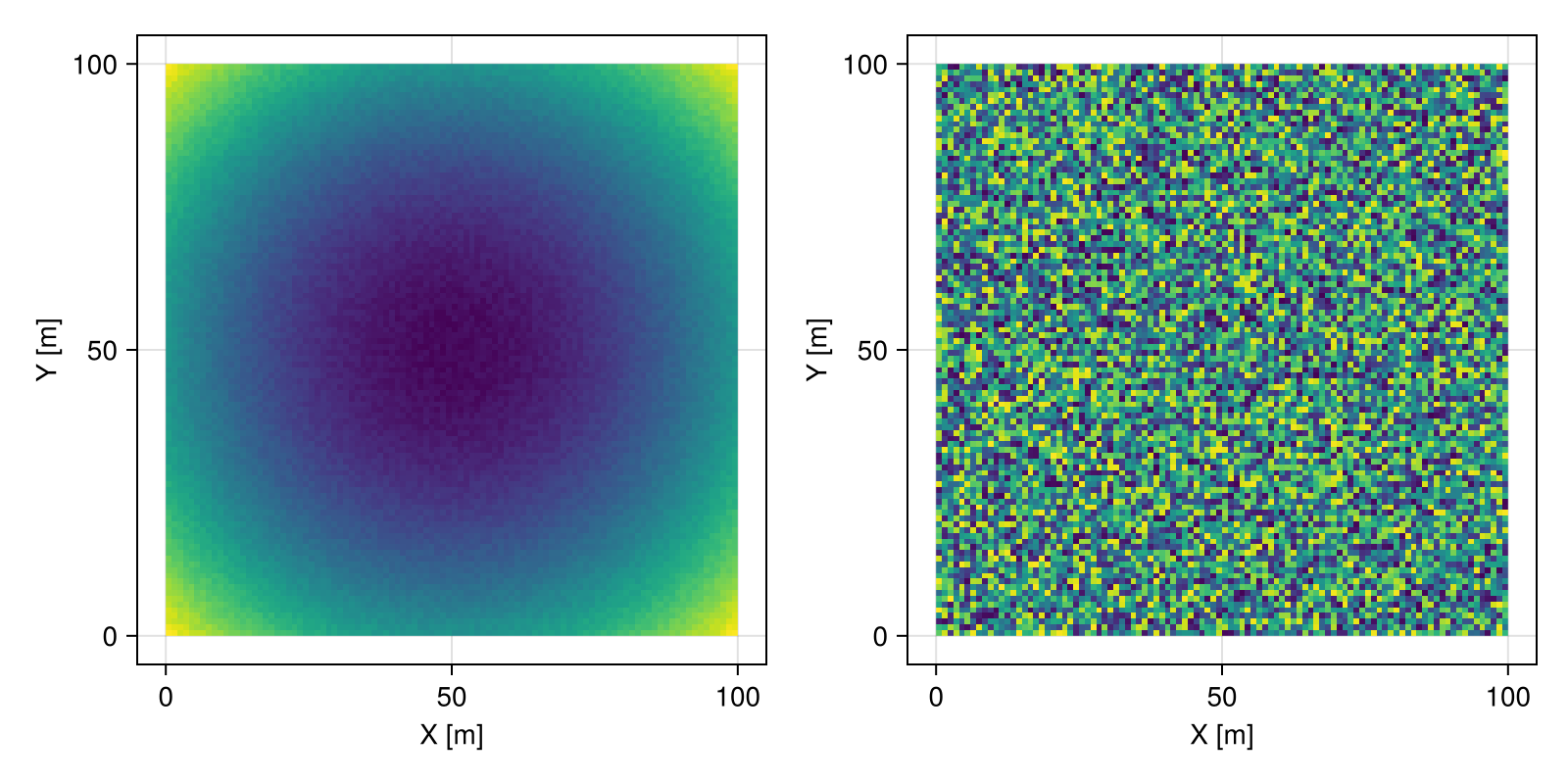

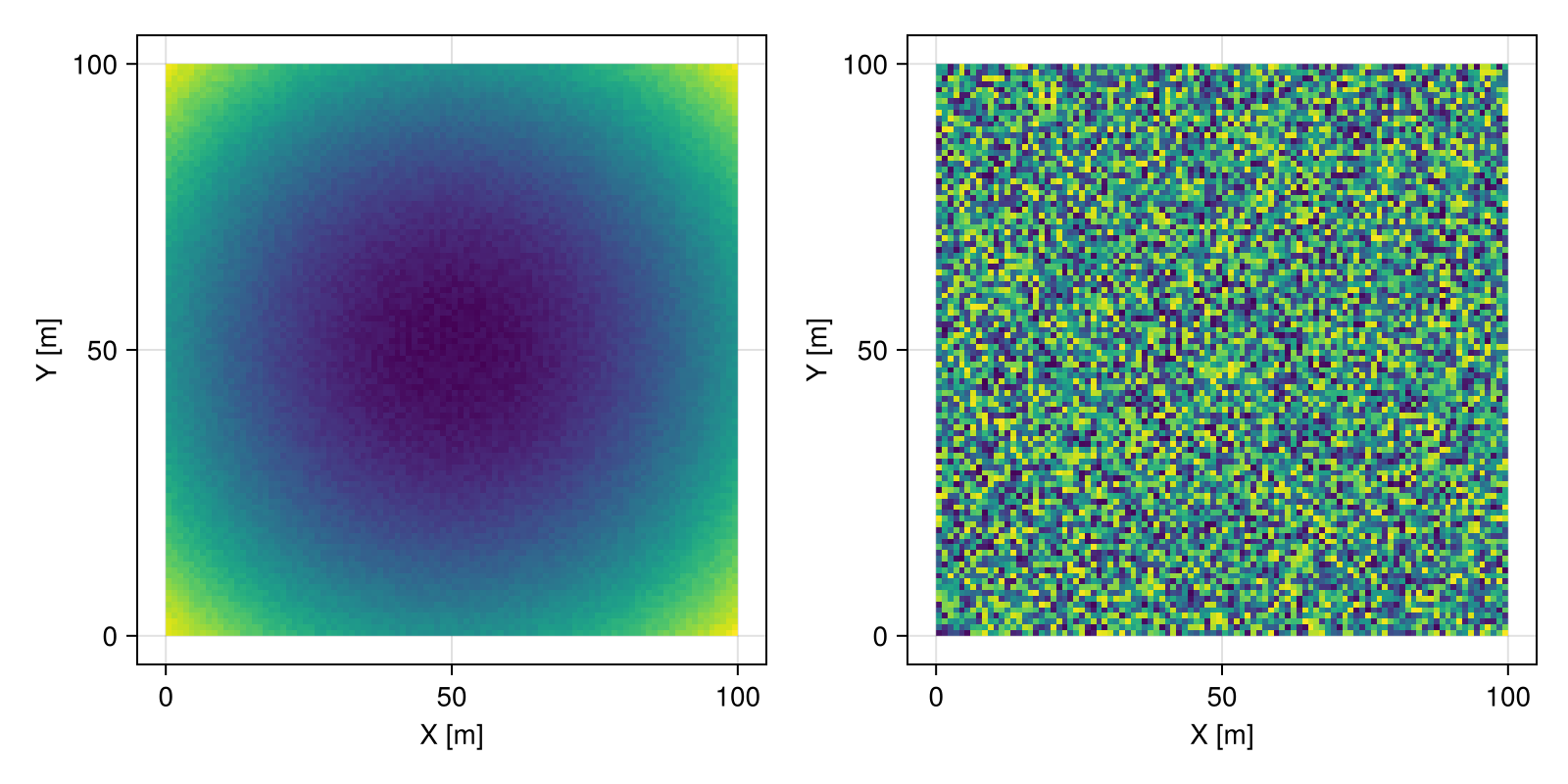

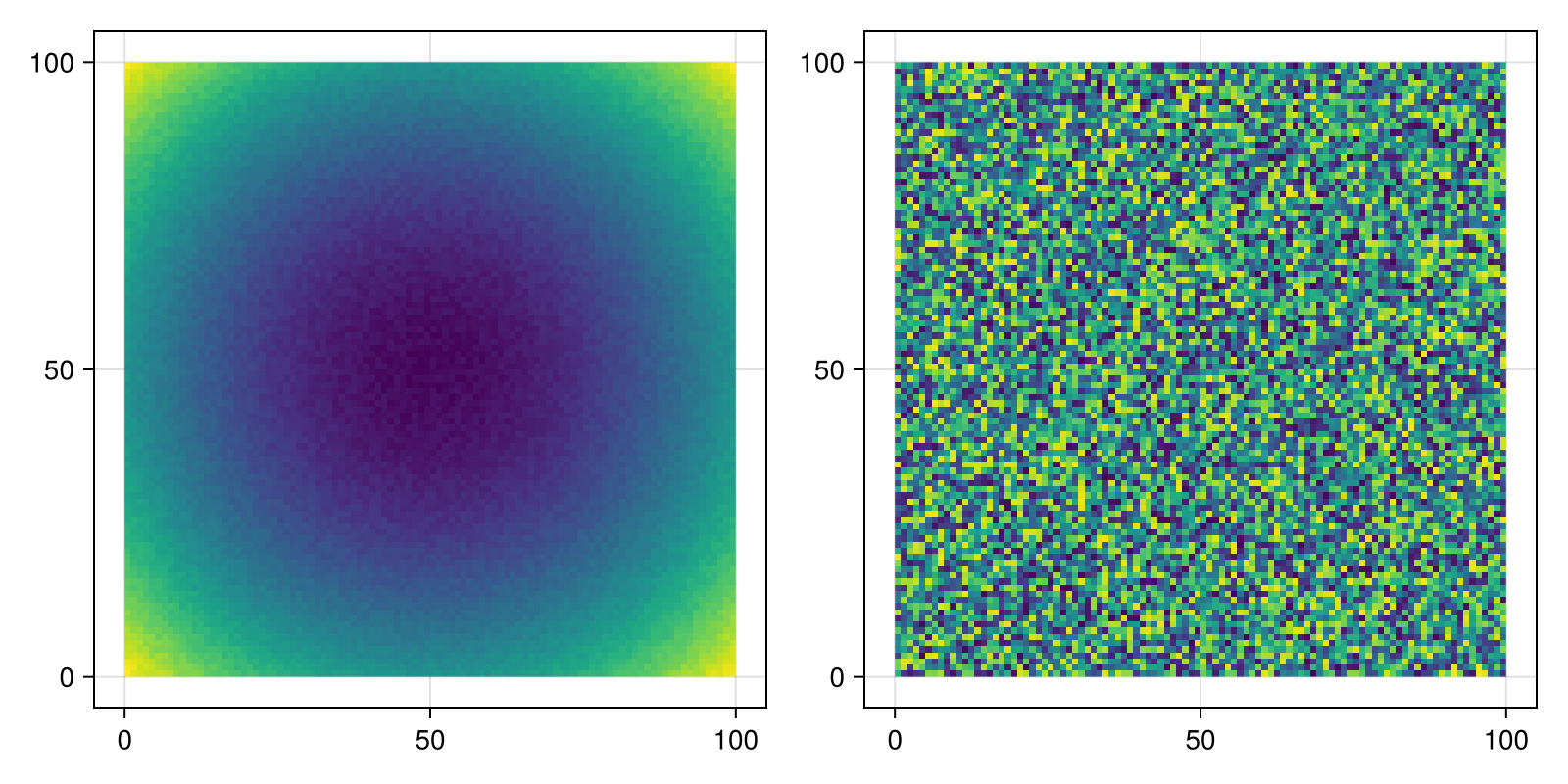

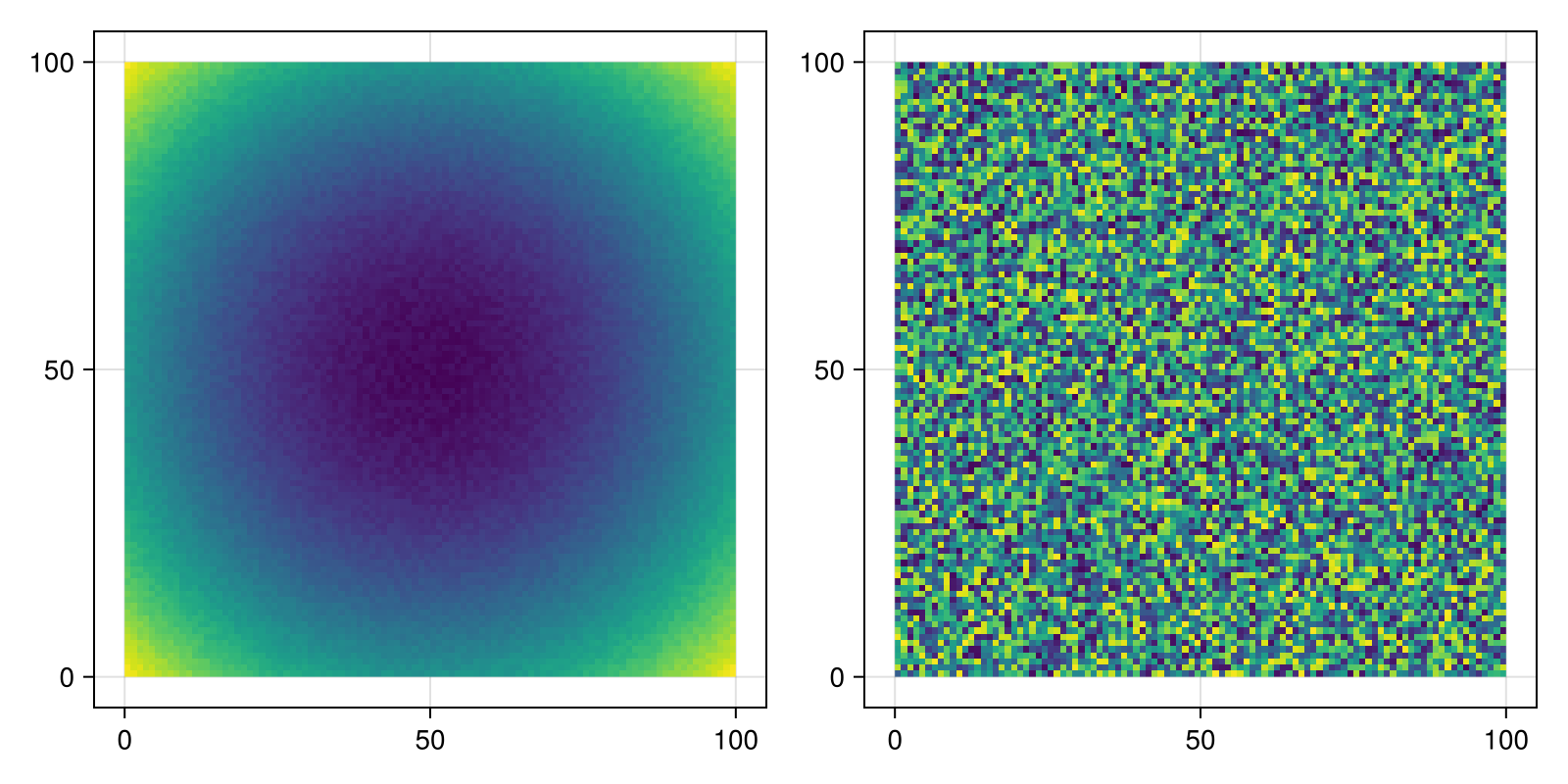

𝒩 = Ω |> Detrend(:Z, degree=2)
fig = Mke.Figure(size = (800, 400))
viz(fig[1,1], Ω.geometry, color = Ω.Z)
viz(fig[1,2], 𝒩.geometry, color = 𝒩.Z)
fig

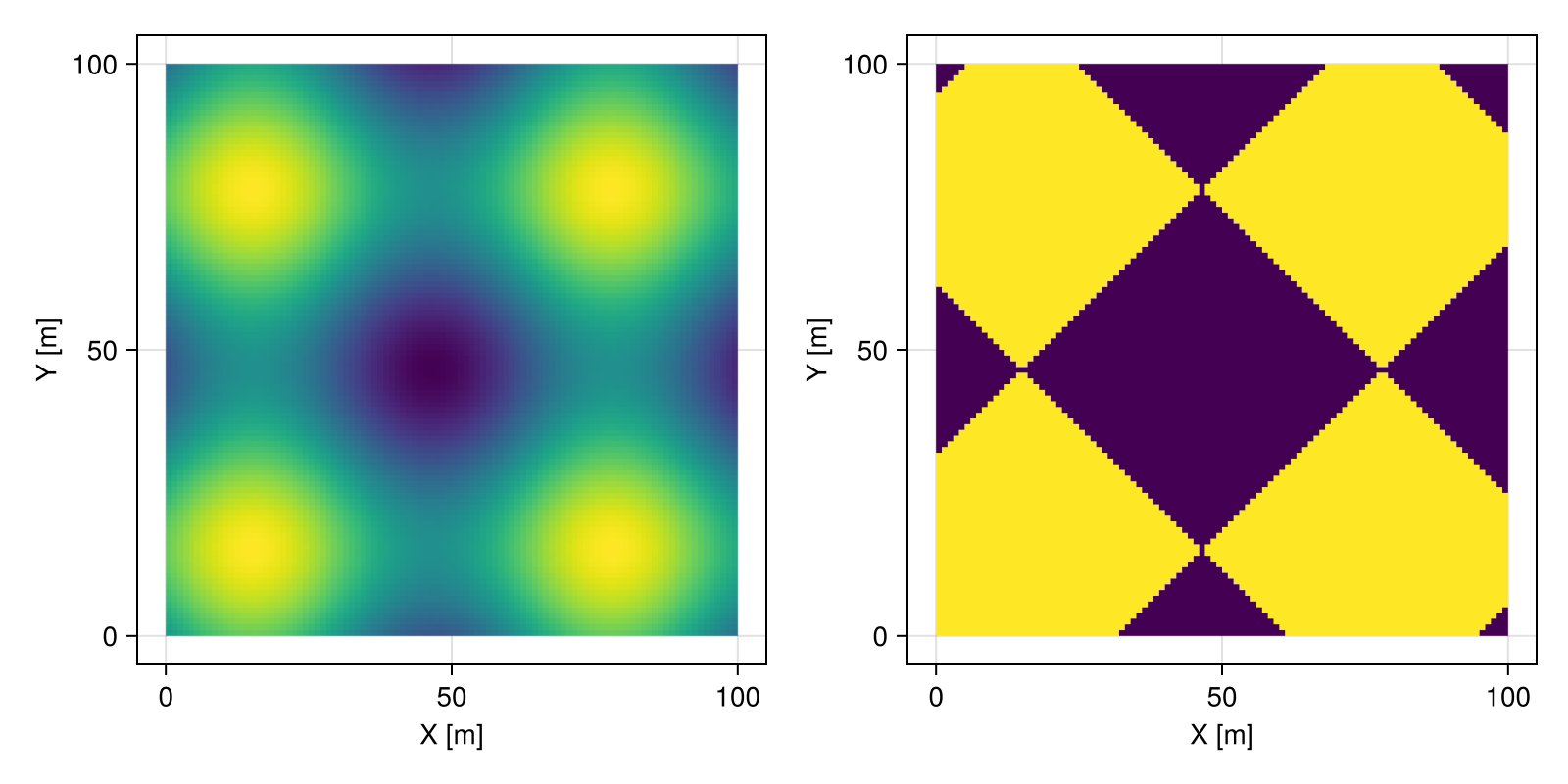

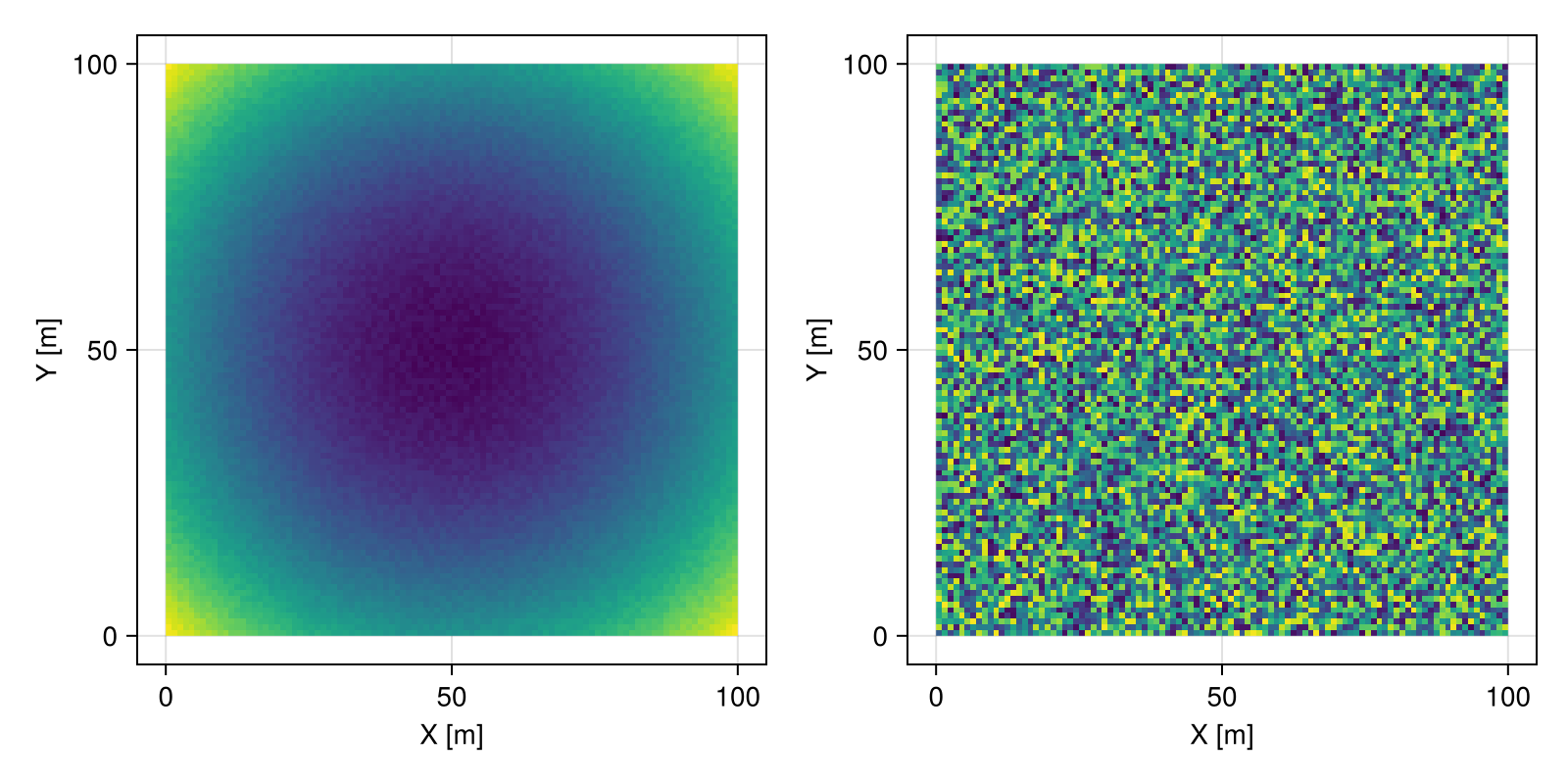

![Example block output](a3c8ca2c.png)
Potrace
GeoStatsTransforms.Potrace
— TypePotrace(mask; [ϵ])
Potrace(mask, var₁ => agg₁, ..., varₙ => aggₙ; [ϵ])
Trace polygons on 2D image data with Selinger's Potrace algorithm.
The categories stored in column mask
are converted into binary masks, which are then traced into multi-polygons. When provided, the option ϵ
is forwarded to Selinger's simplification algorithm.
Duplicates of a variable varᵢ
are aggregated with aggregation function aggᵢ
. If an aggregation function is not defined for variable varᵢ
, the default aggregation function will be used. Default aggregation function is mean
for continuous variables and first
otherwise.
Examples
Potrace(:mask, ϵ=0.1)
Potrace(1, 1 => last, 2 => maximum)
Potrace(:mask, :a => first, :b => minimum)
Potrace("mask", "a" => last, "b" => maximum)
References
- Selinger, P. 2003. Potrace: A polygon-based tracing algorithm
# continuous feature
Z = [sin(i/10) + sin(j/10) for i in 1:100, j in 1:100]
# binary mask
M = Z .> 0
# georeference data
Ω = georef((Z=Z, M=M))
# trace polygons using mask
𝒯 = Ω |> Potrace(:M)
fig = Mke.Figure(size = (800, 400))
viz(fig[1,1], Ω.geometry, color = Ω.Z)
viz(fig[1,2], 𝒯.geometry, color = 𝒯.Z)
fig

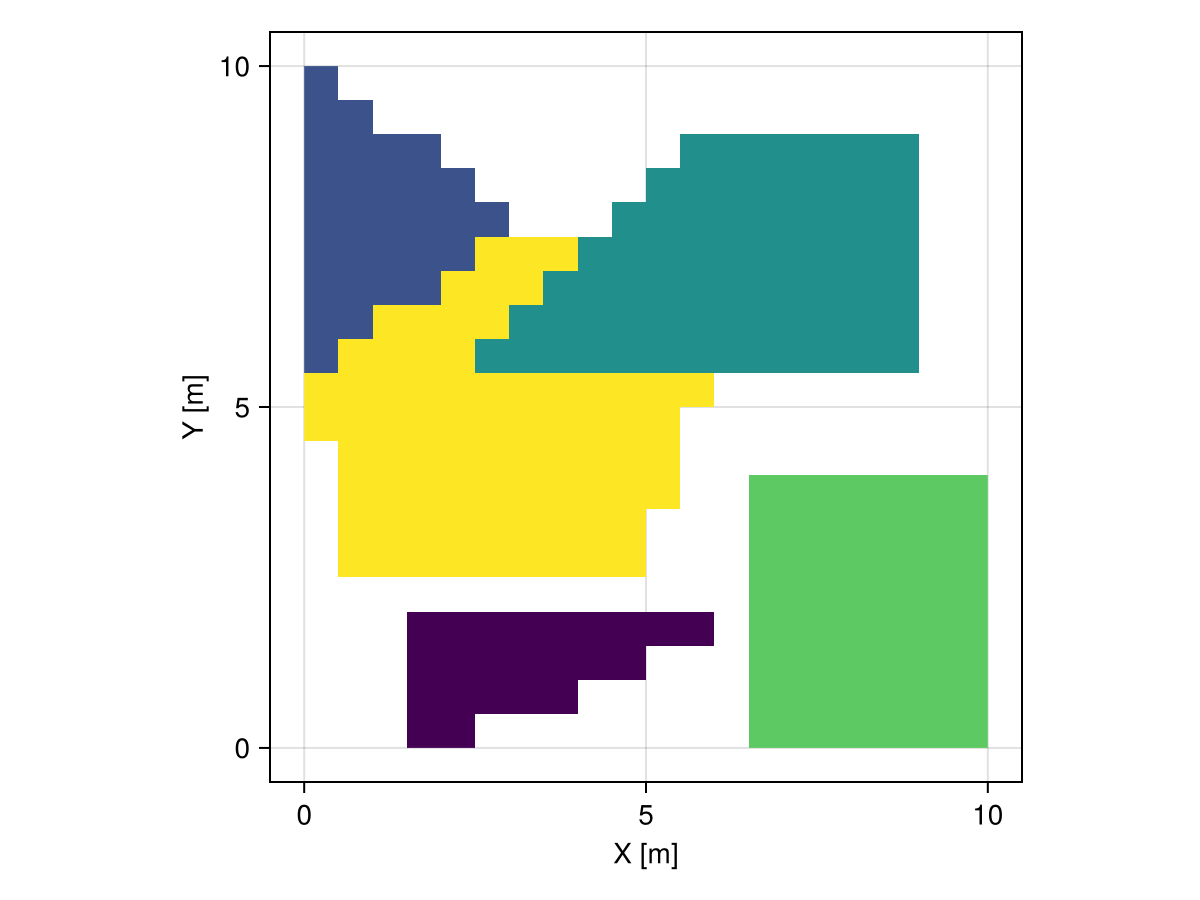

![Example block output](67465ef7.png)
𝒯.geometry
2 GeometrySet
├─ Multi(4×PolyArea)
└─ Multi(4×PolyArea)
Rasterize
GeoStatsTransforms.Rasterize
— TypeRasterize(grid)
Rasterize(grid, var₁ => agg₁, ..., varₙ => aggₙ)
Rasterize geometries within specified grid
.
Rasterize(nx, ny)
Rasterize(nx, ny, var₁ => agg₁, ..., varₙ => aggₙ)
Alternatively, use the grid with size nx
by ny
obtained with discretization of the bounding box.
Duplicates of a variable varᵢ
are aggregated with aggregation function aggᵢ
. If an aggregation function is not defined for variable varᵢ
, the default aggregation function will be used. Default aggregation function is mean
for continuous variables and first
otherwise.
Examples
grid = CartesianGrid(10, 10)
Rasterize(grid)
Rasterize(10, 10)
Rasterize(grid, 1 => last, 2 => maximum)
Rasterize(10, 10, 1 => last, 2 => maximum)
Rasterize(grid, :a => first, :b => minimum)
Rasterize(10, 10, :a => first, :b => minimum)
Rasterize(grid, "a" => last, "b" => maximum)
Rasterize(10, 10, "a" => last, "b" => maximum)
A = [1, 2, 3, 4, 5]
B = [1.1, 2.2, 3.3, 4.4, 5.5]
p1 = PolyArea((2, 0), (6, 2), (2, 2))
p2 = PolyArea((0, 6), (3, 8), (0, 10))
p3 = PolyArea((3, 6), (9, 6), (9, 9), (6, 9))
p4 = PolyArea((7, 0), (10, 0), (10, 4), (7, 4))
p5 = PolyArea((1, 3), (5, 3), (6, 6), (3, 8), (0, 6))
gt = georef((; A, B), [p1, p2, p3, p4, p5])
nt = gt |> Rasterize(20, 20)
viz(nt.geometry, color = nt.A)
![Example block output](41906f80.png)
