Variograms

Empirical variograms

Variograms are widely used in geostatistics due to their intimate connection with (co)variance and visual interpretability. The following video explains the concept in detail:

The Matheron's estimator of the empirical variogram is given by

\[\widehat{\gamma_M}(h) = \frac{1}{2|N(h)|} \sum_{(i,j) \in N(h)} (z_i - z_j)^2\]

where $N(h) = \left\{(i,j) \mid ||\p_i - \p_j|| = h\right\}$ is the set of pairs of locations at a distance $h$ and $|N(h)|$ is the cardinality of the set. Alternatively, the robust Cressie's estimator is given by

\[\widehat{\gamma_C}(h) = \frac{1}{2}\frac{\left\{\frac{1}{|N(h)|} \sum_{(i,j) \in N(h)} |z_i - z_j|^{1/2}\right\}^4}{0.457 + \frac{0.494}{|N(h)|} + \frac{0.045}{|N(h)|^2}}\]

Both estimators are available and can be used with general distance functions in order to for example:

Model anisotropy (e.g. ellipsoid distance)
Perform simulation on sphere (e.g. haversine distance)

Please see Distances.jl for a complete list of distance functions.

The high-performance estimation procedure implemented in the framework can consider all pairs of locations regardless of direction (ominidirectional) or a specified partition of the geospatial data (e.g. directional, planar).

(Omini)directional variograms

GeoStatsFunctions.EmpiricalVariogram — Type

EmpiricalVariogram(data, var₁, var₂=var₁; [options])

Computes the empirical (a.k.a. experimental) omnidirectional (cross-)variogram for variables var₁ and var₂ stored in geospatial data.

Options

nlags - number of lags (default to 20)
maxlag - maximum lag in length units (default to 1/2 of minimum side of bounding box)
distance - custom distance function (default to Euclidean distance)
estimator - variogram estimator (default to :matheron estimator)
algorithm - accumulation algorithm (default to :ball)

Available estimators:

:matheron - simple estimator based on squared differences
:cressie - robust estimator based on 4th power of differences

Available algorithms:

:full - loop over all pairs of points in the data
:ball - loop over all points inside maximum lag ball

All implemented algorithms produce the exact same result. The :ball algorithm is considerably faster when the maximum lag is much smaller than the bounding box of the domain of the data.

References

Chilès, JP and Delfiner, P. 2012. Geostatistics: Modeling Spatial Uncertainty
Webster, R and Oliver, MA. 2007. Geostatistics for Environmental Scientists
Hoffimann, J and Zadrozny, B. 2019. Efficient variography with partition variograms

source

GeoStatsFunctions.DirectionalVariogram — Function

DirectionalVariogram(direction, data, var₁, var₂=var₁; dtol=1e-6u"m", [options])

Computes the empirical (cross-)variogram for the variables var₁ and var₂ stored in geospatial data along a given direction with band tolerance dtol in length units.

Forwards options to the underlying EmpiricalVariogram.

source

GeoStatsFunctions.PlanarVariogram — Function

PlanarVariogram(normal, data, var₁, var₂=var₁; ntol=1e-6u"m", [options])

Computes the empirical (cross-)variogram for the variables var₁ and var₂ stored in geospatial data along a plane perpendicular to a normal direction with plane tolerance ntol in length units.

Forwards options to the underlying EmpiricalVariogram.

source

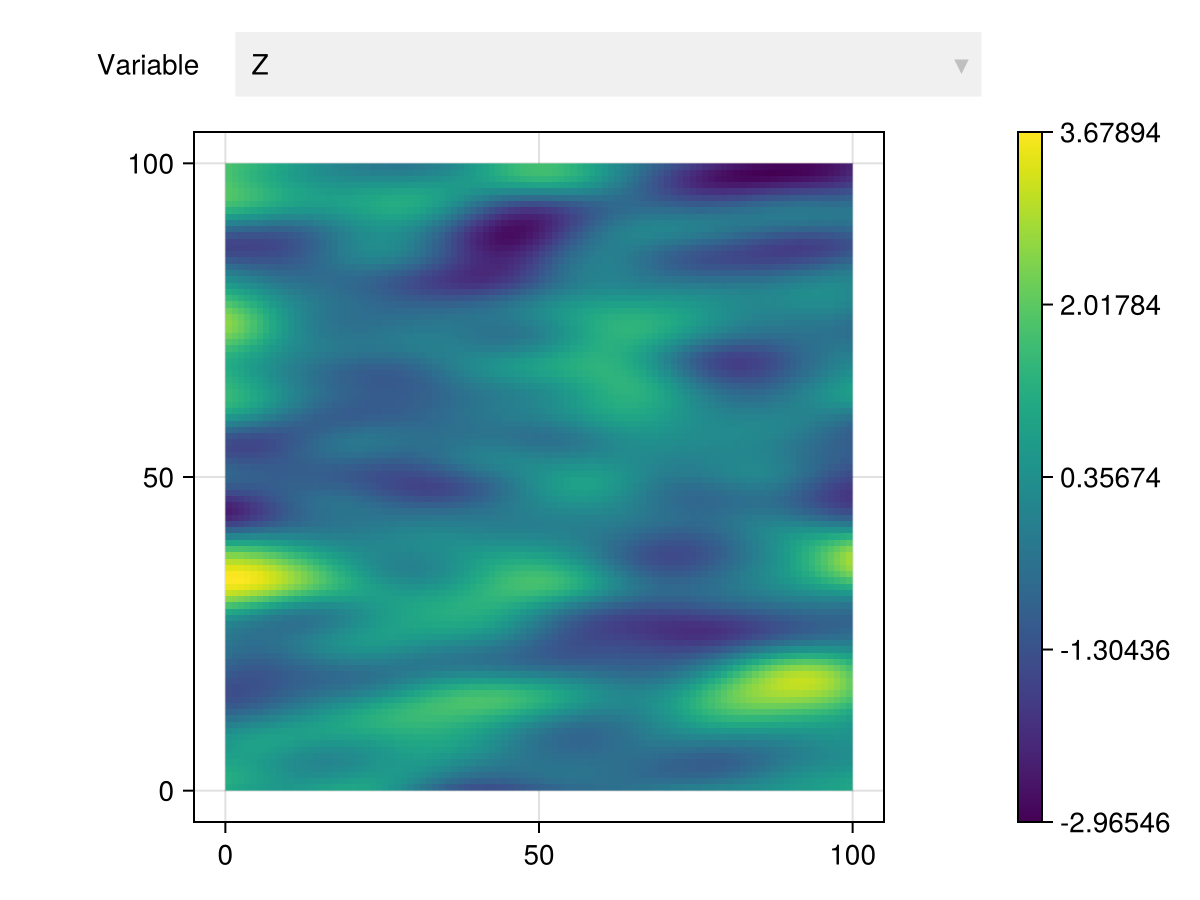

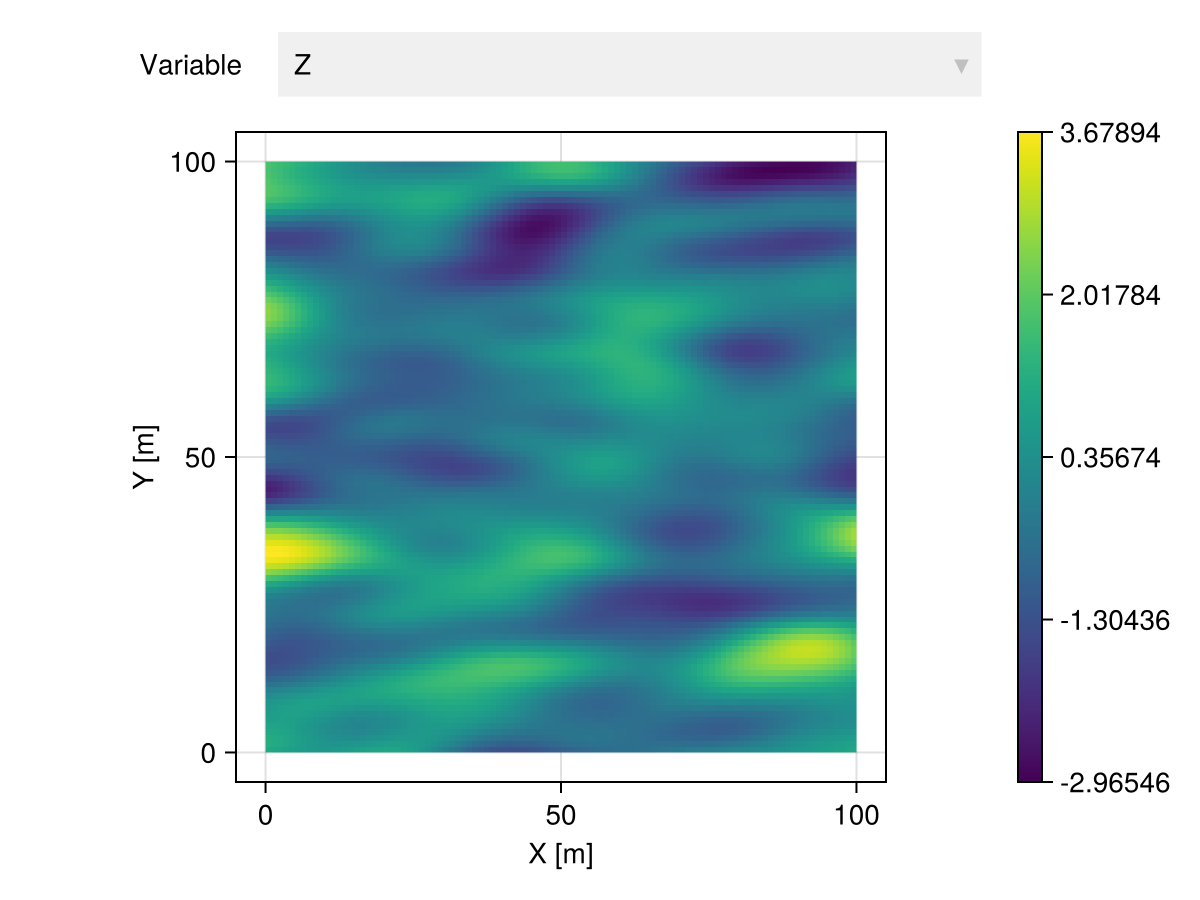

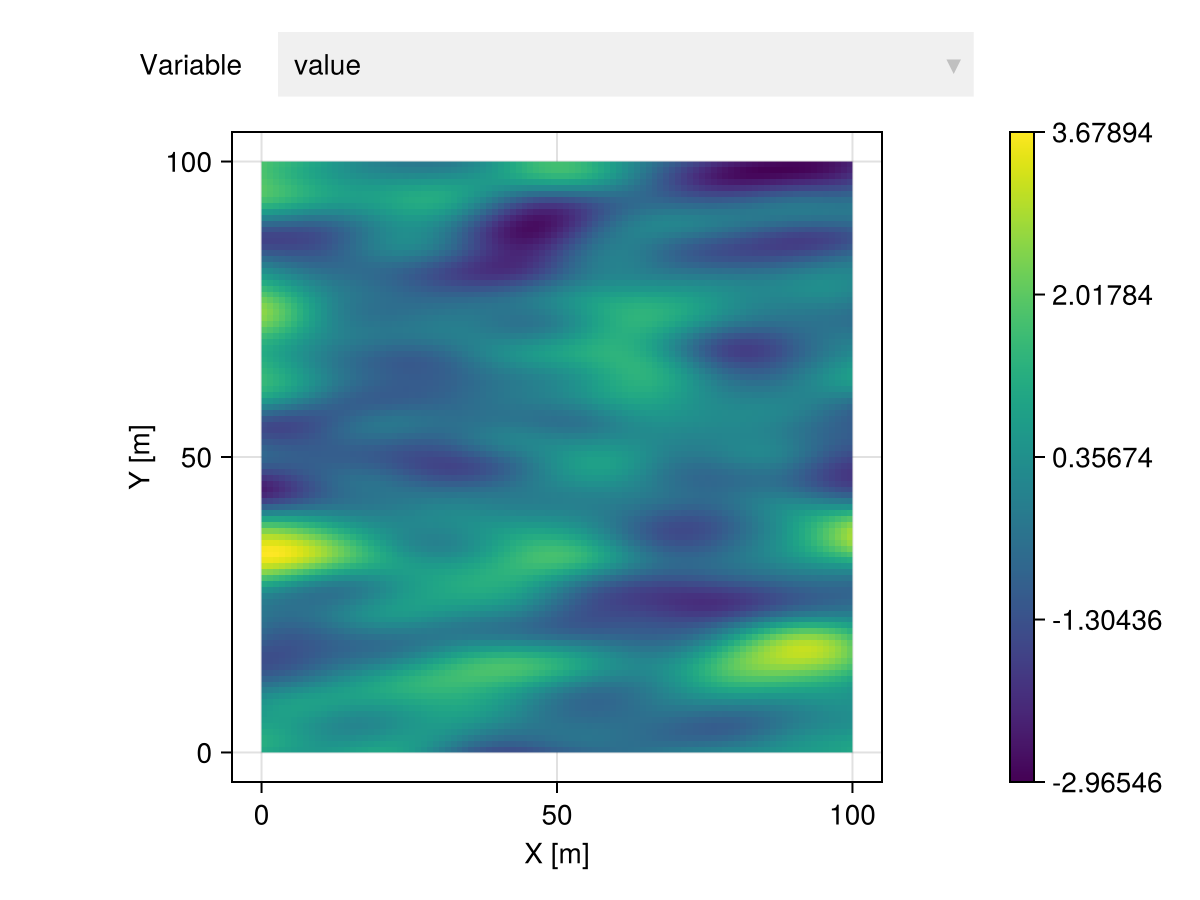

Consider the following example image:

using GeoStatsImages

img = geostatsimage("Gaussian30x10")

img |> viewer

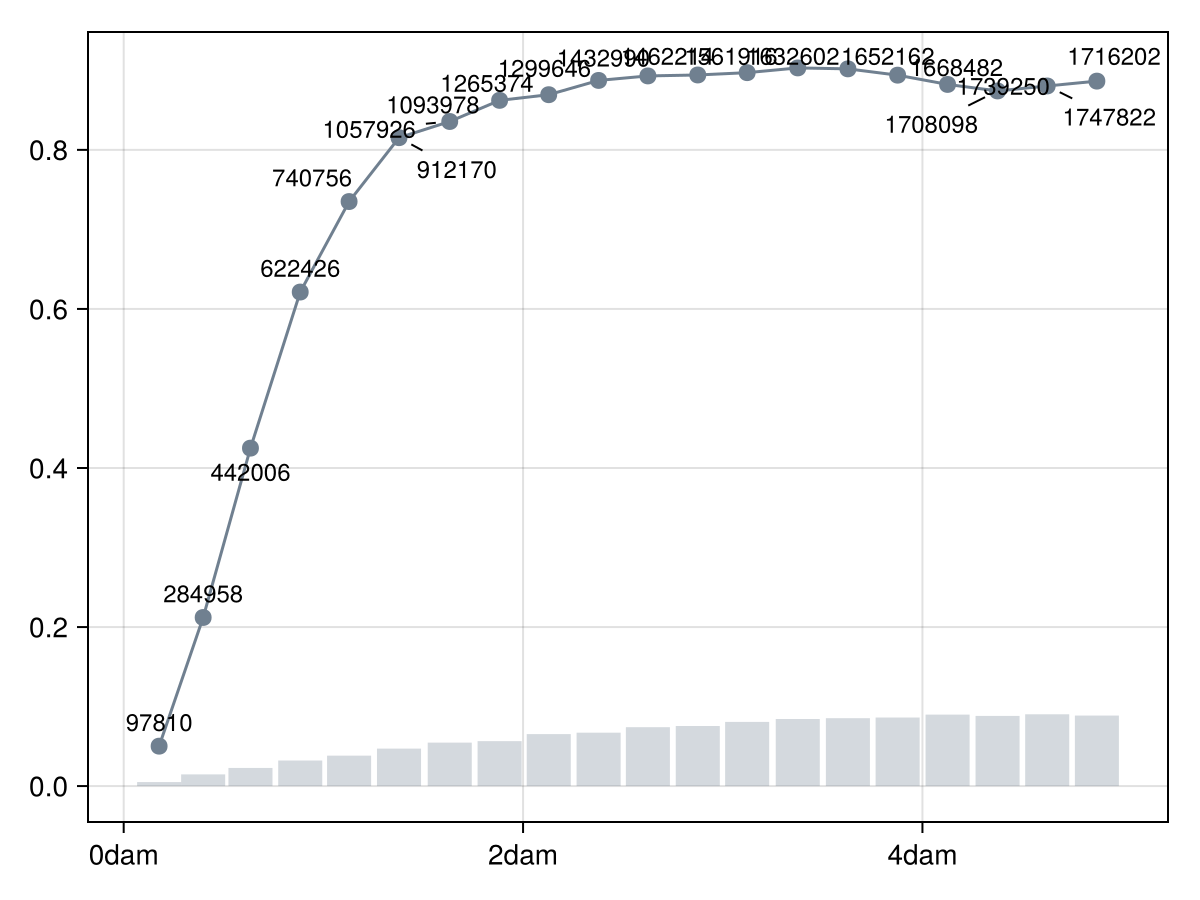

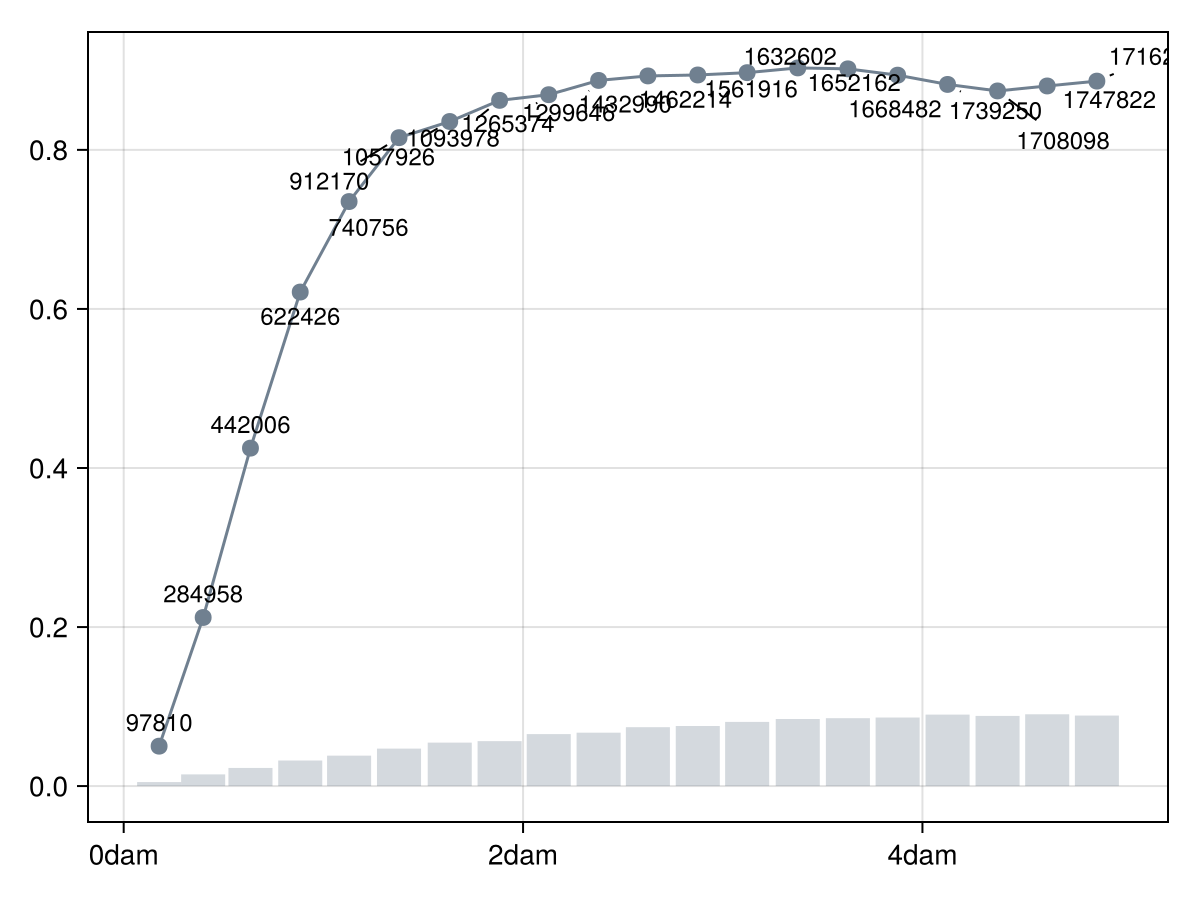

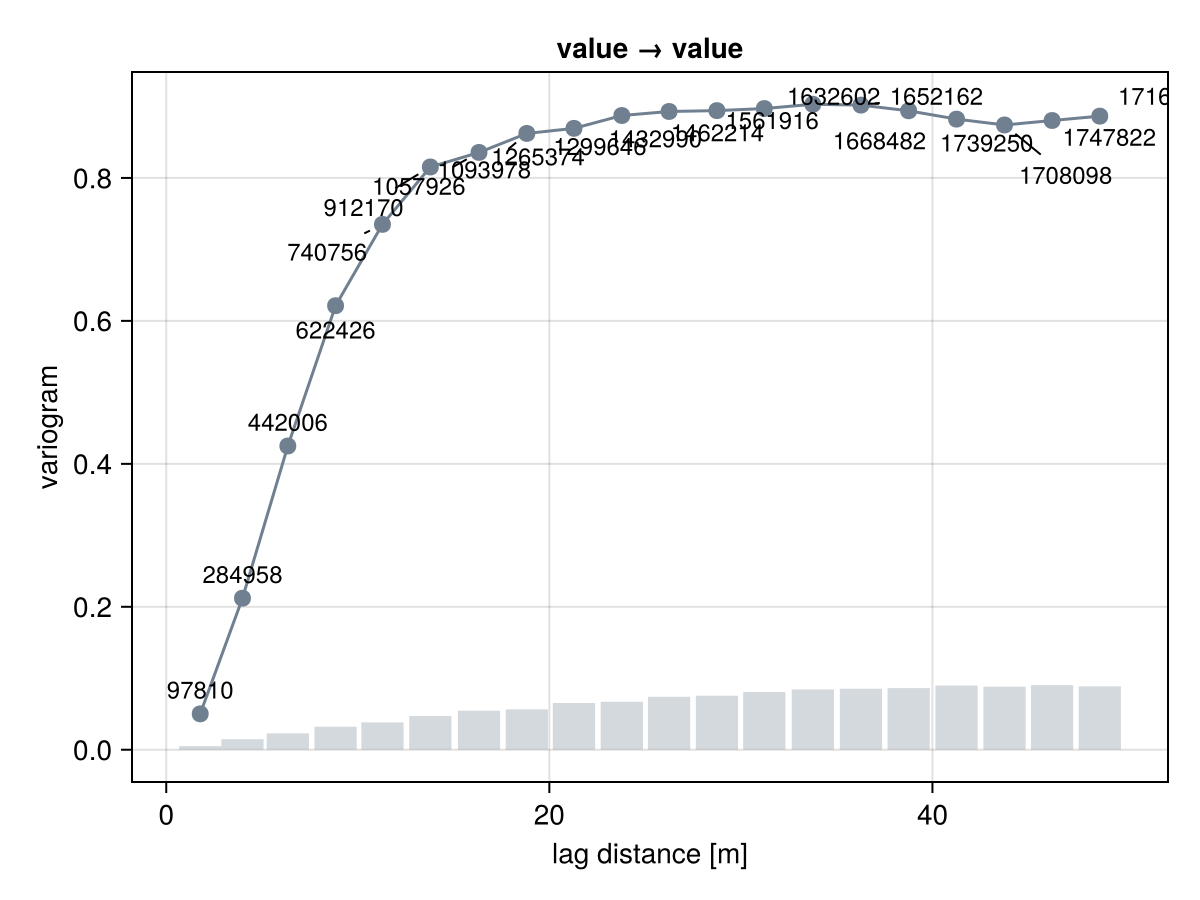

We can estimate ominidirectional variograms, which consider pairs of points along all directions:

γ = EmpiricalVariogram(img, :Z, maxlag = 50.)

funplot(γ)

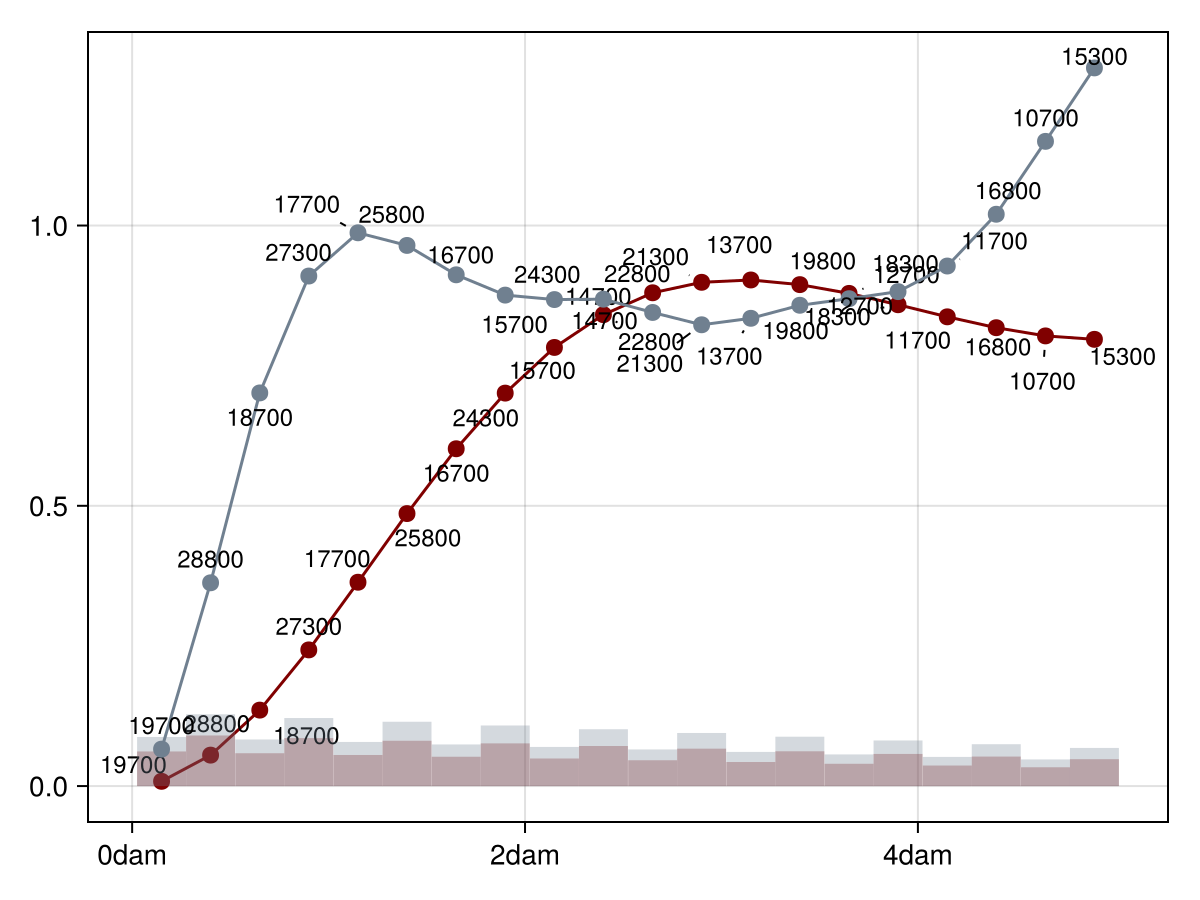

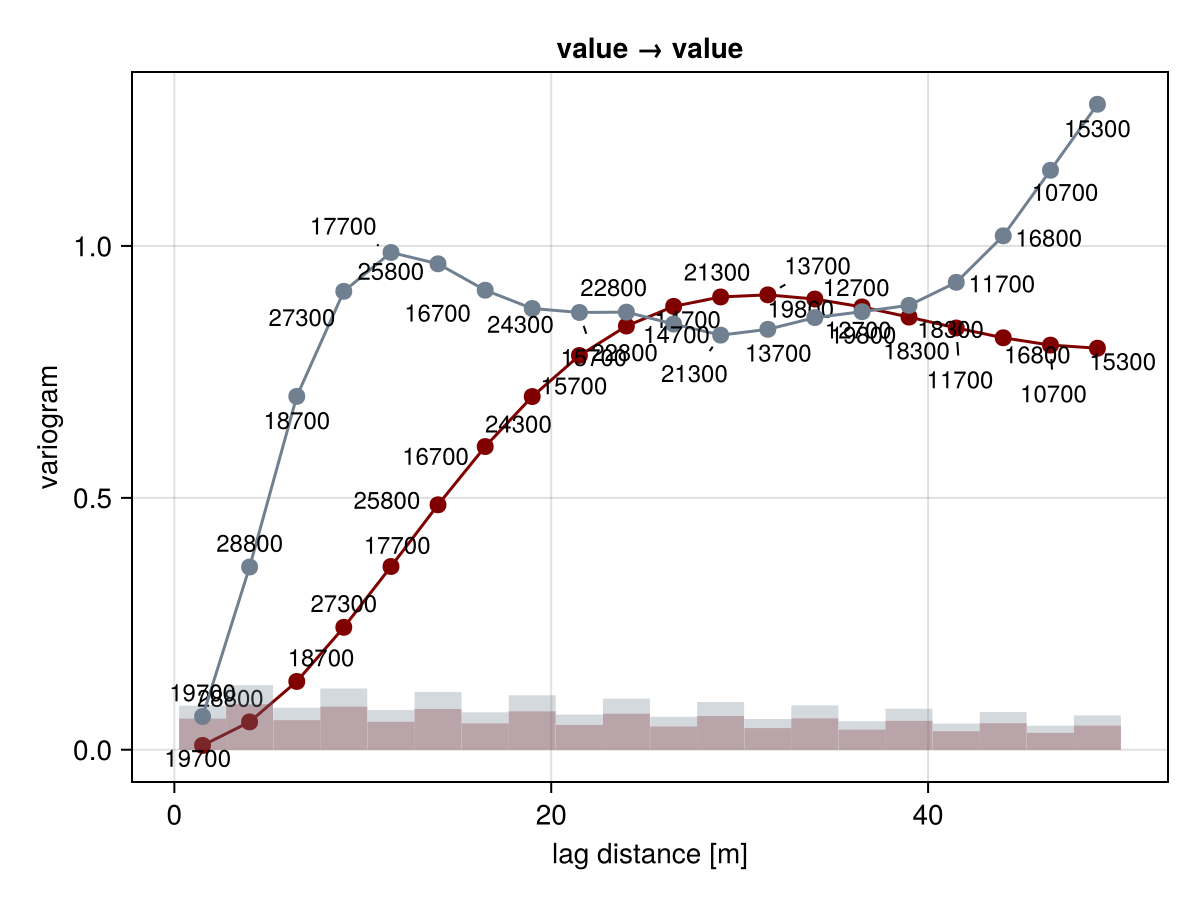

directional variograms along a specific direction:

γₕ = DirectionalVariogram((1.,0.), img, :Z, maxlag = 50.)
γᵥ = DirectionalVariogram((0.,1.), img, :Z, maxlag = 50.)

fig = funplot(γₕ, color = :maroon, histcolor = :maroon)
funplot!(fig, γᵥ)

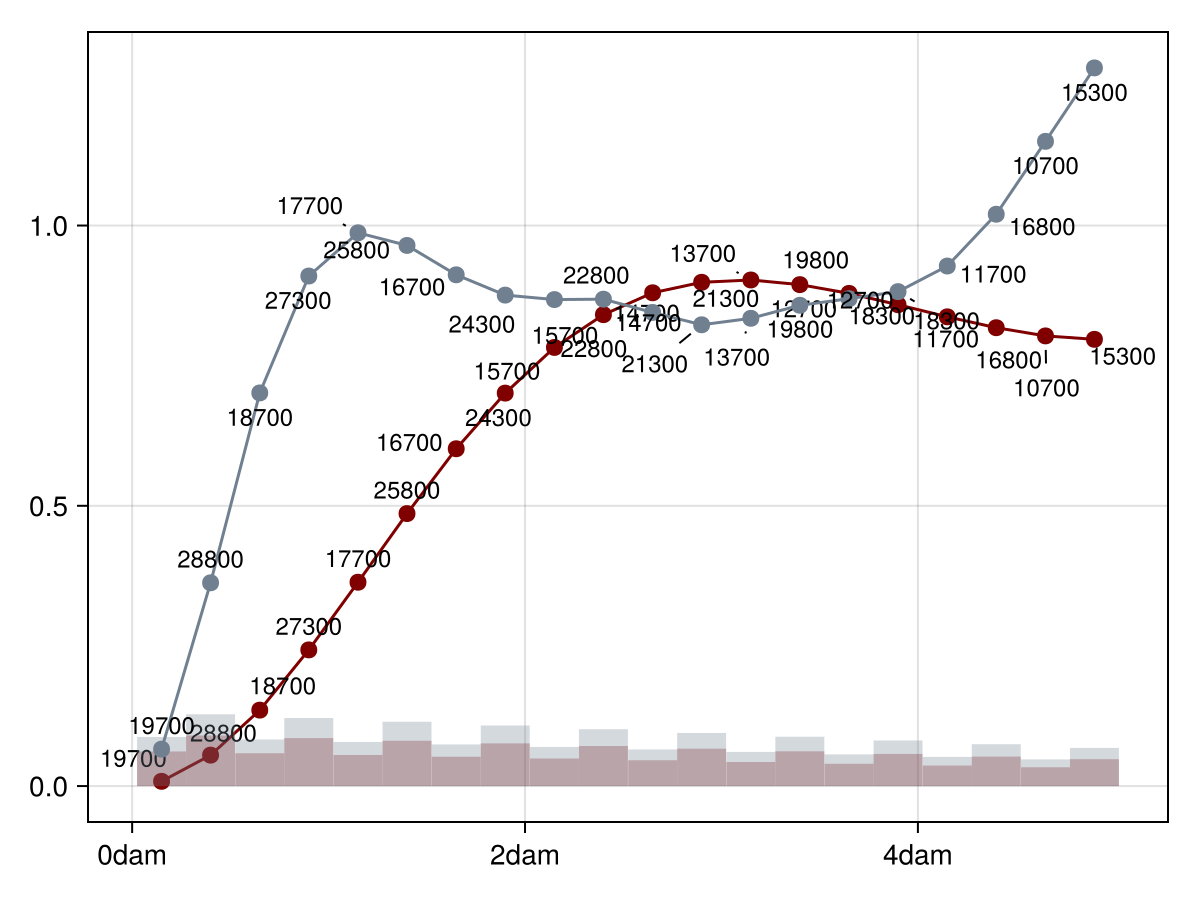

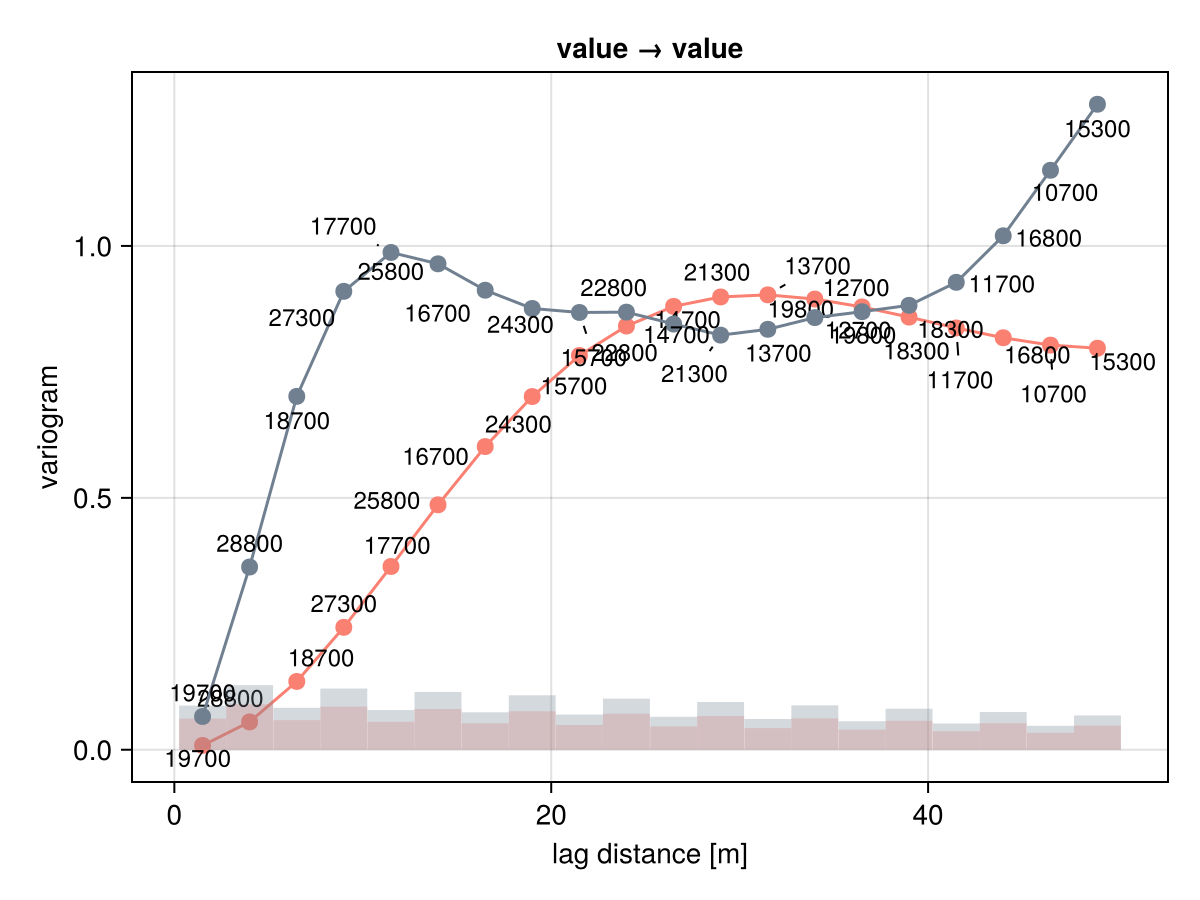

or planar variograms over a specific plane:

γᵥ = PlanarVariogram((1.,0.), img, :Z, maxlag = 50.)
γₕ = PlanarVariogram((0.,1.), img, :Z, maxlag = 50.)

fig = funplot(γₕ, color = :maroon, histcolor = :maroon)
funplot!(fig, γᵥ)

Note

The directional and planar variograms coincide in this example because planes are equal to lines in 2-dimensional space. These concepts are most useful in 3-dimensional space where we may be interested in comparing the horizontal planar range to the vertical directional range.

Empirical surfaces

GeoStatsFunctions.EmpiricalVariogramSurface — Type

EmpiricalVariogramSurface(data, var₁, var₂=var₁;
                          normal=Vec(0,0,1), nangs=50,
                          ptol=0.5u"m", dtol=0.5u"m",
                          [options])

Given a normal direction, estimate the (cross-)variogram of variables var₁ and var₂ along all directions in the corresponding plane of variation.

Optionally, specify the tolerance ptol in length units for the plane partition, the tolerance dtol in length units for the direction partition, the number of angles nangs in the plane, and forward the options to the underlying EmpiricalVariogram.

source

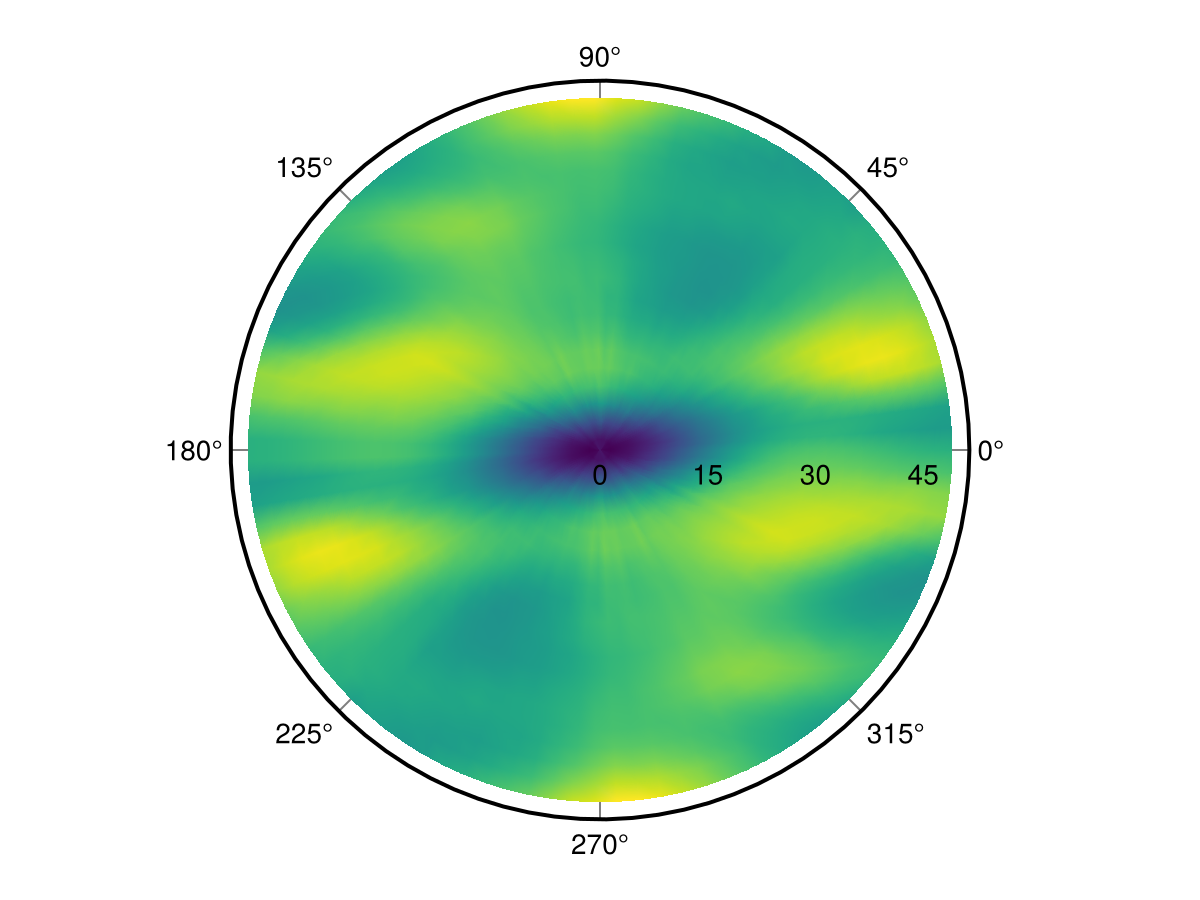

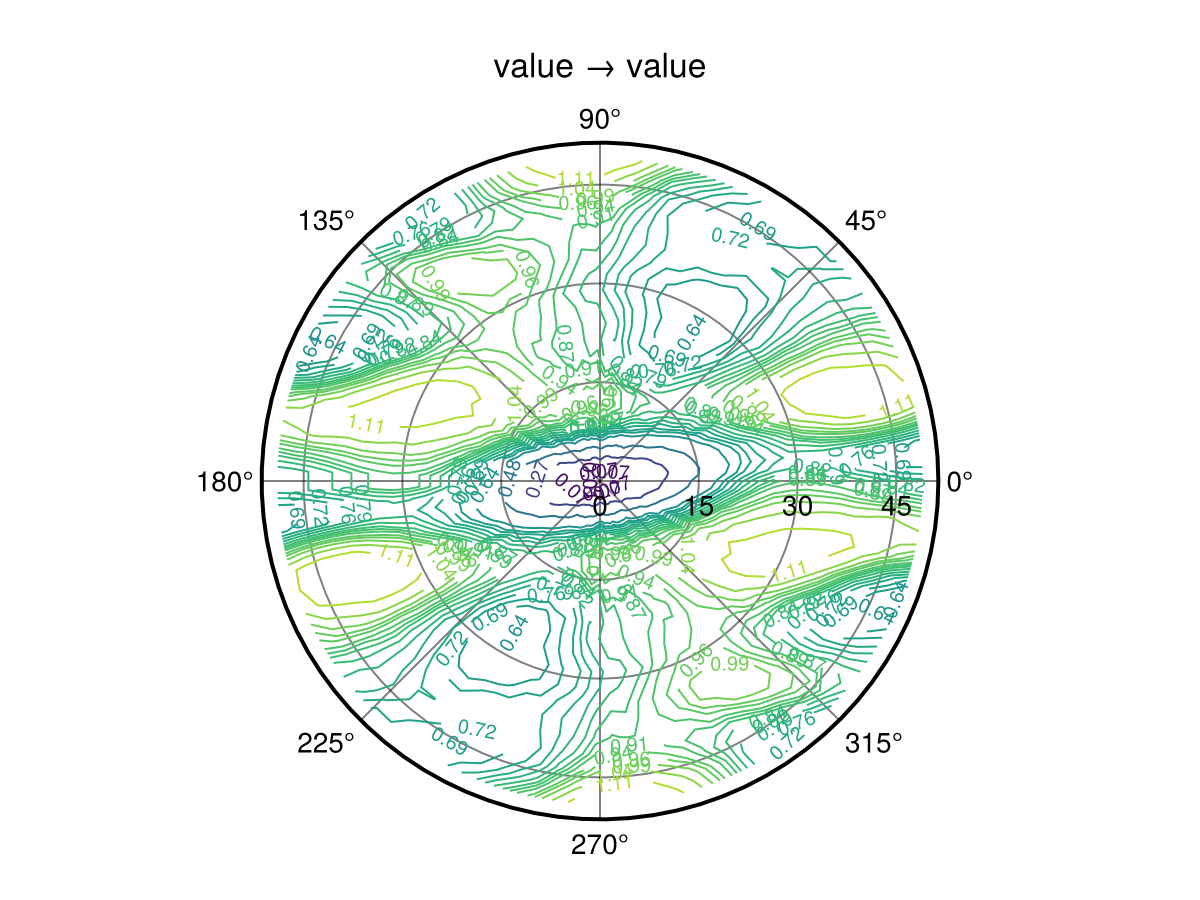

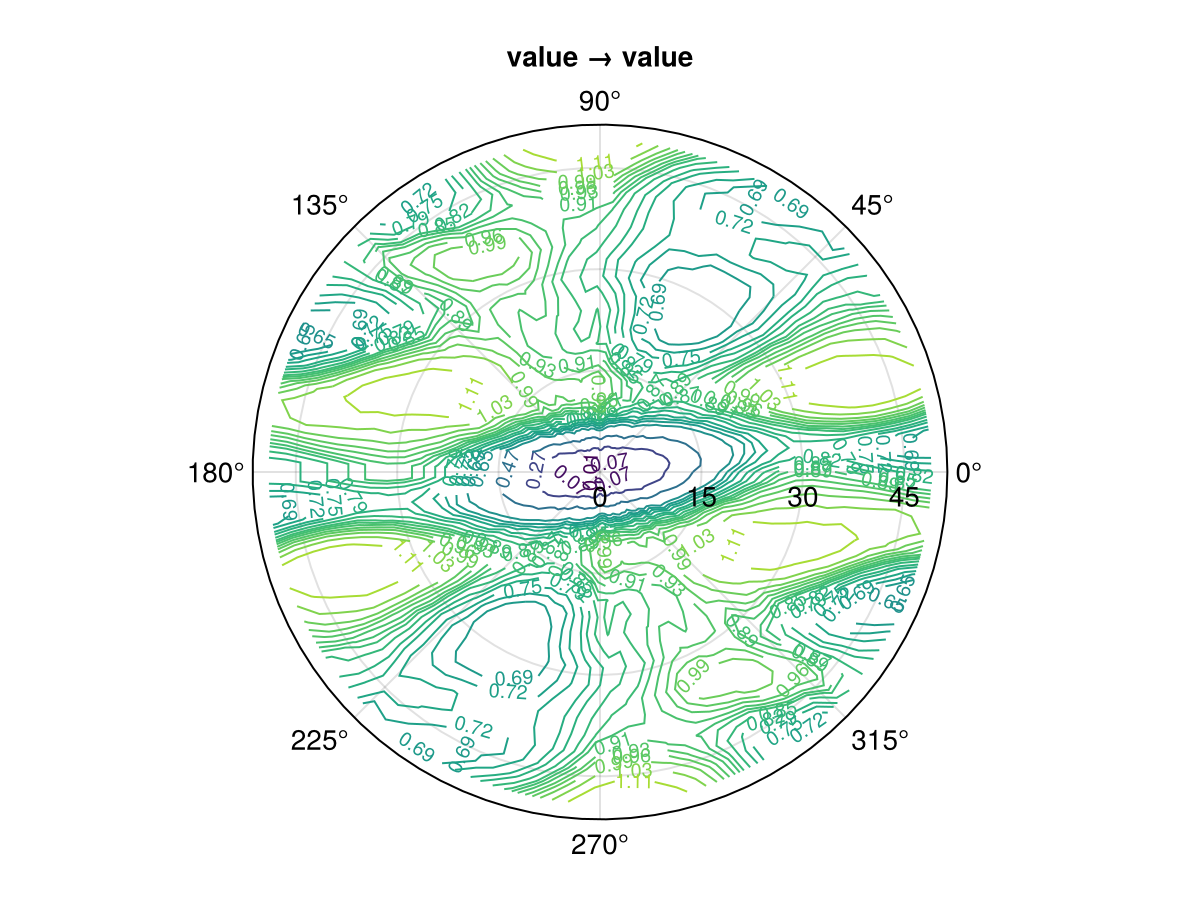

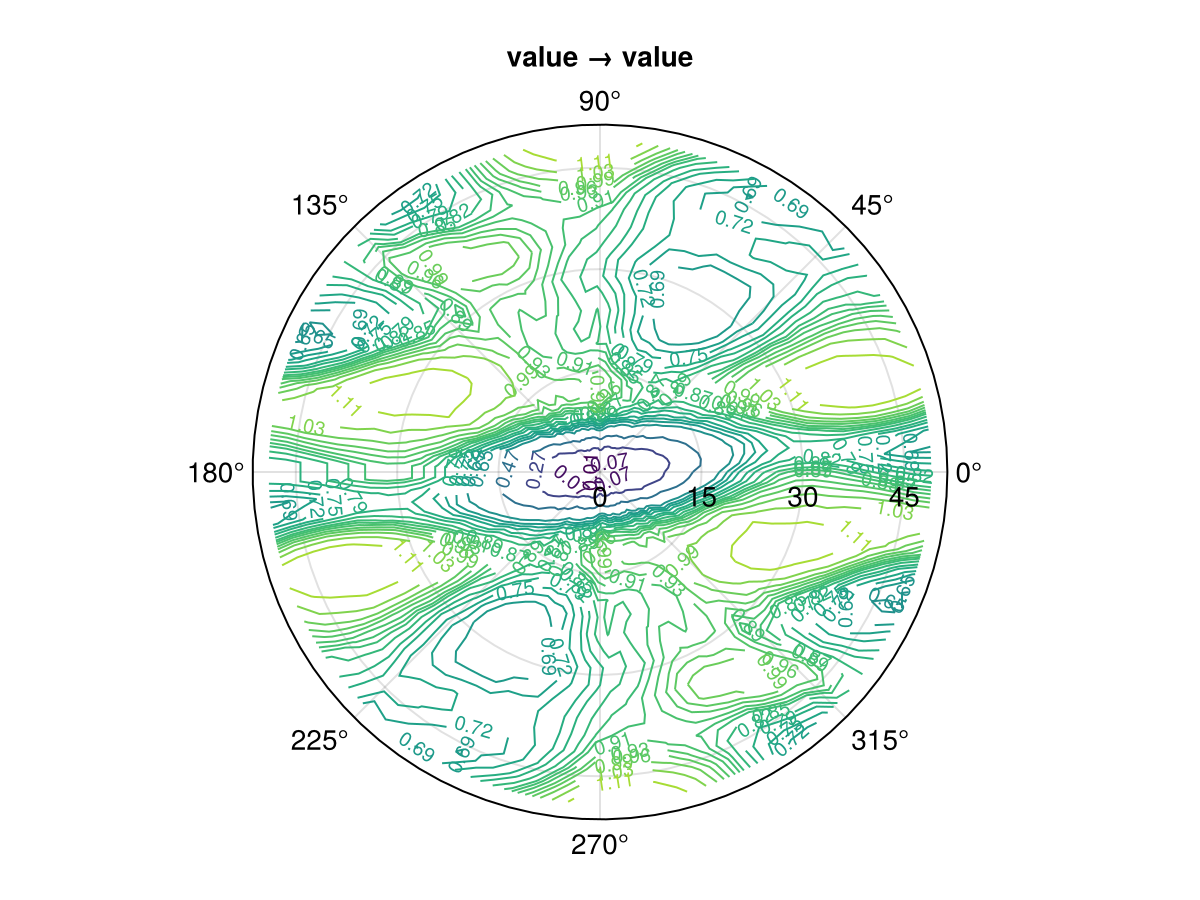

γ = EmpiricalVariogramSurface(img, :Z, maxlag = 50.)

surfplot(γ)

Theoretical variograms

We provide various theoretical variograms from the literature, which can be combined with ellipsoid distances to model geometric anisotropy and with scalars or matrix coefficients to express multivariate relations. Please check the Functions section for more details.

In an intrinsic isotropic model, the variogram is only a function of the distance between any two given points $\p_1,\p_2 \in \R^m$:

\[\gamma(\p_1,\p_2) = \gamma(||\p_1 - \p_2||) = \gamma(h)\]

Under the additional assumption of 2nd-order stationarity, the well-known covariance is directly related via $\gamma(h) = \cov(0) - \cov(h)$. This package implements a few commonly used as well as other more exotic variogram models. Most of these models share a set of default parameters (e.g. sill=1.0, range=1.0), which can be set with keyword arguments.

Gaussian

\[\gamma(h) = (s - n) \left[1 - \exp\left(-3\left(\frac{h}{r}\right)^2\right)\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.GaussianVariogram — Type

GaussianVariogram(; range, sill, nugget)

A Gaussian variogram with range in length units, and sill and nugget contributions.

GaussianVariogram(; ranges, rotation, sill, nugget)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

GaussianVariogram(ball; sill, nugget)

Alternatively, use a custom metric ball.

Examples

# isotropic model
GaussianVariogram(range=2.0m)

# anisotropic model
GaussianVariogram(ranges=(1.0m, 2.0m))

source

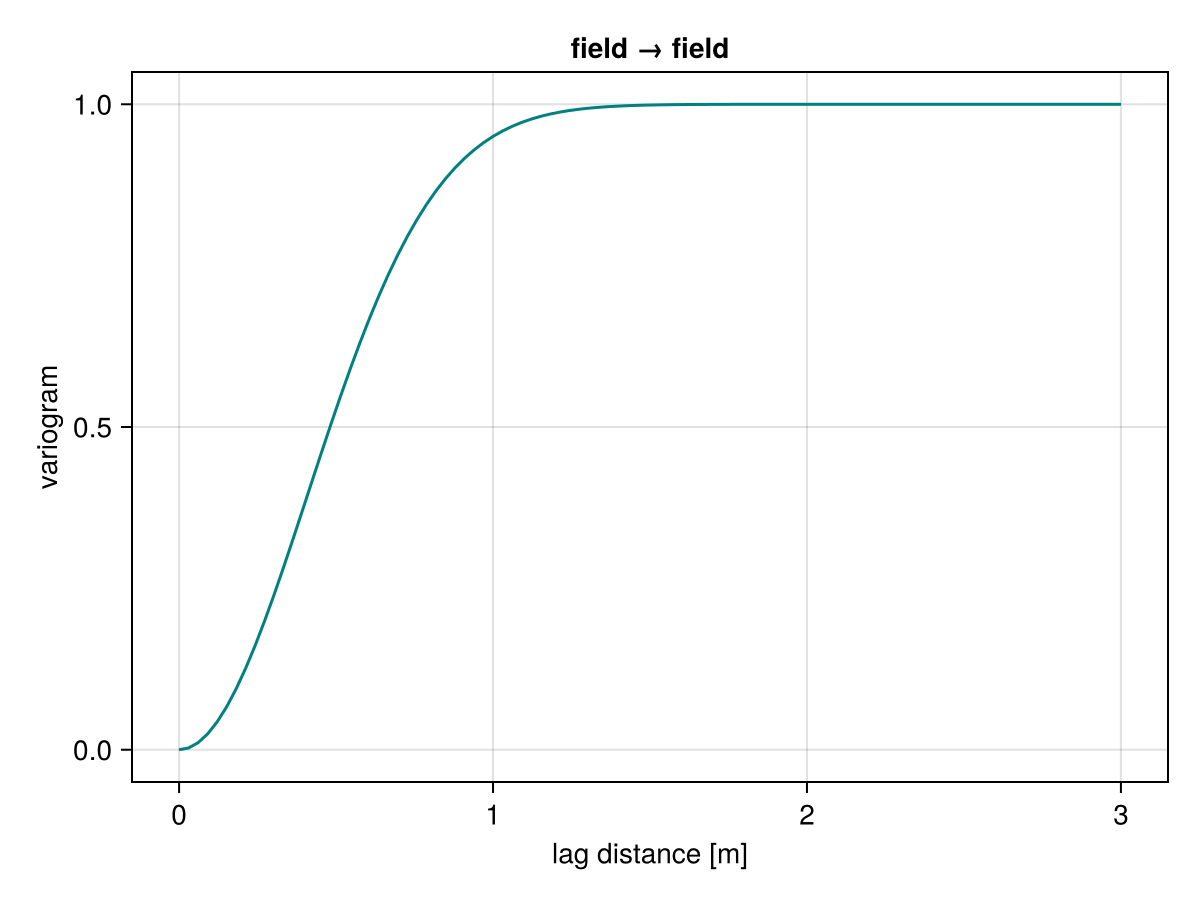

funplot(GaussianVariogram())

Spherical

\[\gamma(h) = (s - n) \left[\left(\frac{3}{2}\left(\frac{h}{r}\right) + \frac{1}{2}\left(\frac{h}{r}\right)^3\right) \cdot \1_{(0,r)}(h) + \1_{[r,\infty)}(h)\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.SphericalVariogram — Type

SphericalVariogram(; range, sill, nugget)

A spherical variogram with range in length units, and sill and nugget contributions.

SphericalVariogram(; ranges, rotation, sill, nugget)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

SphericalVariogram(ball; sill, nugget)

Alternatively, use a custom metric ball.

Examples

# isotropic model
SphericalVariogram(range=2.0m)

# anisotropic model
SphericalVariogram(ranges=(1.0m, 2.0m))

source

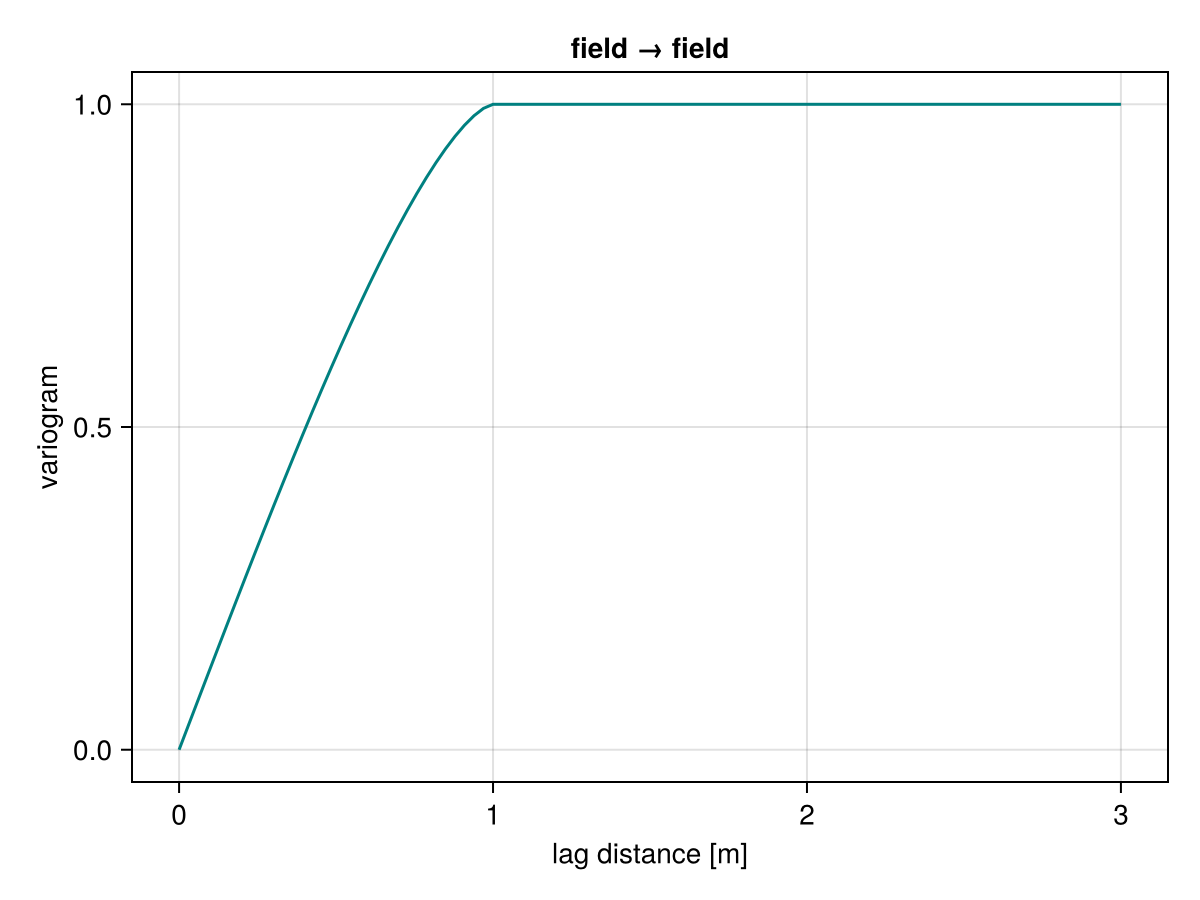

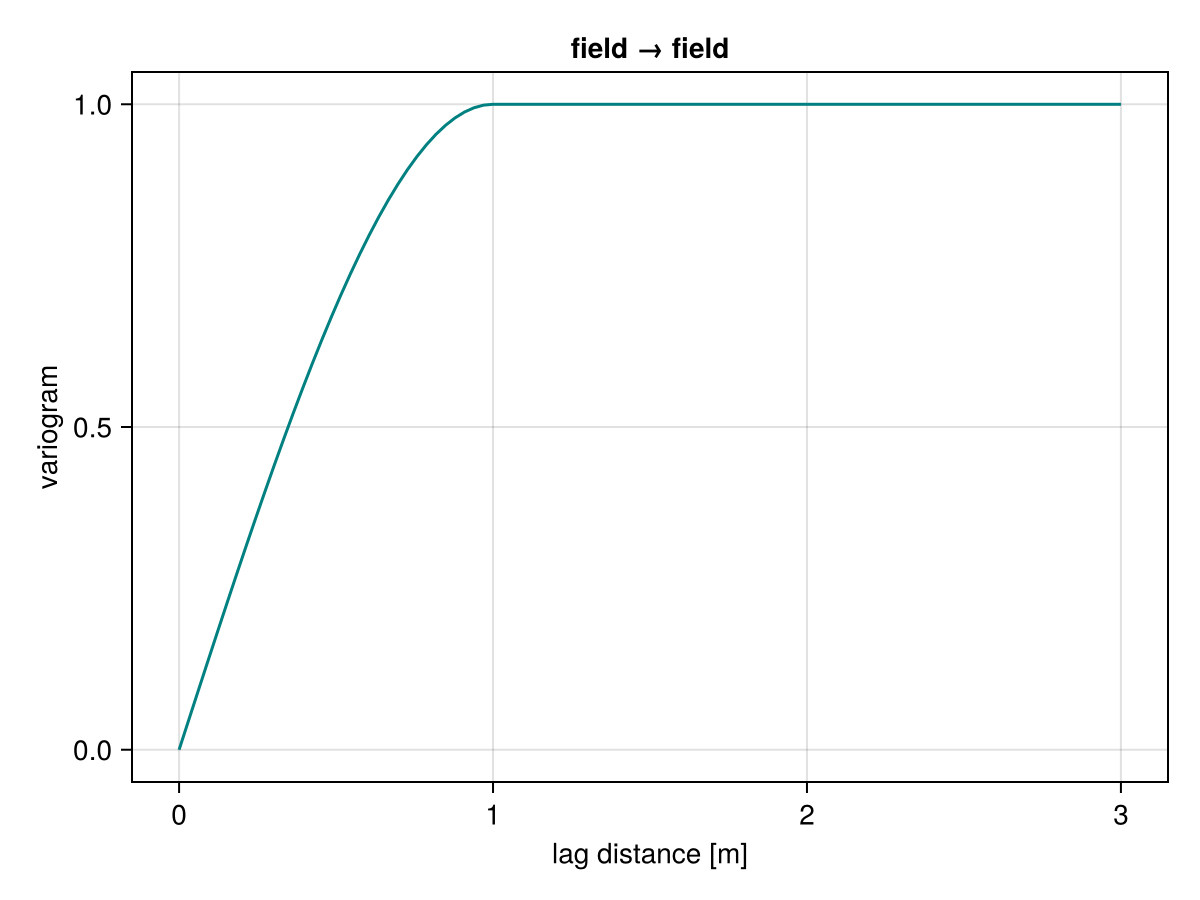

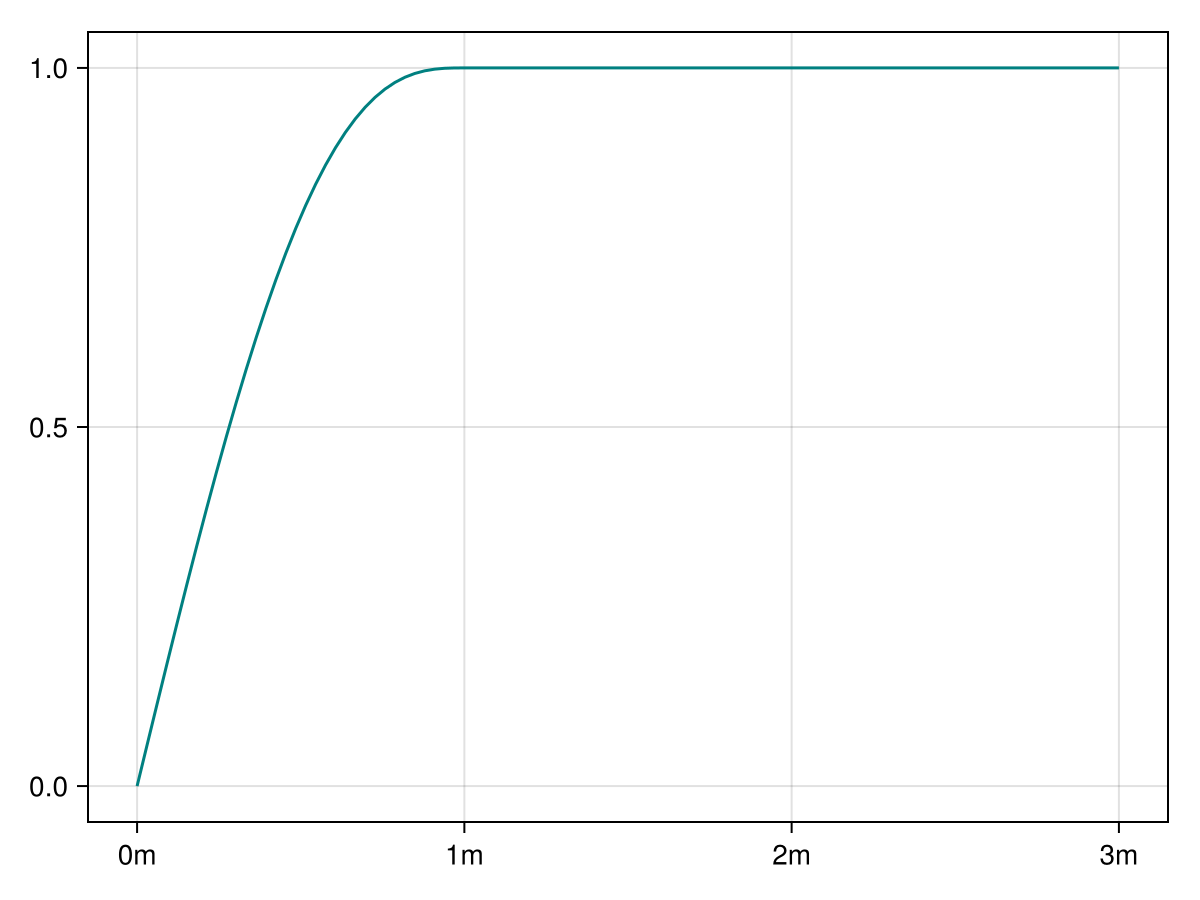

funplot(SphericalVariogram())

Exponential

\[\gamma(h) = (s - n) \left[1 - \exp\left(-3\left(\frac{h}{r}\right)\right)\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.ExponentialVariogram — Type

ExponentialVariogram(; range, sill, nugget)

An exponential variogram with range in length units, and sill and nugget contributions.

ExponentialVariogram(; ranges, rotation, sill, nugget)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

ExponentialVariogram(ball; sill, nugget)

Alternatively, use a custom metric ball.

Examples

# isotropic model
ExponentialVariogram(range=2.0m)

# anisotropic model
ExponentialVariogram(ranges=(1.0m, 2.0m))

source

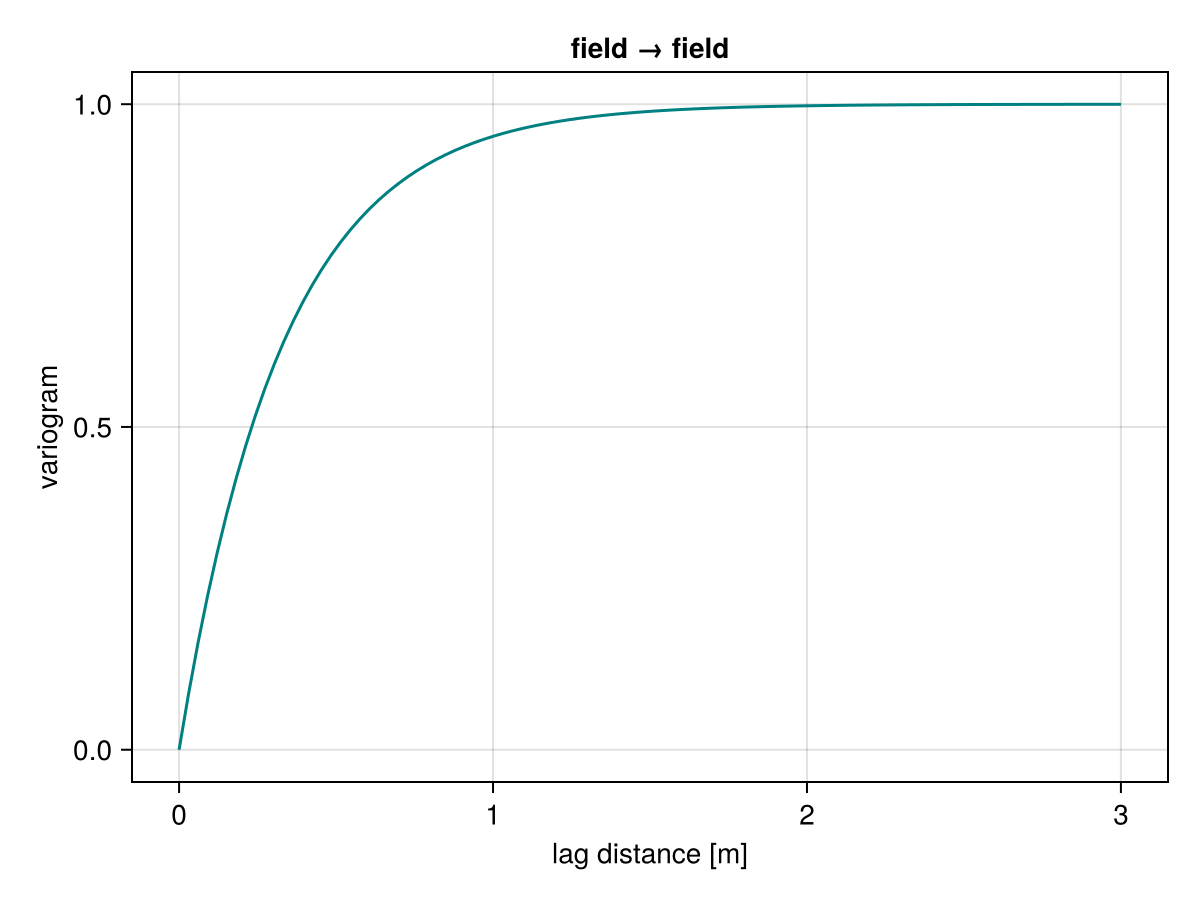

funplot(ExponentialVariogram())

Matern

\[\gamma(h) = (s - n) \left[1 - \frac{2^{1-\nu}}{\Gamma(\nu)} \left(\sqrt{2\nu}\ 3\left(\frac{h}{r}\right)\right)^\nu K_\nu\left(\sqrt{2\nu}\ 3\left(\frac{h}{r}\right)\right)\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.MaternVariogram — Type

MaternVariogram(; range, sill, nugget, order)

A Matérn variogram with range in length units, sill and nugget contributions, and order of Bessel function.

MaternVariogram(; ranges, rotation, sill, nugget, order)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

MaternVariogram(ball; sill, nugget, order)

Alternatively, use a custom metric ball.

Examples

# isotropic model
MaternVariogram(range=2.0m)

# anisotropic model
MaternVariogram(ranges=(1.0m, 2.0m))

source

funplot(MaternVariogram())

Cubic

\[\gamma(h) = (s - n) \left[\left(7\left(\frac{h}{r}\right)^2 - \frac{35}{4}\left(\frac{h}{r}\right)^3 + \frac{7}{2}\left(\frac{h}{r}\right)^5 - \frac{3}{4}\left(\frac{h}{r}\right)^7\right) \cdot \1_{(0,r)}(h) + \1_{[r,\infty)}(h)\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.CubicVariogram — Type

CubicVariogram(; range, sill, nugget)

A cubic variogram with range in length units, and sill and nugget contributions.

CubicVariogram(; ranges, rotation, sill, nugget)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

CubicVariogram(ball; sill, nugget)

Alternatively, use a custom metric ball.

Examples

# isotropic model
CubicVariogram(range=2.0m)

# anisotropic model
CubicVariogram(ranges=(1.0m, 2.0m))

source

funplot(CubicVariogram())

PentaSpherical

\[\gamma(h) = (s - n) \left[\left(\frac{15}{8}\left(\frac{h}{r}\right) - \frac{5}{4}\left(\frac{h}{r}\right)^3 + \frac{3}{8}\left(\frac{h}{r}\right)^5\right) \cdot \1_{(0,r)}(h) + \1_{[r,\infty)}(h)\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.PentaSphericalVariogram — Type

PentaSphericalVariogram(; range, sill, nugget)

A pentaspherical variogram with range in length units, and sill and nugget contributions.

PentaSphericalVariogram(; ranges, rotation, sill, nugget)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

PentaSphericalVariogram(ball; sill, nugget)

Alternatively, use a custom metric ball.

Examples

# isotropic model
PentaSphericalVariogram(range=2.0m)

# anisotropic model
PentaSphericalVariogram(ranges=(1.0m, 2.0m))

source

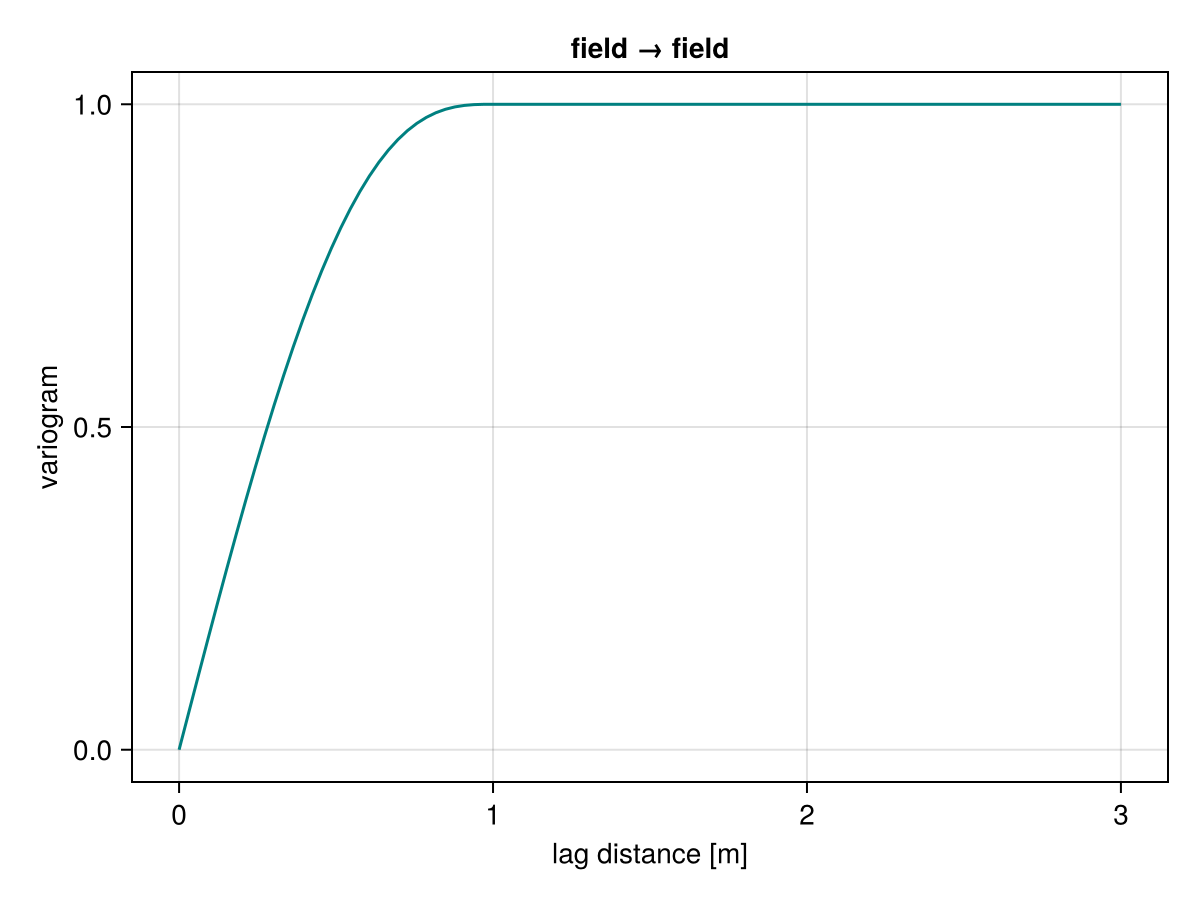

funplot(PentaSphericalVariogram())

Sine hole

\[\gamma(h) = (s - n) \left[1 - \frac{\sin(\pi h / r)}{\pi h / r}\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.SineHoleVariogram — Type

SineHoleVariogram(; range, sill, nugget)

A sinehole variogram with range in length units, and sill and nugget contributions.

SineHoleVariogram(; ranges, rotation, sill, nugget)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

SineHoleVariogram(ball; sill, nugget)

Alternatively, use a custom metric ball.

Examples

# isotropic model
SineHoleVariogram(range=2.0m)

# anisotropic model
SineHoleVariogram(ranges=(1.0m, 2.0m))

source

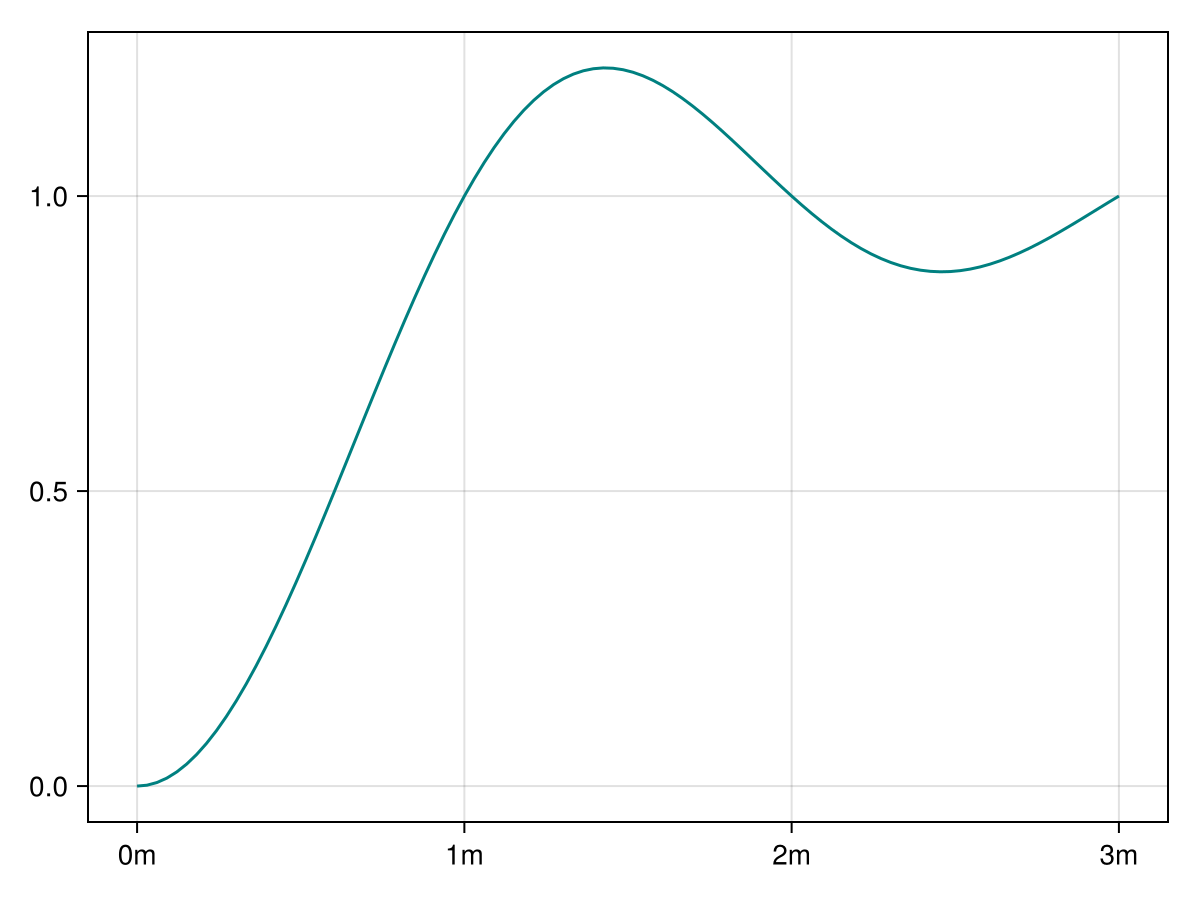

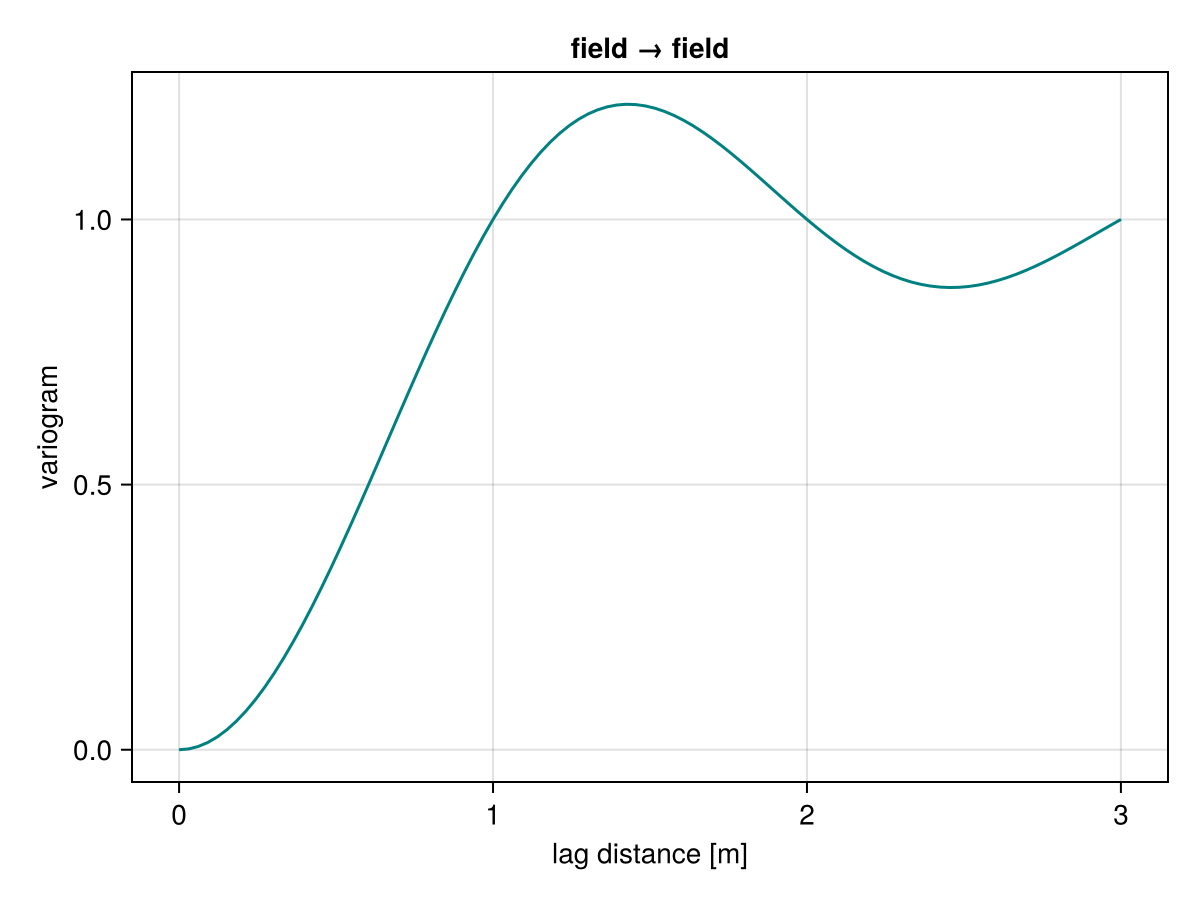

funplot(SineHoleVariogram())

Circular

\[\gamma(h) = (s - n) \left[\left(1 - \frac{2}{\pi} \cos^{-1}\left(\frac{h}{r}\right) + \frac{2h}{\pi r} \sqrt{1 - \frac{h^2}{r^2}} \right) \cdot \1_{(0,r)}(h) + \1_{[r,\infty)}(h)\right] + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.CircularVariogram — Type

CircularVariogram(; range, sill, nugget)

A circular variogram with range in length units, and sill and nugget contributions.

CircularVariogram(; ranges, rotation, sill, nugget)

Alternatively, use multiple ranges and rotation matrix to construct an anisotropic model.

CircularVariogram(ball; sill, nugget)

Alternatively, use a custom metric ball.

Examples

# isotropic model
CircularVariogram(range=2.0m)

# anisotropic model
CircularVariogram(ranges=(1.0m, 2.0m))

source

funplot(CircularVariogram())

Power

\[\gamma(h) = s\left(\frac{h}{l}\right)^a + n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.PowerVariogram — Type

PowerVariogram(; length, scaling, exponent, nugget)

A power variogram with base length in length units, and scaling, exponent and nugget parameters.

The base length parameter serves to scale the lag h in the power variogram formula, i.e. h -> h / length.

source

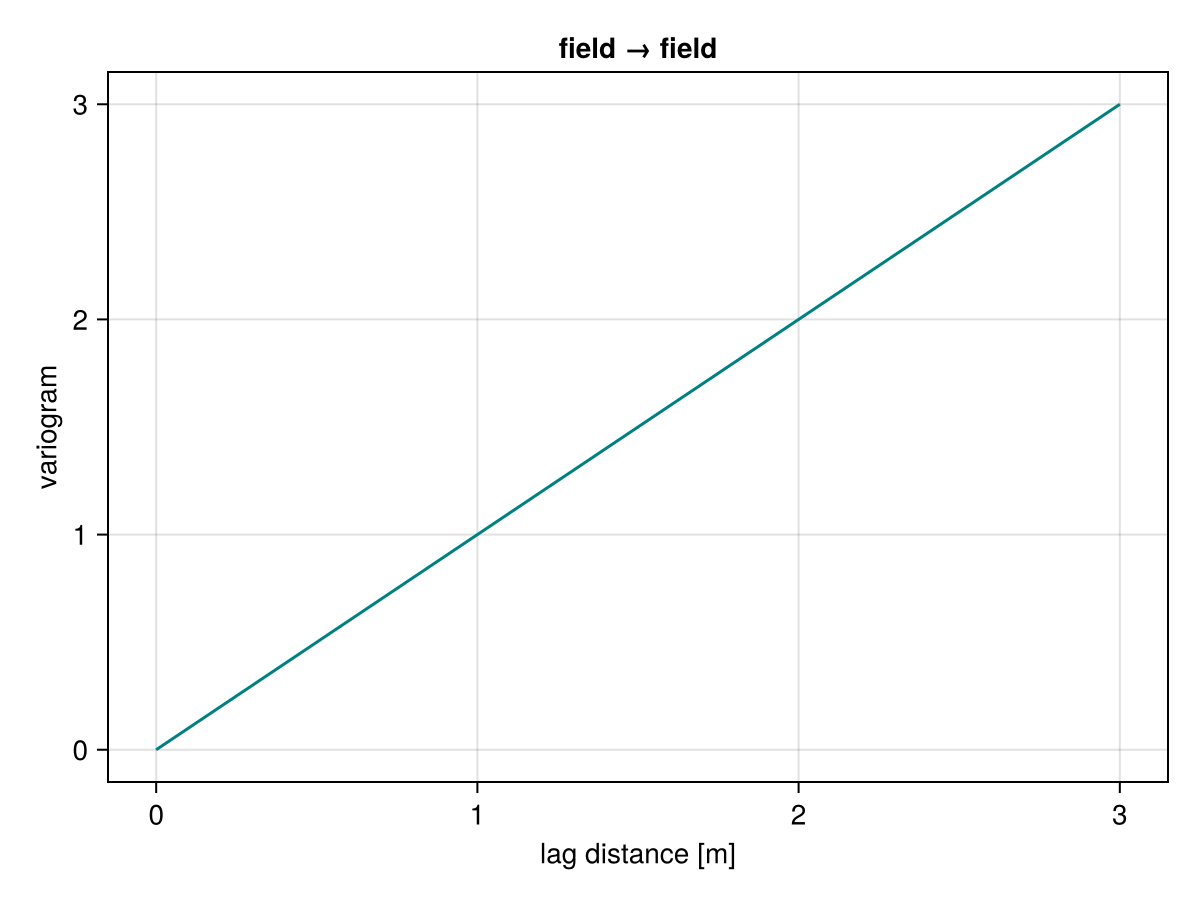

funplot(PowerVariogram())

Nugget

\[\gamma(h) = n \cdot \1_{(0,\infty)}(h)\]

GeoStatsFunctions.NuggetEffect — Type

NuggetEffect(; nugget)

A pure nugget effect variogram with nugget.

source

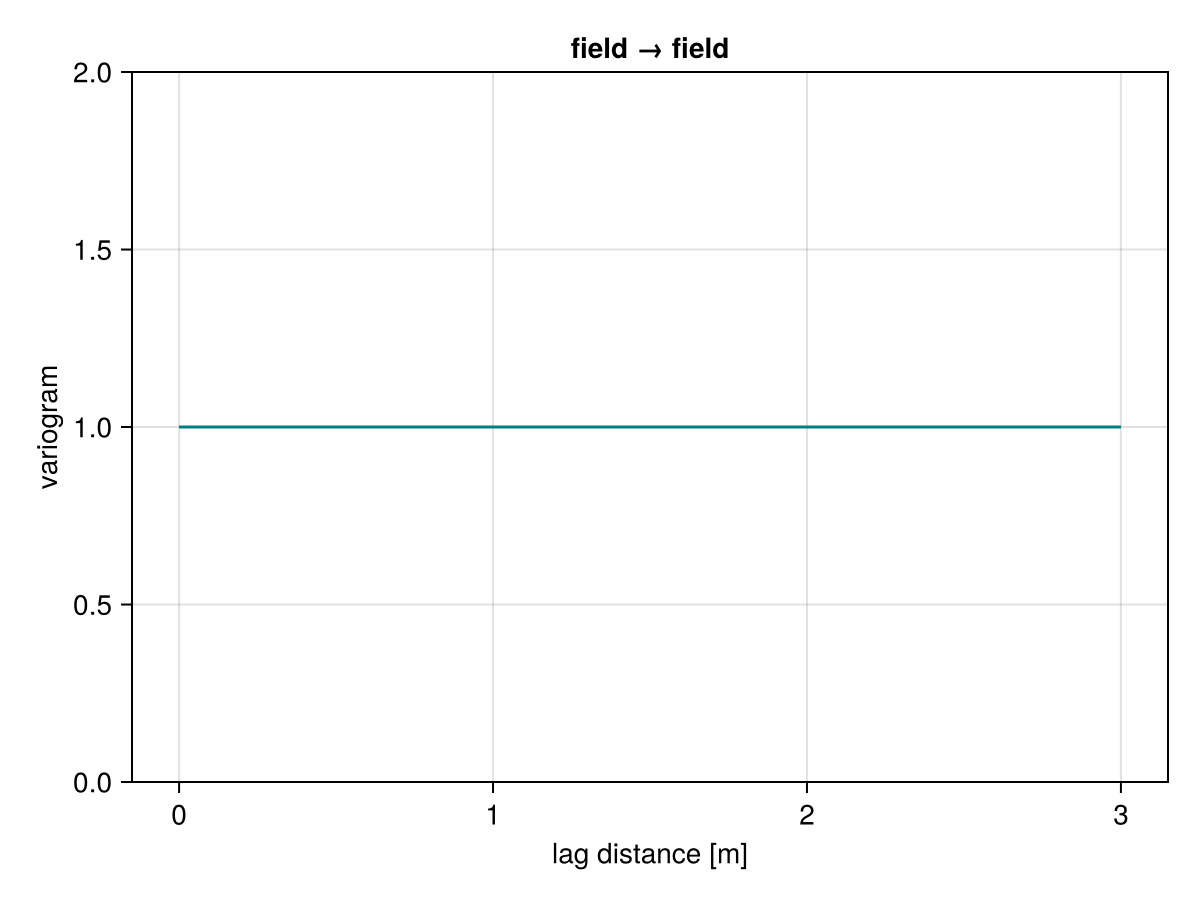

funplot(NuggetEffect())
