Geospatial data

Overview

Given a table or array containing data, we can georeference these objects onto a geospatial domain with the georef function. The result of the georef function is a GeoTable. If you would like to learn this concept in more depth, check out the recording of our JuliaEO 2024 workshop:

GeoTables.georef — Function

georef(table, domain)

Georeference table on domain from Meshes.jl

Examples

julia> georef((a=rand(100), b=rand(100)), CartesianGrid(10, 10))

source

georef(table, geoms)

Georeference table on vector of geometries geoms from Meshes.jl

Examples

julia> georef((a=rand(10), b=rand(10)), rand(Point, 10))

source

georef(table, coords; [crs], [lenunit])

Georeference table using coordinates coords of points.

Optionally, specify the coordinate reference system crs, which is set by default based on heuristics, and the lenunit (default to meters for unitless values) that can only be used in CRS types that allow this flexibility. Any CRS or EPSG/ESRI code from CoordRefSystems.jl is supported.

Examples

julia> georef((a=[1, 2, 3], b=[4, 5, 6], [(0, 0), (1, 1), (2, 2)])
julia> georef((a=[1, 2, 3], b=[4, 5, 6], [(0, 0), (1, 1), (2, 2)], crs=LatLon)
julia> georef((a=[1, 2, 3], b=[4, 5, 6], [(0, 0), (1, 1), (2, 2)], crs=EPSG{4326})
julia> georef((a=[1, 2, 3], b=[4, 5, 6], [(0, 0), (1, 1), (2, 2)], lenunit=u"cm")

source

georef(table, names; [crs], [lenunit])

Georeference table using coordinates of points stored in column names.

Examples

georef((a=rand(10), x=rand(10), y=rand(10)), ("x", "y"))
georef((a=rand(10), x=rand(10), y=rand(10)), ("x", "y"), crs=LatLon)
georef((a=rand(10), x=rand(10), y=rand(10)), ("x", "y"), crs=EPSG{4326})
georef((a=rand(10), x=rand(10), y=rand(10)), ("x", "y"), lenunit=u"cm")

source

georef(tuple)

Georeference a named tuple on CartesianGrid(dims), with dims obtained from the arrays stored in the tuple.

Examples

julia> georef((a=rand(10, 10), b=rand(10, 10))) # 2D grid
julia> georef((a=rand(10, 10, 10), b=rand(10, 10, 10))) # 3D grid

source

The functions values and domain can be used to retrieve the table of attributes and the underlying geospatial domain:

Base.values — Function

values(geotable, [rank])

Return the values of geotable for a given rank as a table.

The rank is a non-negative integer that specifies the parametric dimension of the geometries of interest:

0 - points
1 - segments
2 - triangles, quadrangles, ...
3 - tetrahedrons, hexahedrons, ...

If the rank is not specified, it is assumed to be the rank of the elements of the domain.

source

GeoTables.domain — Function

domain(geotable)

Return underlying domain of the geotable.

source

Examples

using GeoStats
import CairoMakie as Mke

# helper function for plotting two
# variables named T and P side by side
function plot(data)
  fig = Mke.Figure(size = (800, 400))
  viz(fig[1,1], data.geometry, color = data.T)
  viz(fig[1,2], data.geometry, color = data.P)
  fig
end

plot (generic function with 1 method)

Tables

Consider a table (e.g. DataFrame) with 25 samples of temperature T and pressure P:

using DataFrames

table = DataFrame(T=rand(25), P=rand(25))

25×2 DataFrame

Row	T	P
	Float64	Float64
1	0.888158	0.259644
2	0.17174	0.41279
3	0.381217	0.617203
4	0.529668	0.469265
5	0.833948	0.114354
6	0.669915	0.571324
7	0.0243105	0.216162
8	0.0065159	0.156883
9	0.954275	0.915785
10	0.596287	0.106082
11	0.138569	0.229454
12	0.728487	0.225839
13	0.27266	0.231184
14	0.505449	0.226092
15	0.135178	0.759987
16	0.710001	0.174766
17	0.0650785	0.966856
18	0.919294	0.742708
19	0.912138	0.473233
20	0.789781	0.341687
21	0.956157	0.602556
22	0.2342	0.0175214
23	0.945265	0.679348
24	0.27799	0.424153
25	0.731118	0.0524933

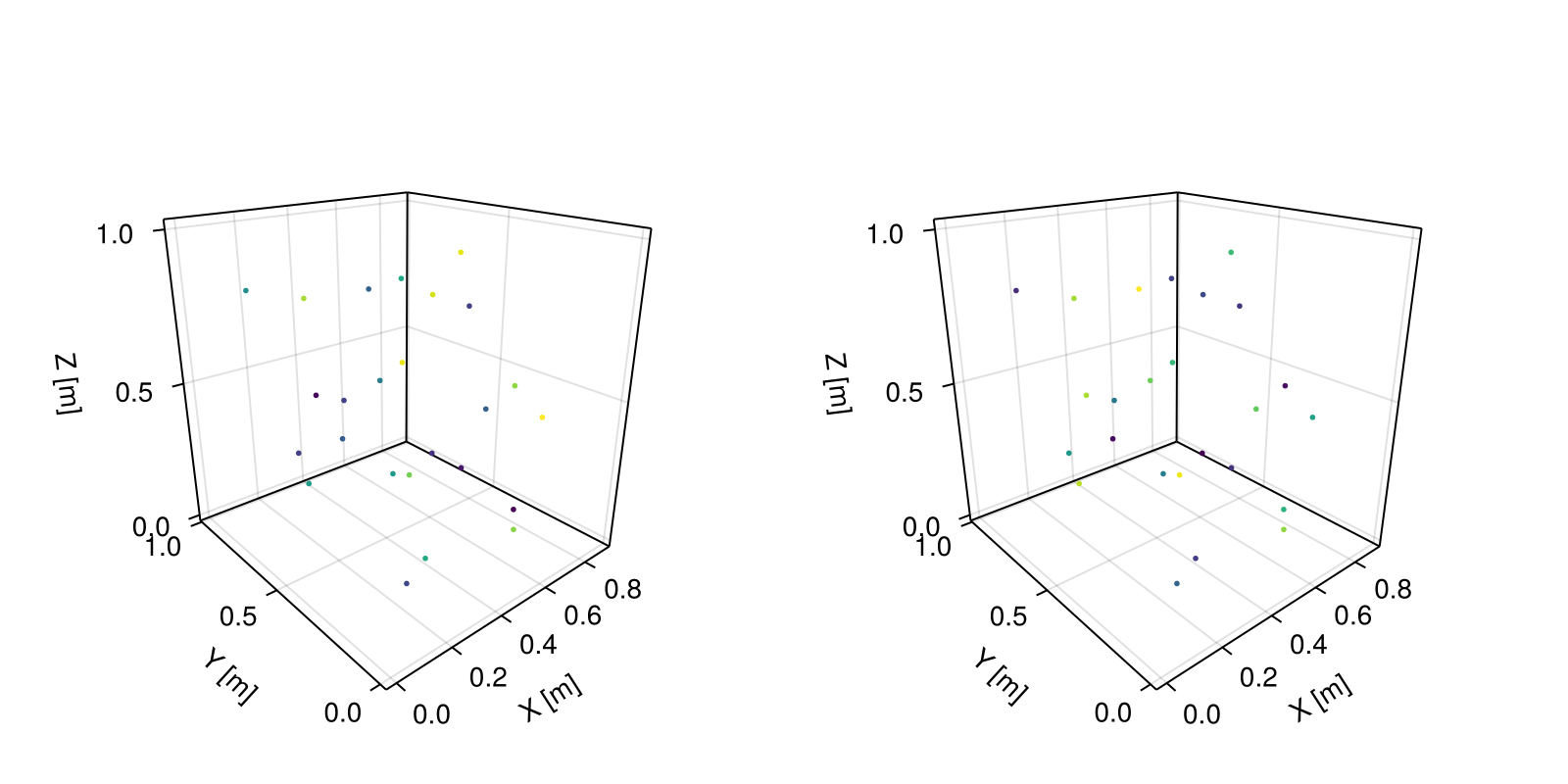

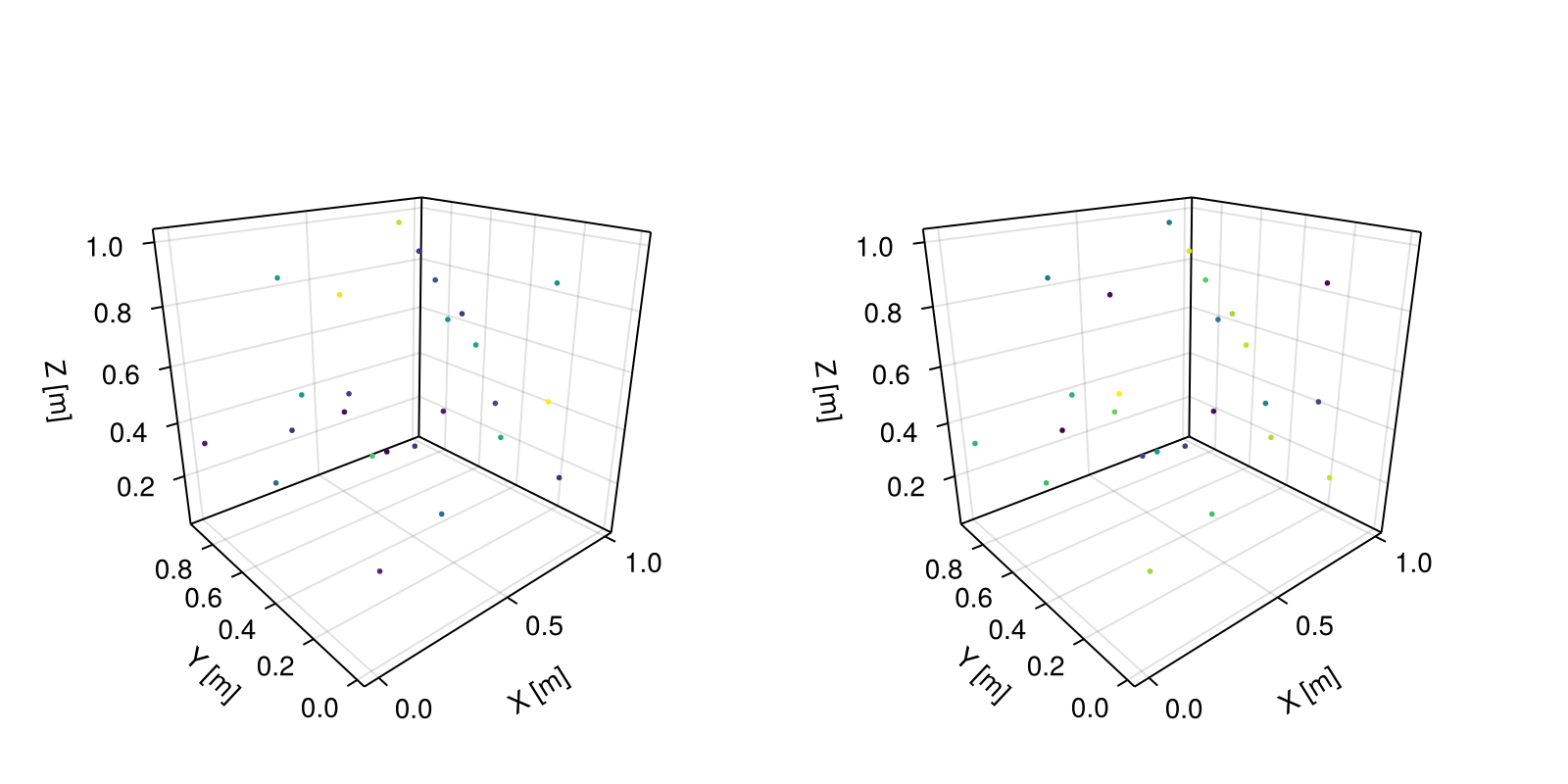

We can georeference this table based on a given set of points:

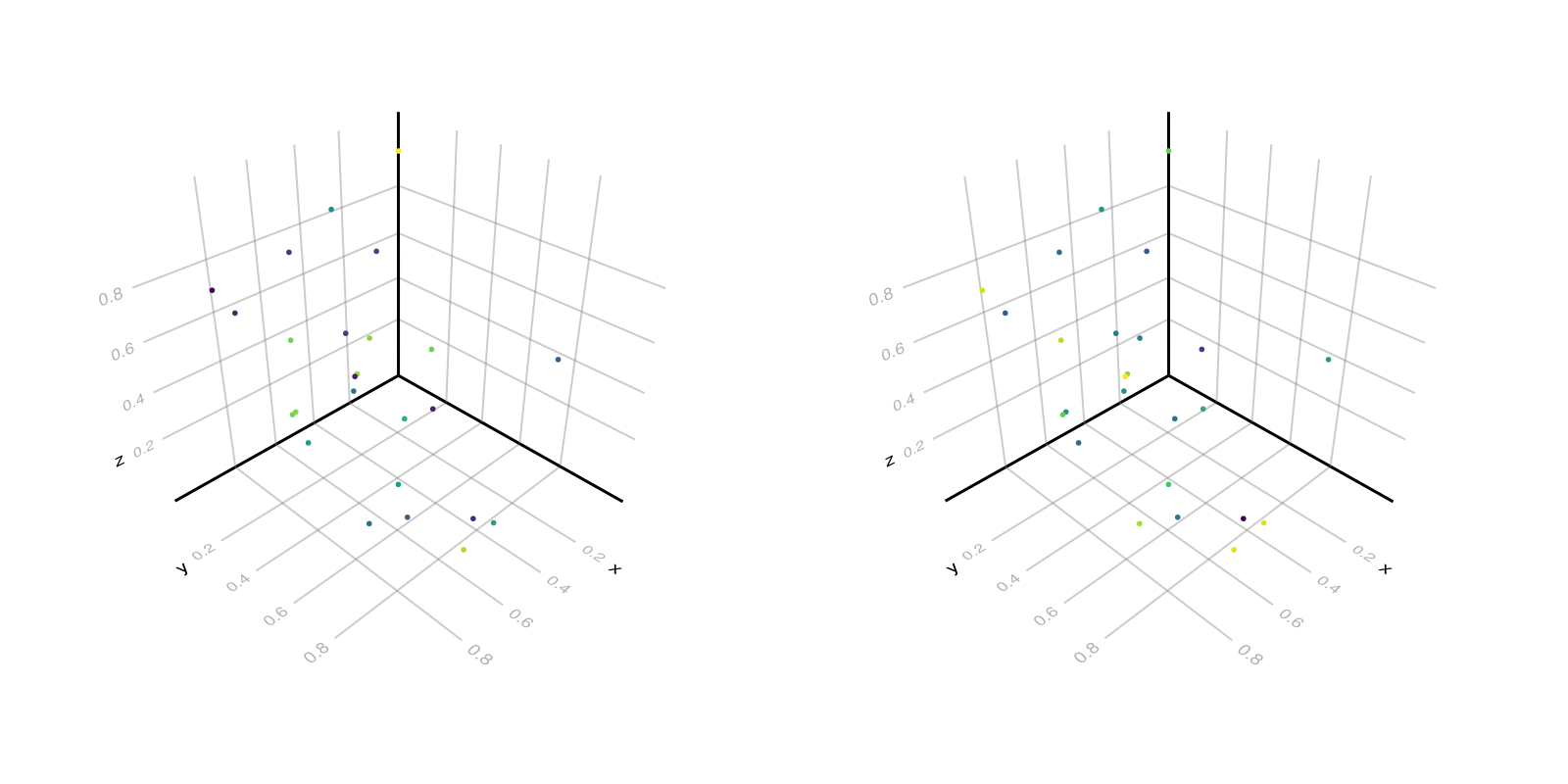

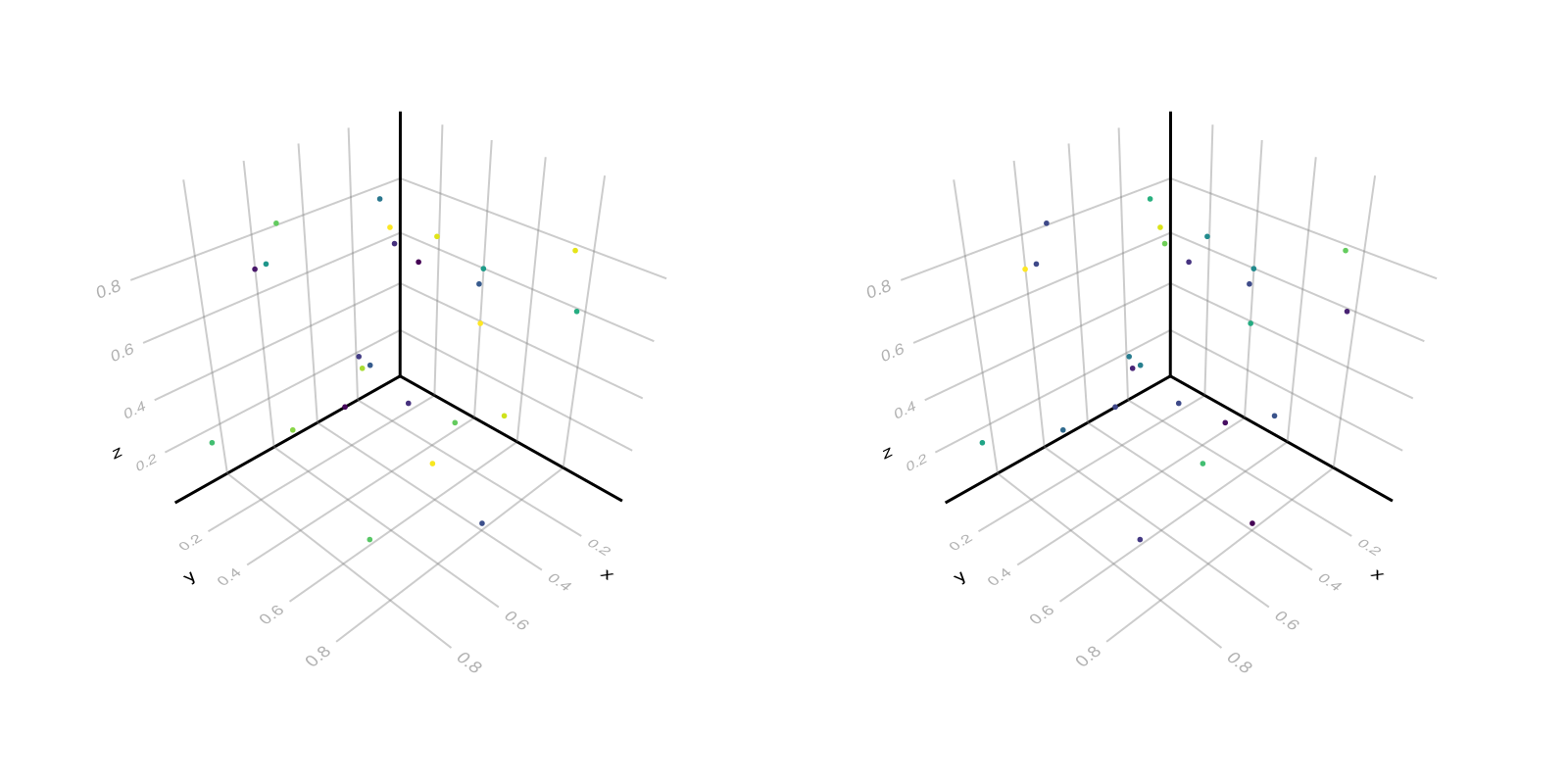

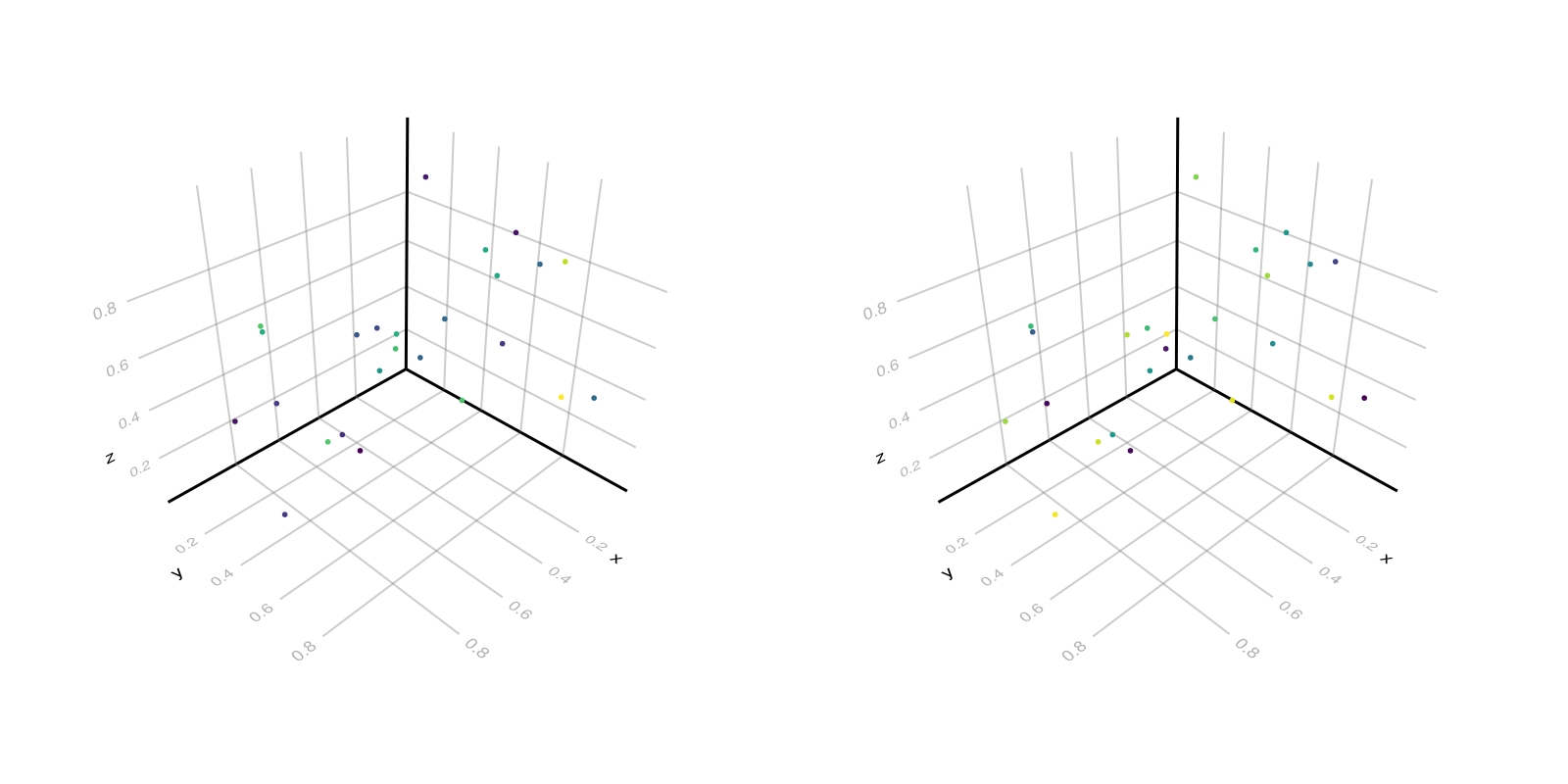

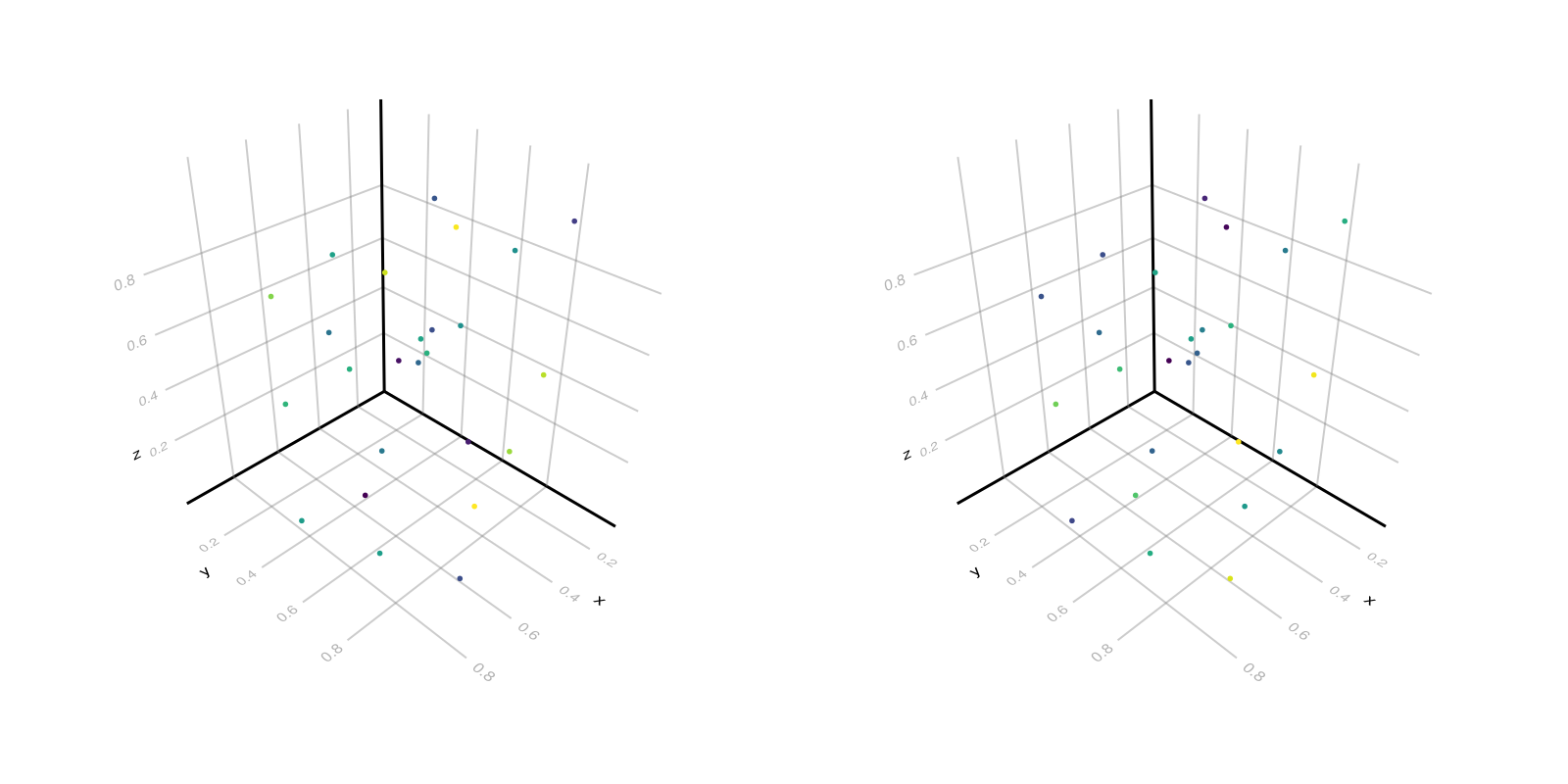

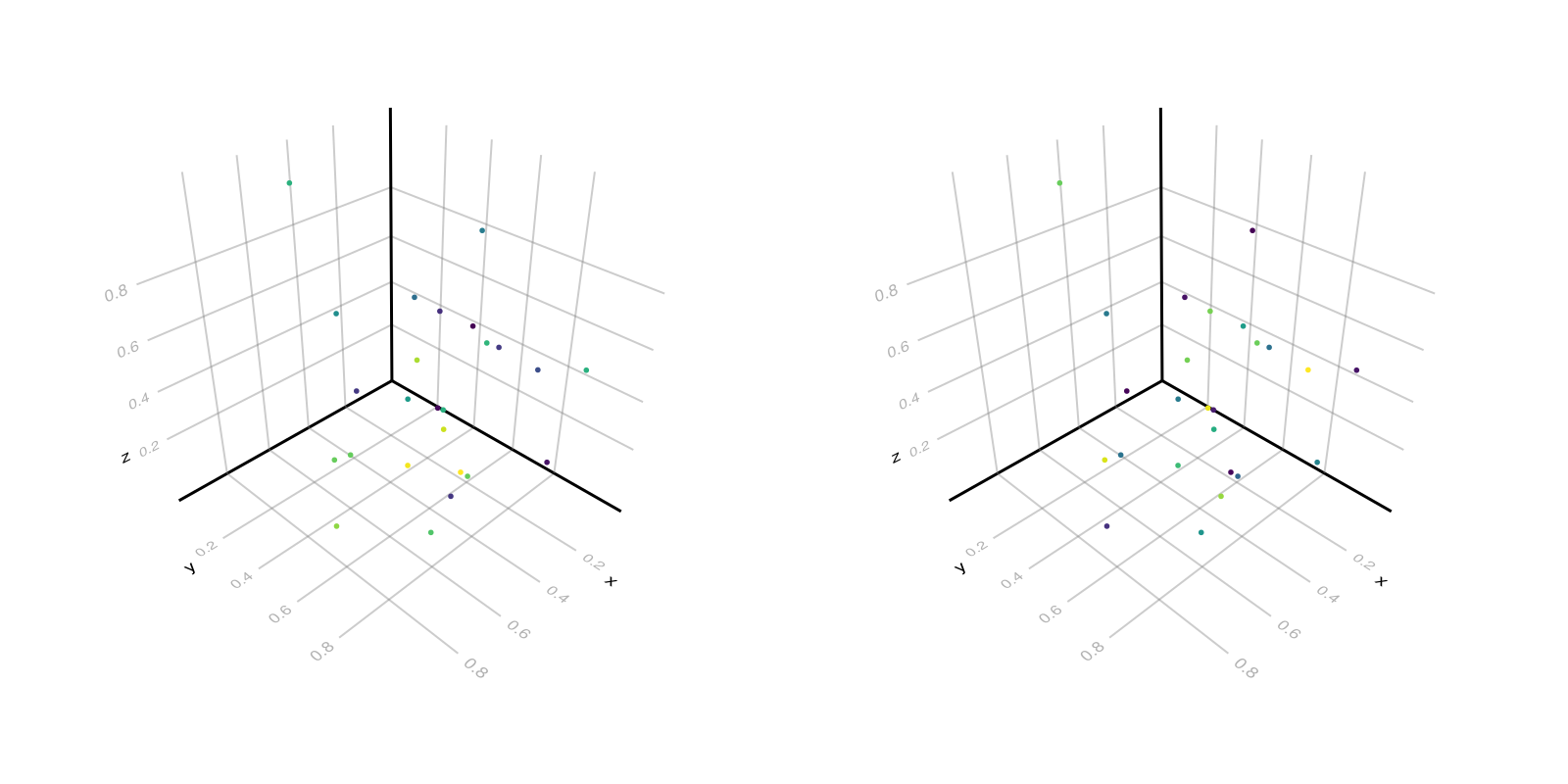

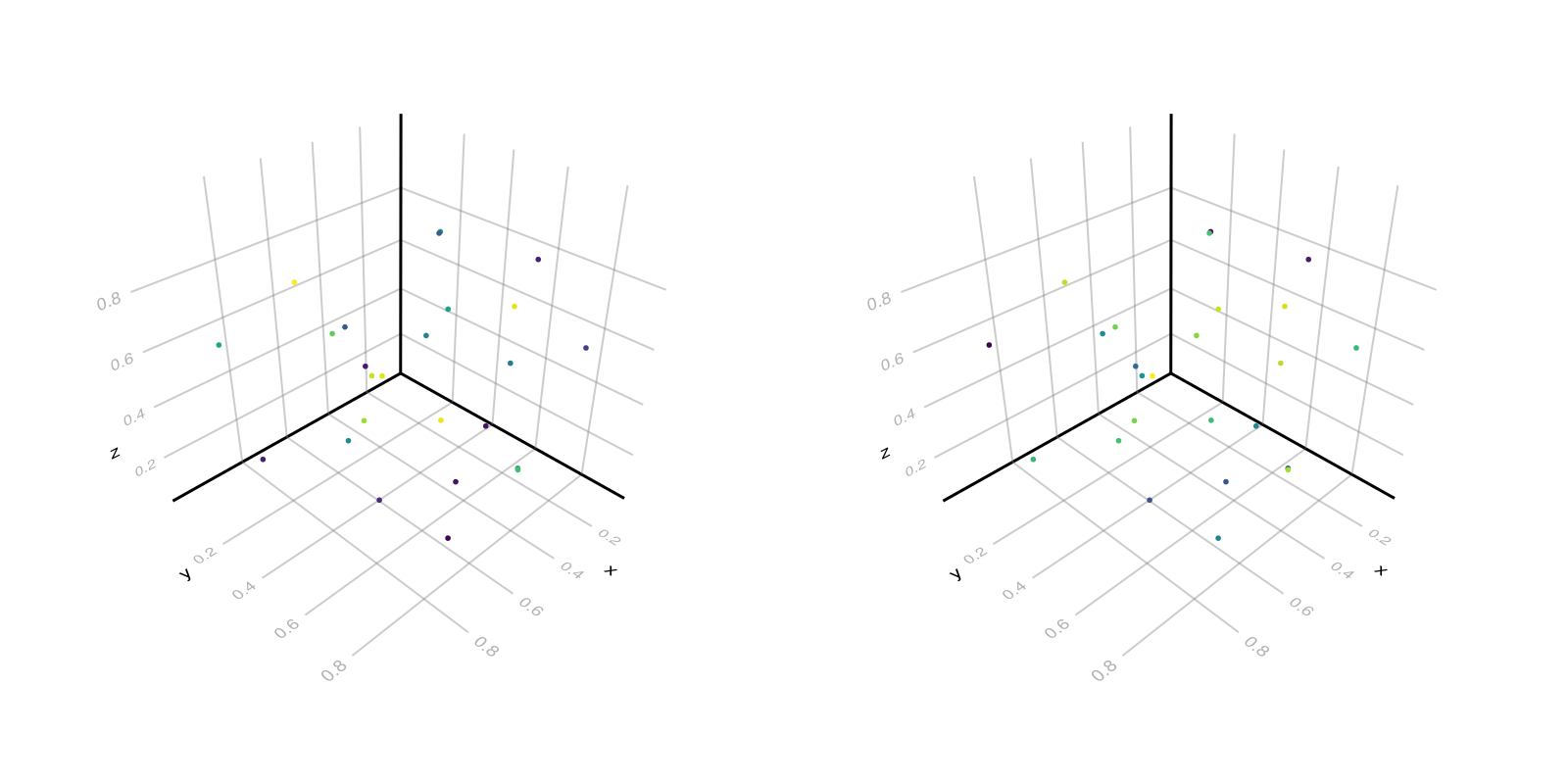

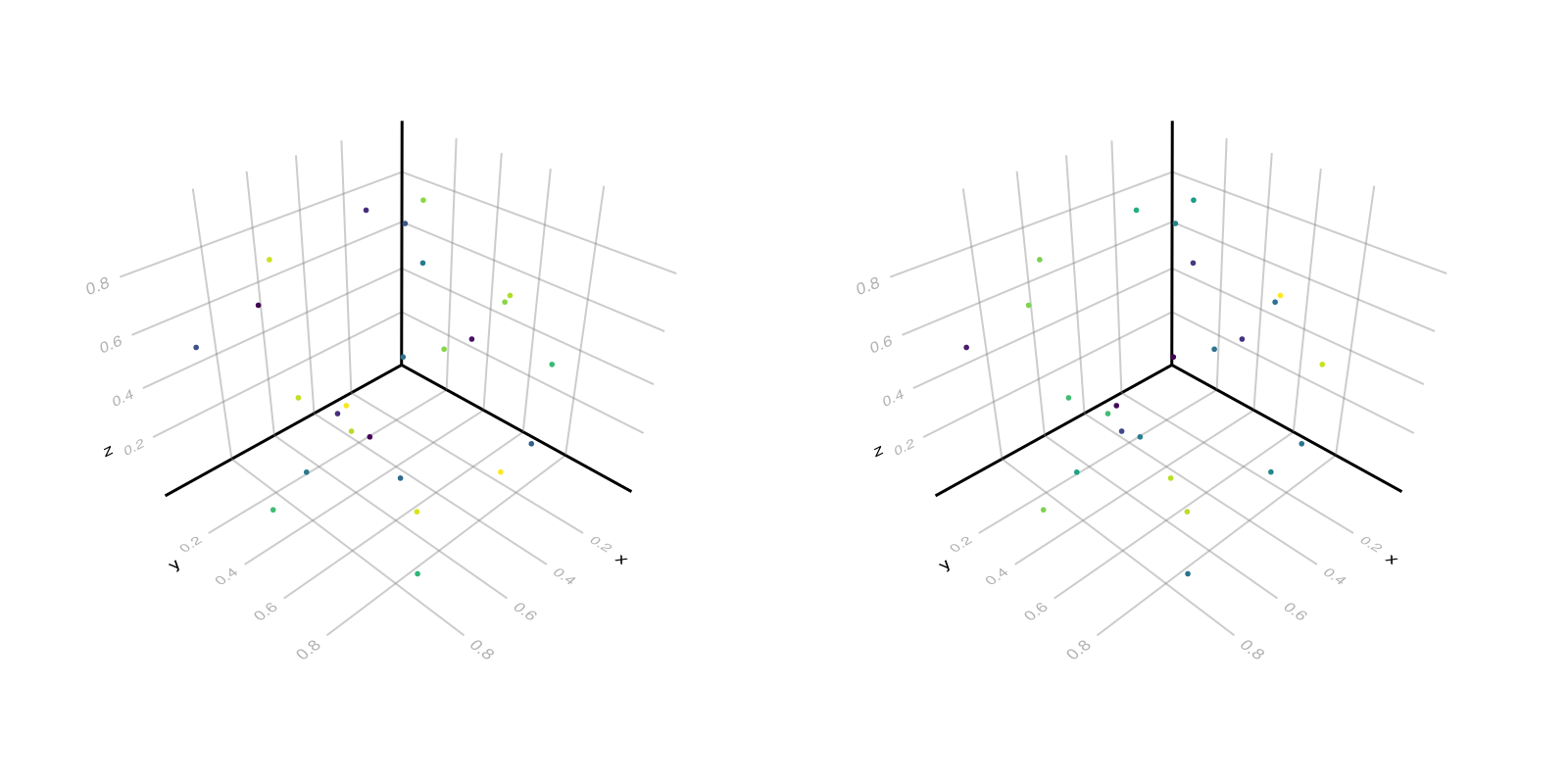

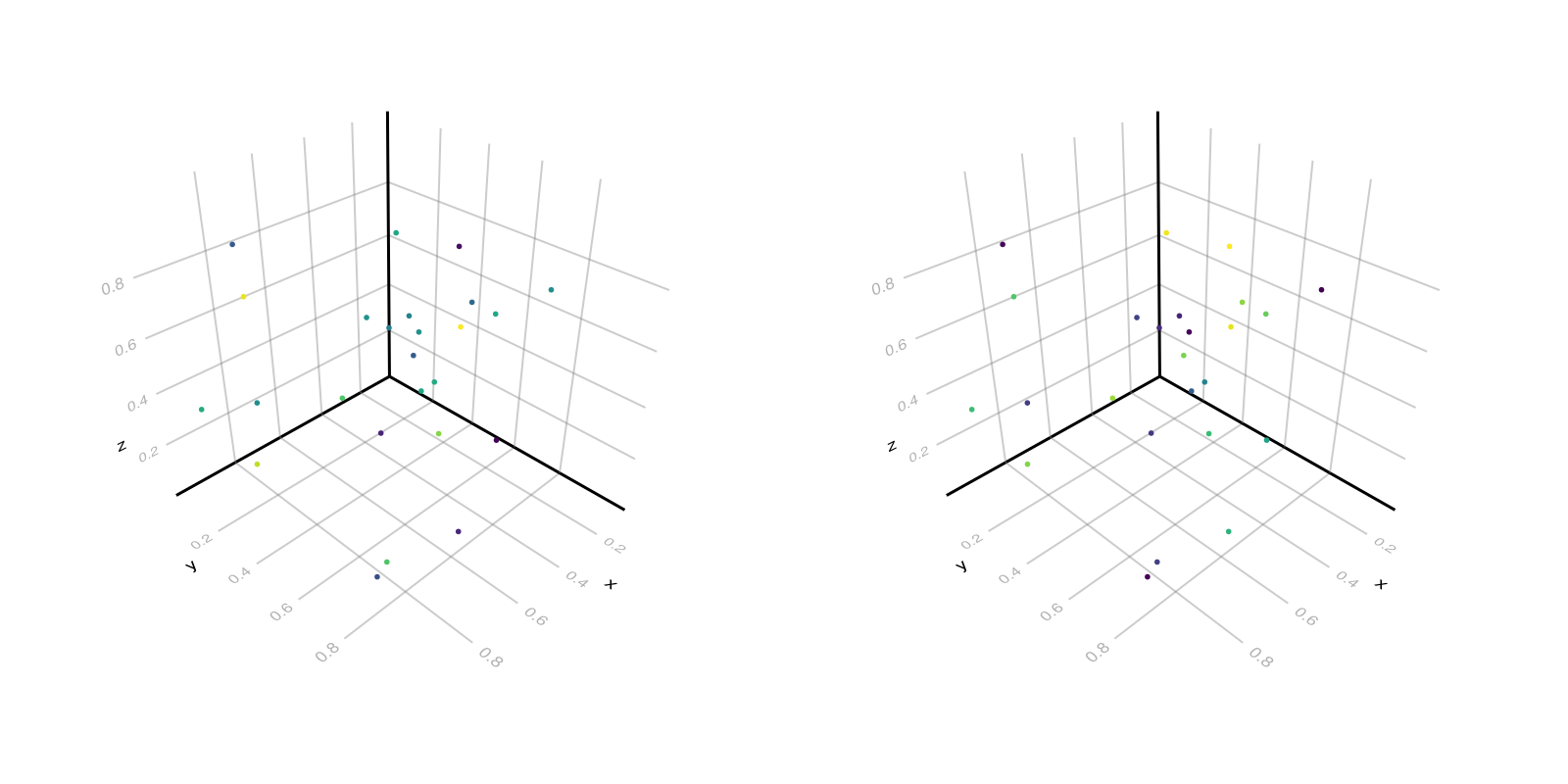

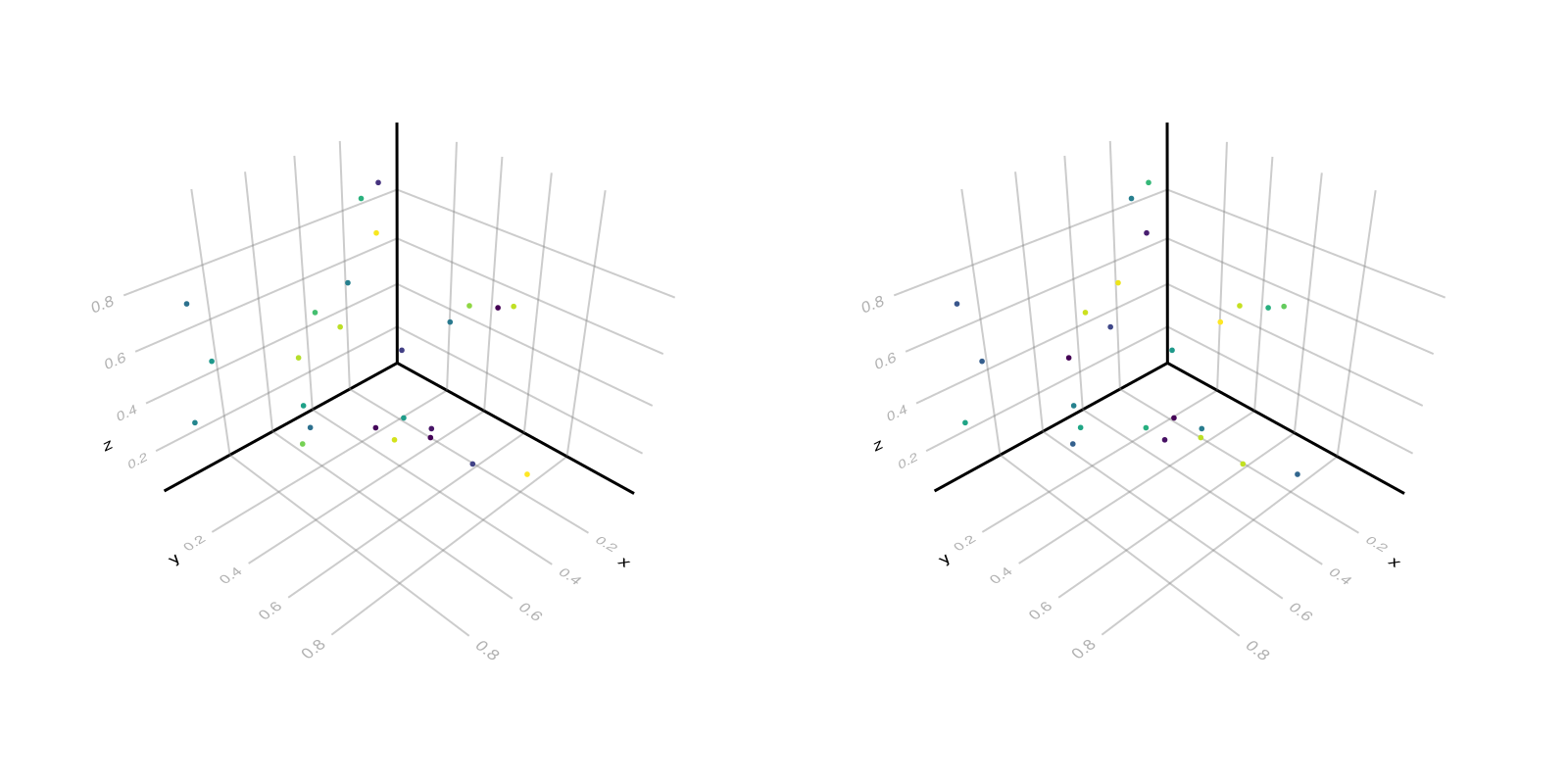

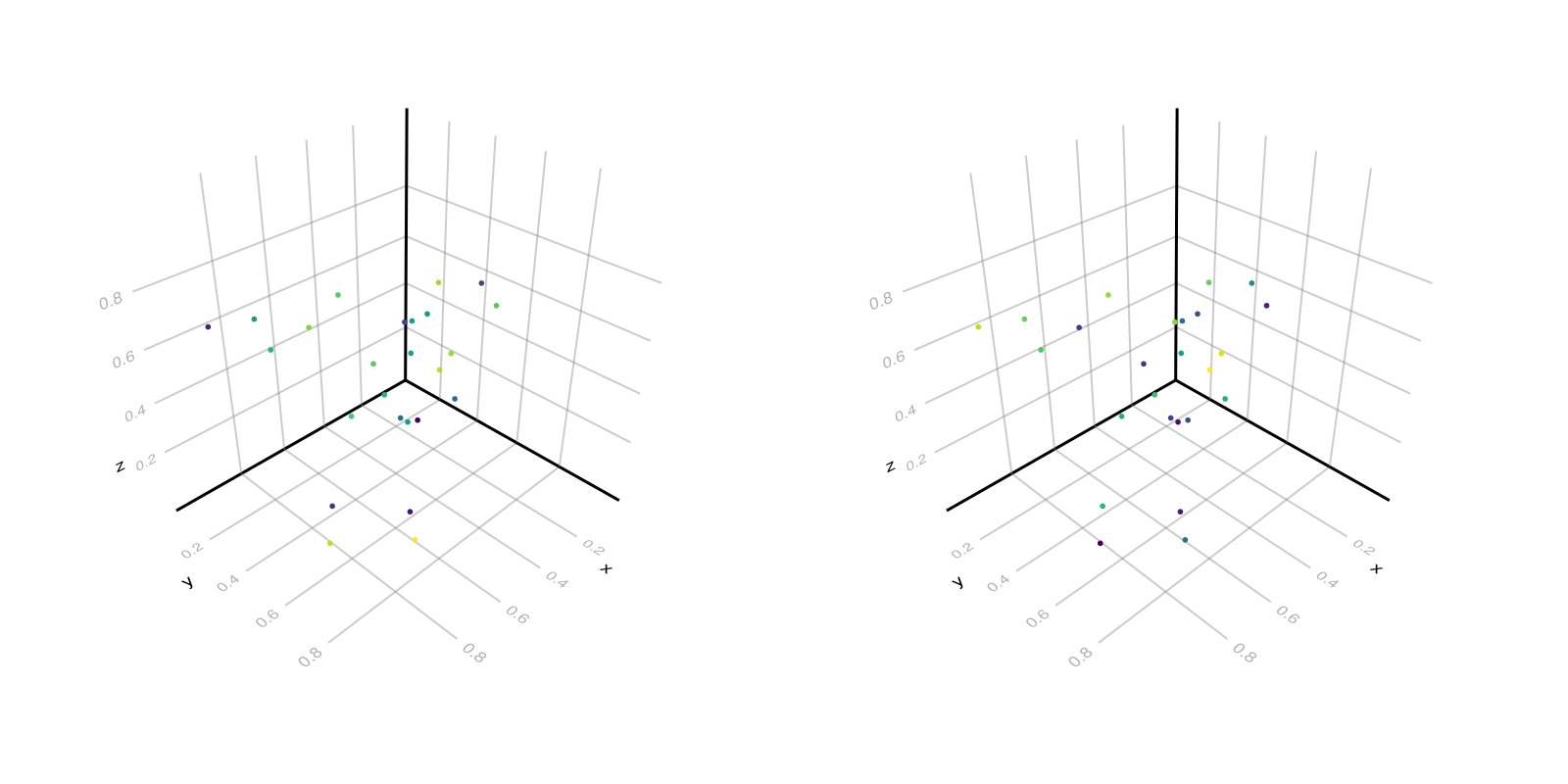

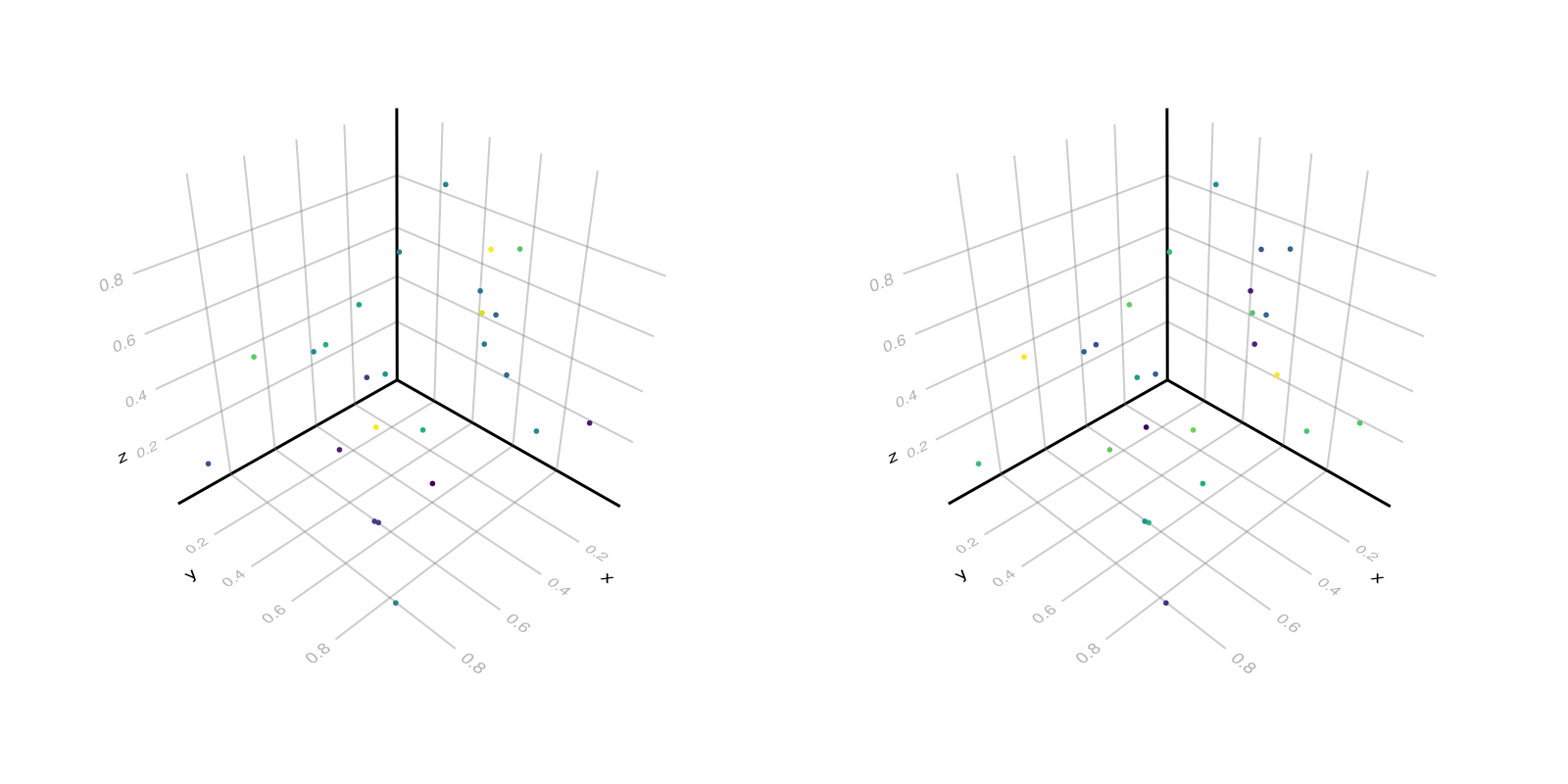

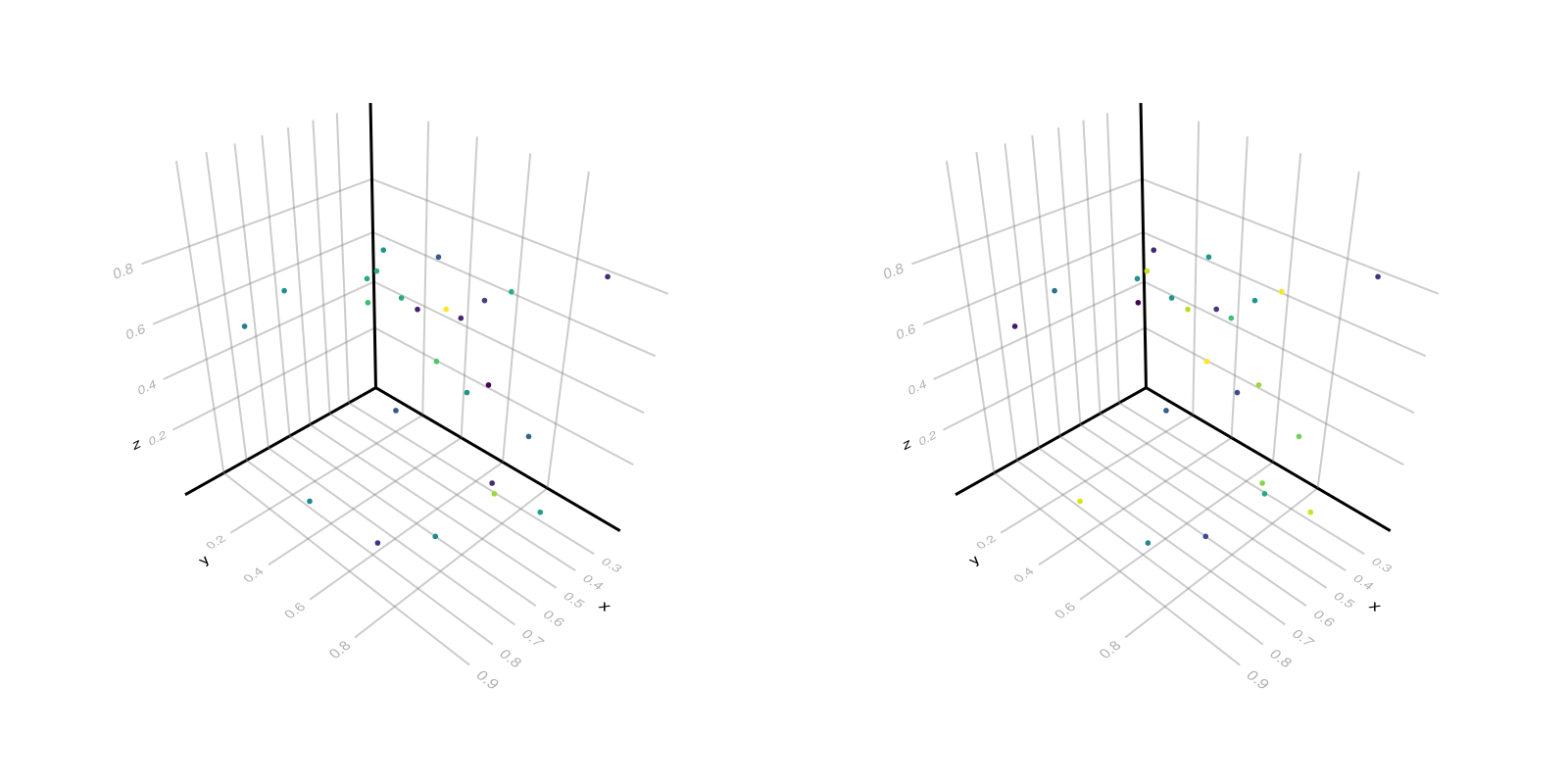

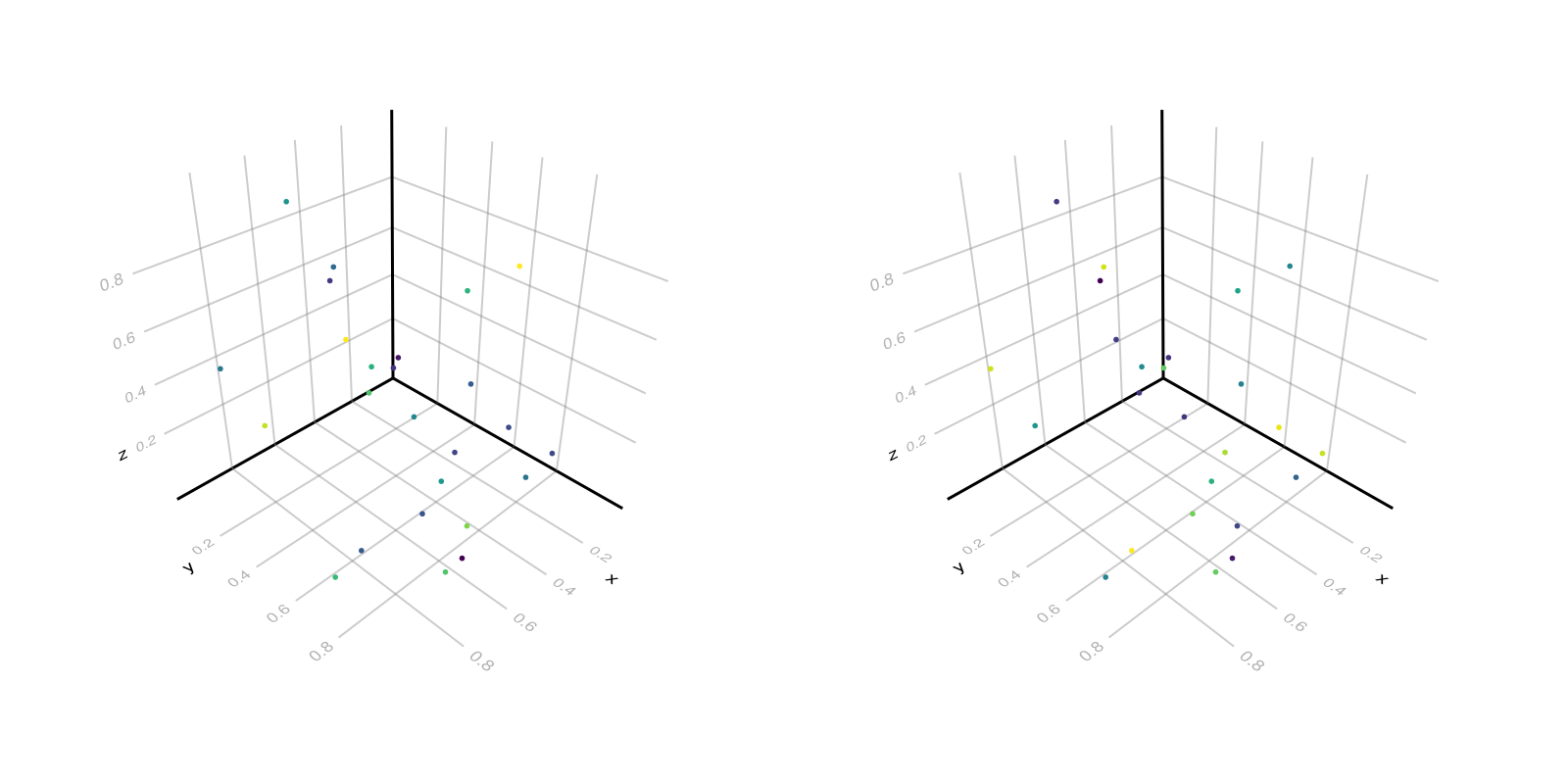

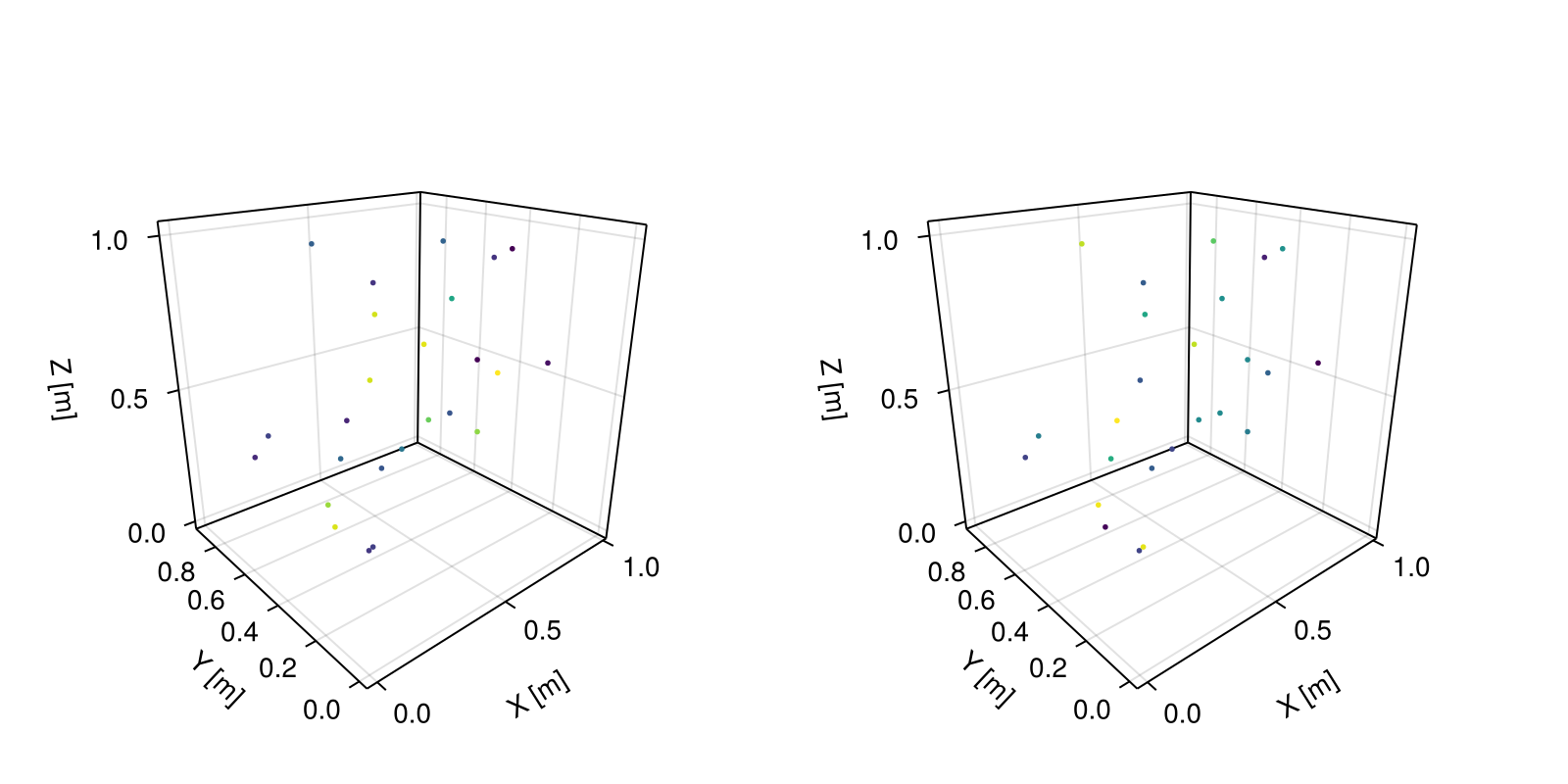

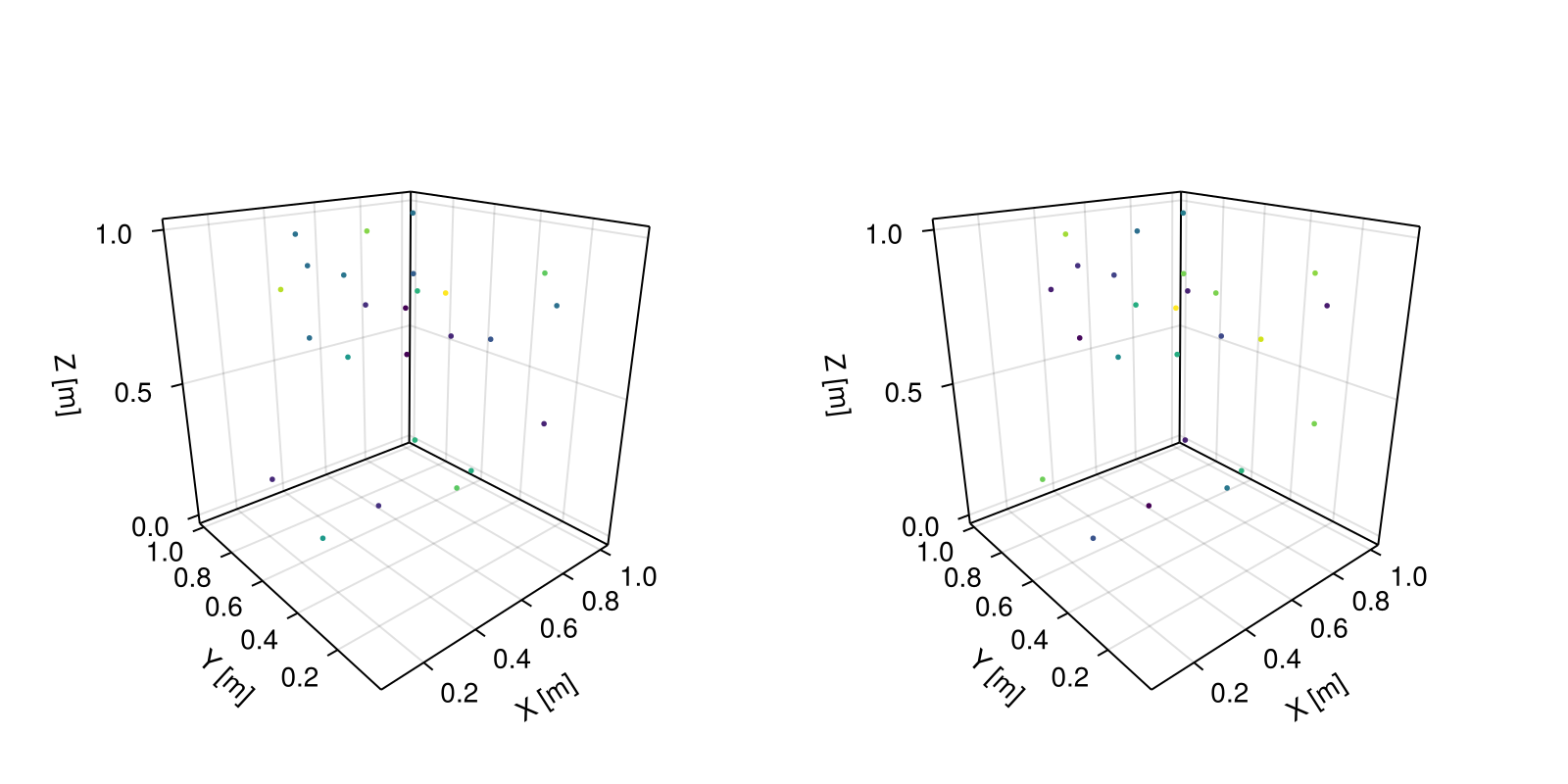

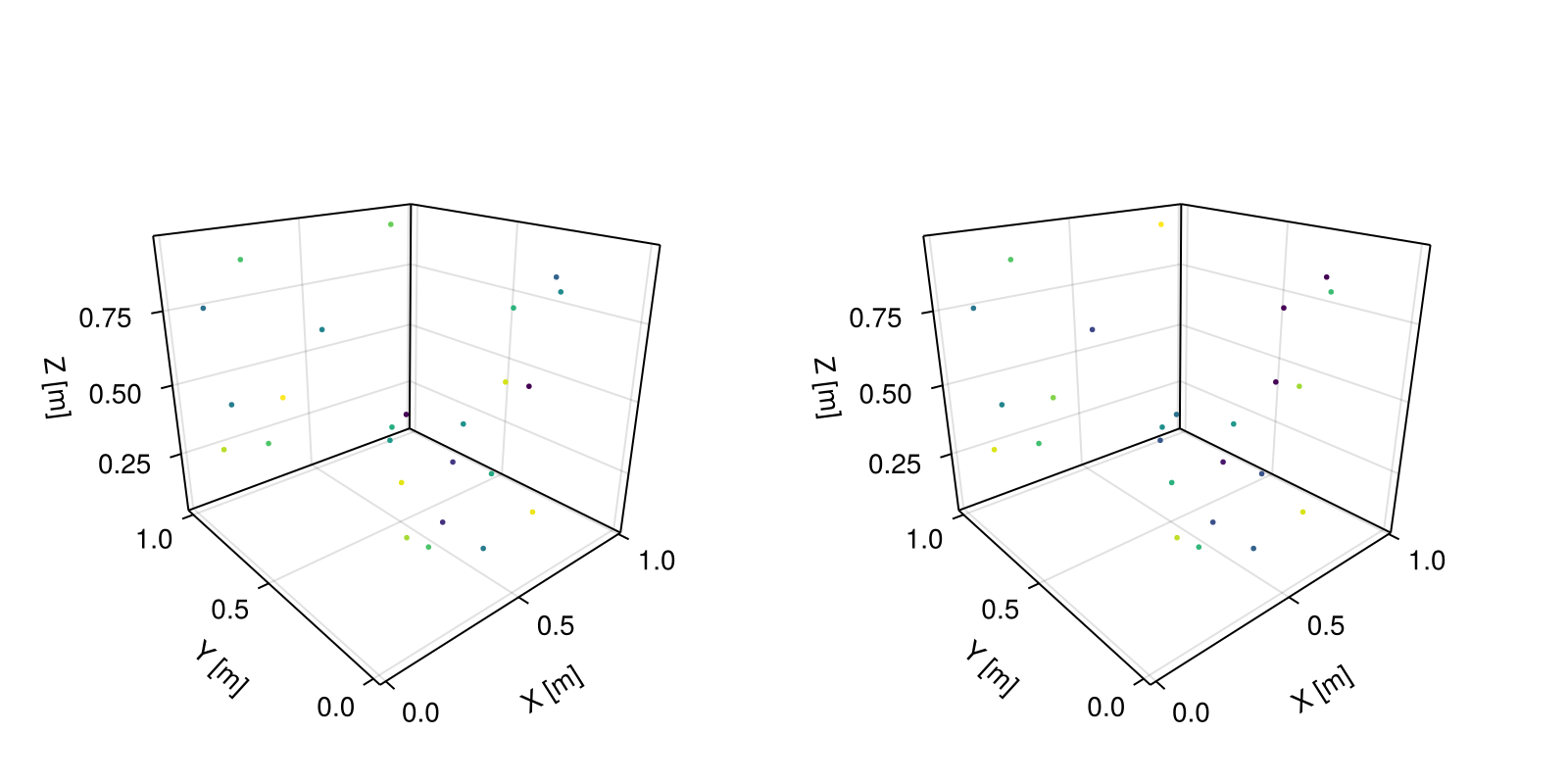

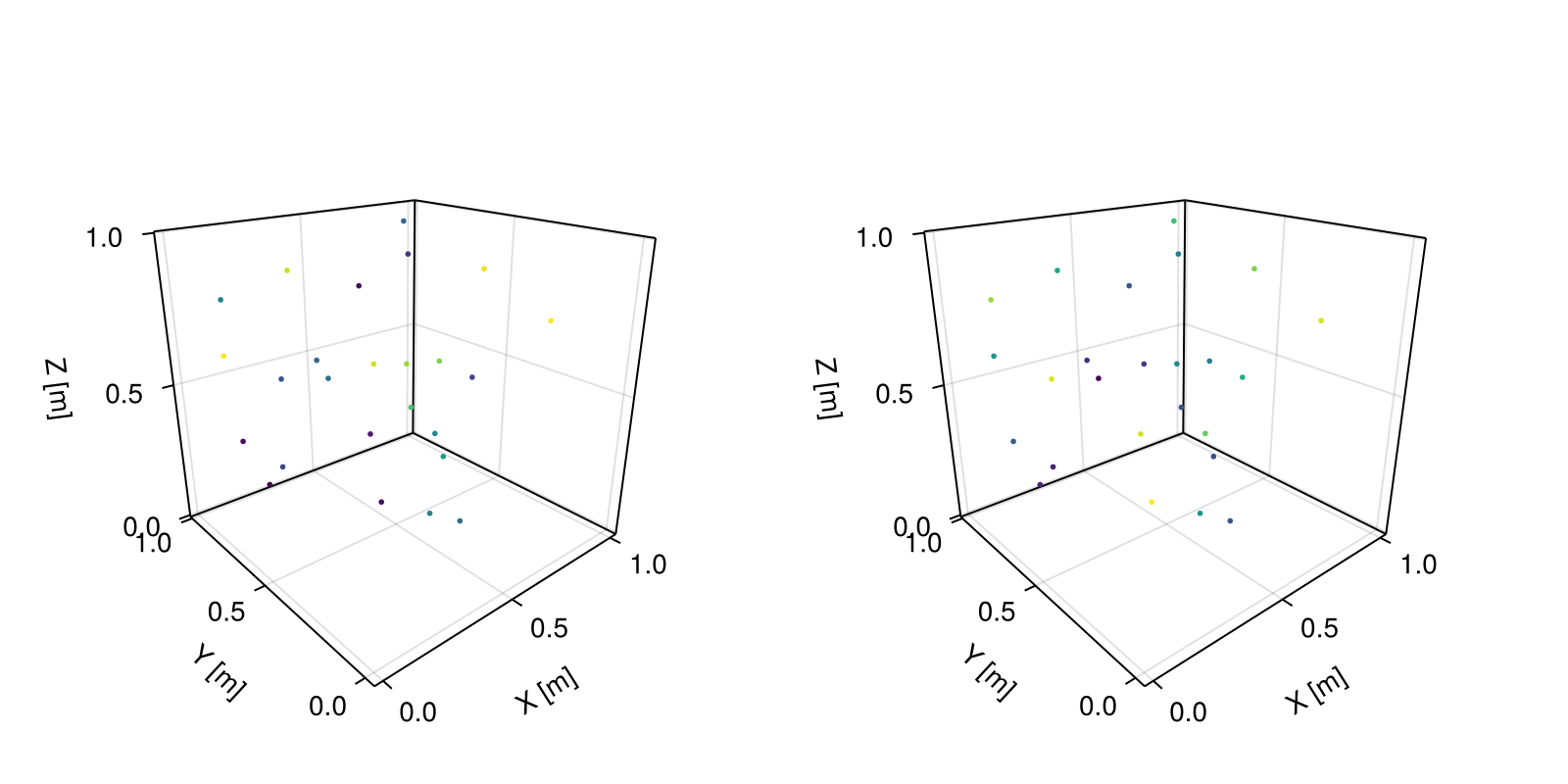

georef(table, rand(Point, 25)) |> plot

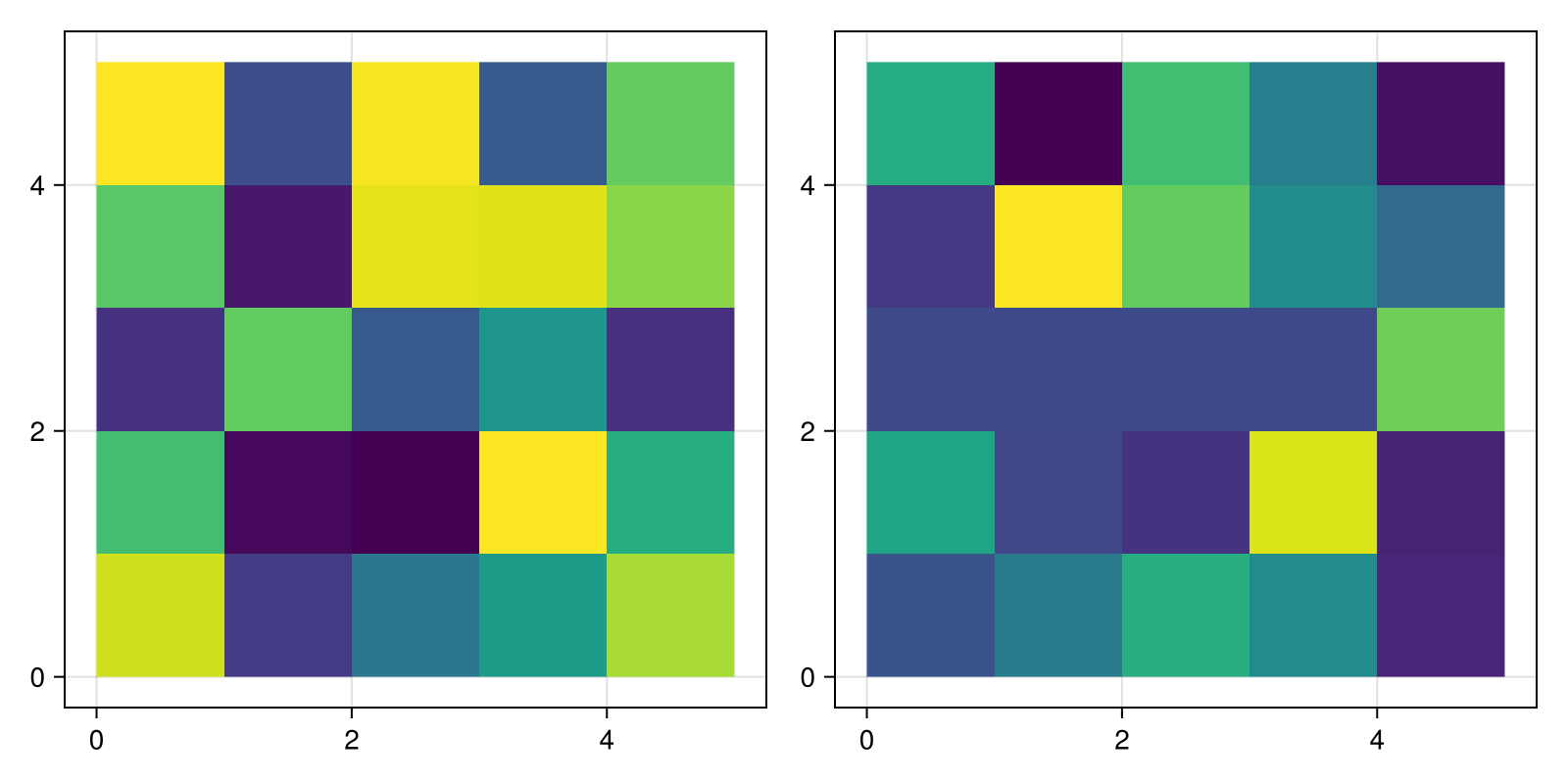

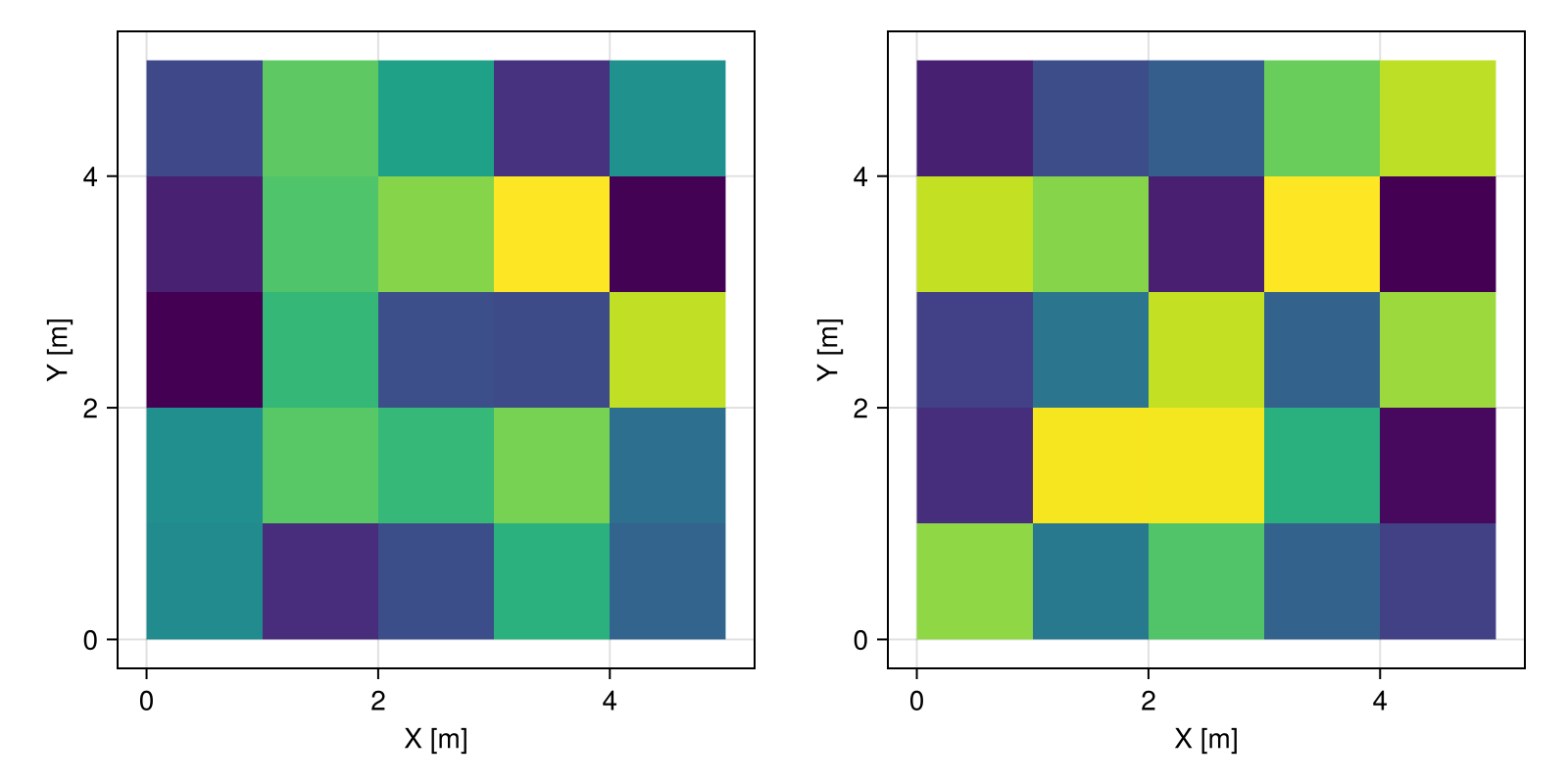

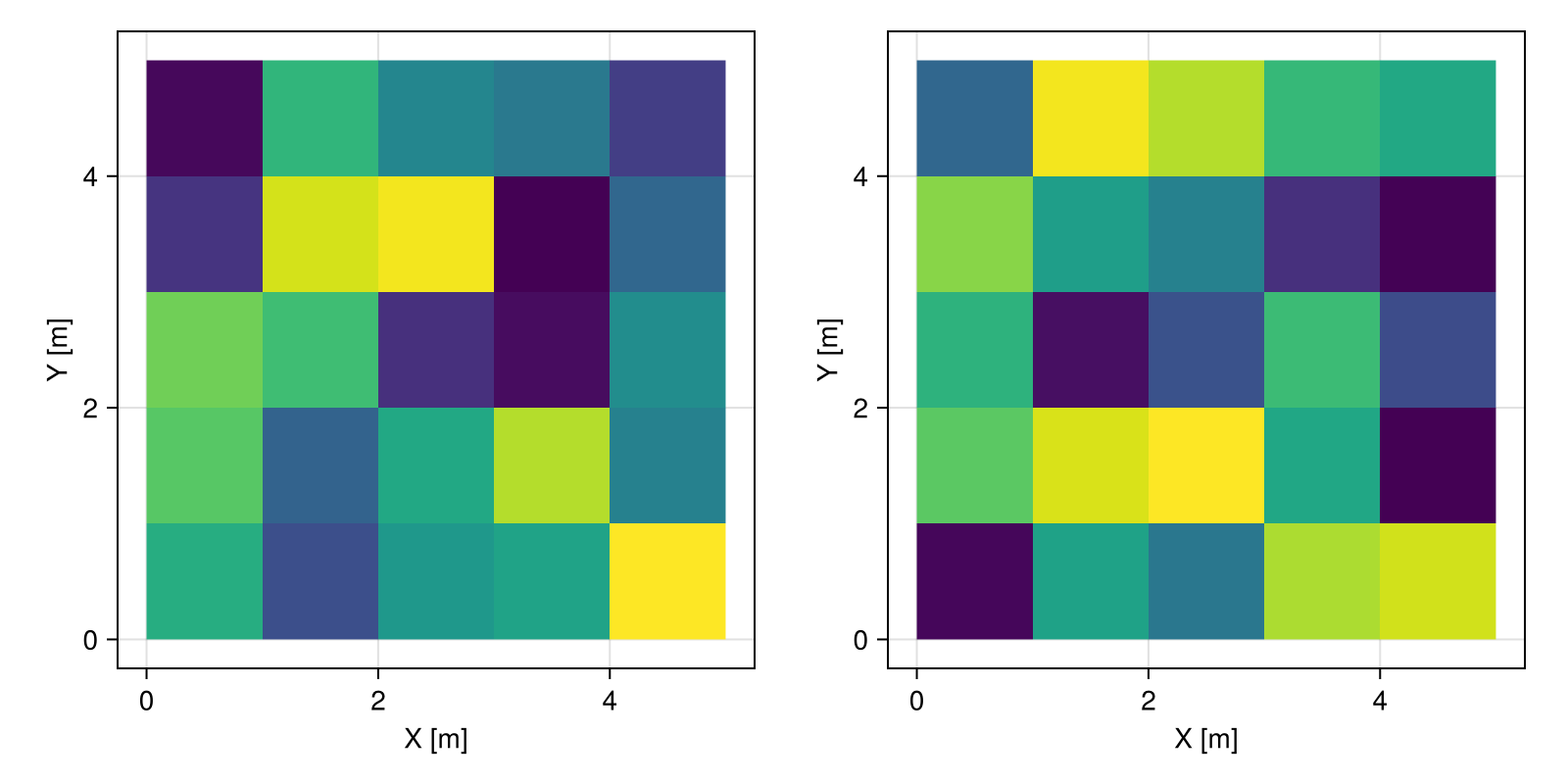

or alternatively, georeference it on a 5x5 regular grid (5x5 = 25 samples):

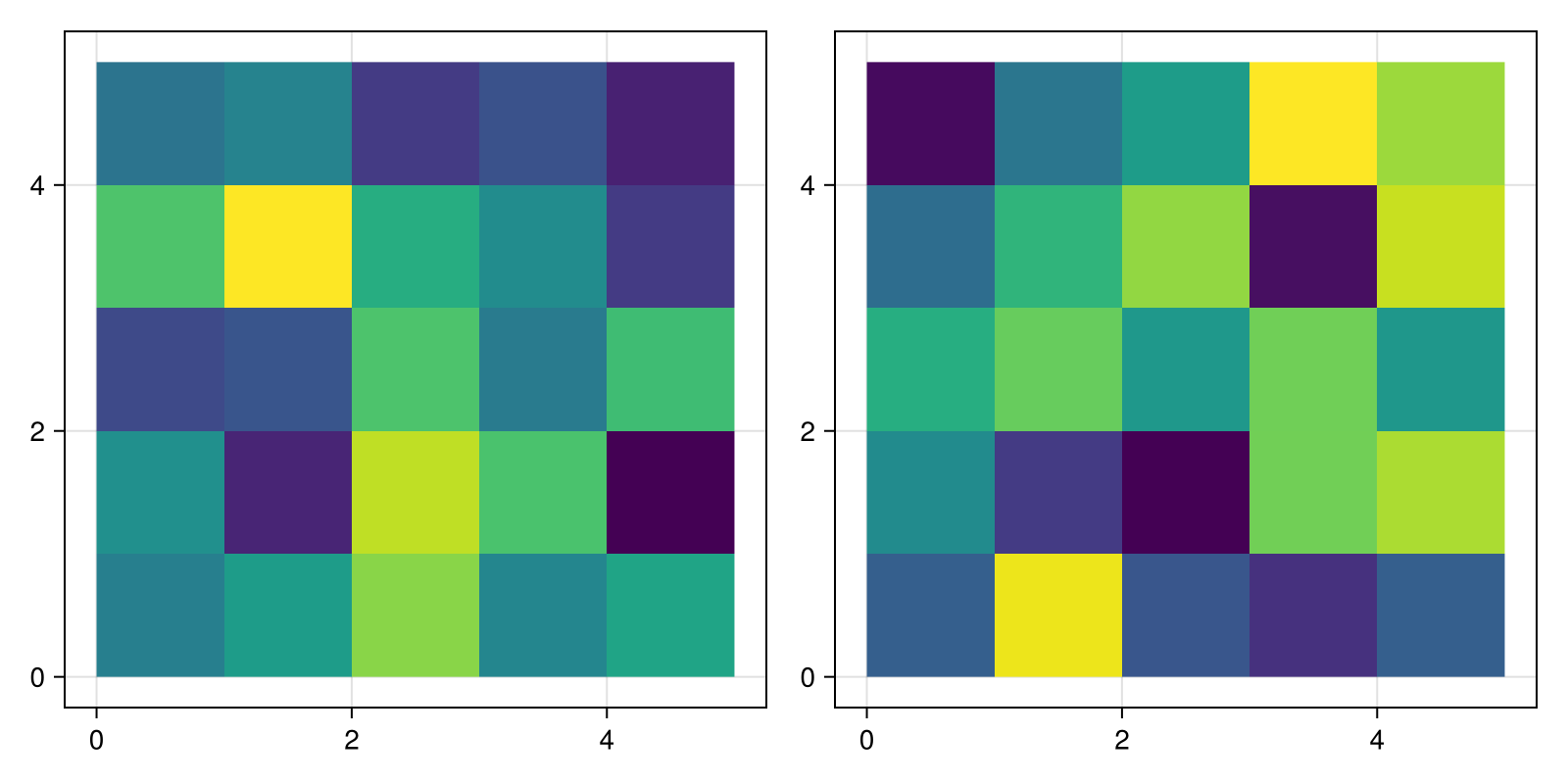

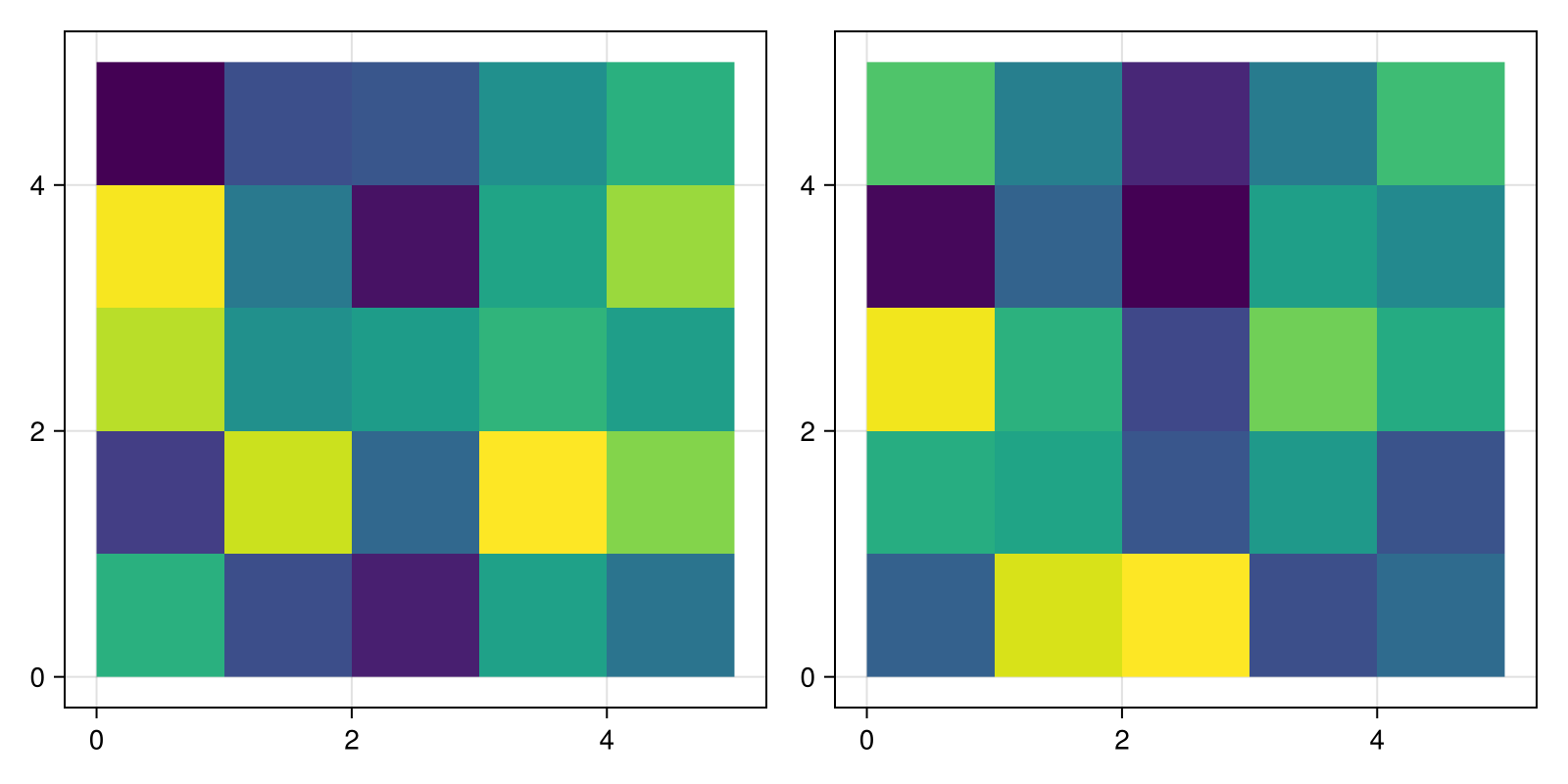

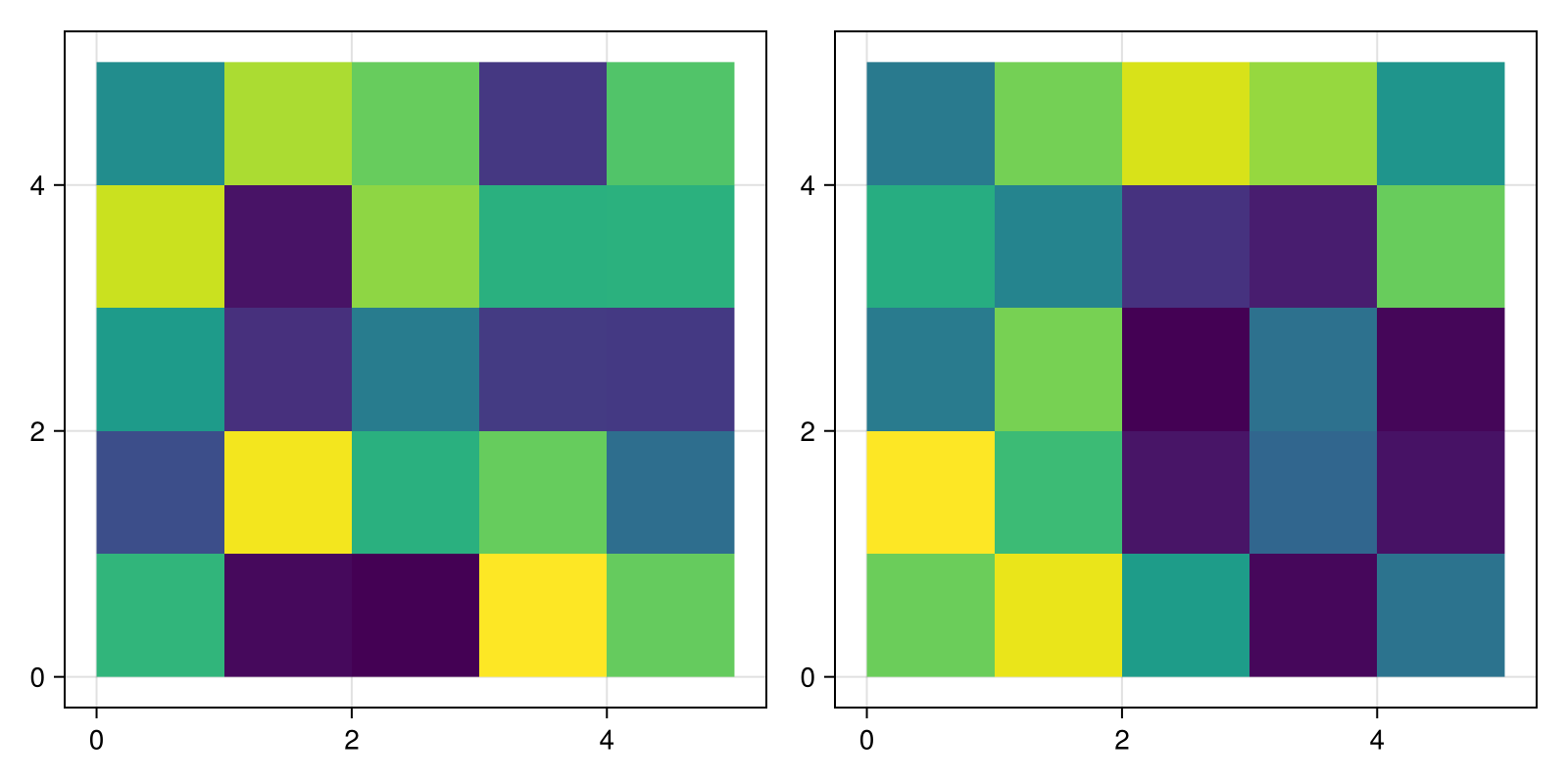

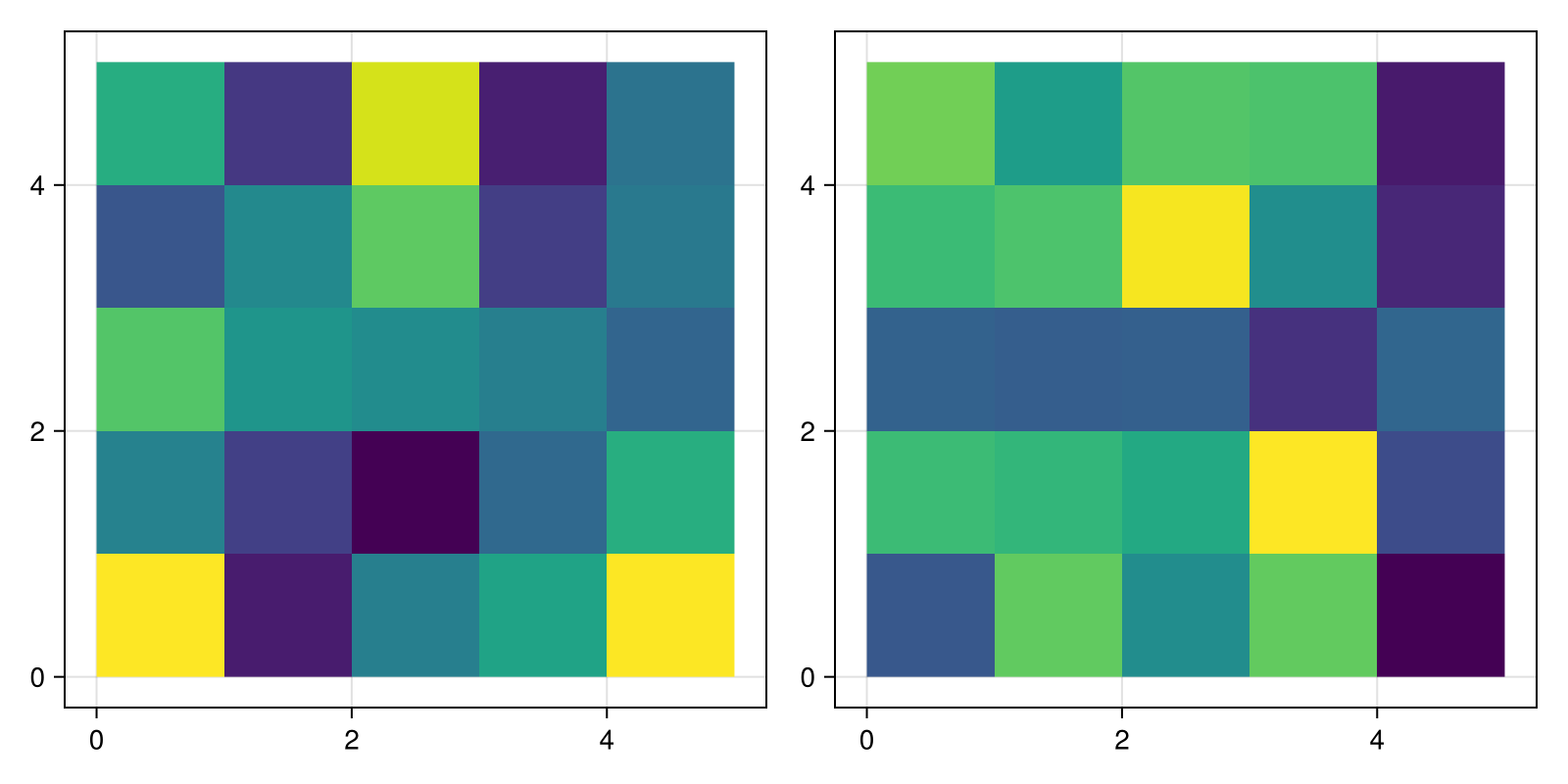

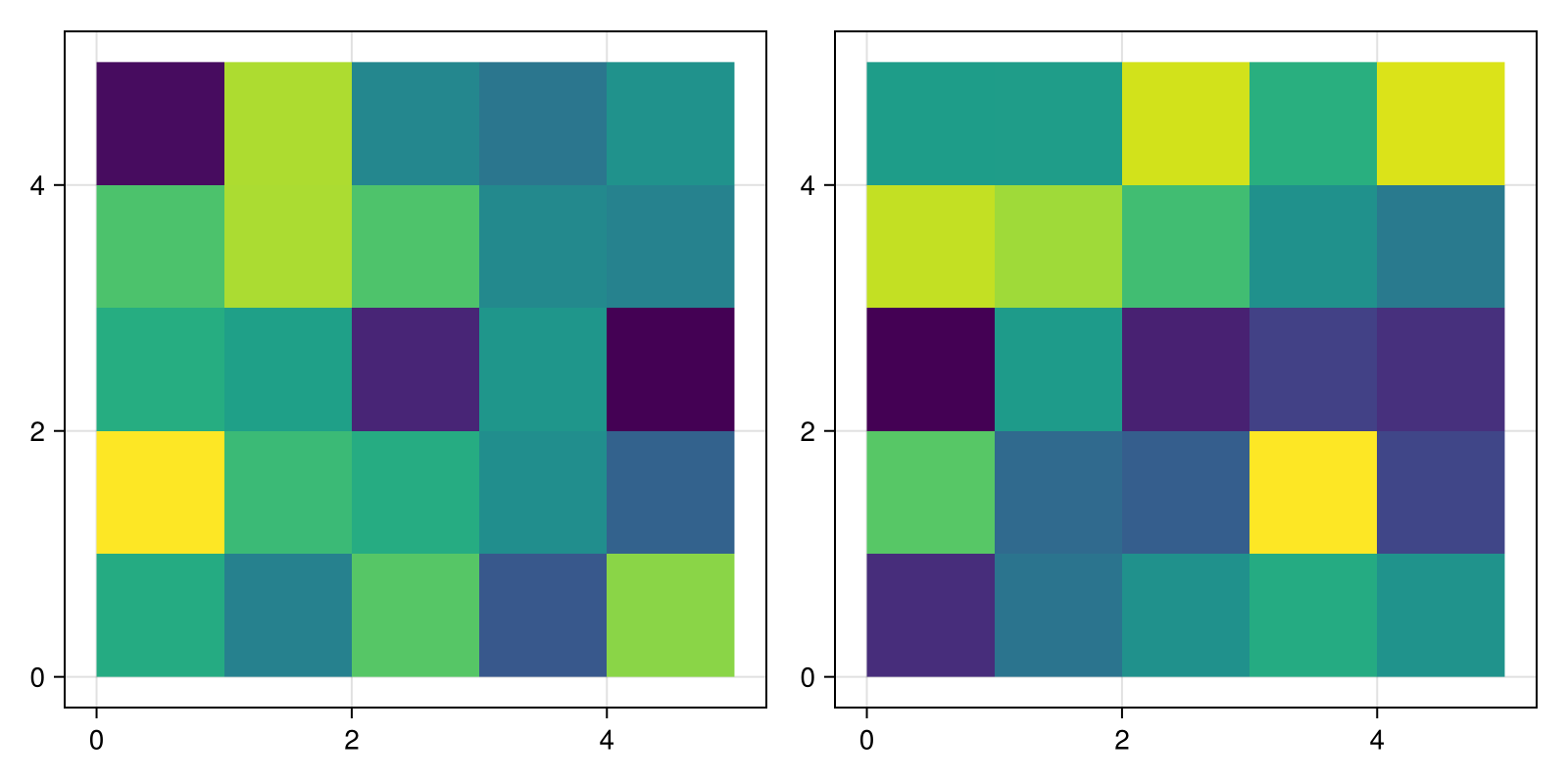

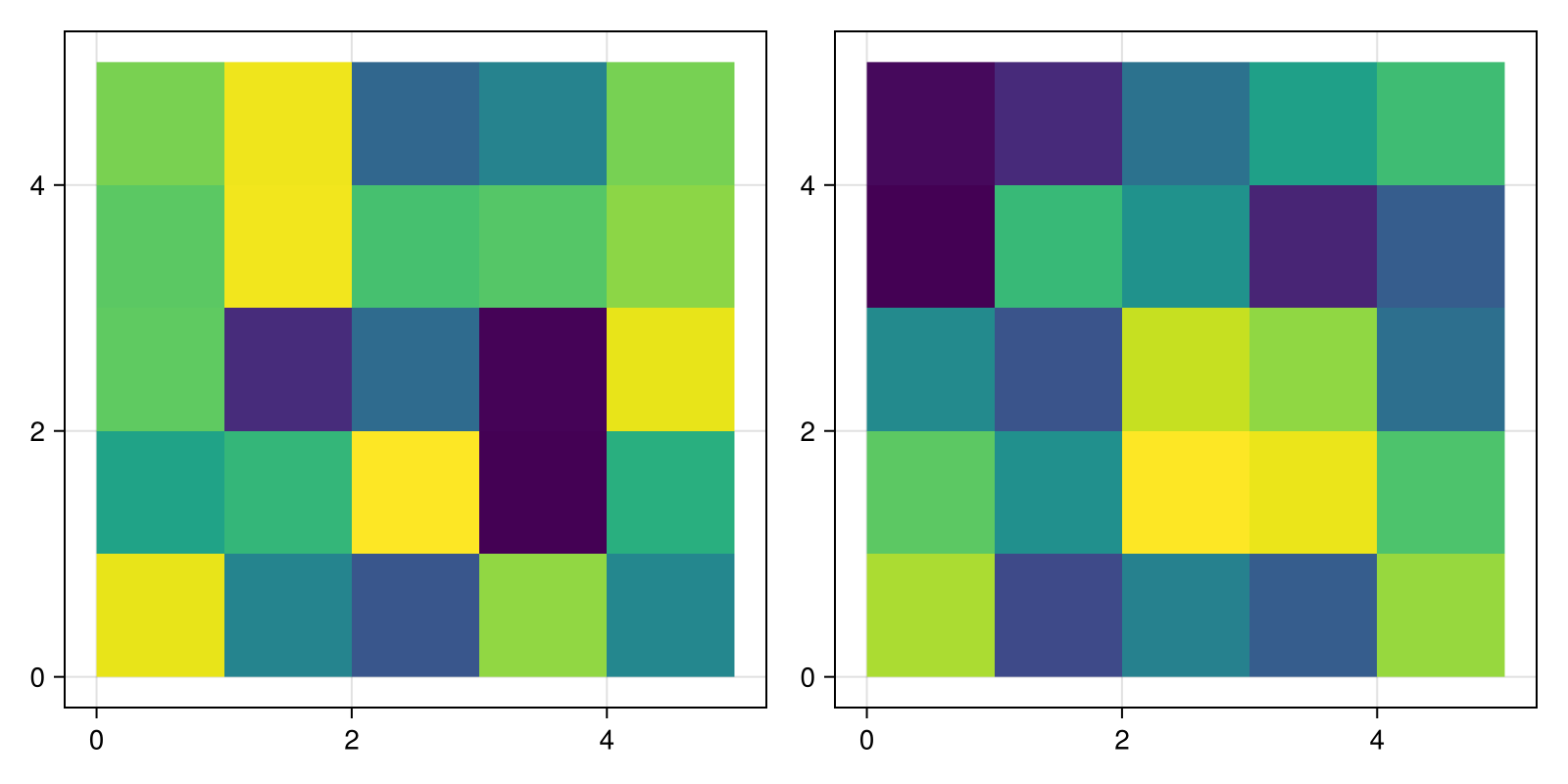

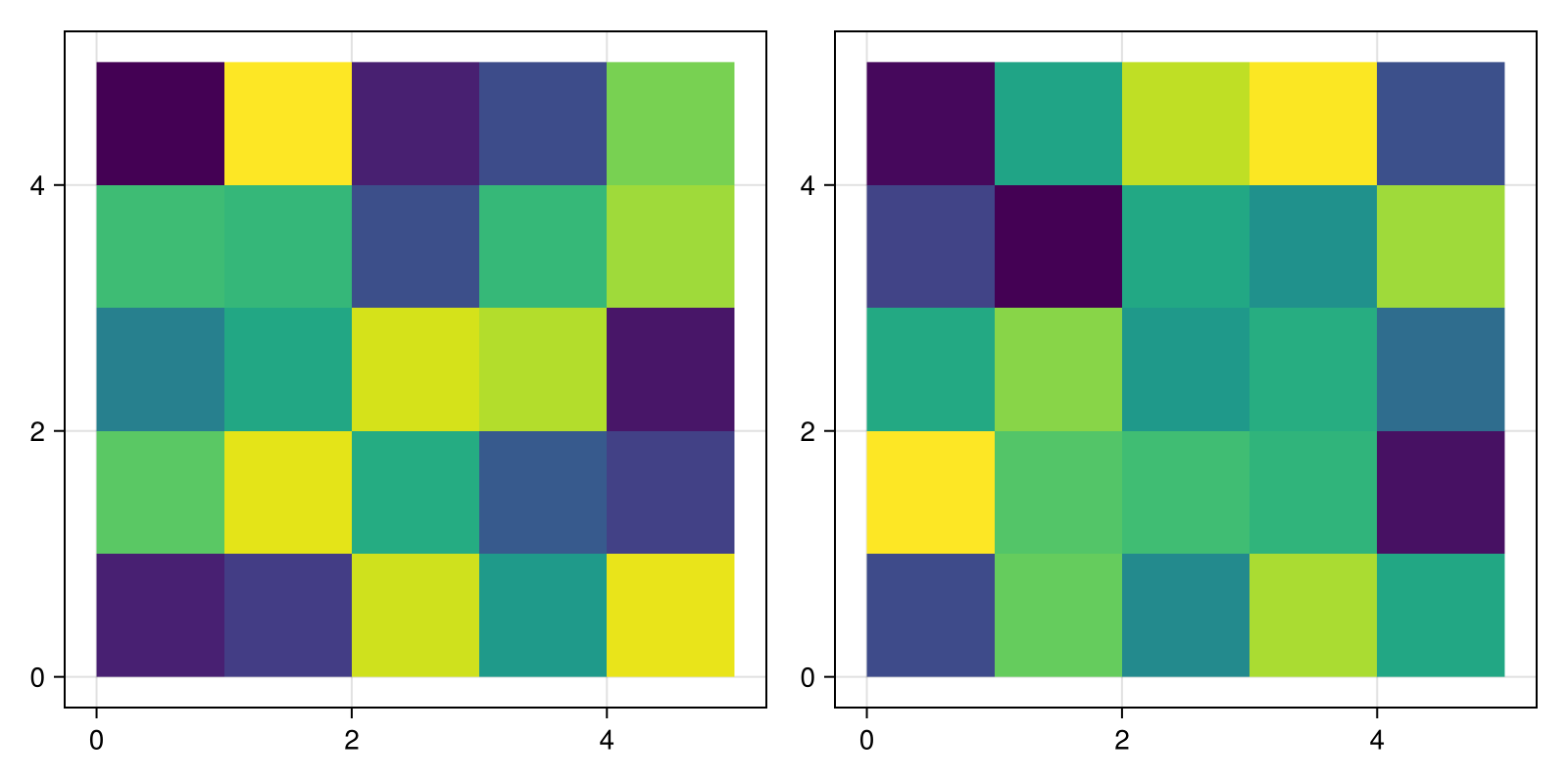

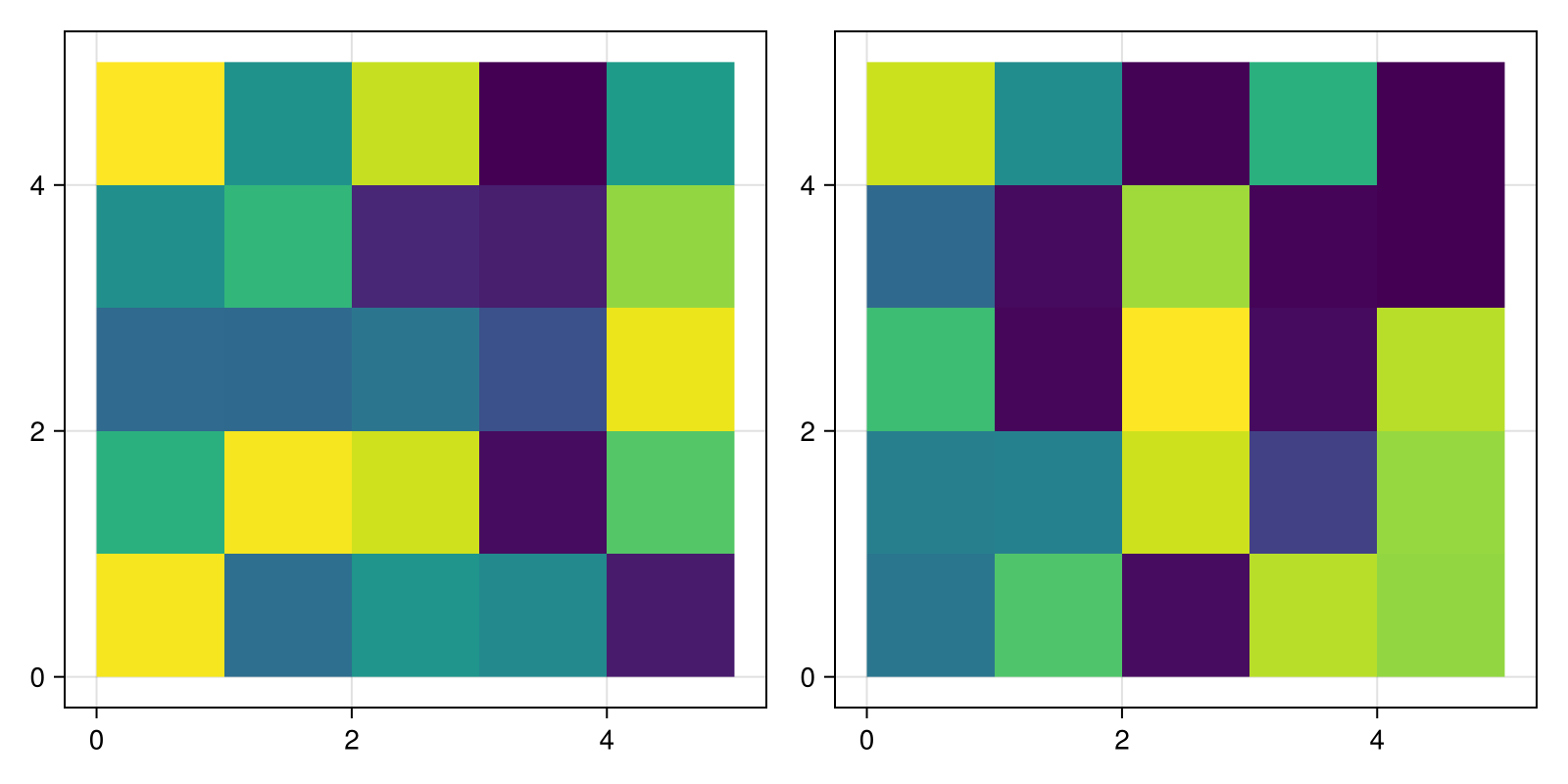

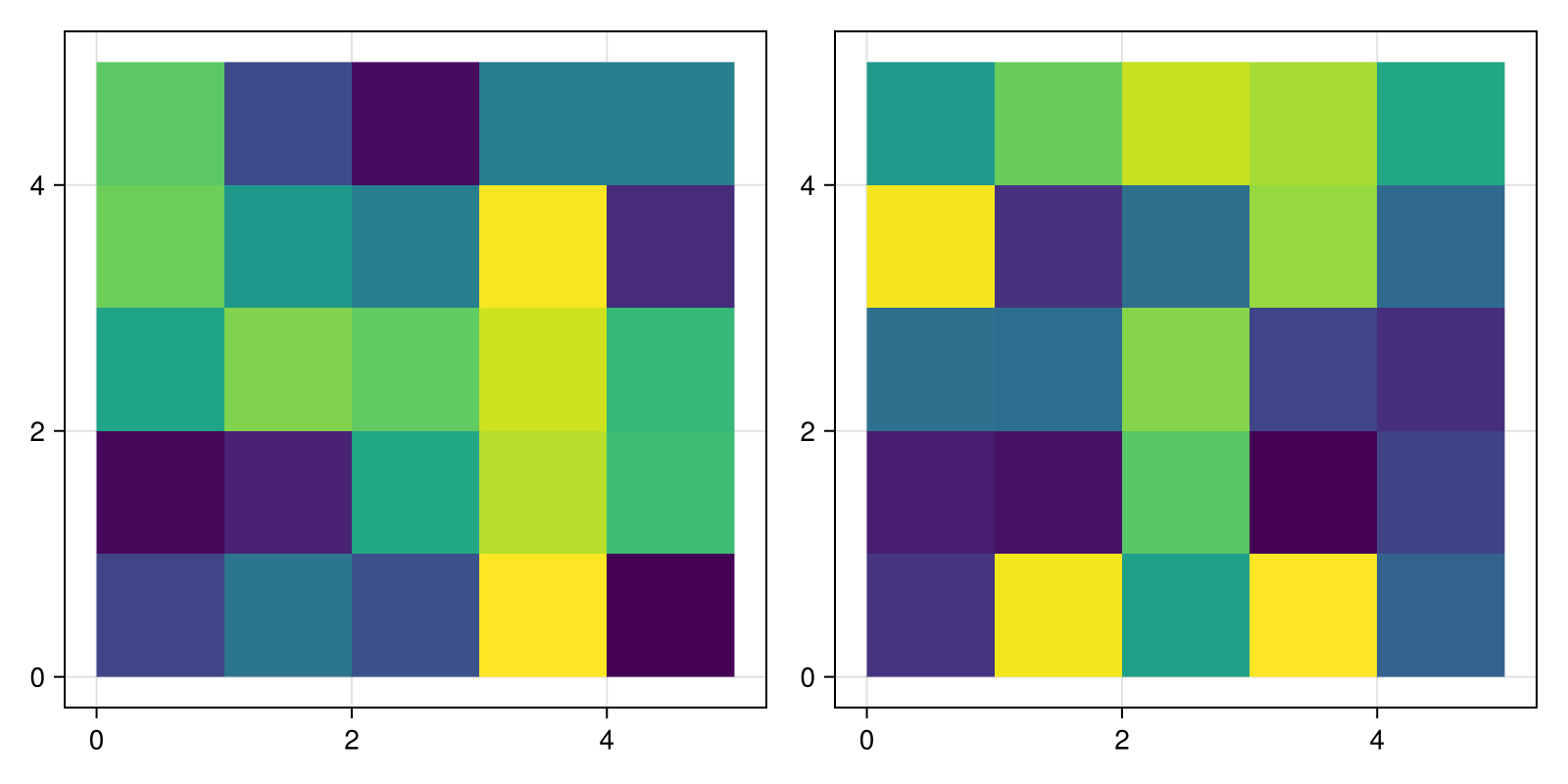

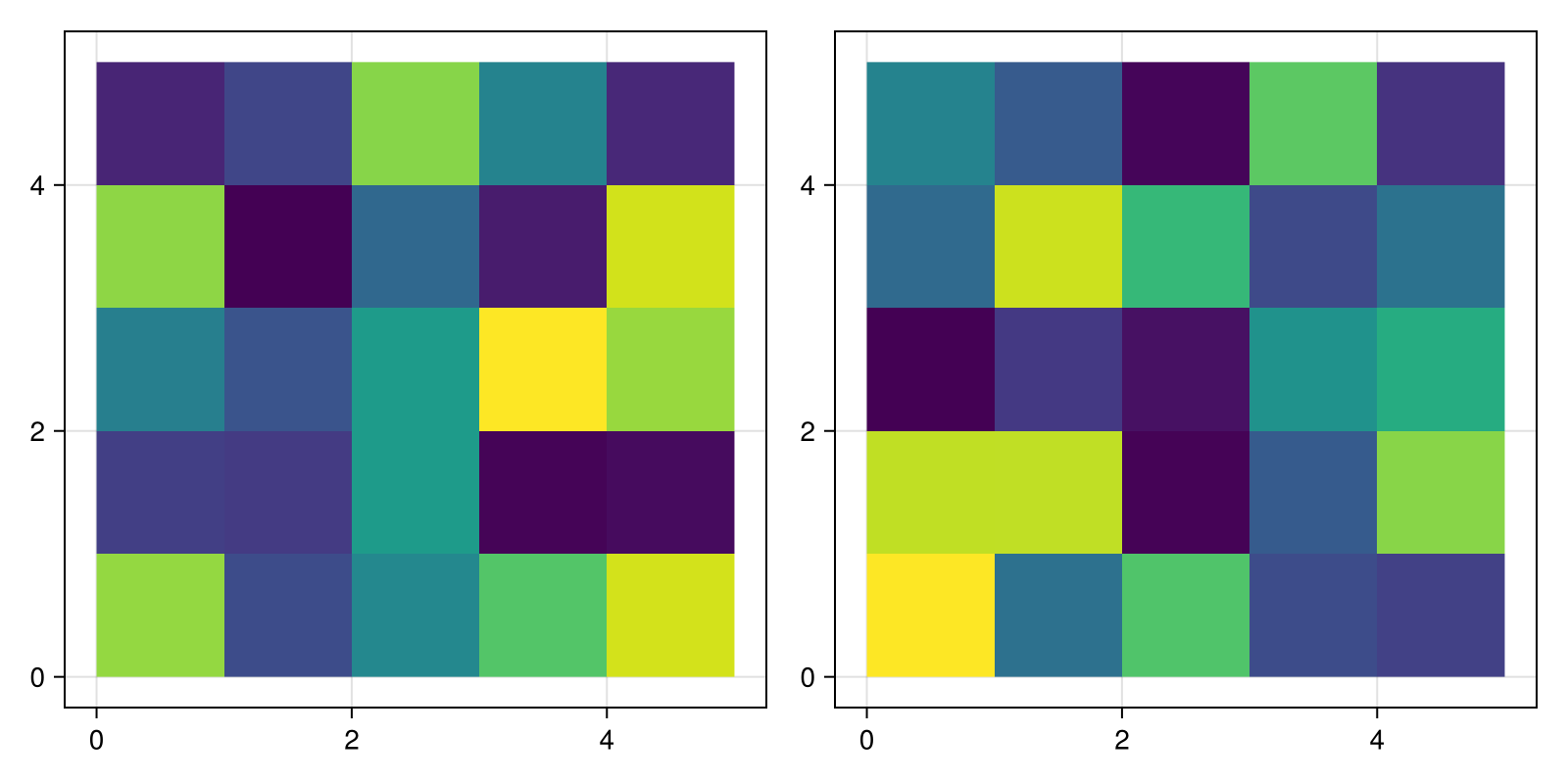

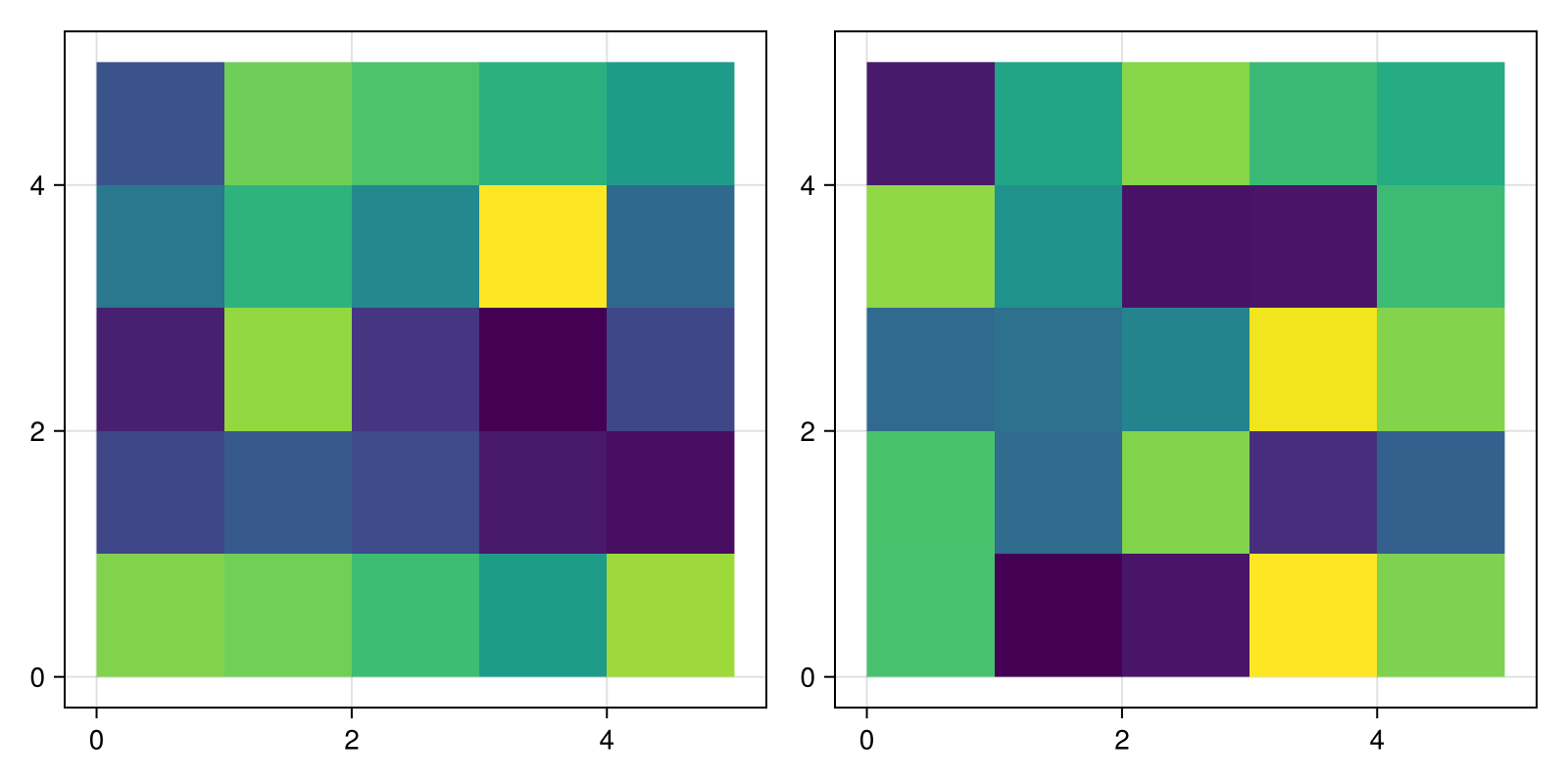

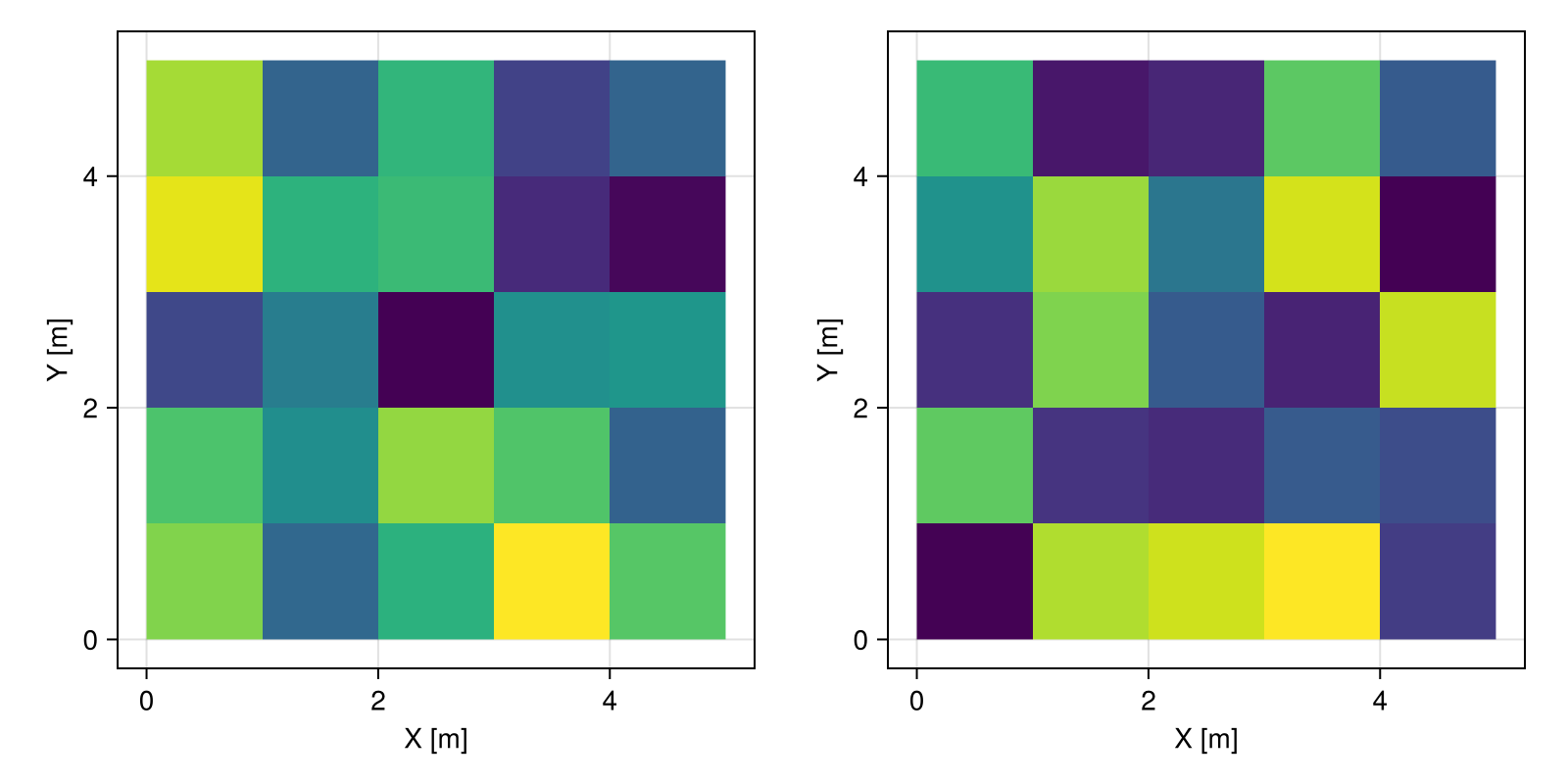

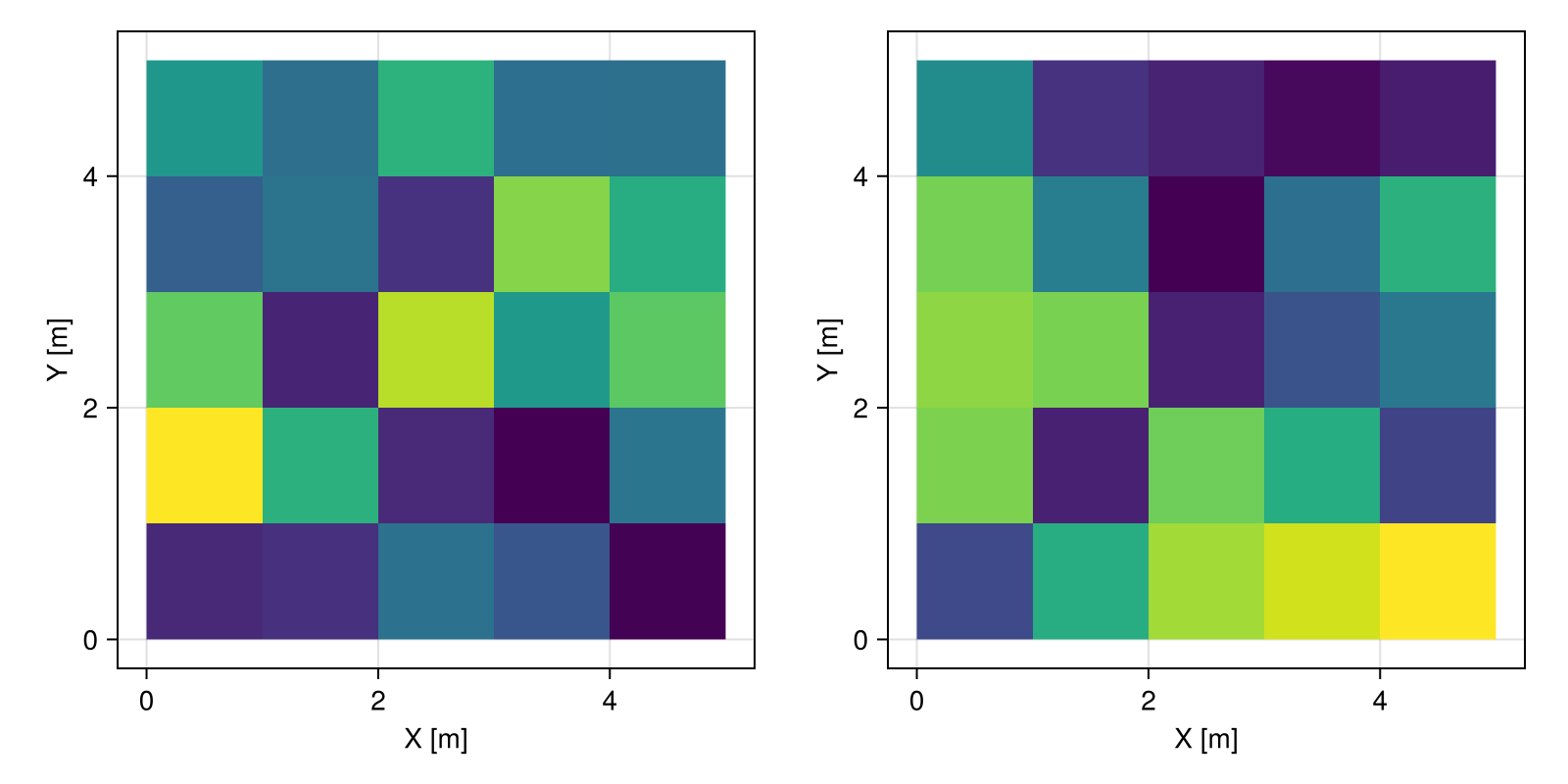

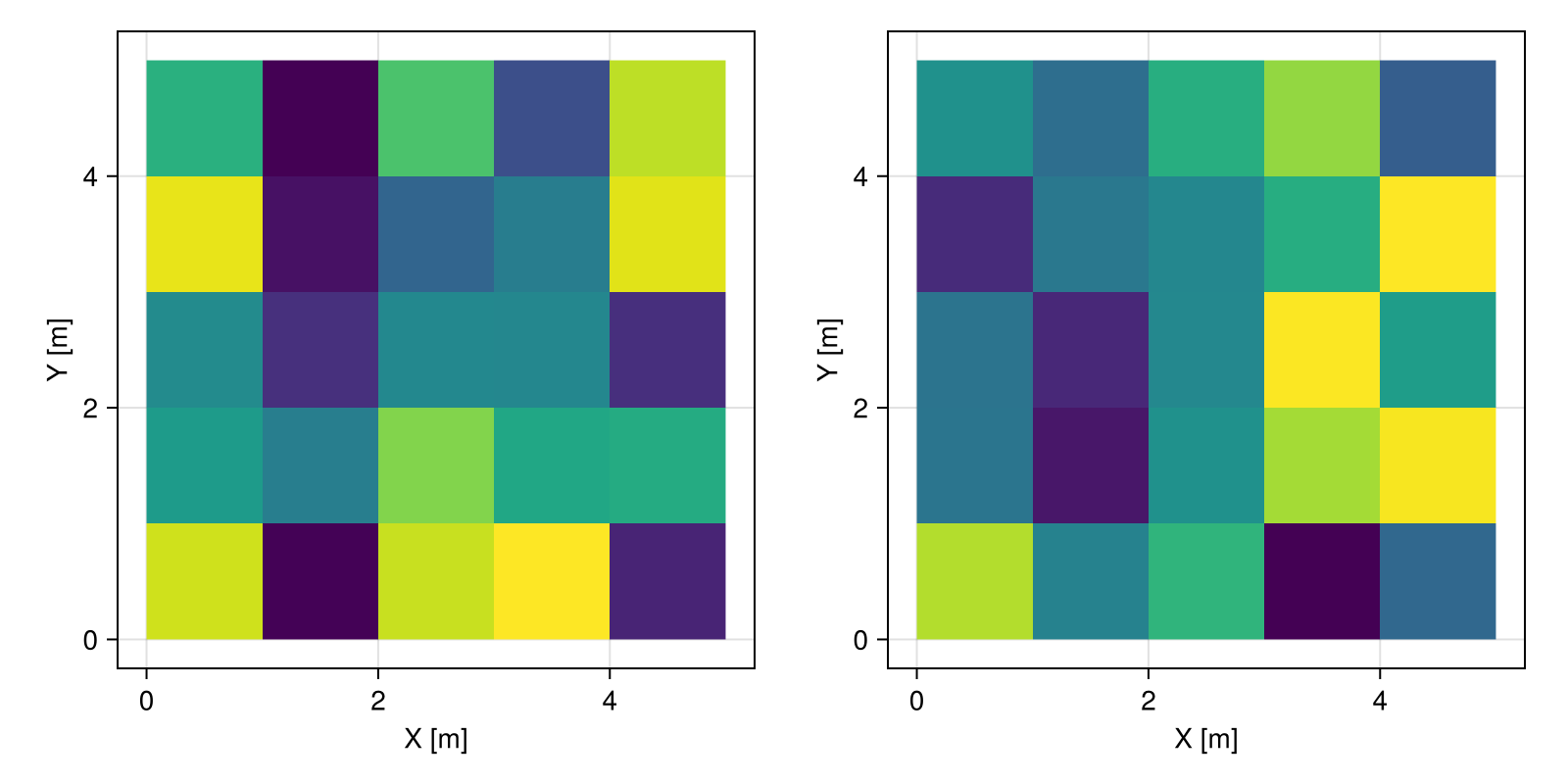

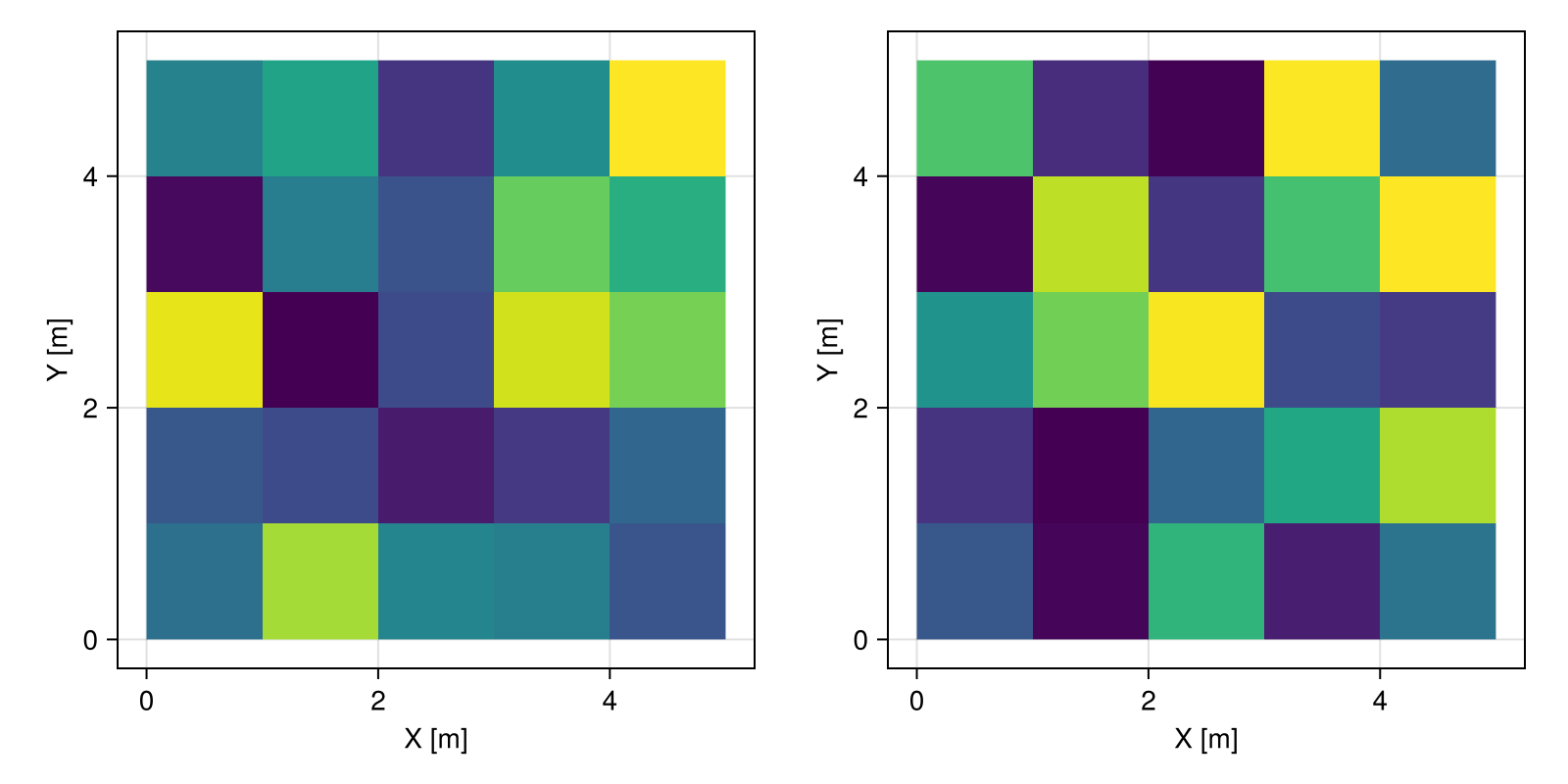

georef(table, CartesianGrid(5, 5)) |> plot

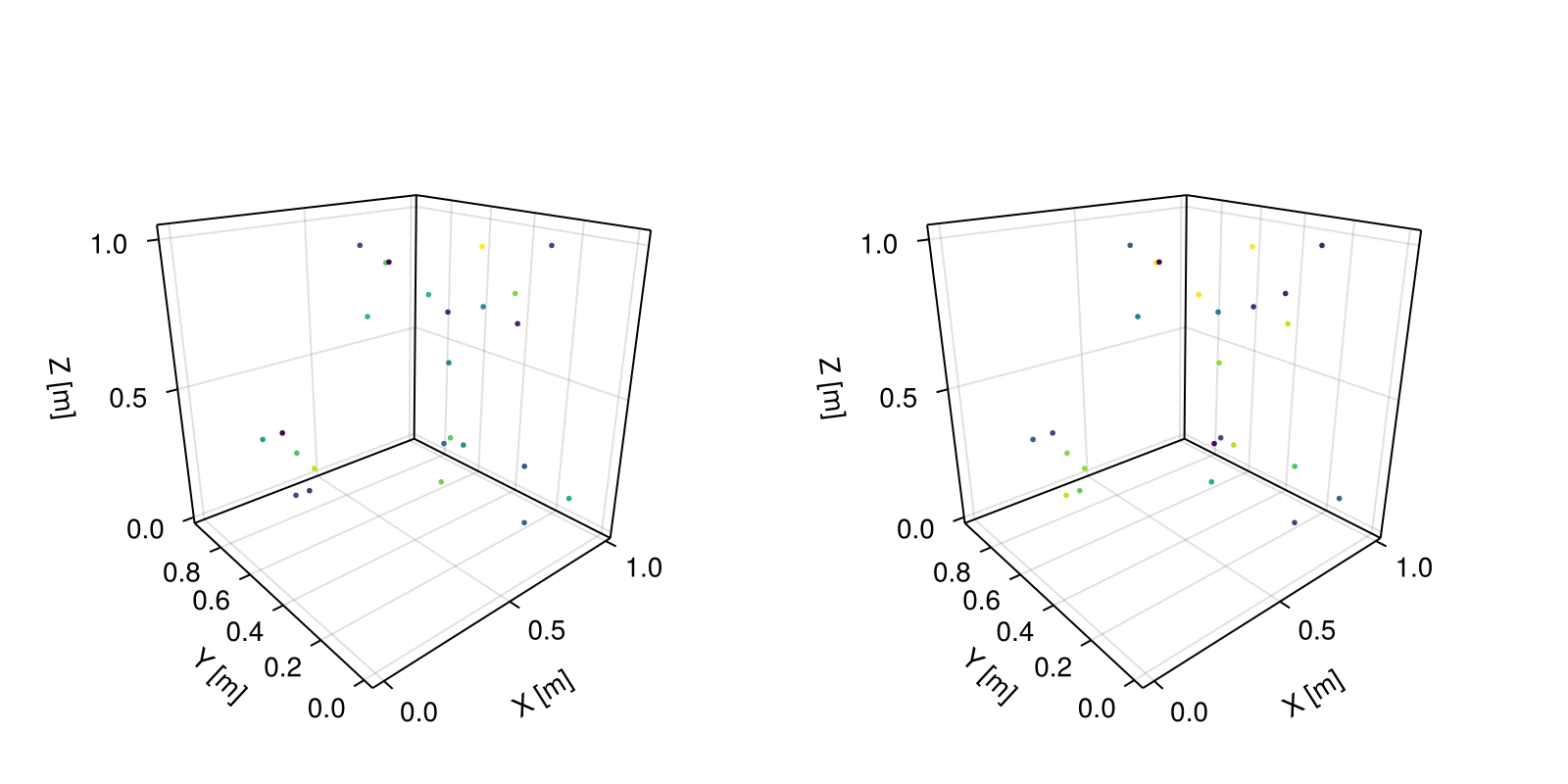

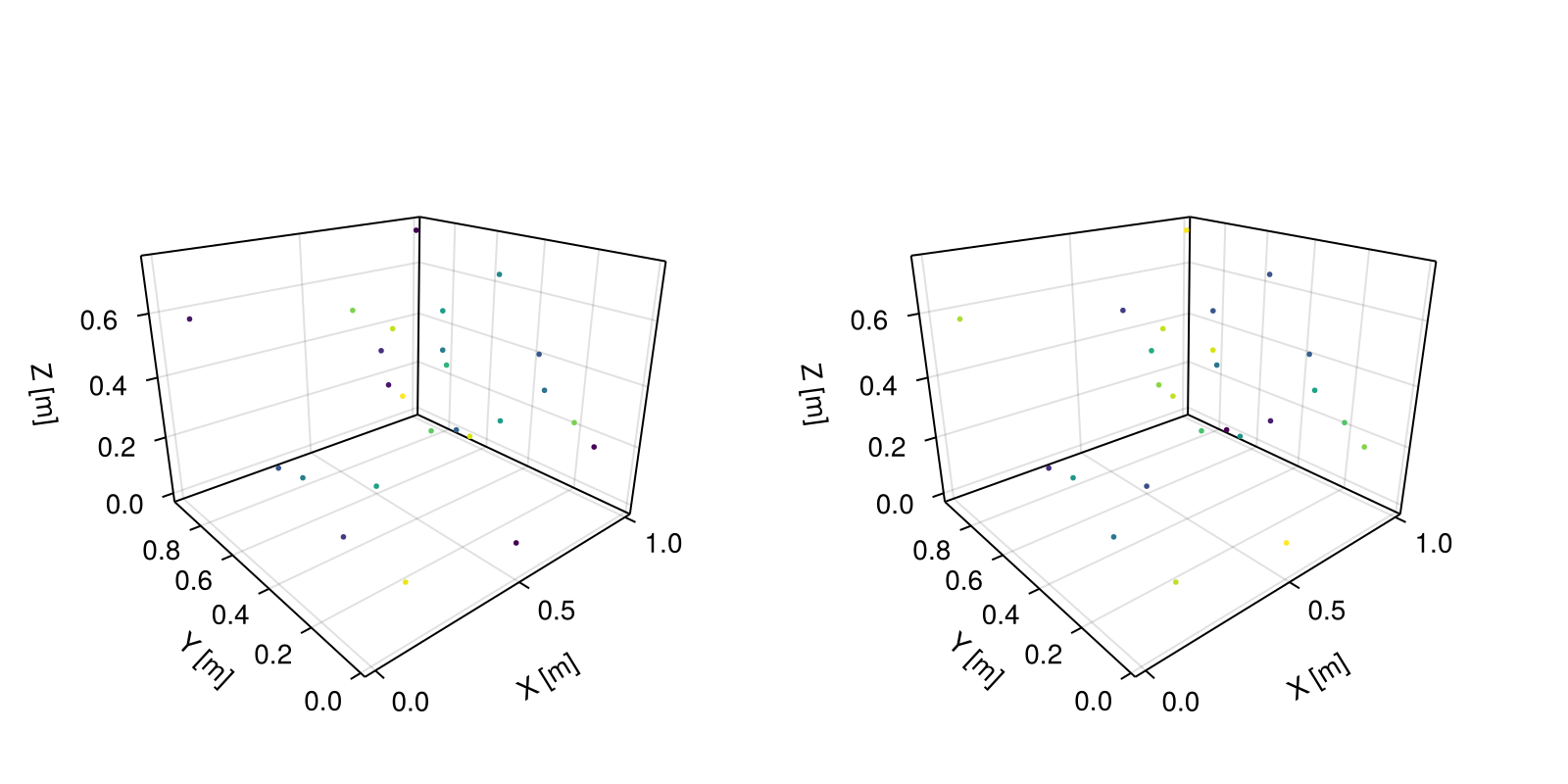

Another common pattern in geospatial data is when the coordinates of the samples are already part of the table as columns. In this case, we can specify the column names:

table = DataFrame(T=rand(25), P=rand(25), X=rand(25), Y=rand(25), Z=rand(25))

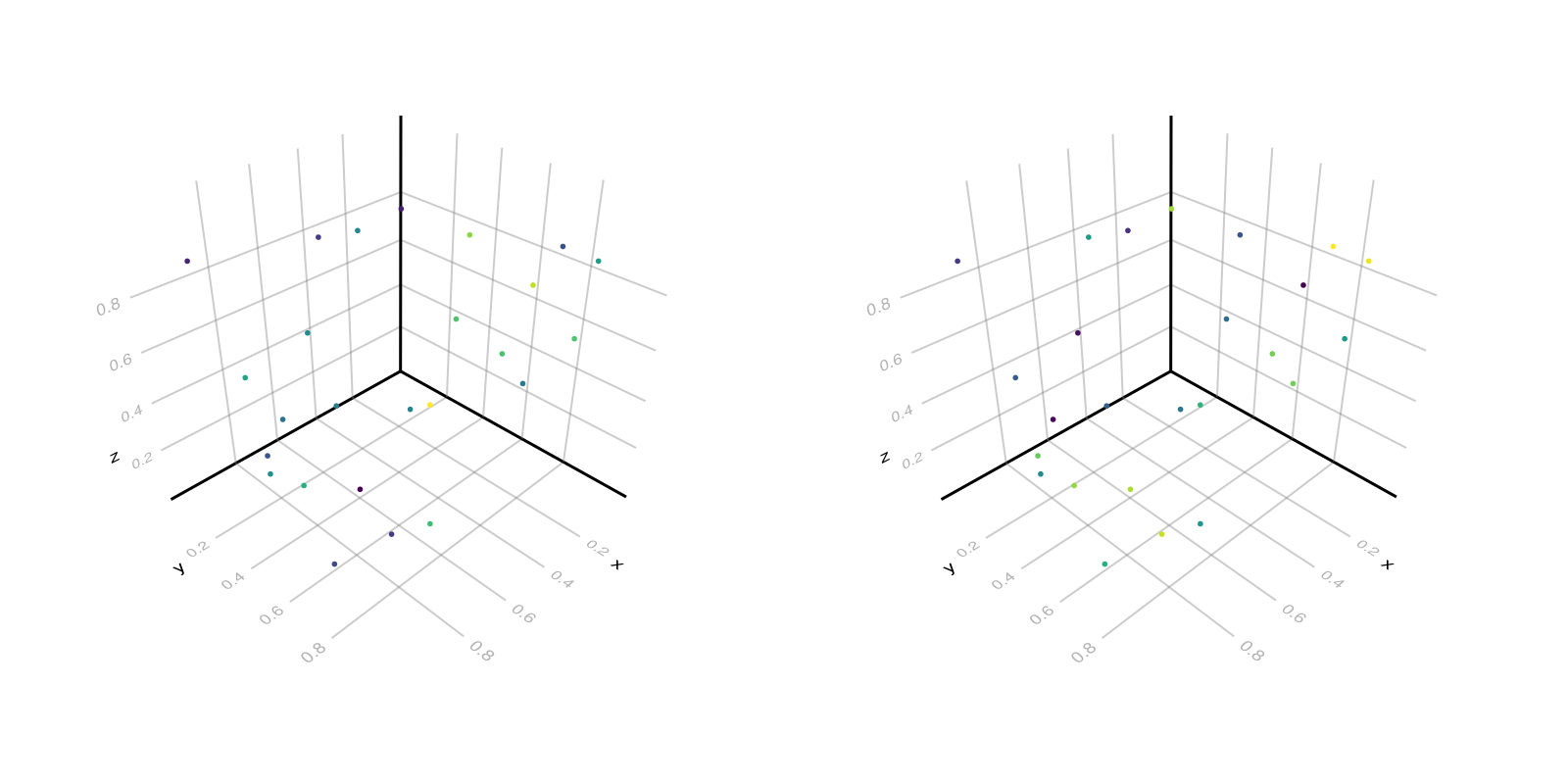

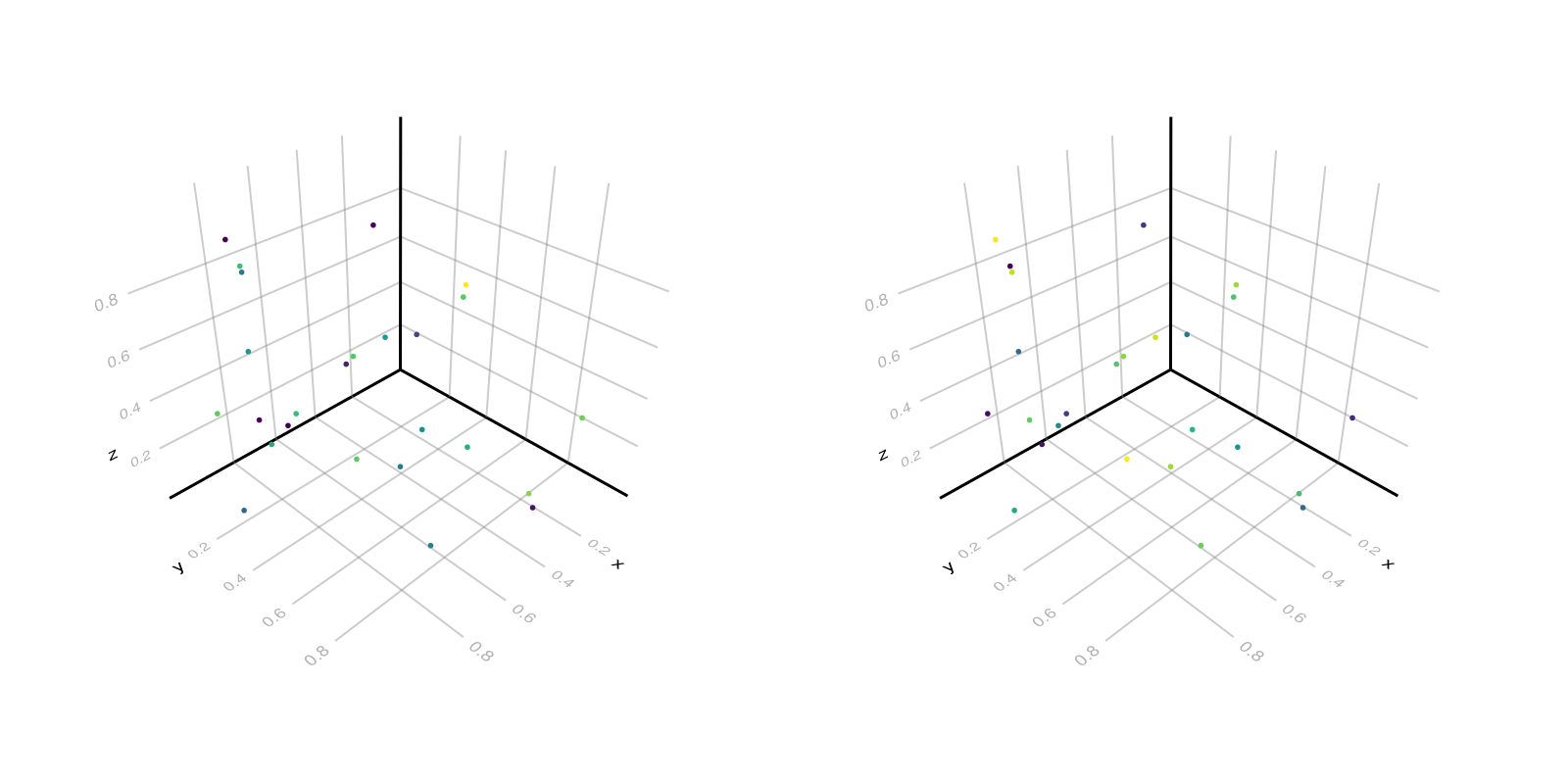

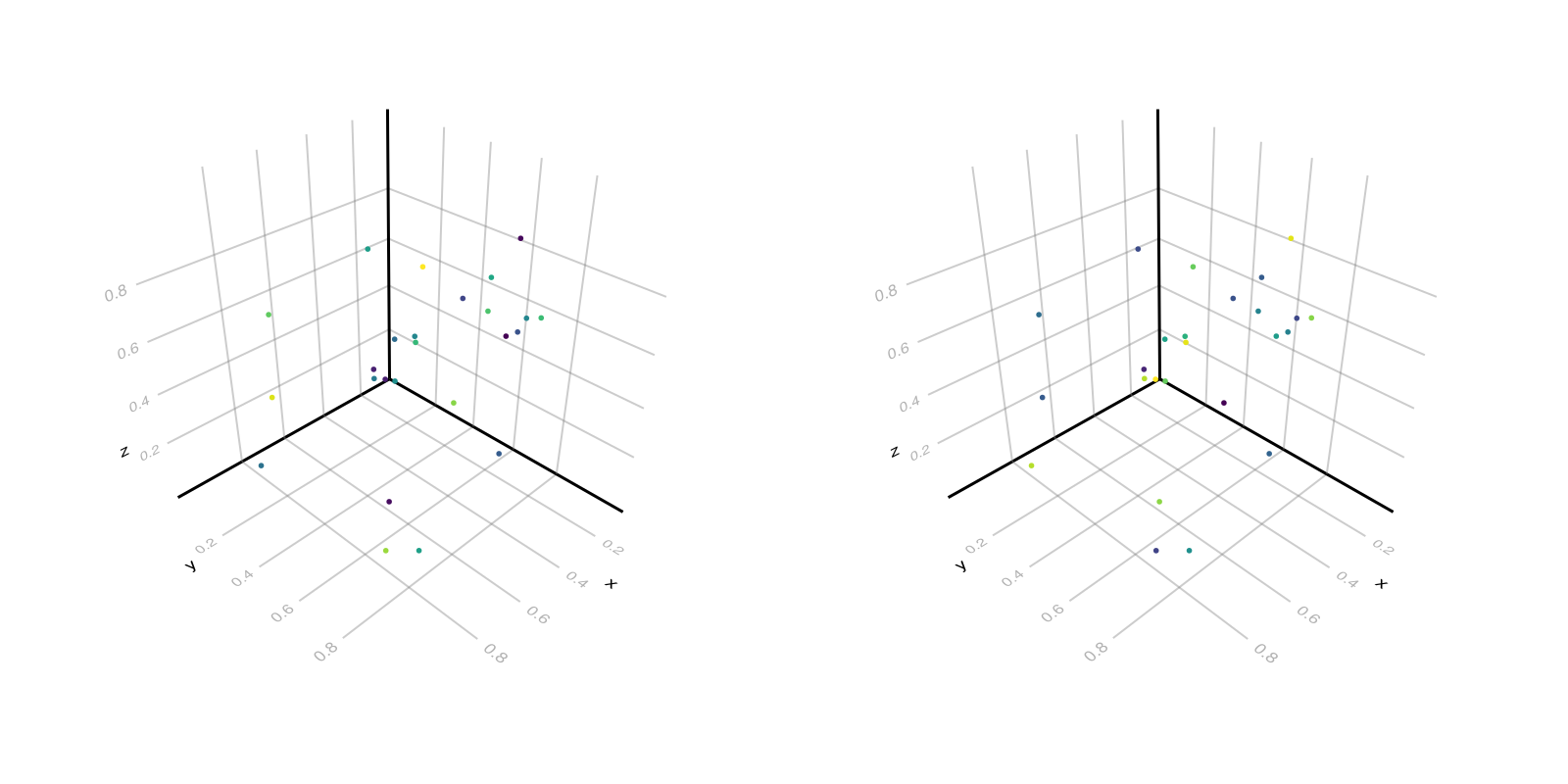

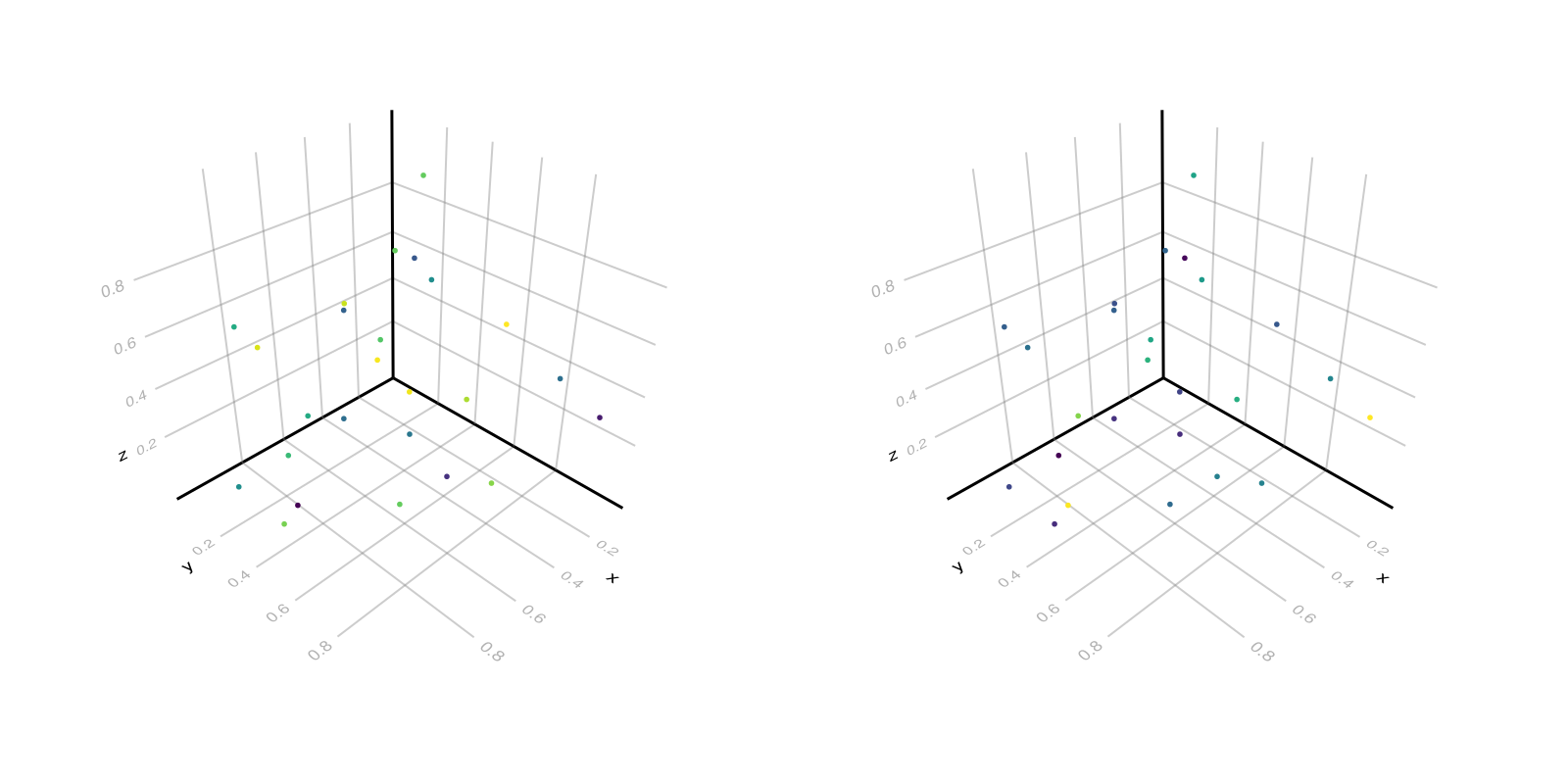

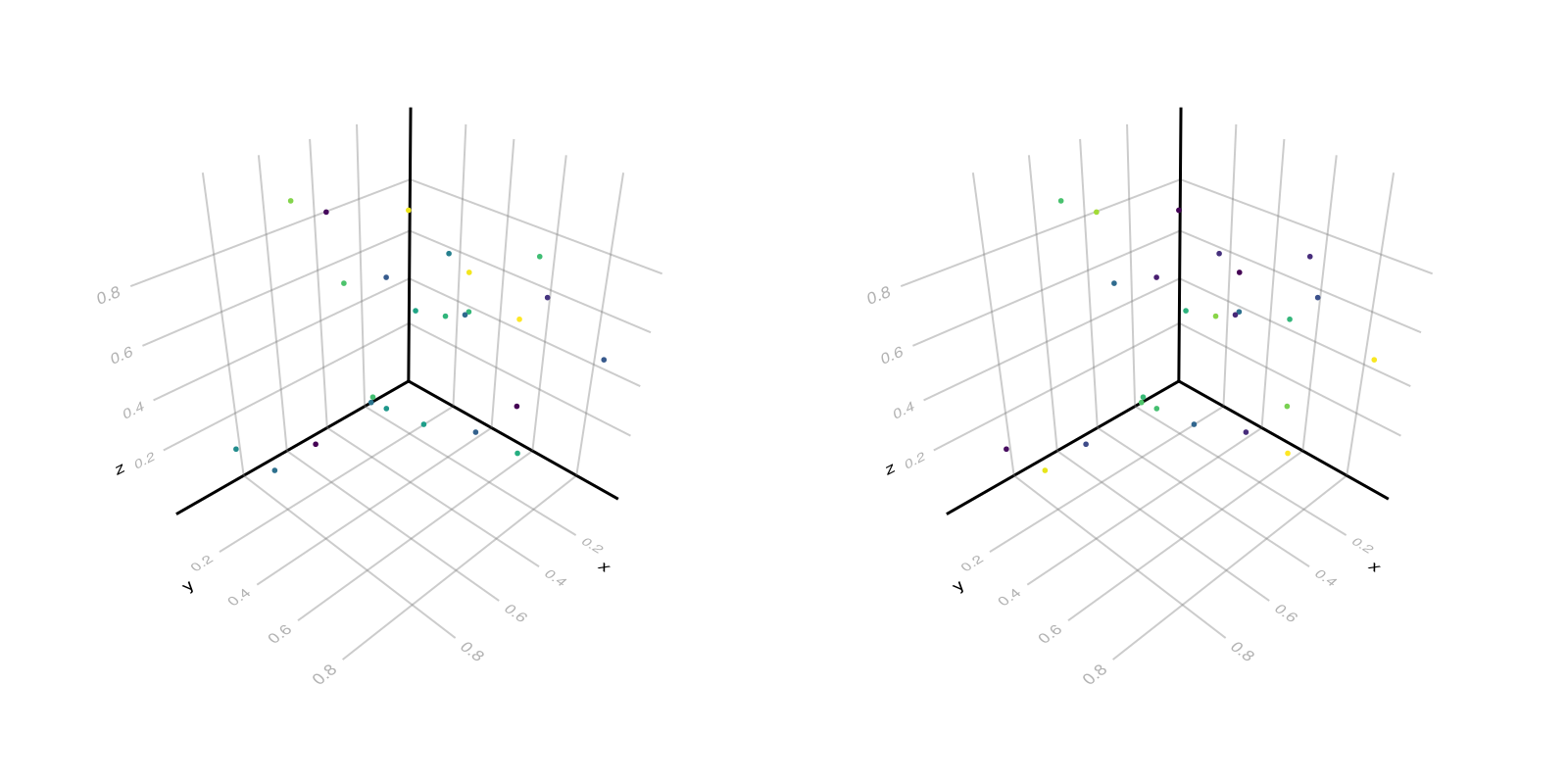

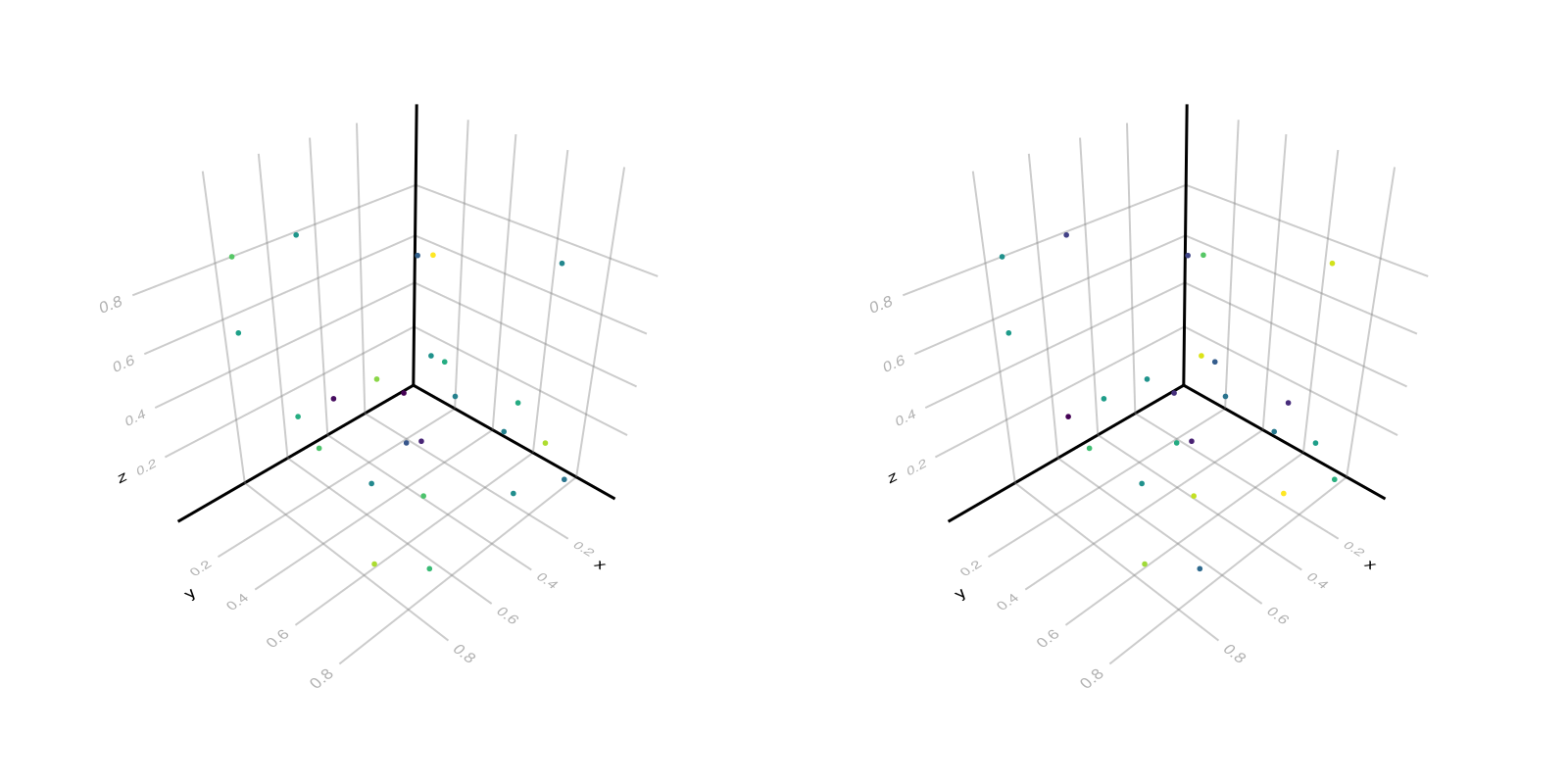

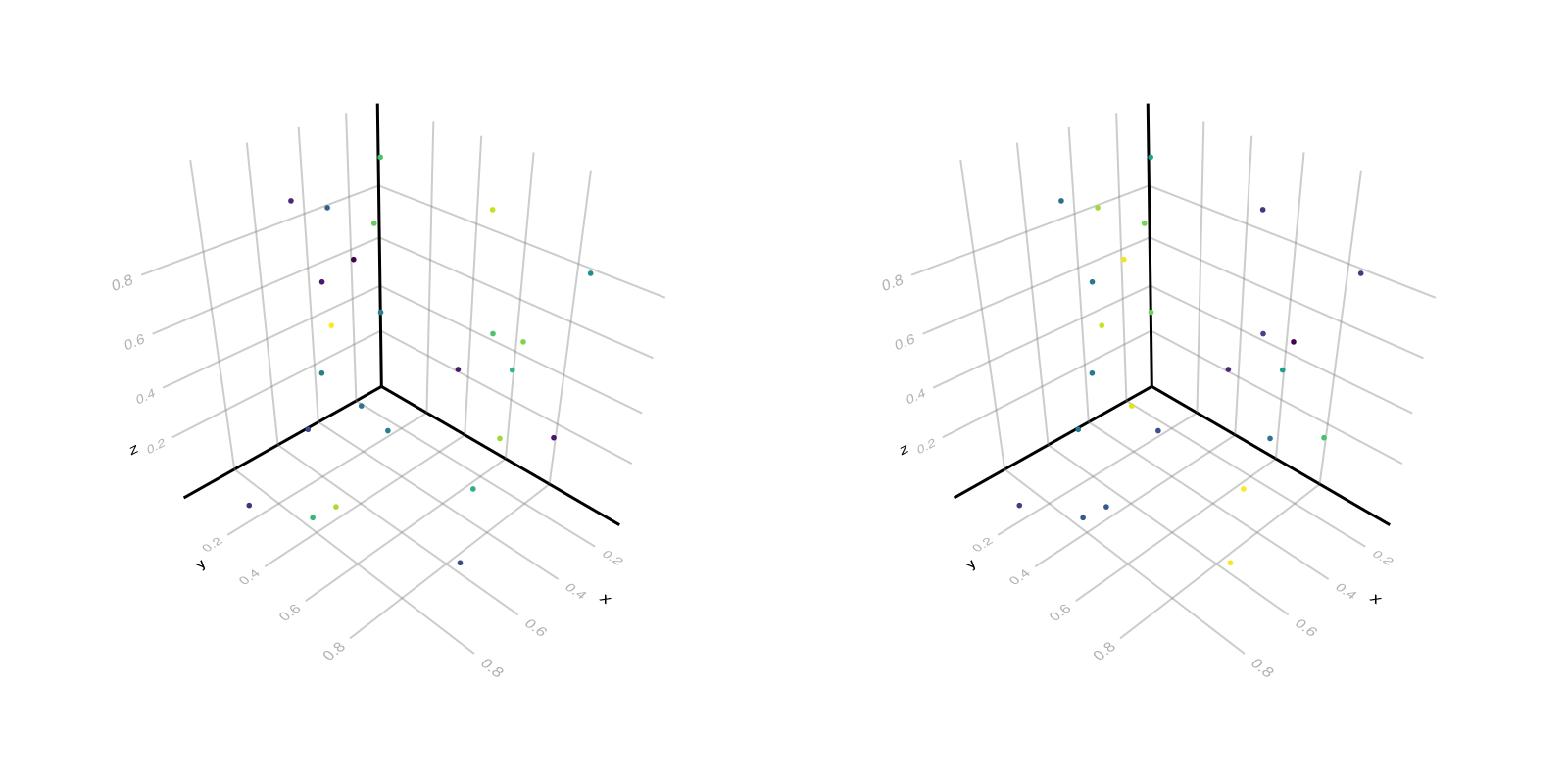

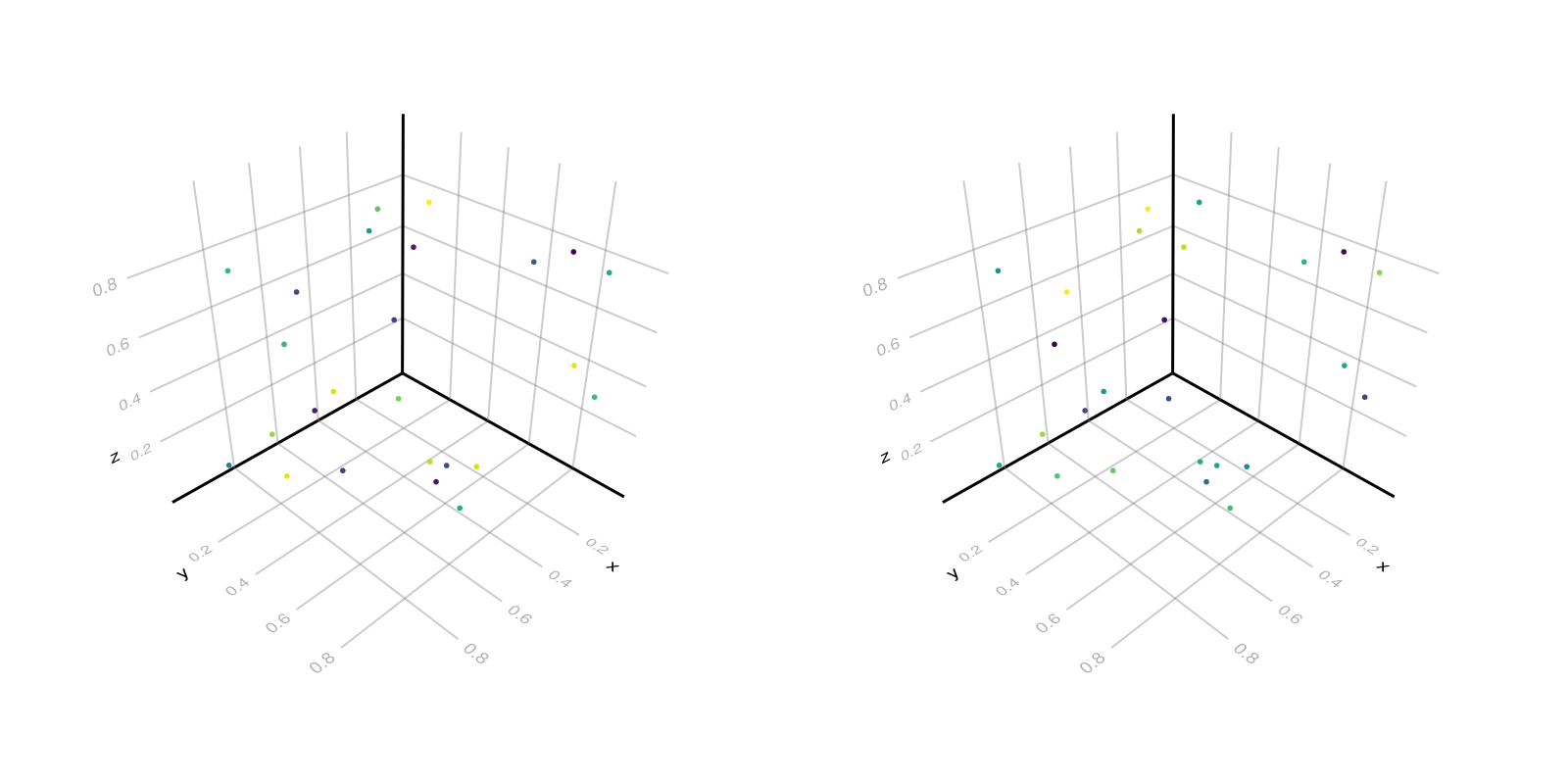

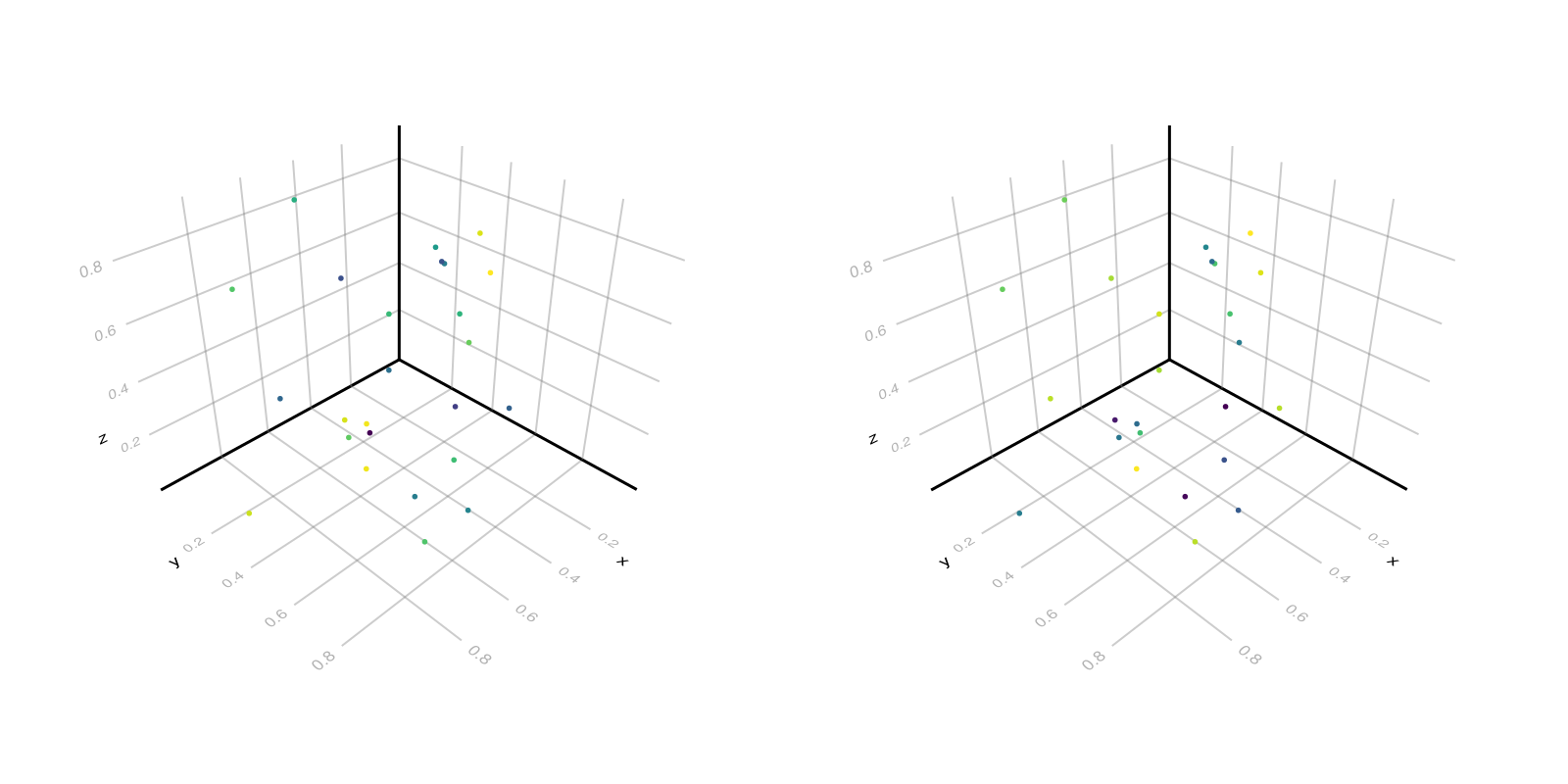

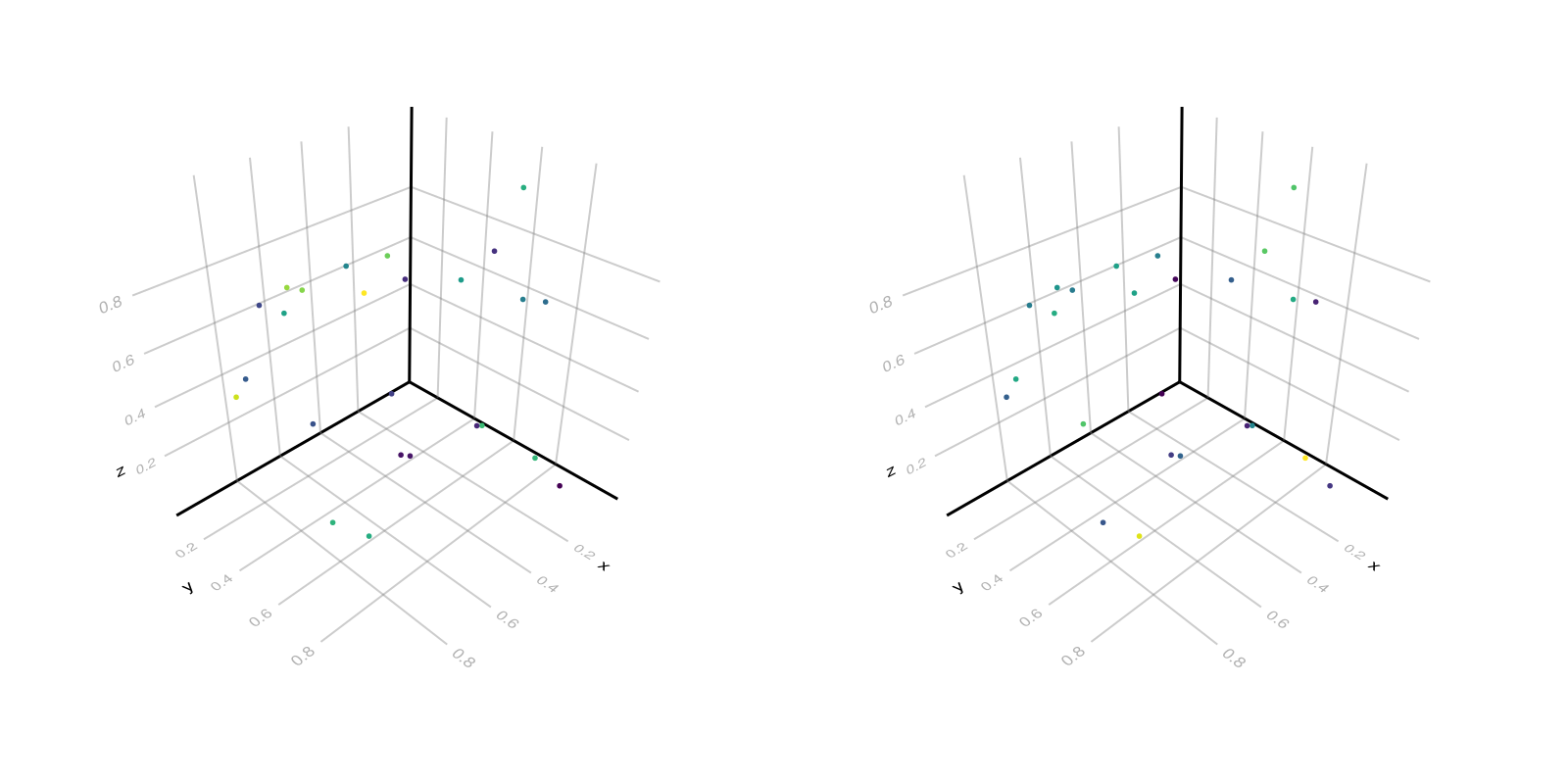

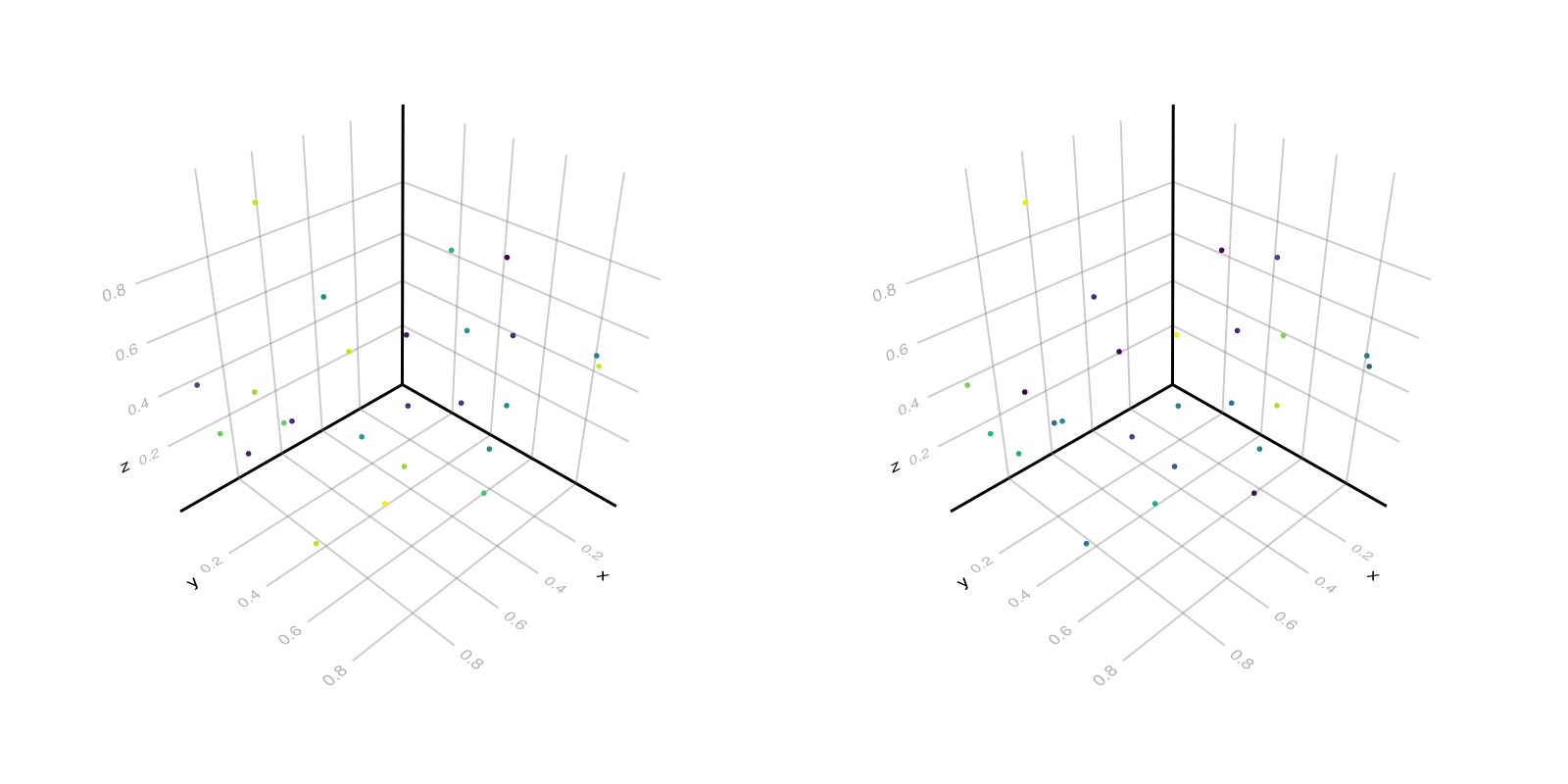

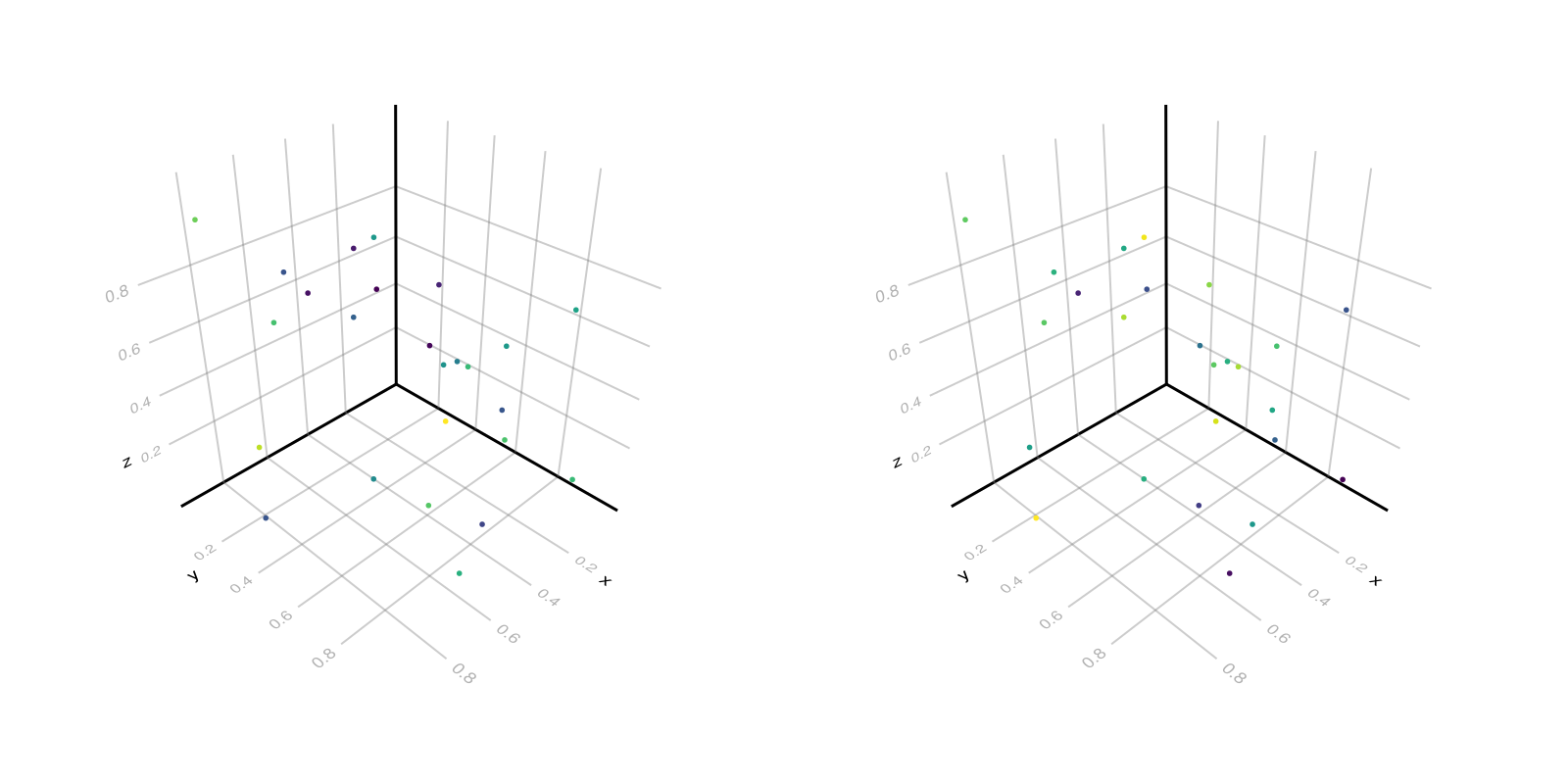

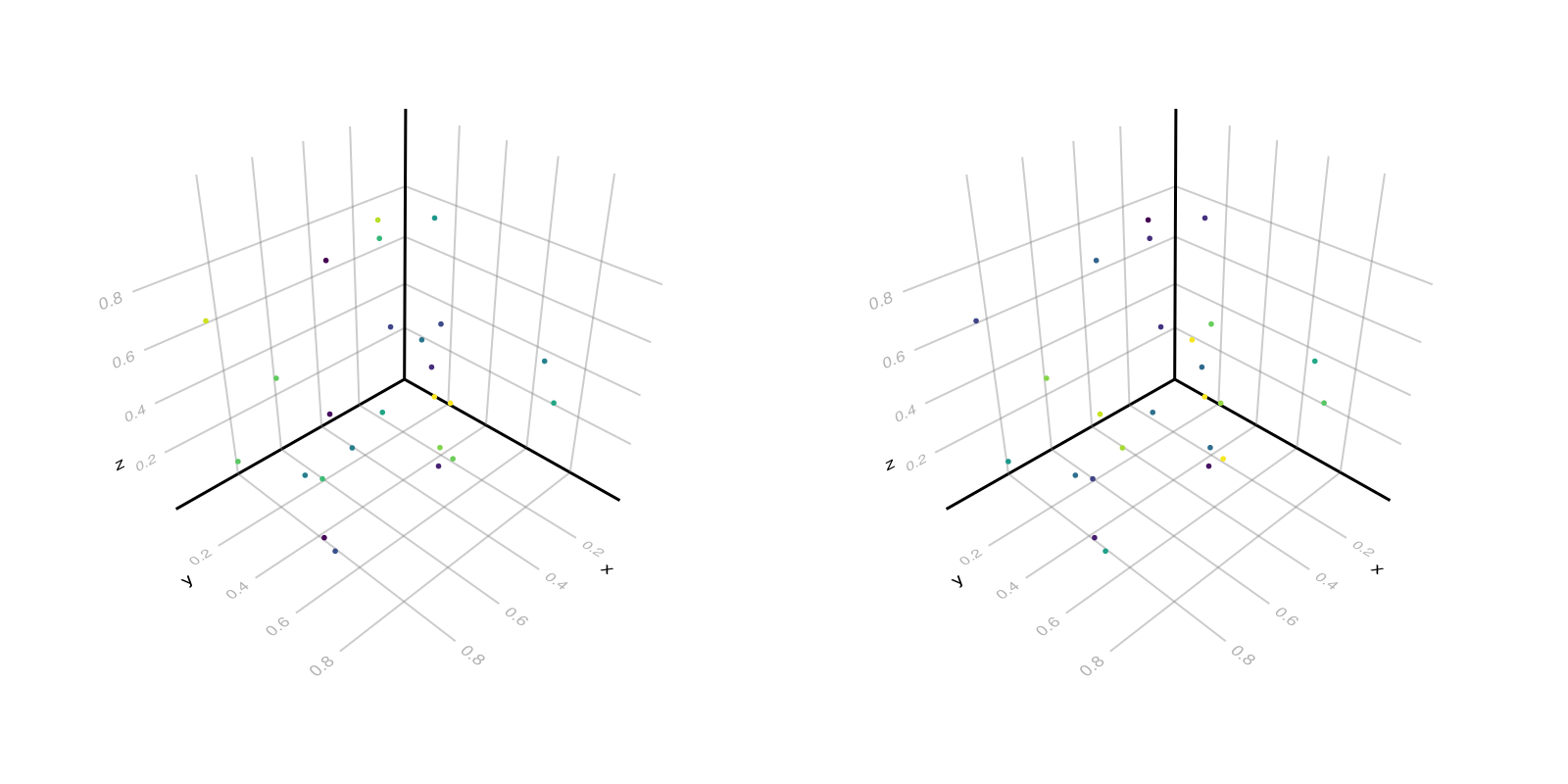

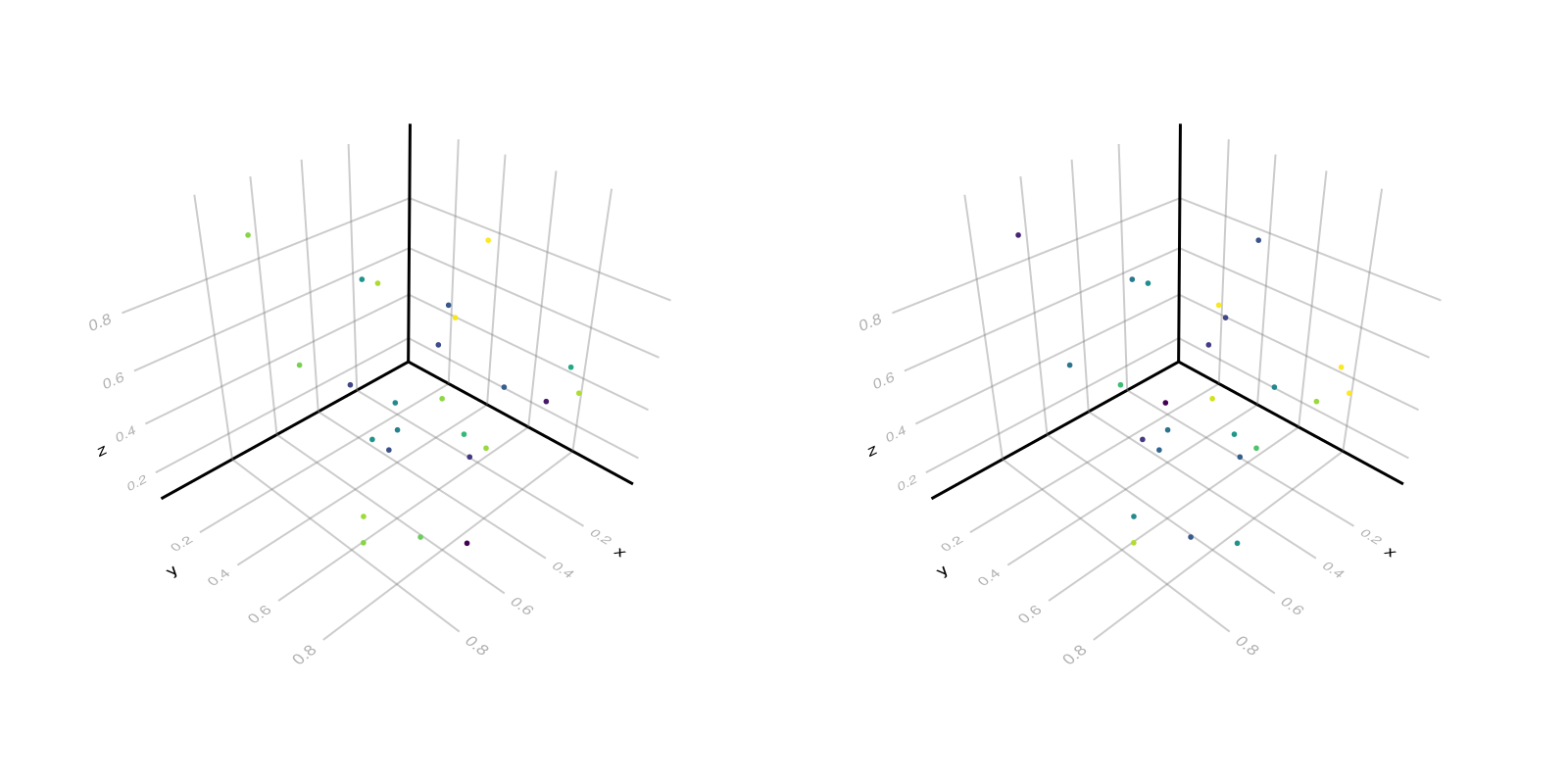

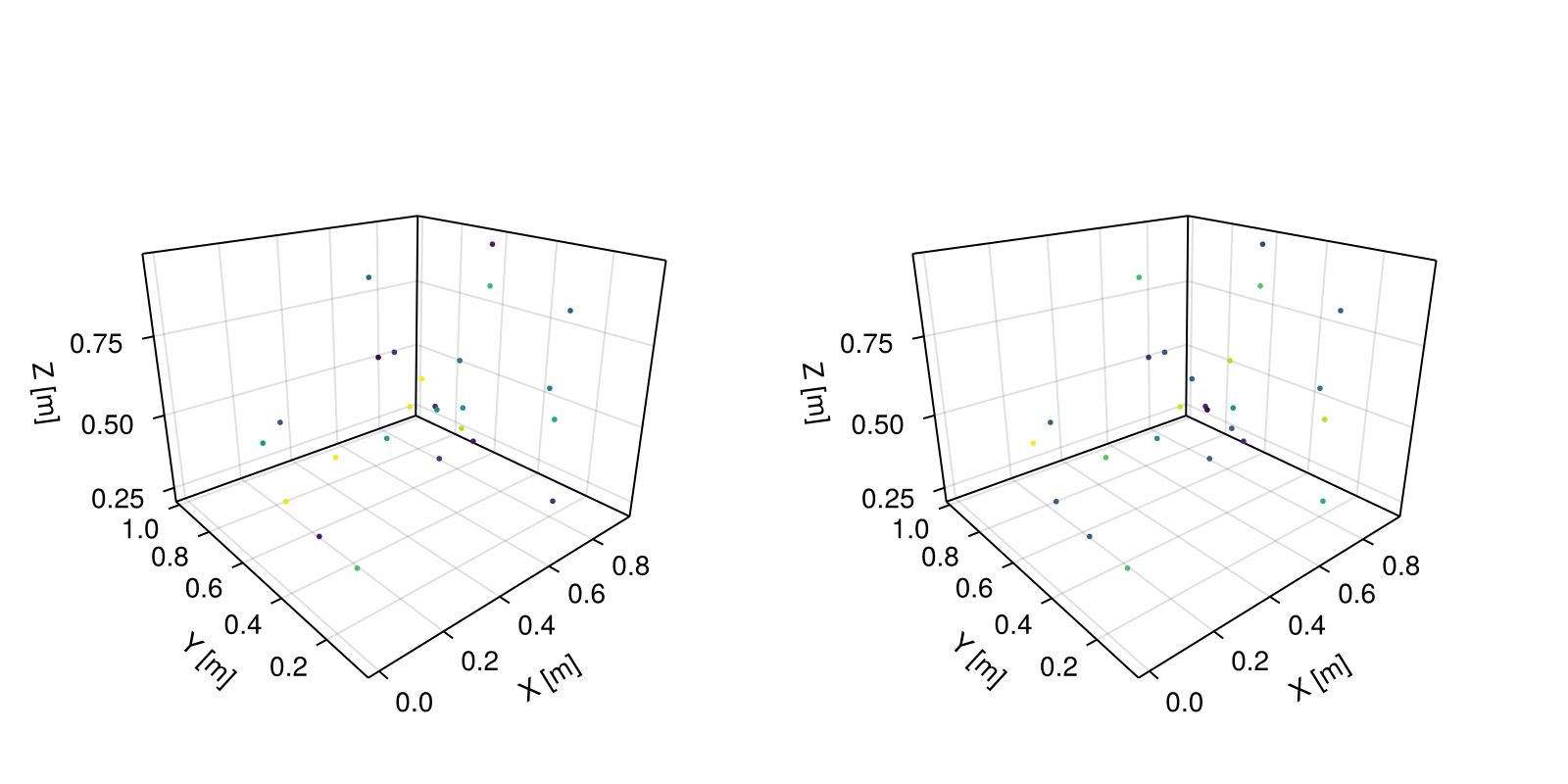

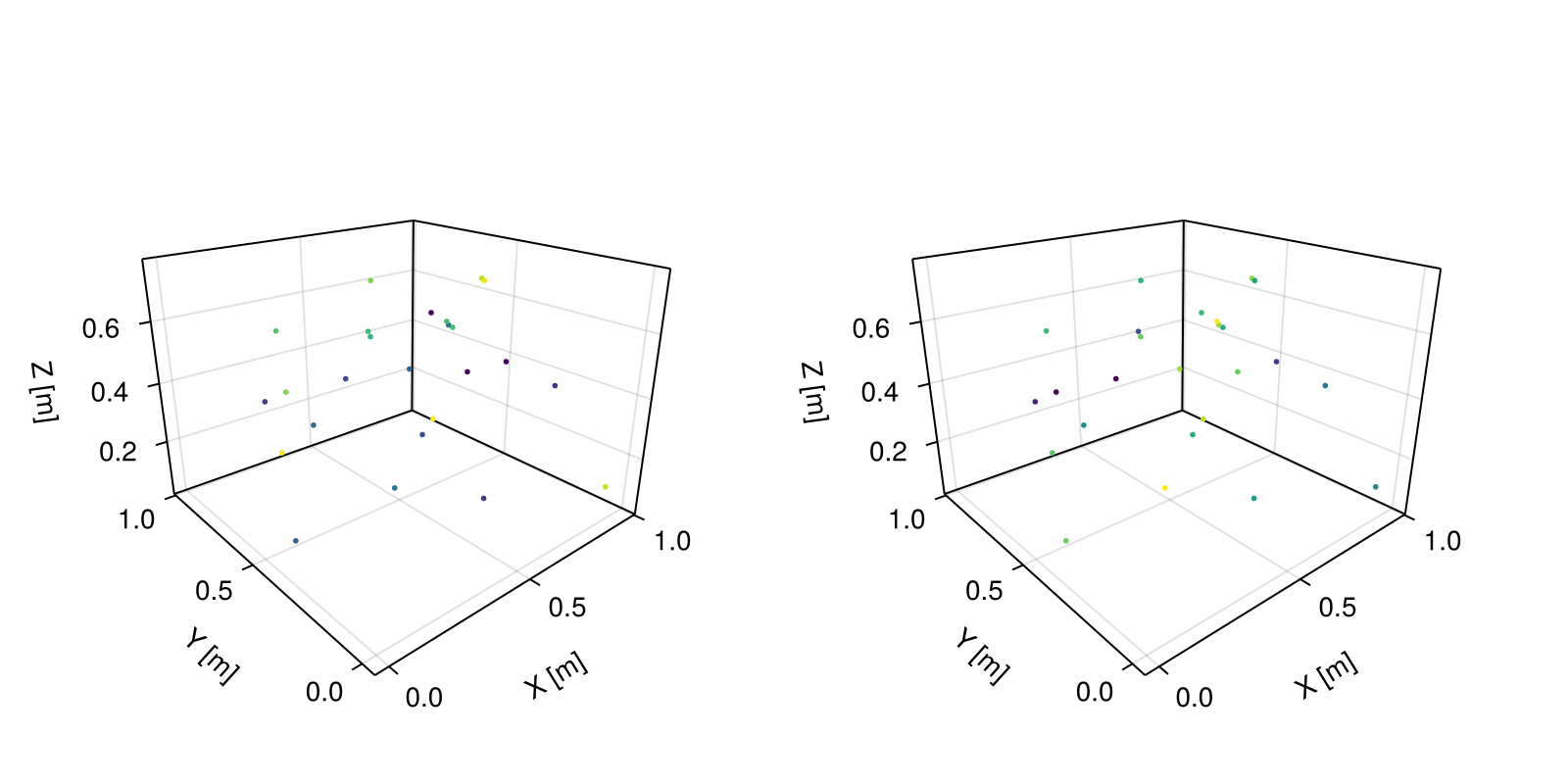

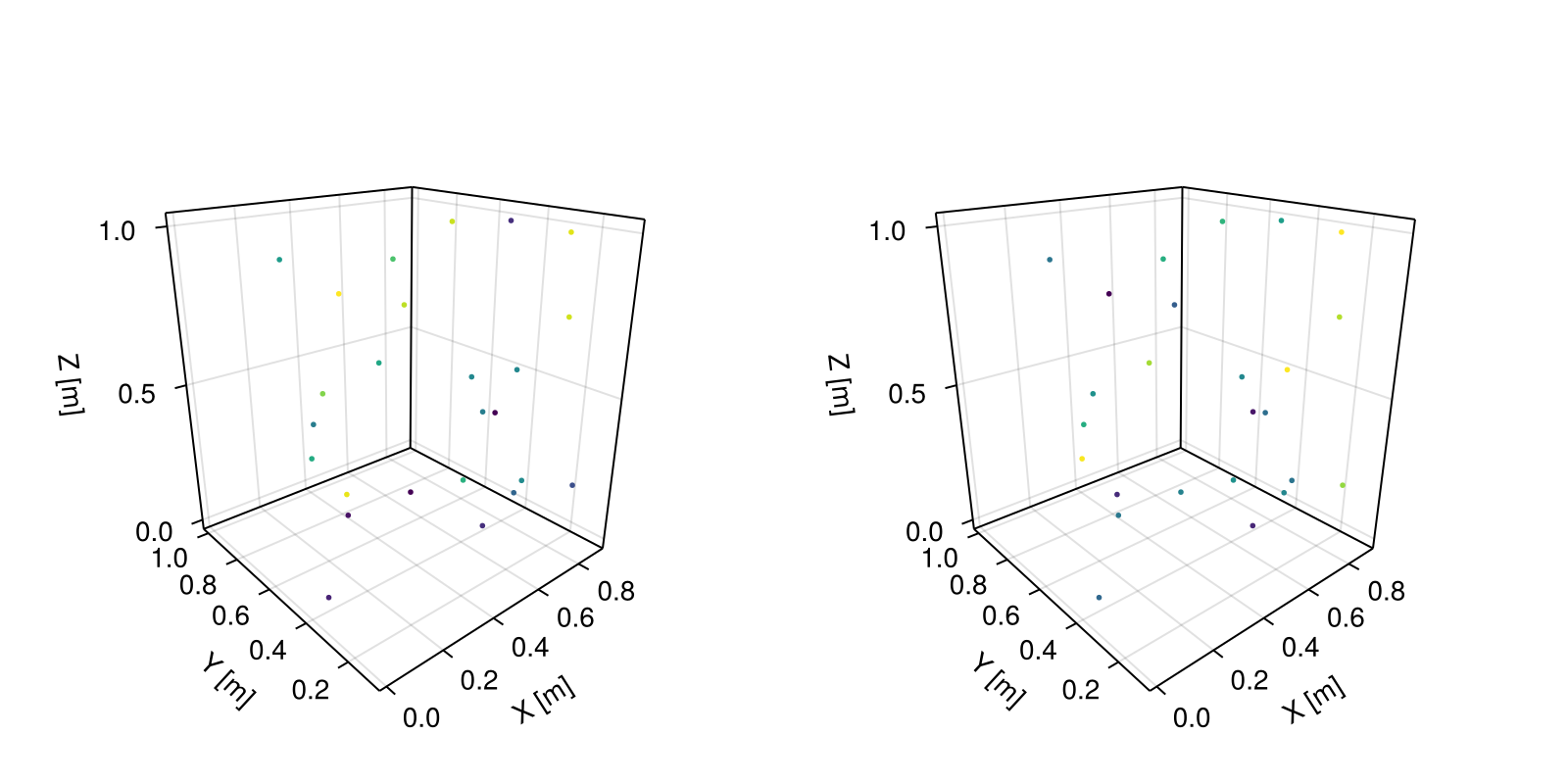

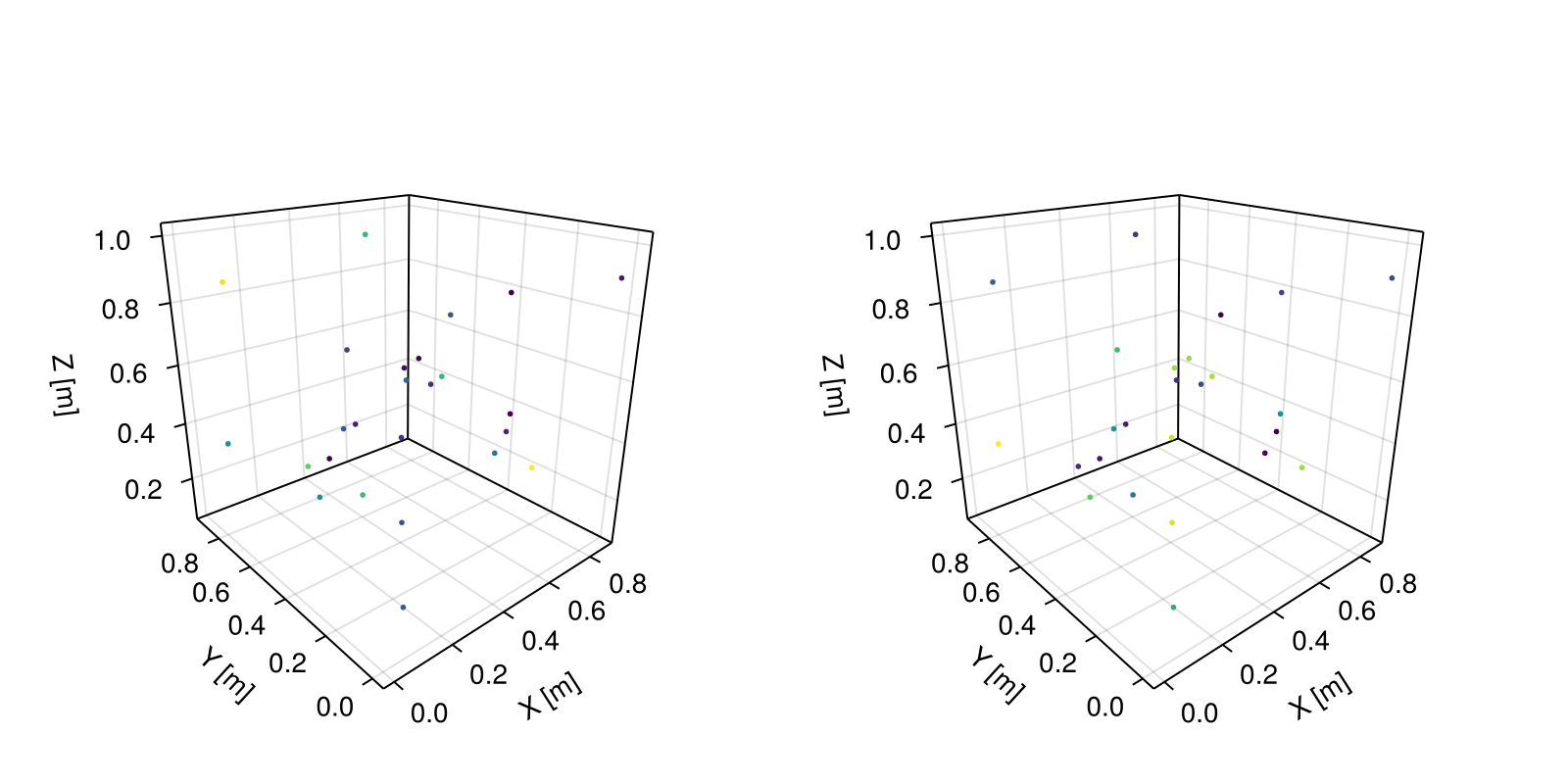

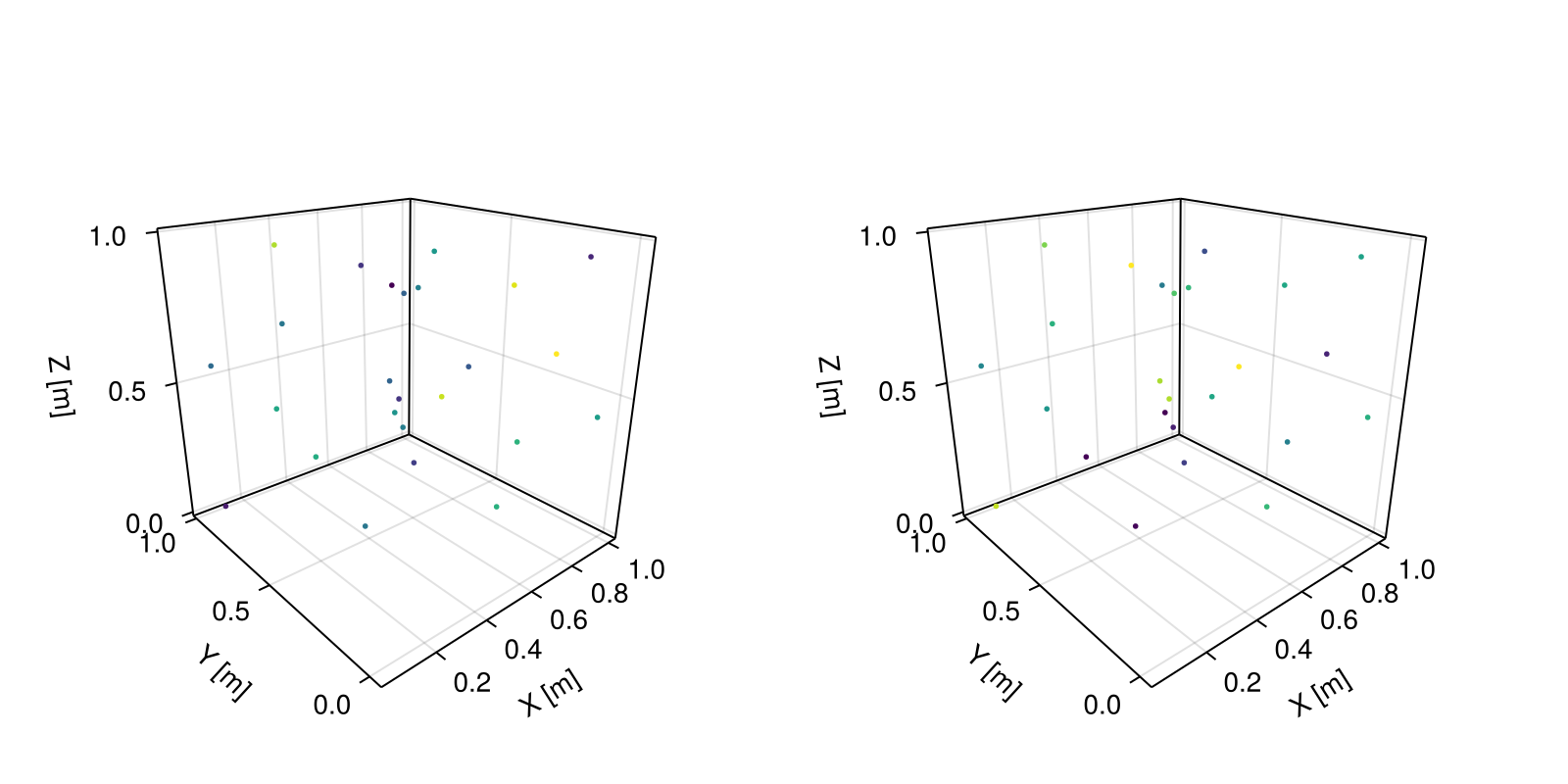

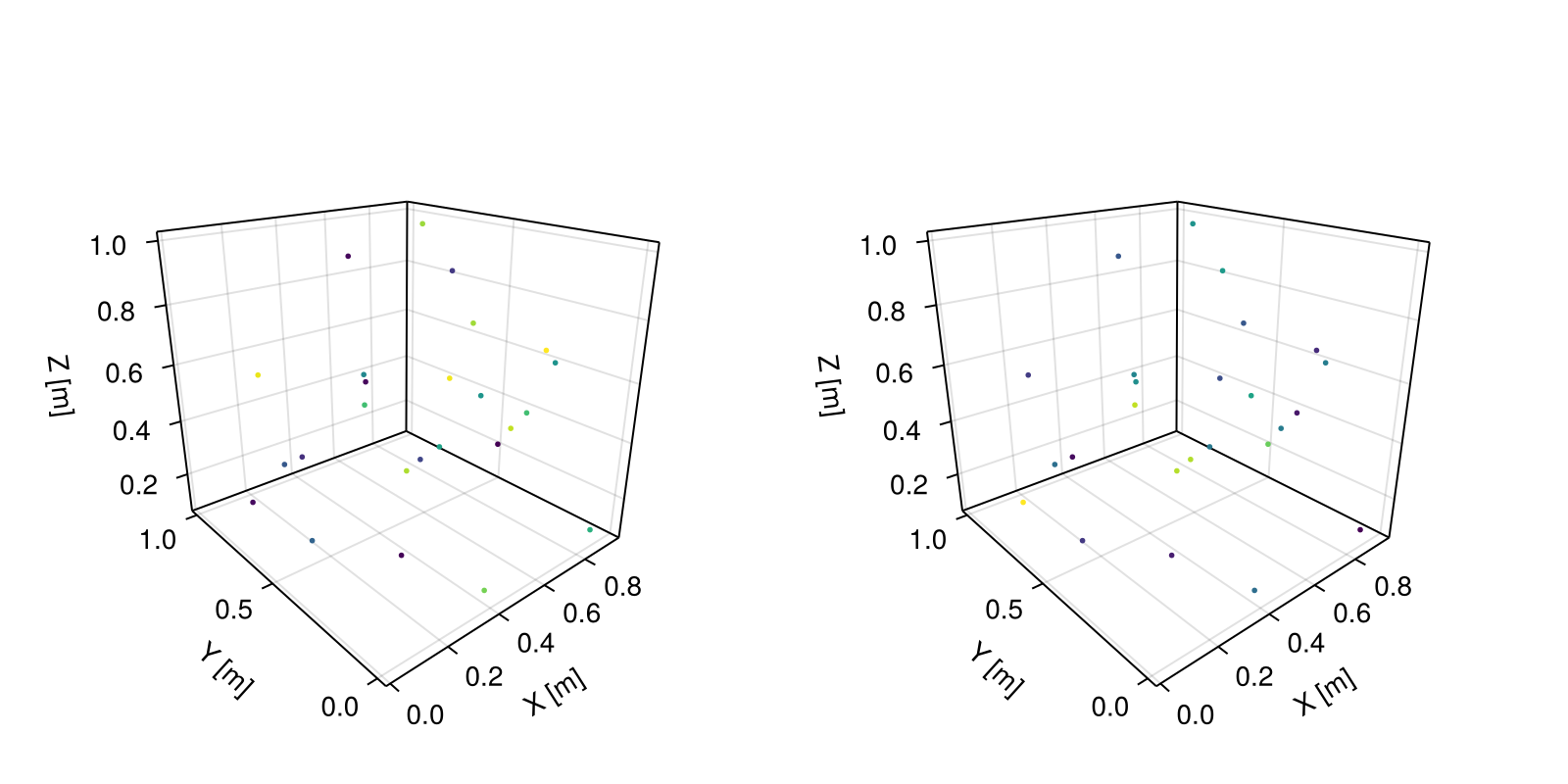

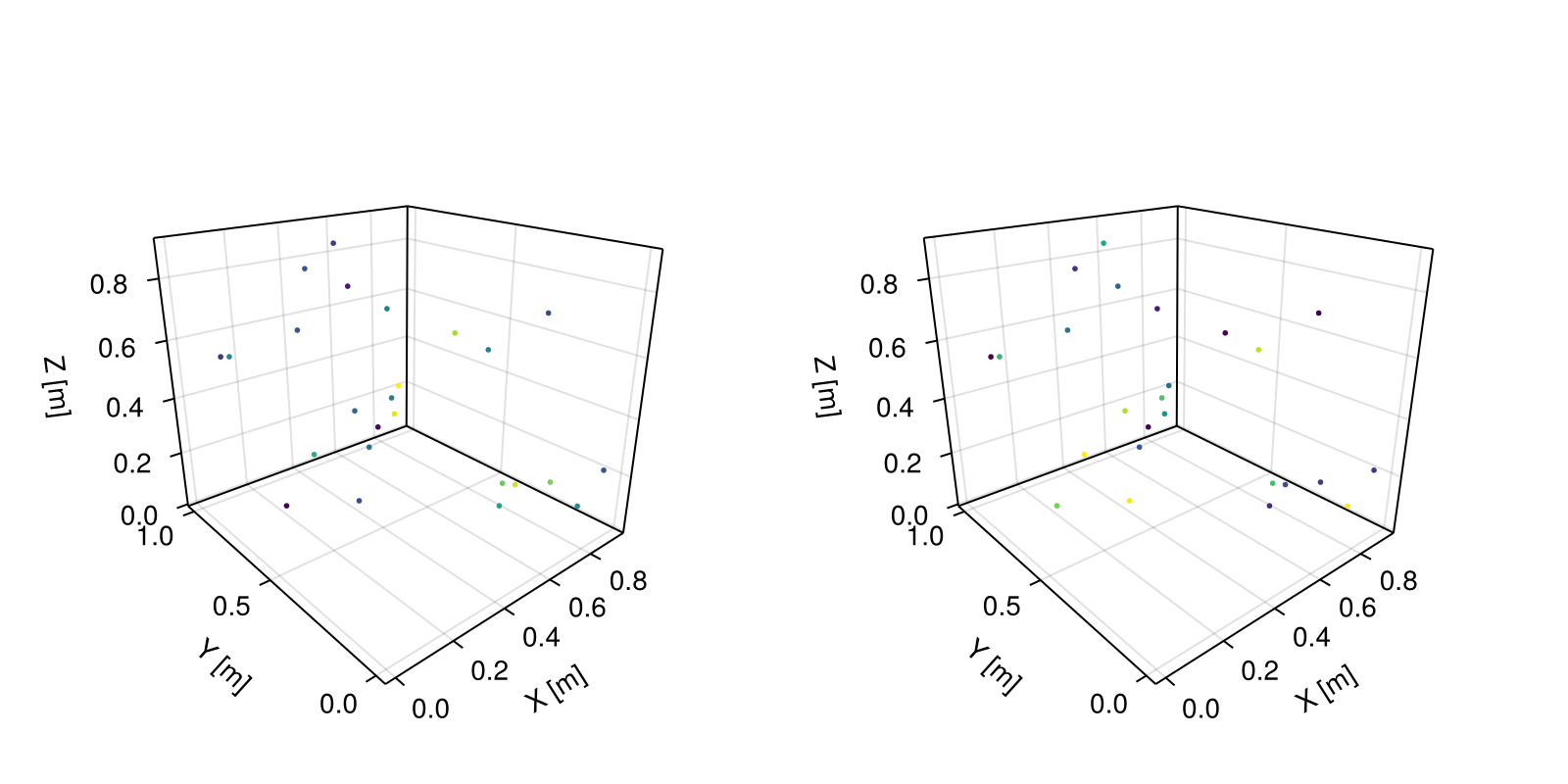

georef(table, ("X", "Y", "Z")) |> plot

Arrays

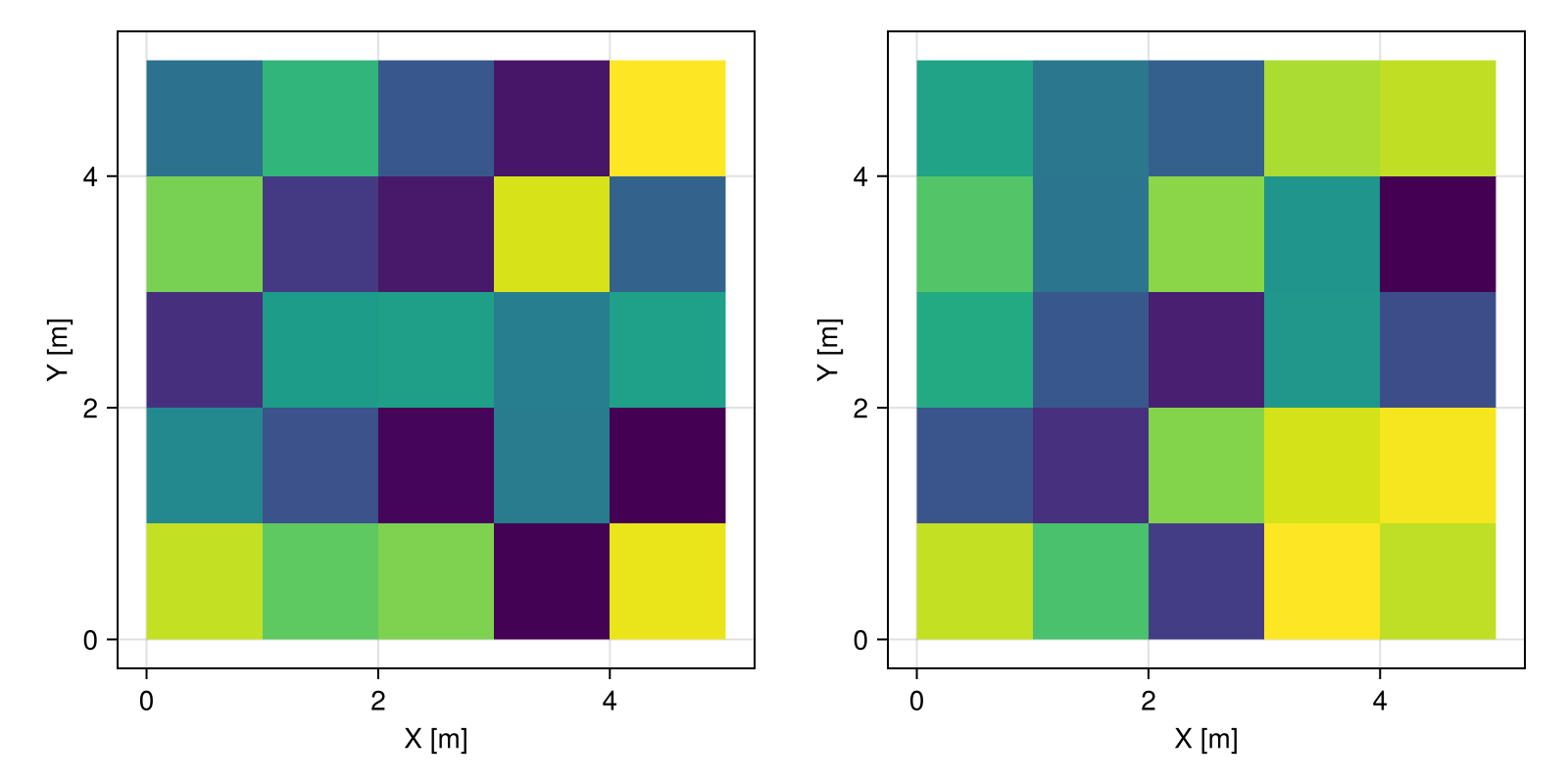

Consider arrays (e.g. images) with data for various geospatial variables. We can georeference these arrays using a named tuple, and the framework will understand that the shape of the arrays should be preserved in a CartesianGrid:

T, P = rand(5, 5), rand(5, 5)

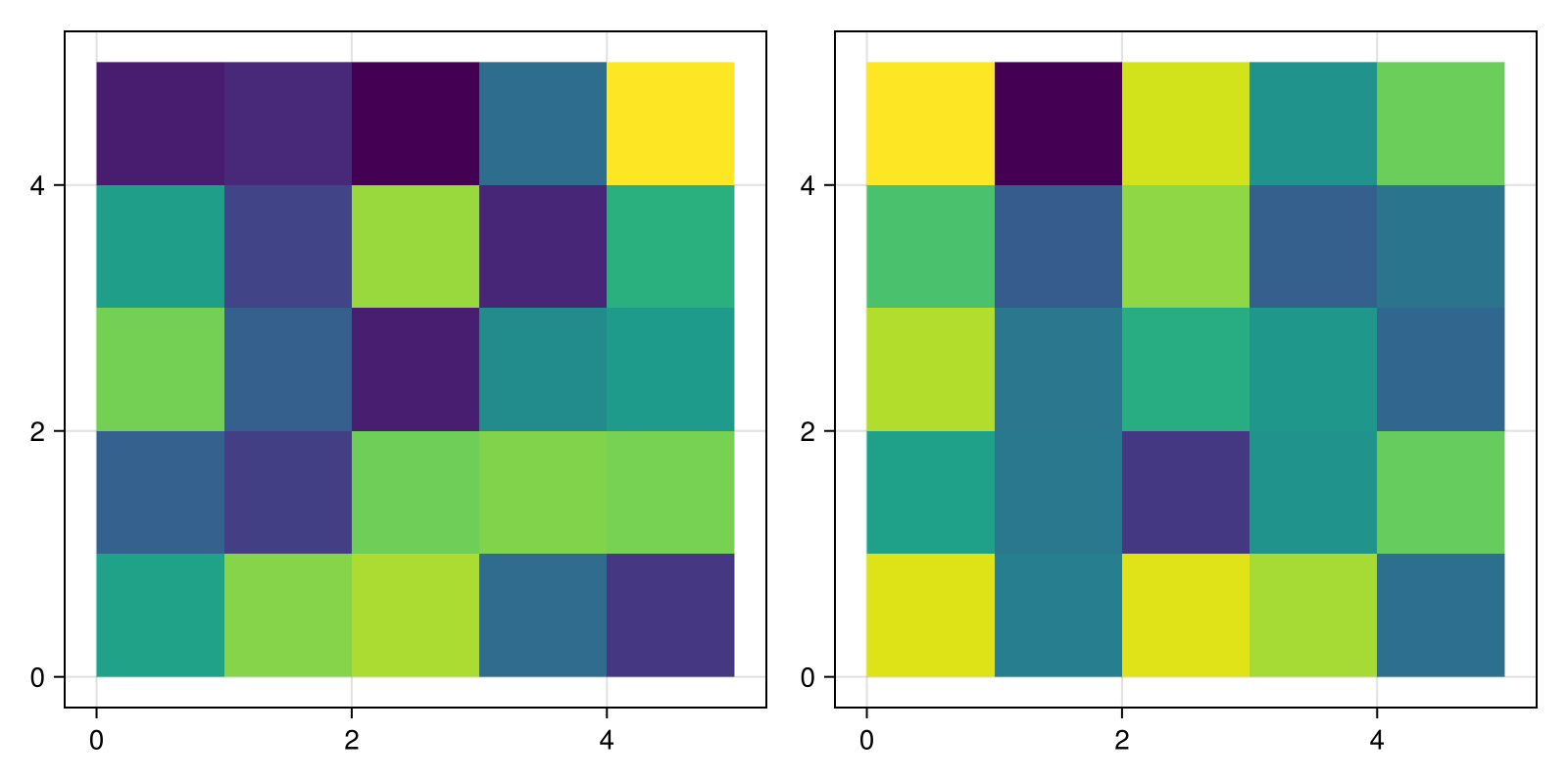

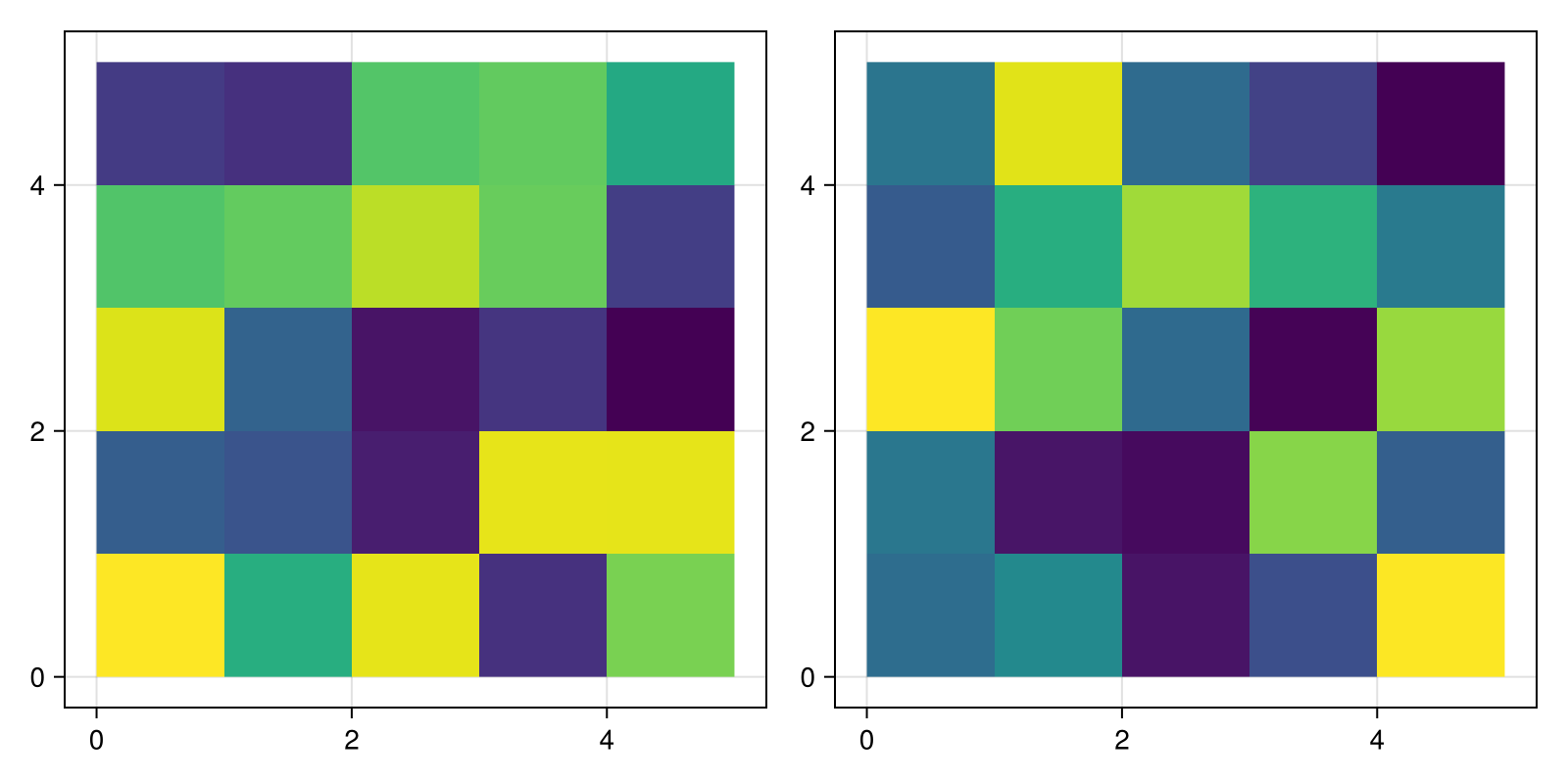

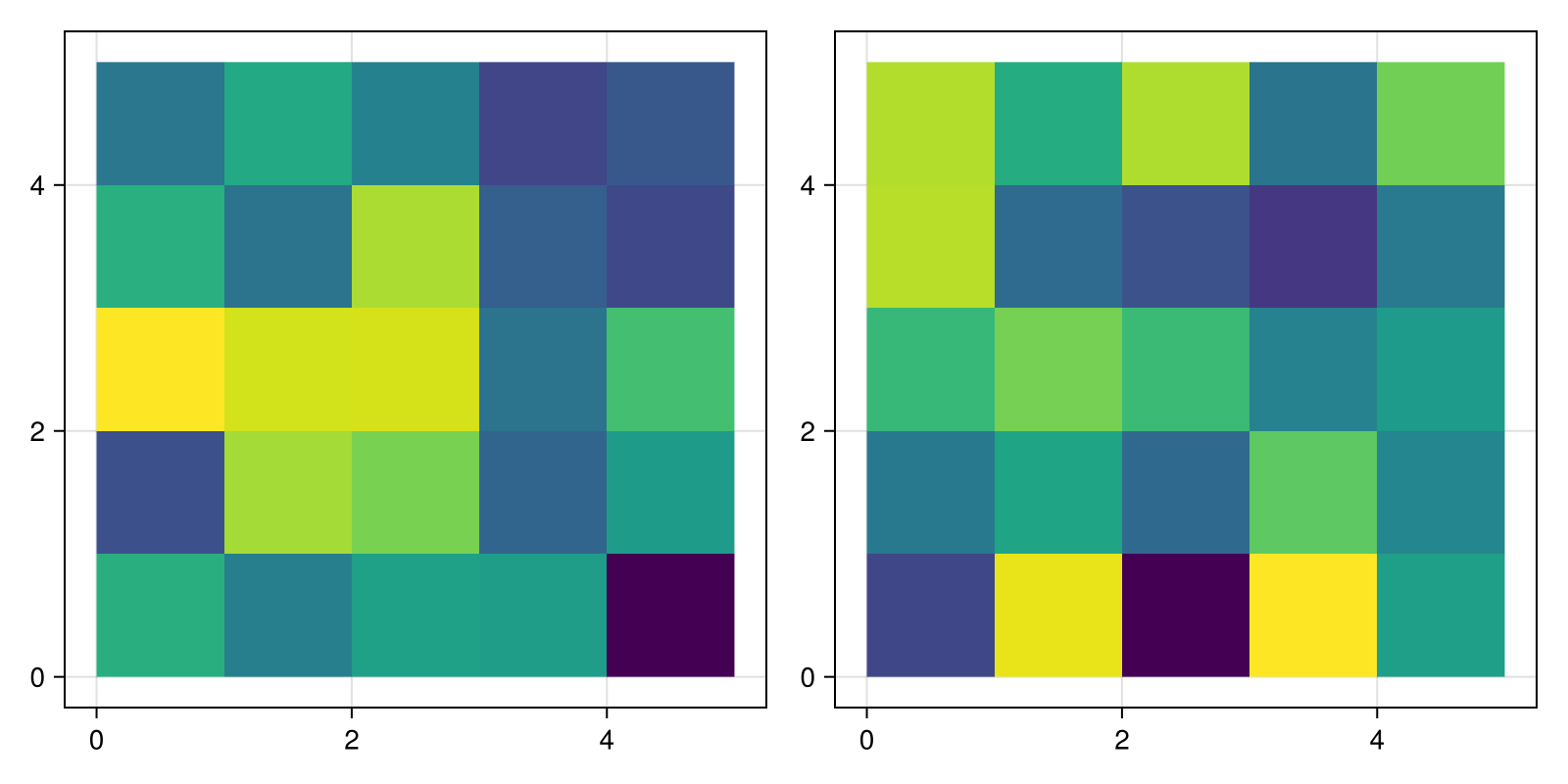

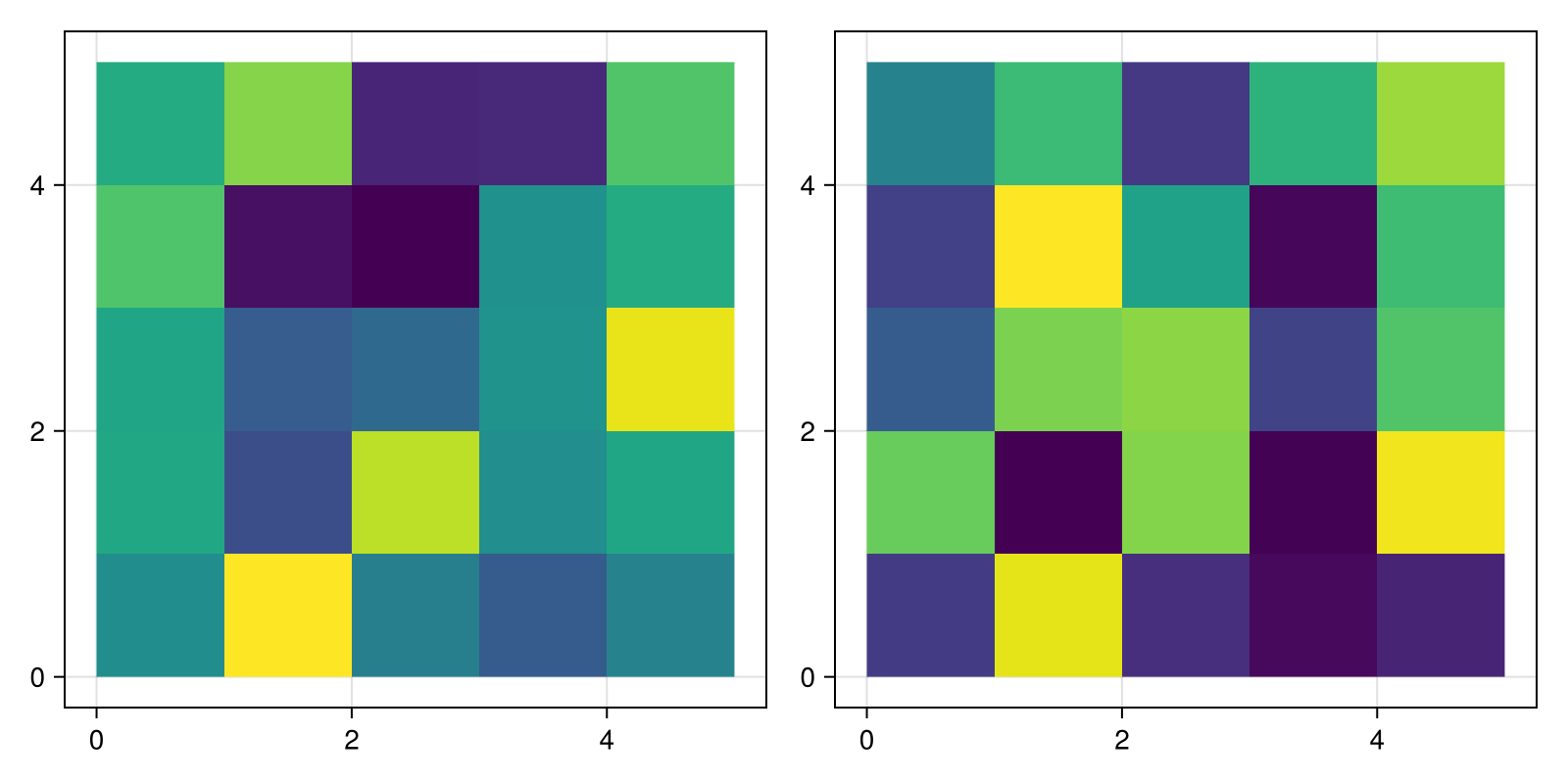

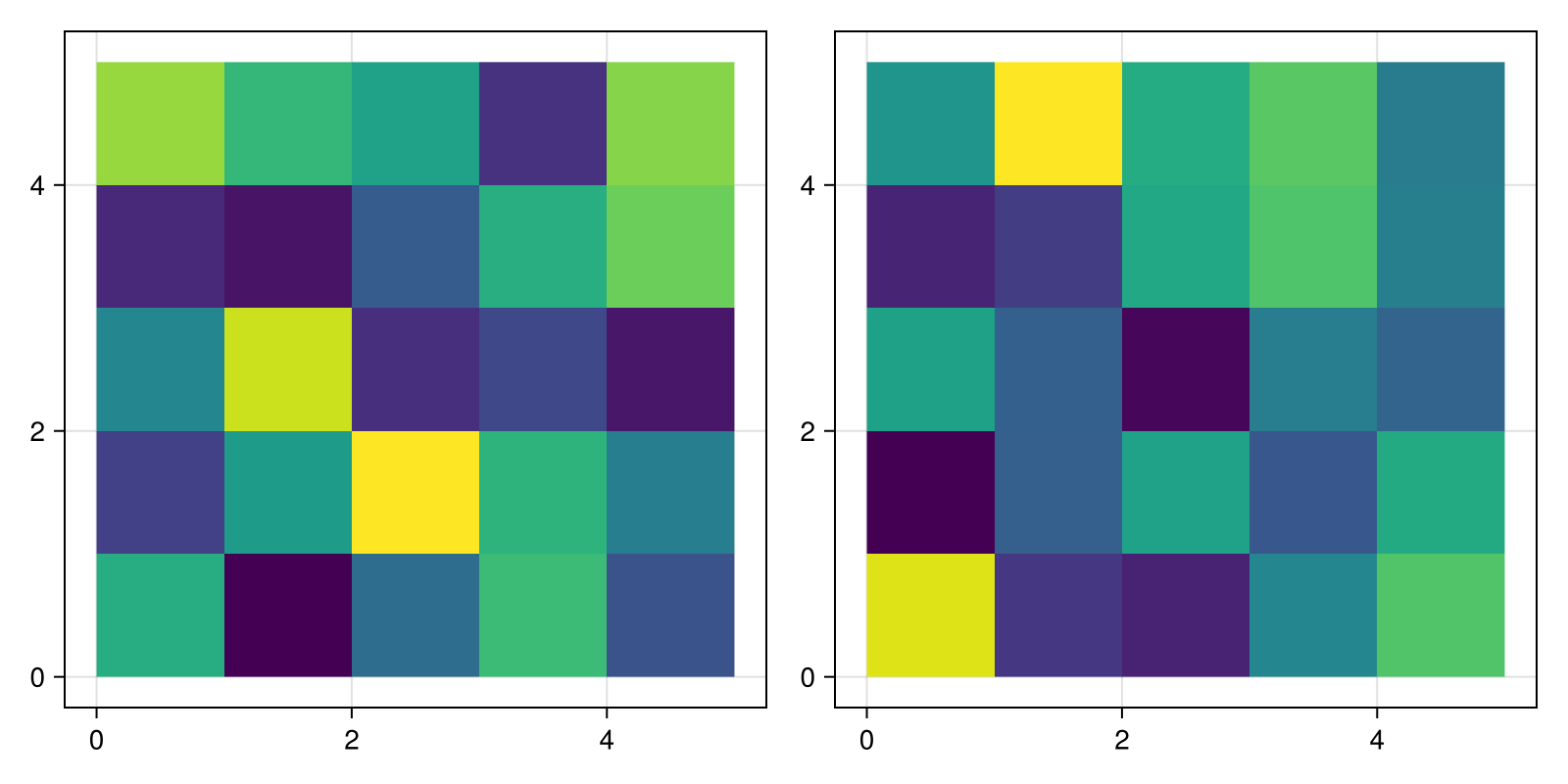

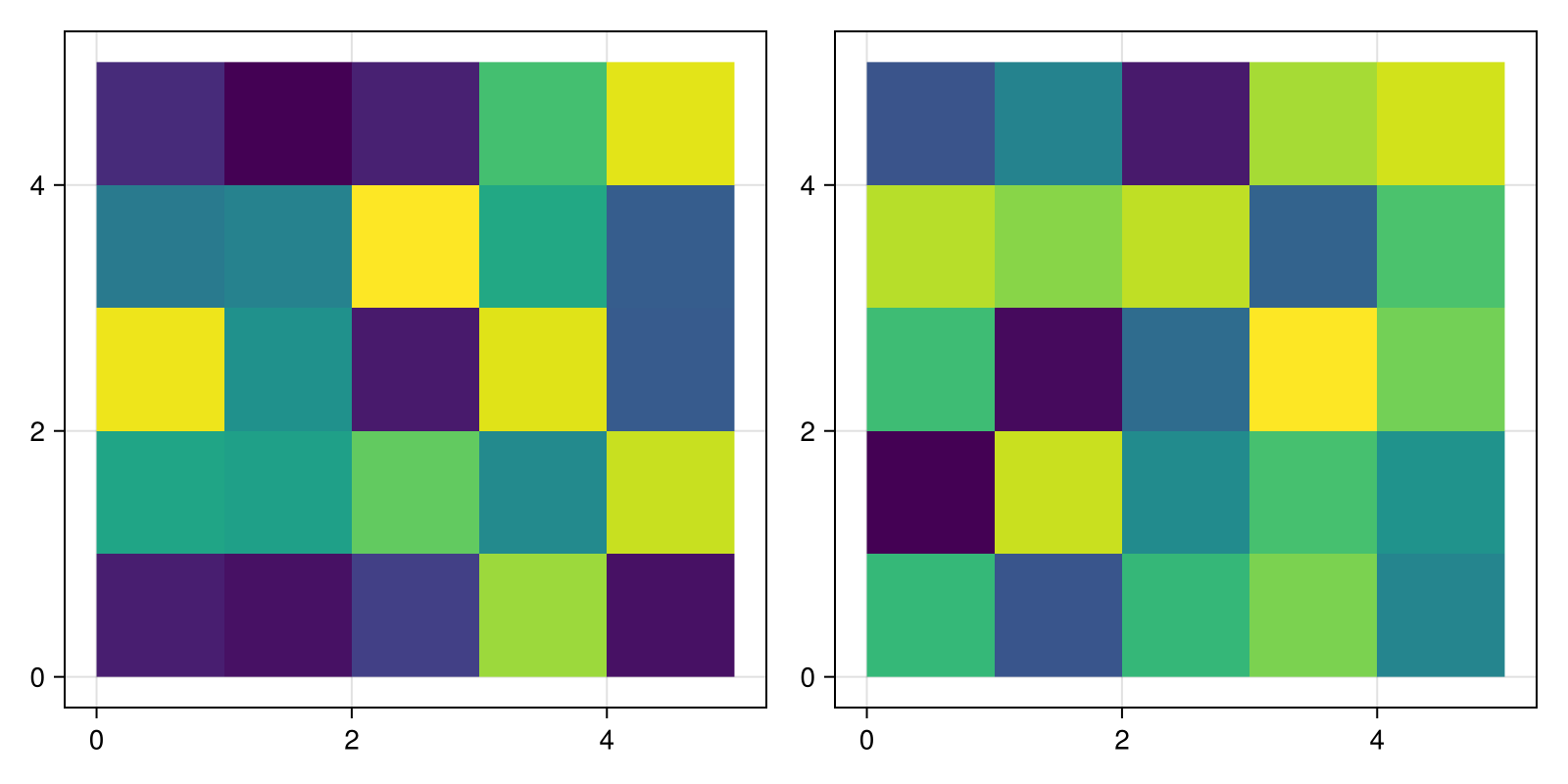

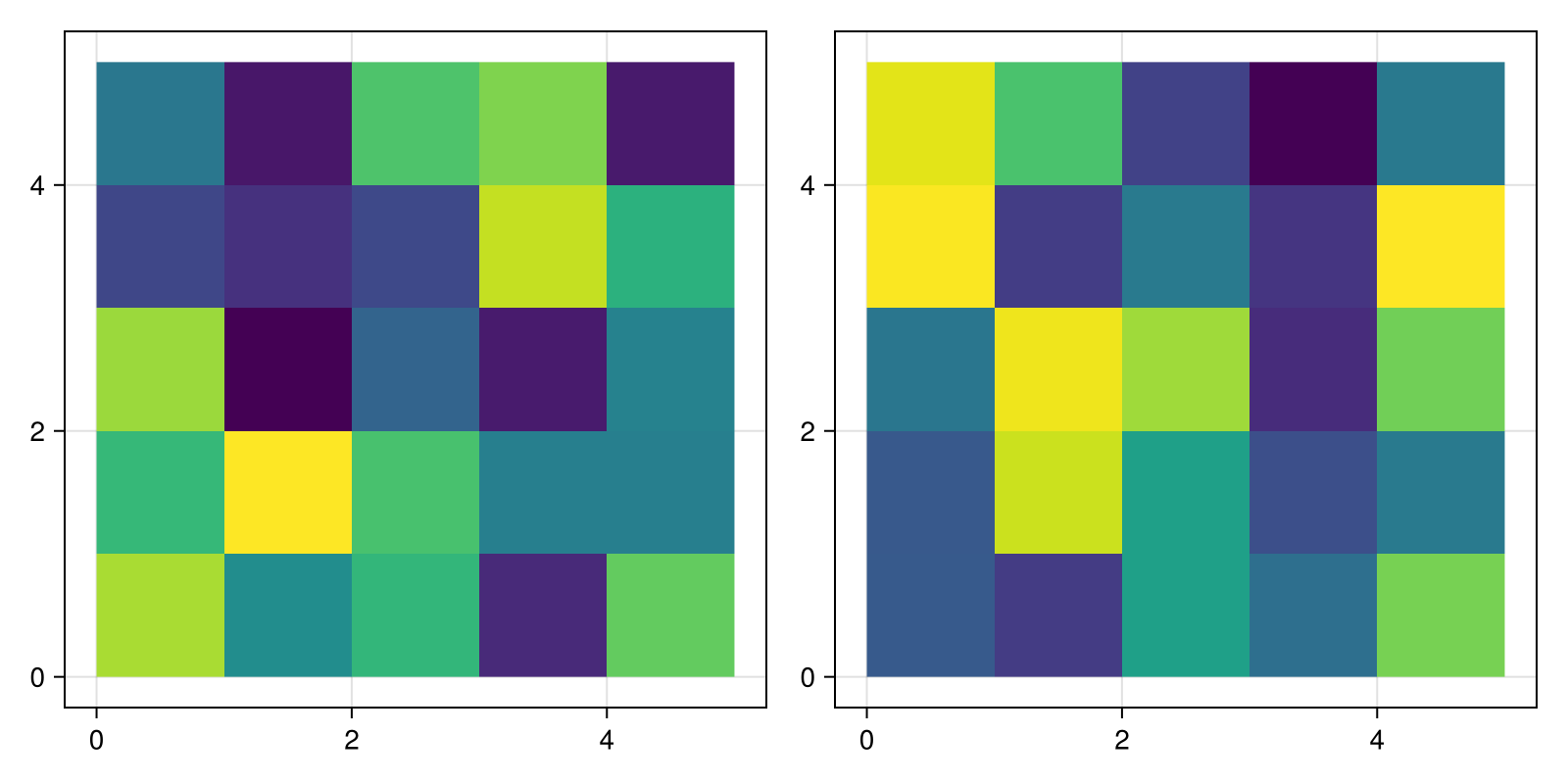

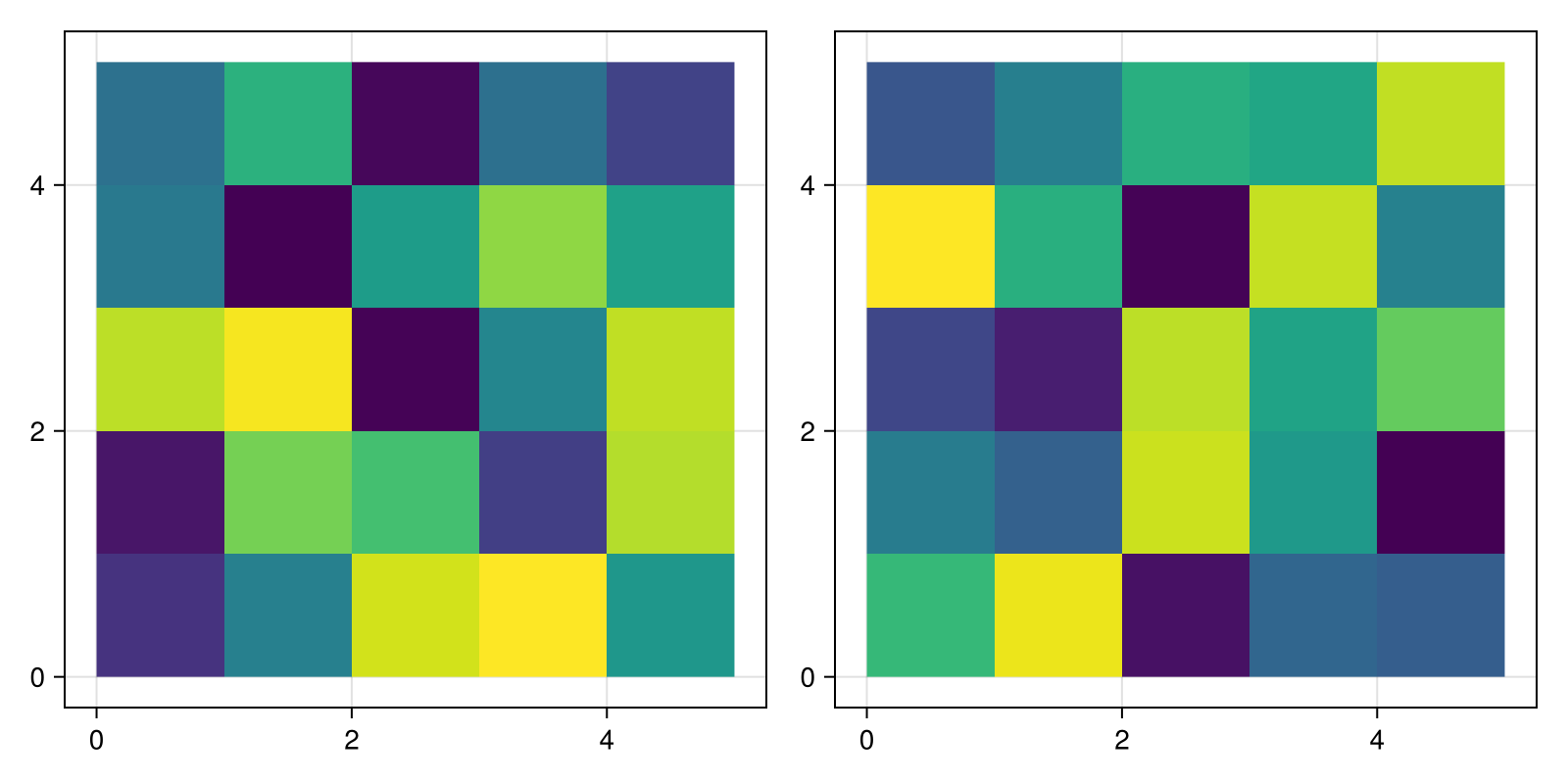

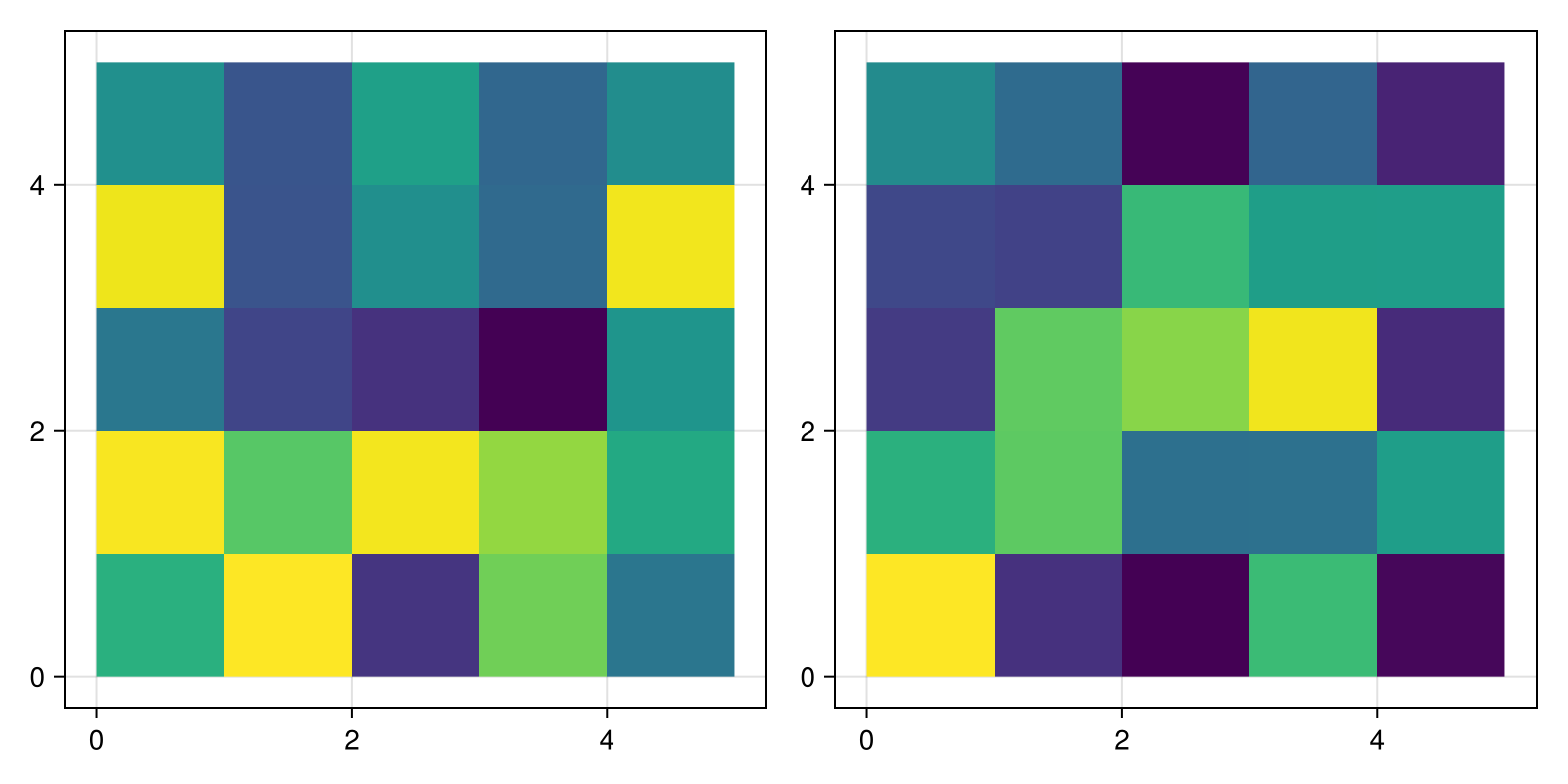

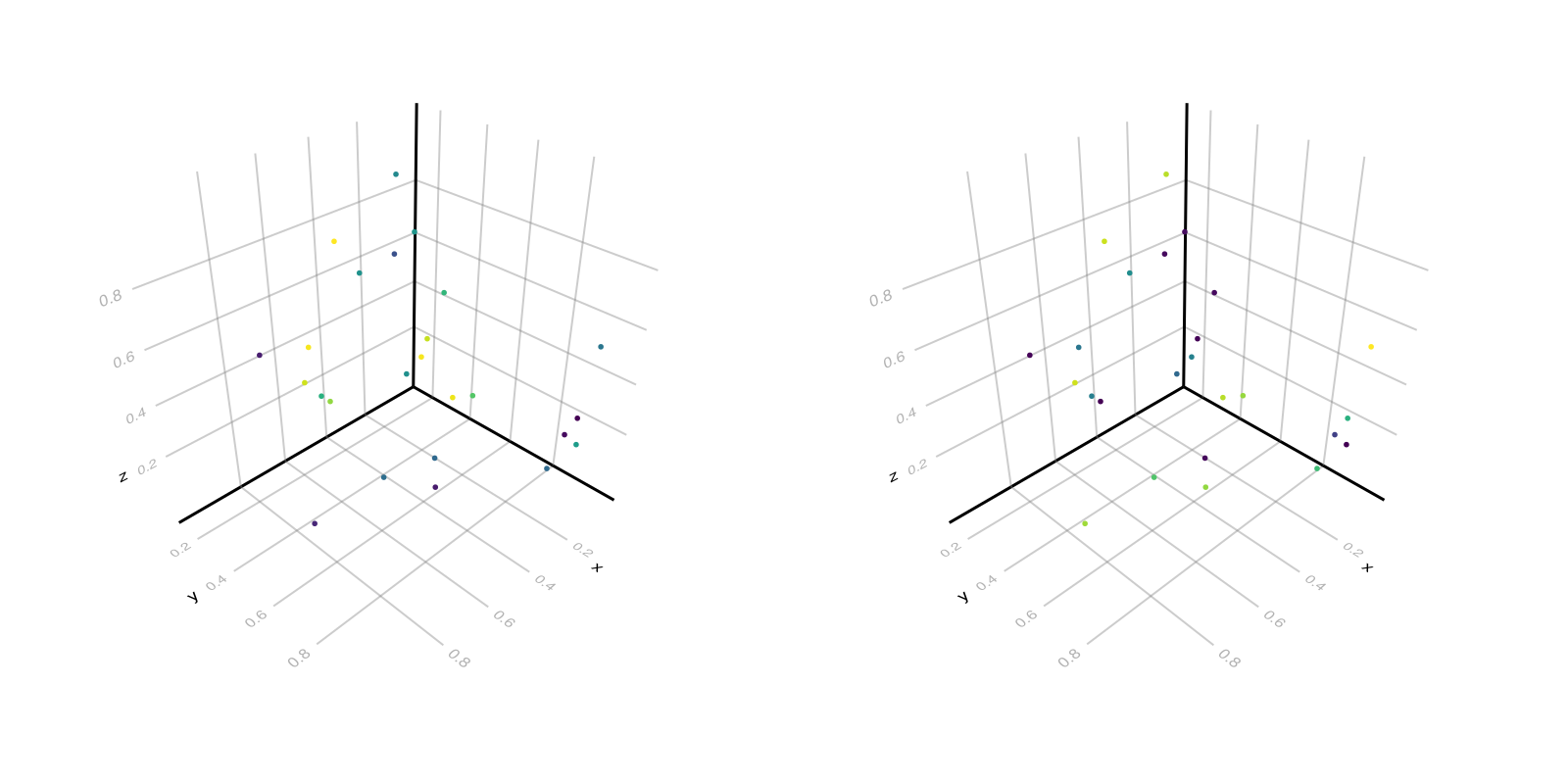

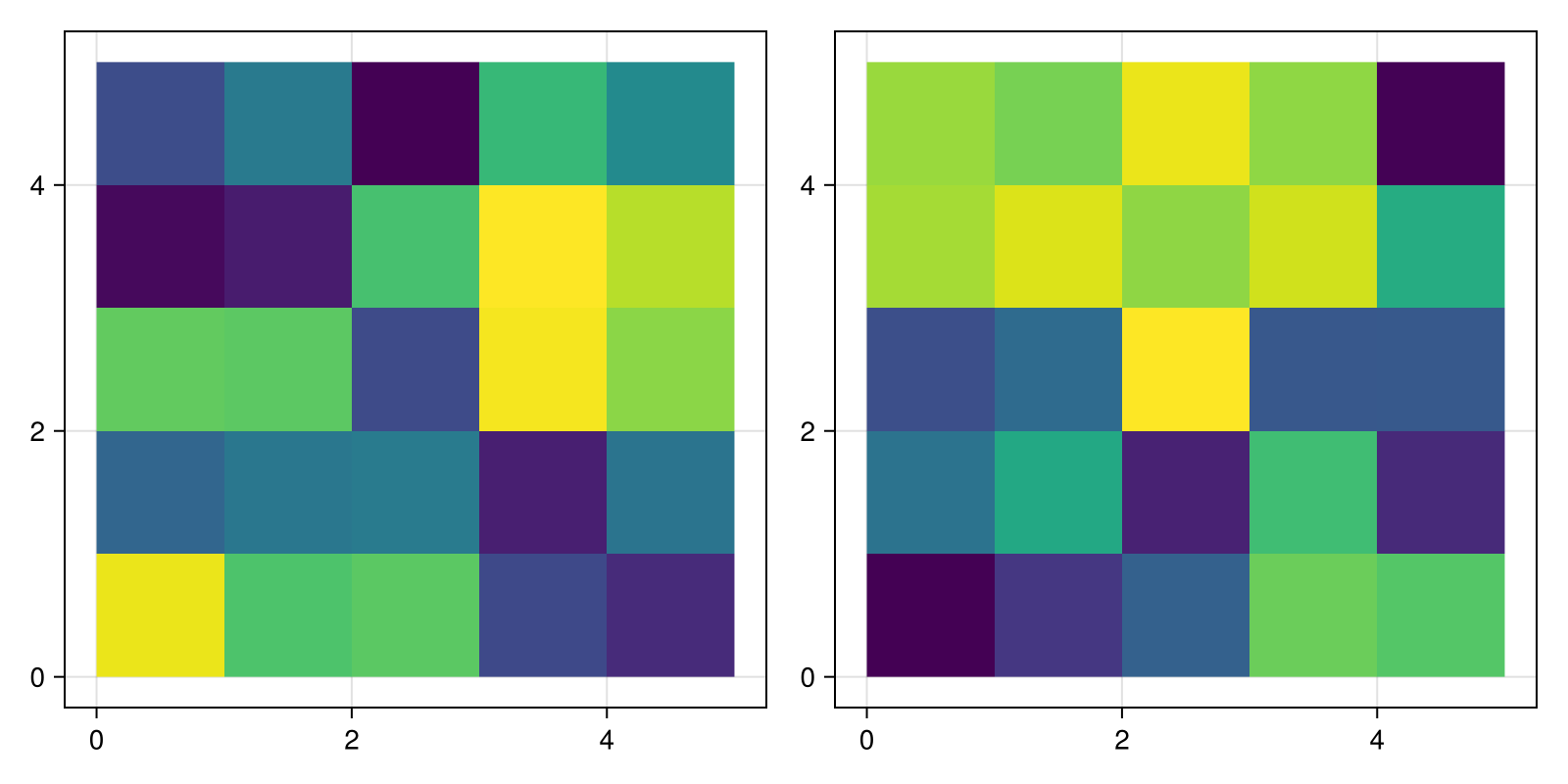

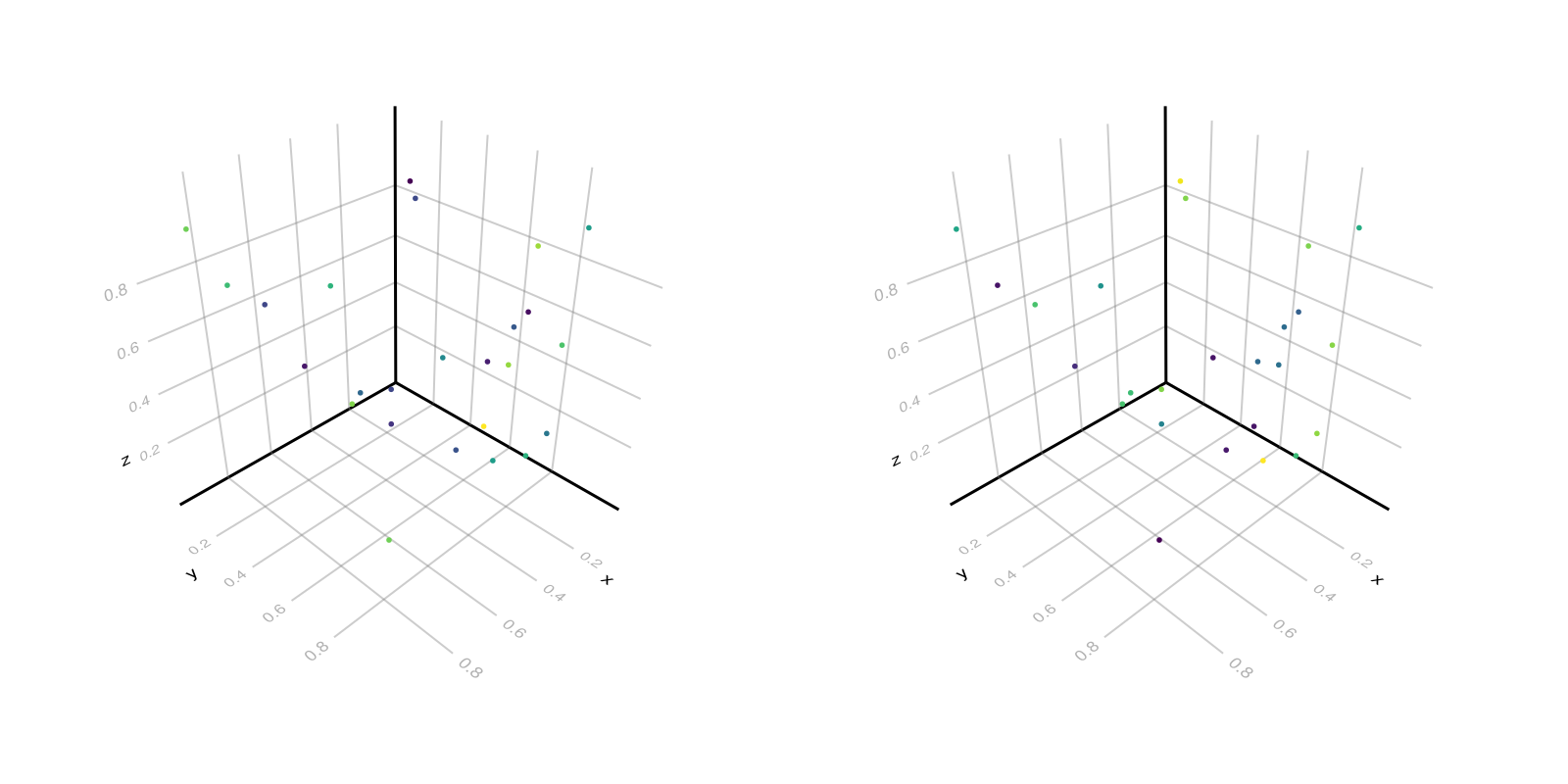

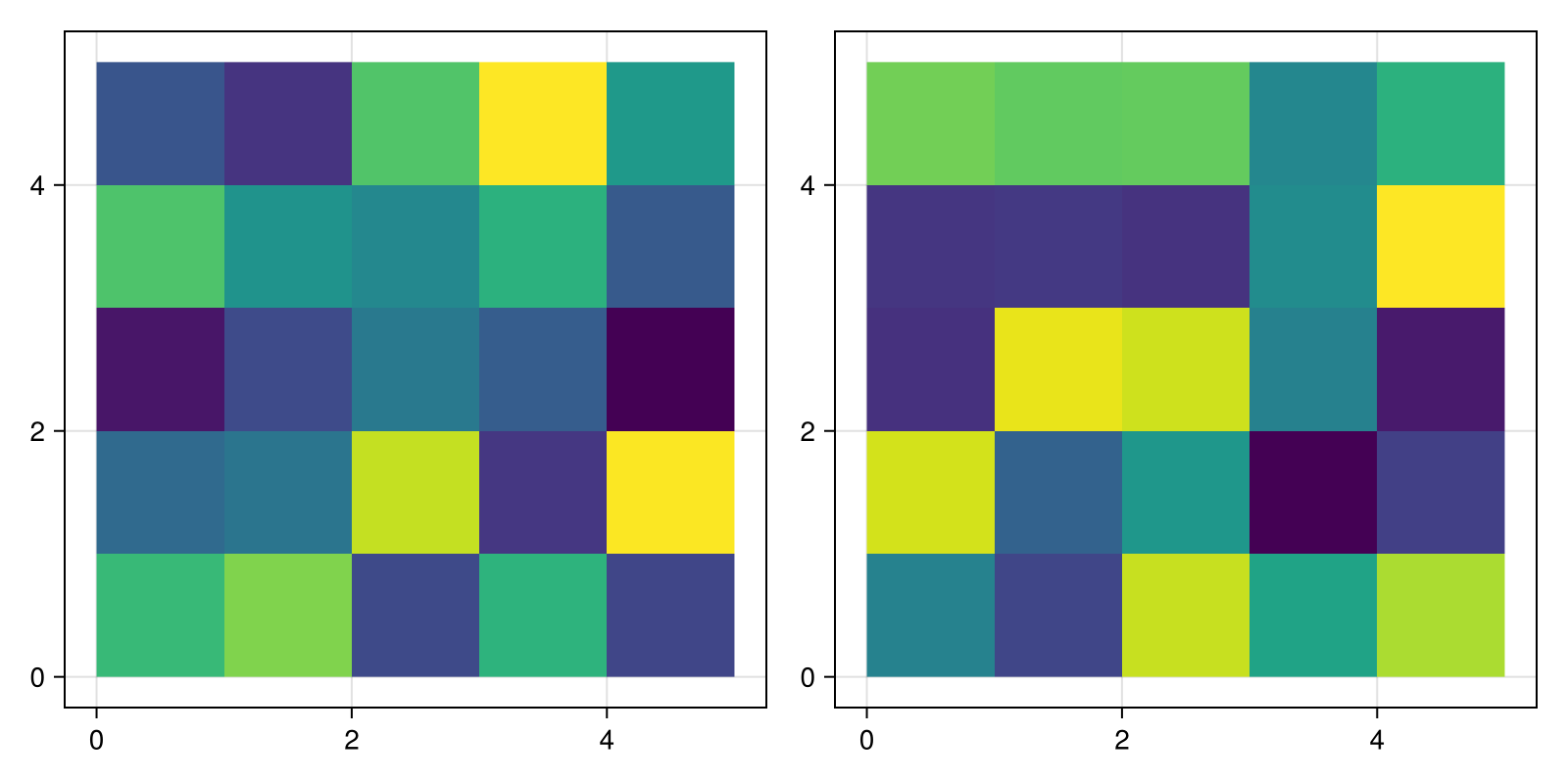

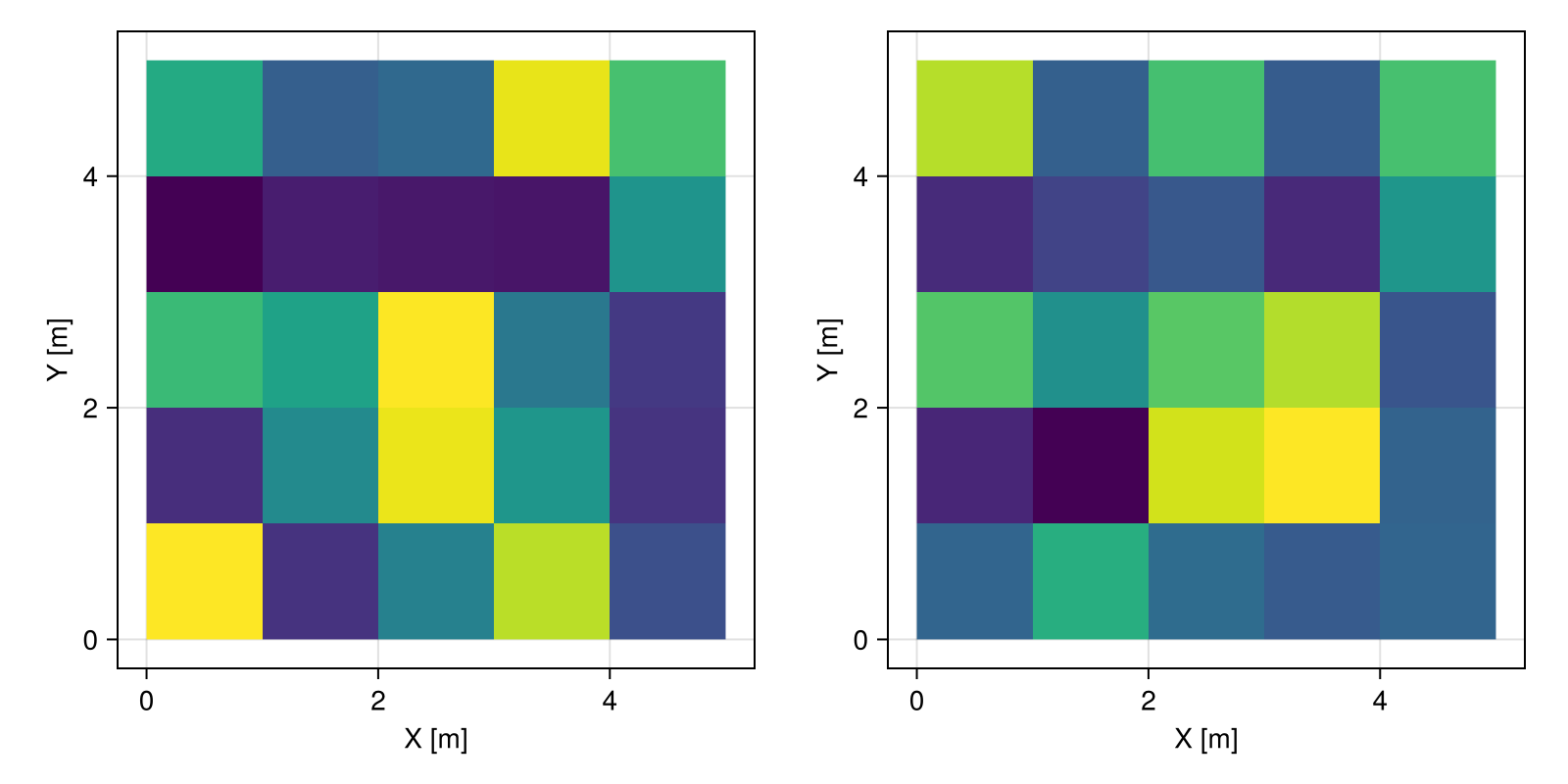

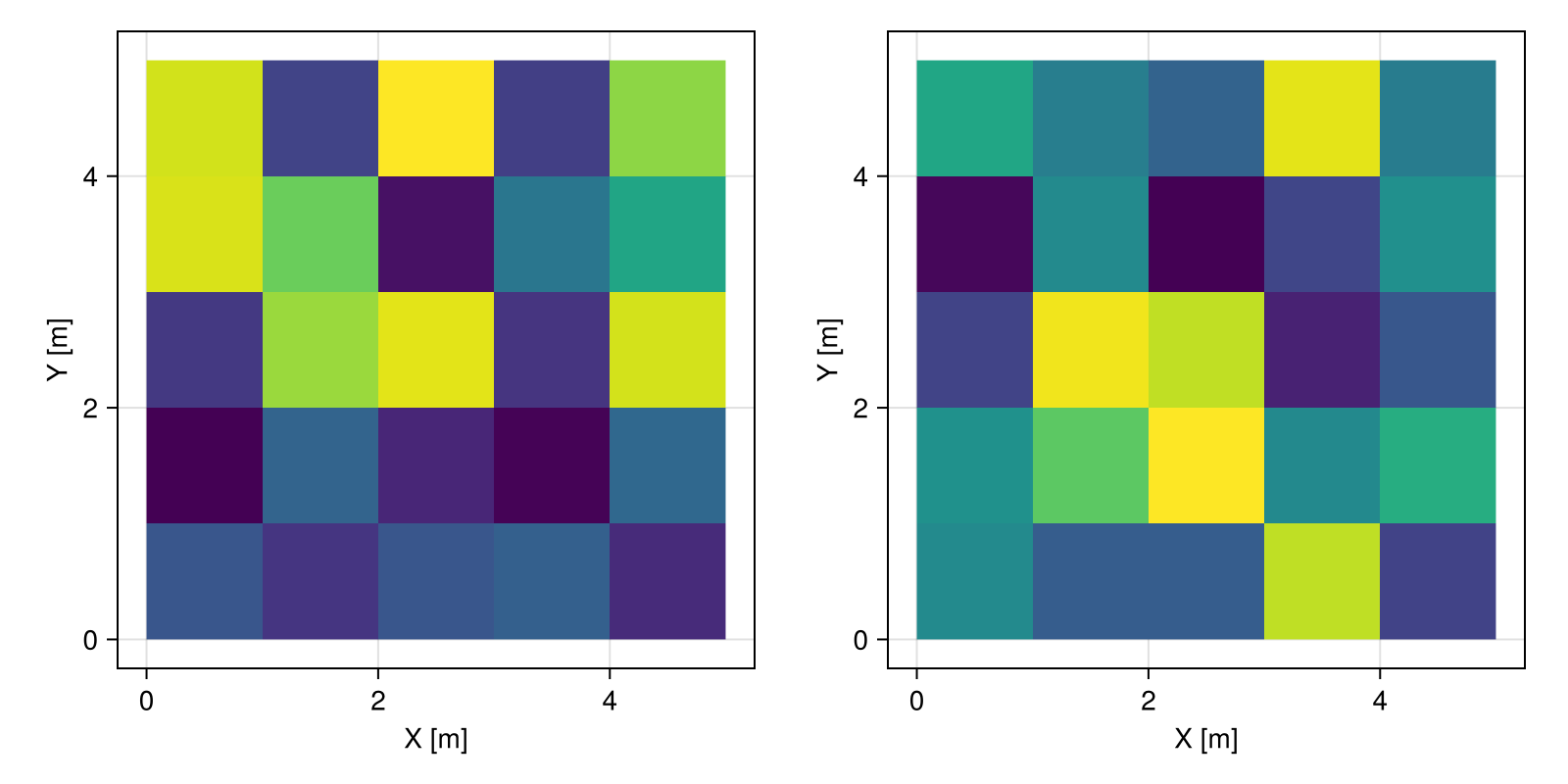

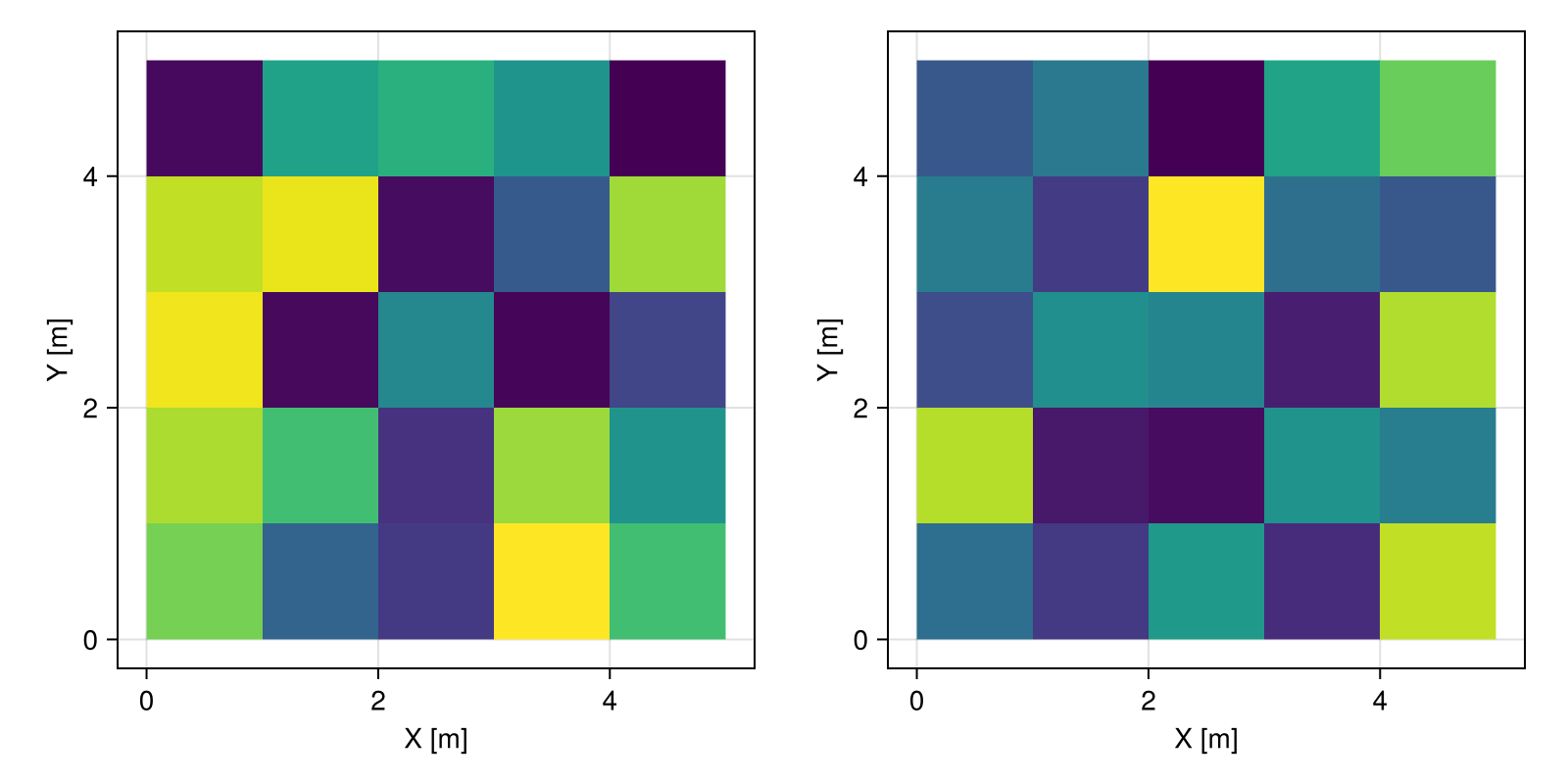

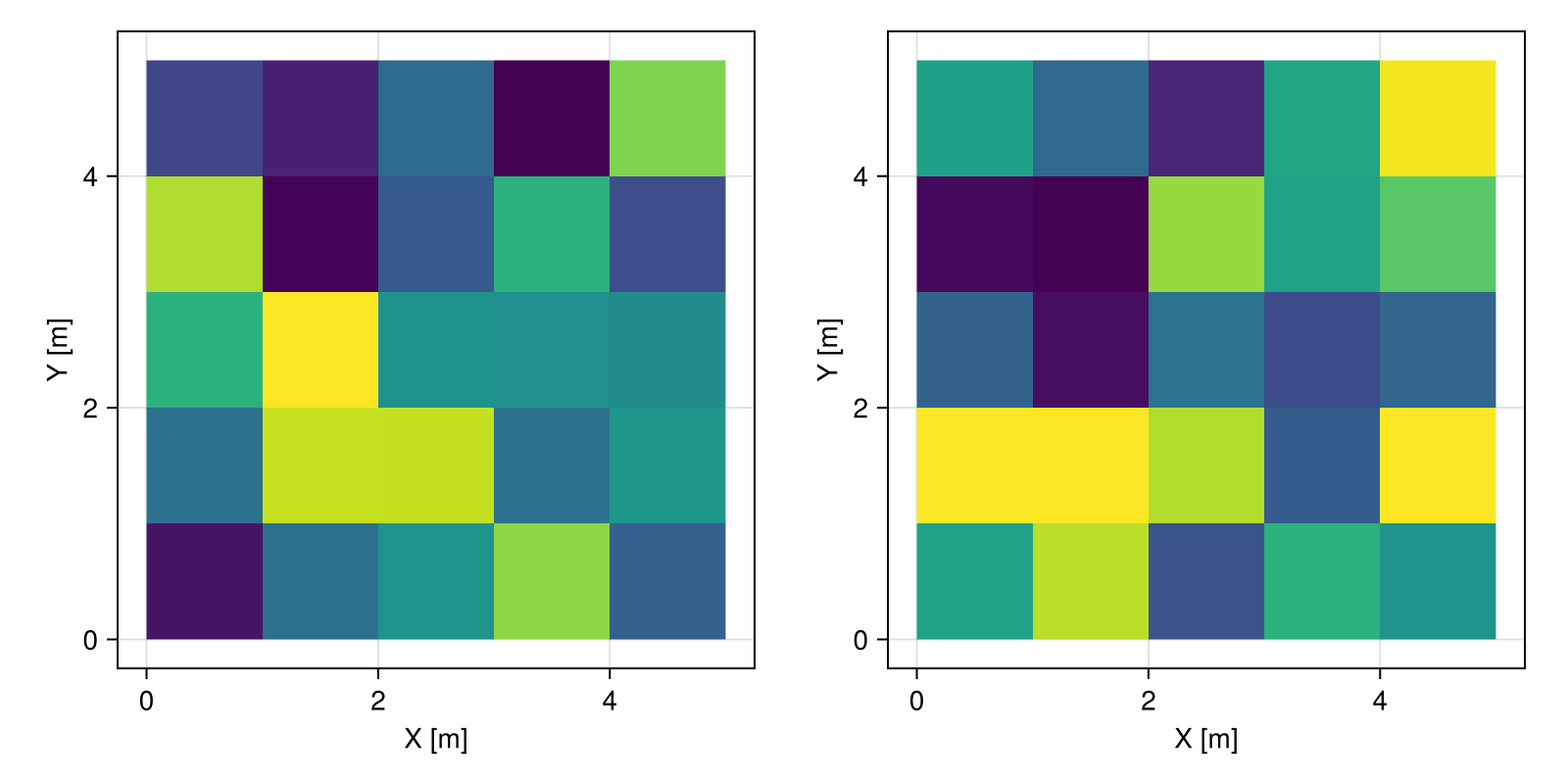

georef((T=T, P=P)) |> plot

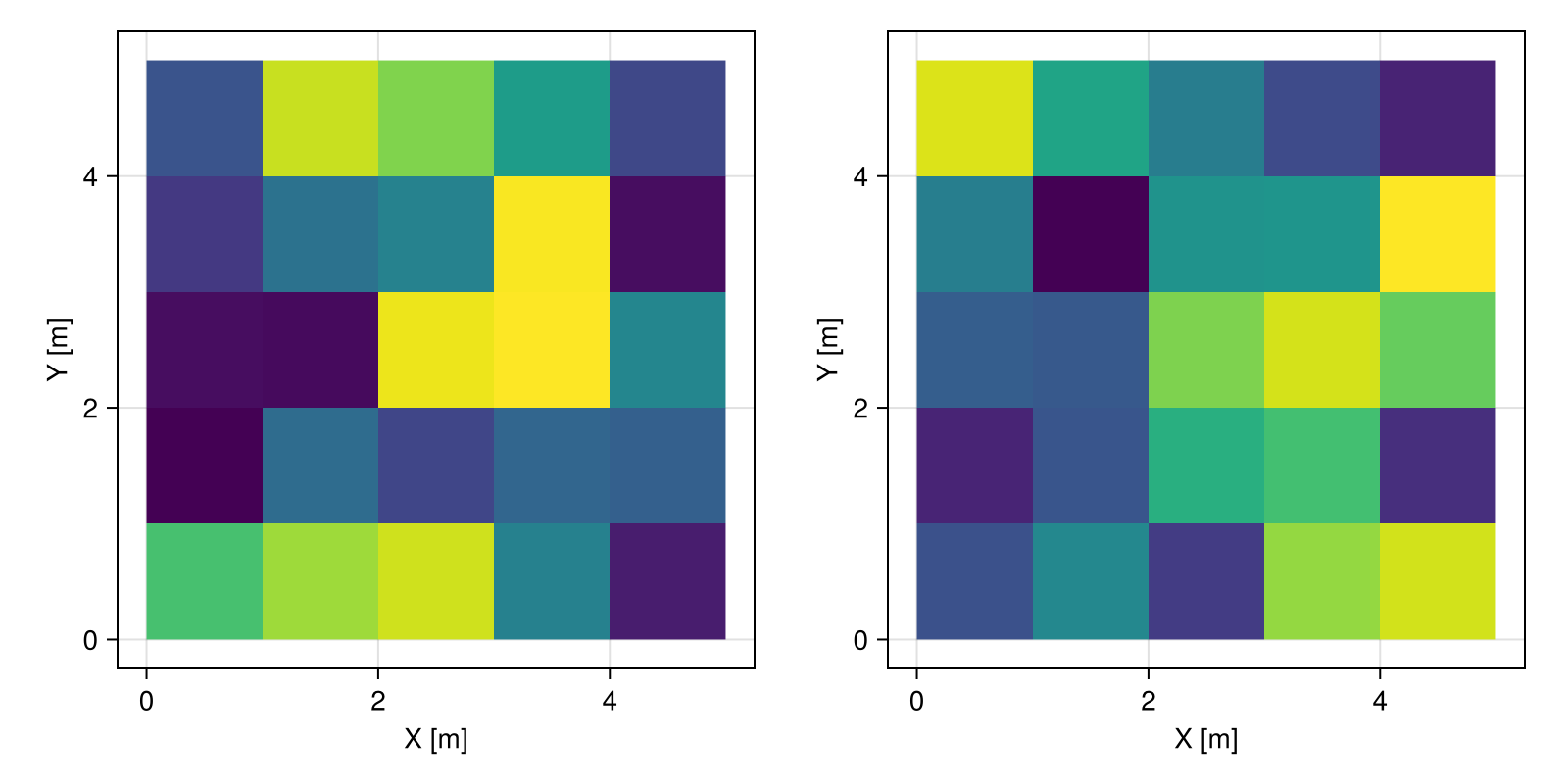

Alternatively, we can interpret the entries of the named tuple as columns in a table:

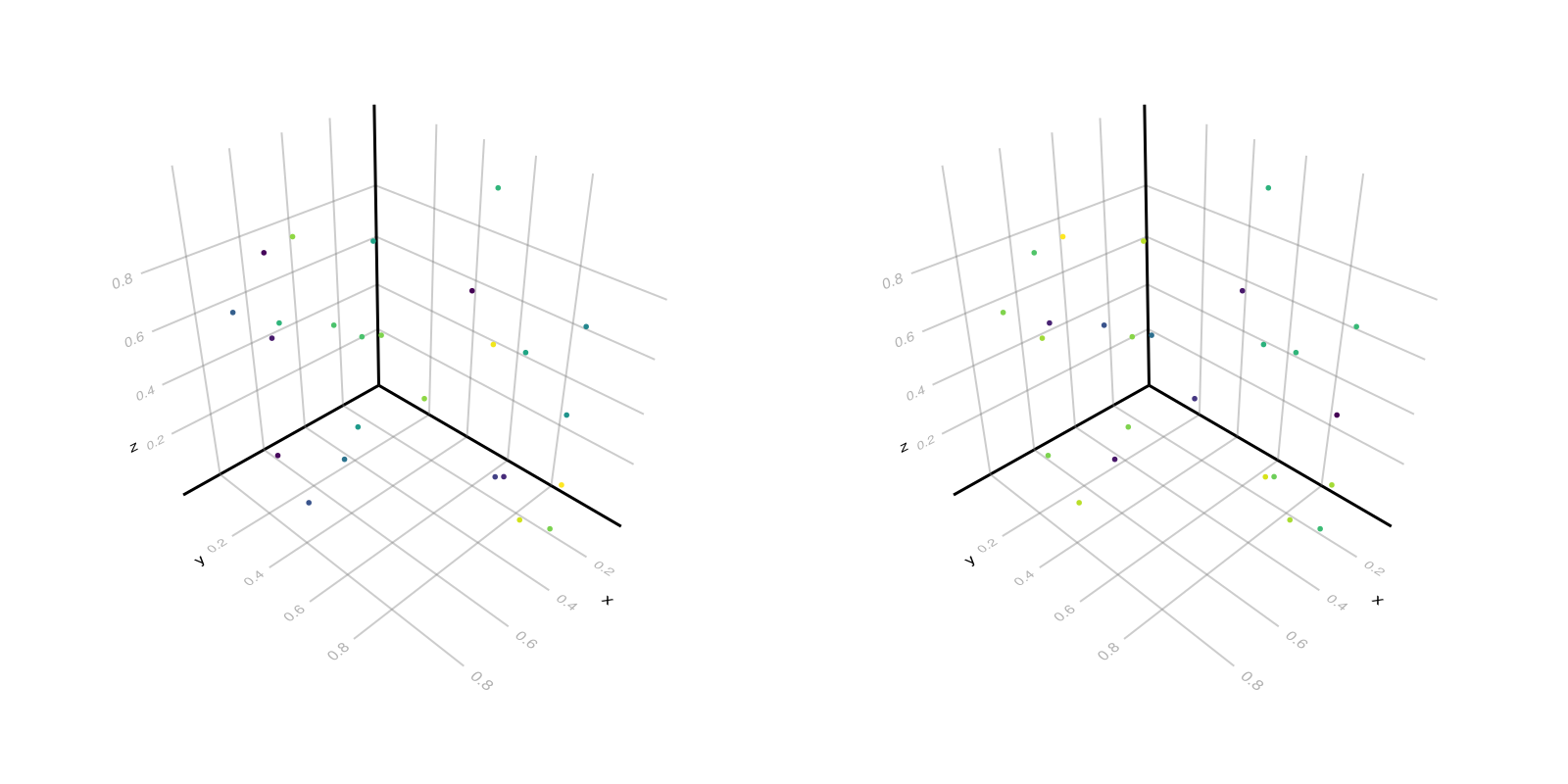

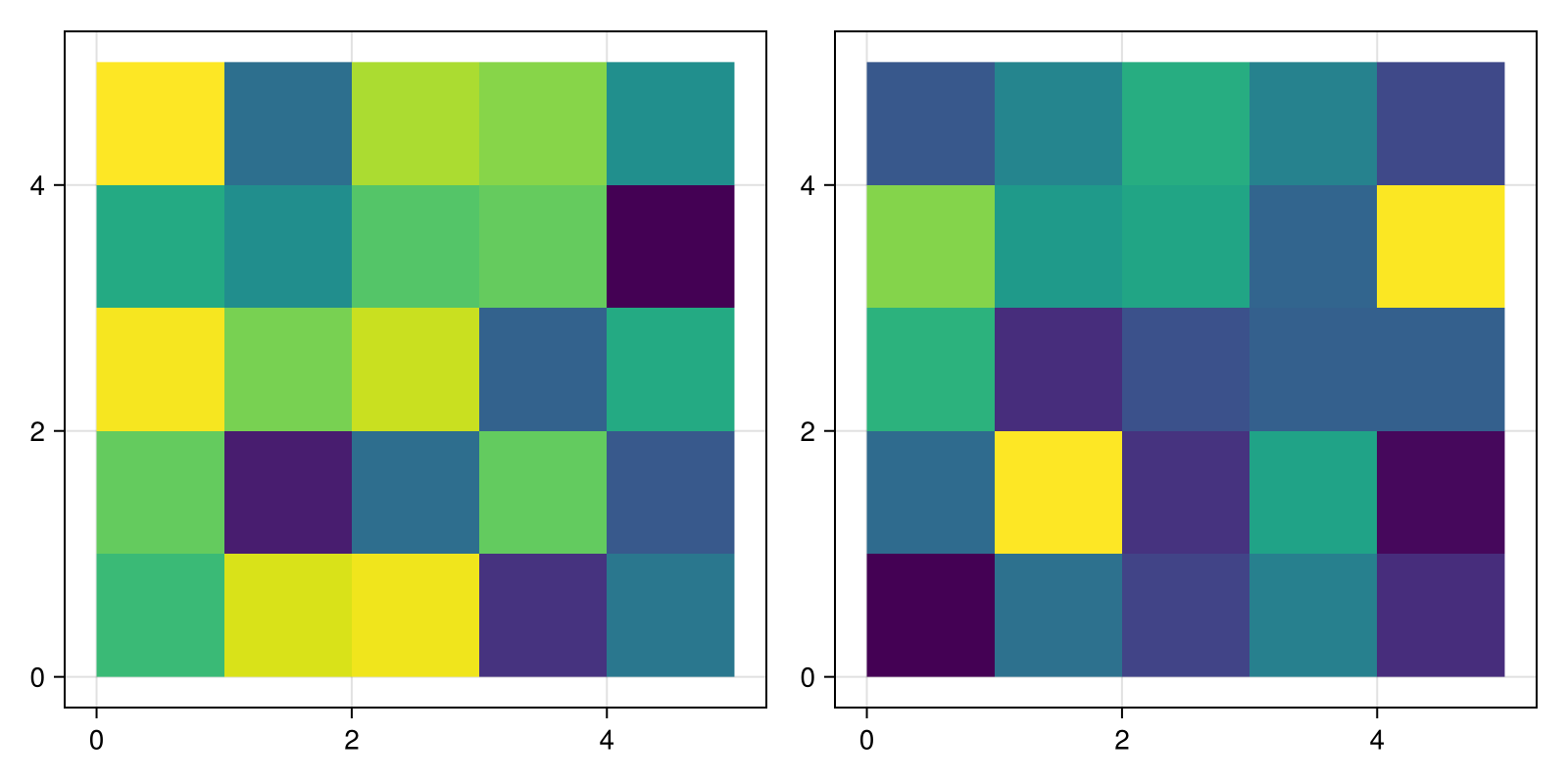

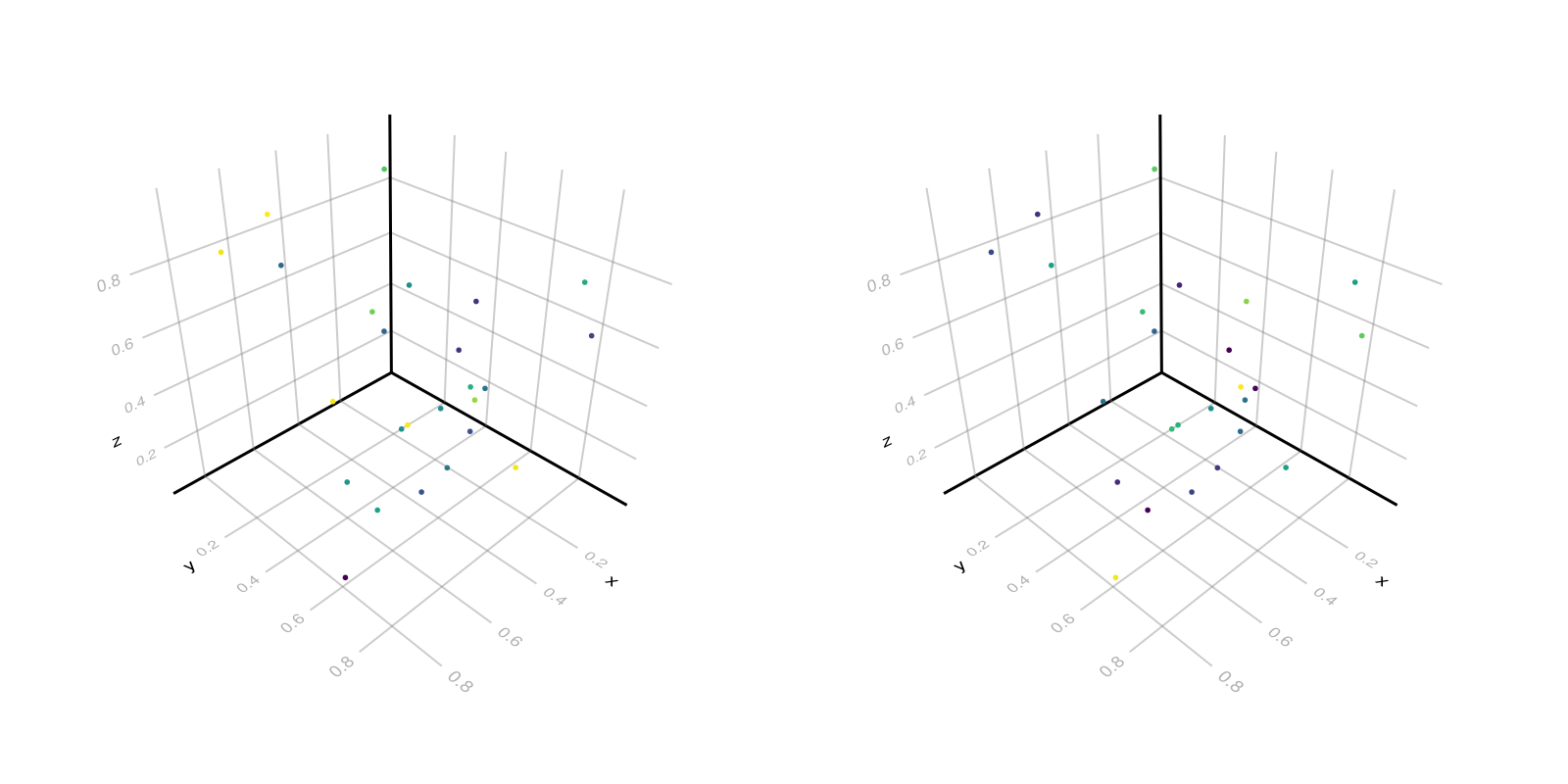

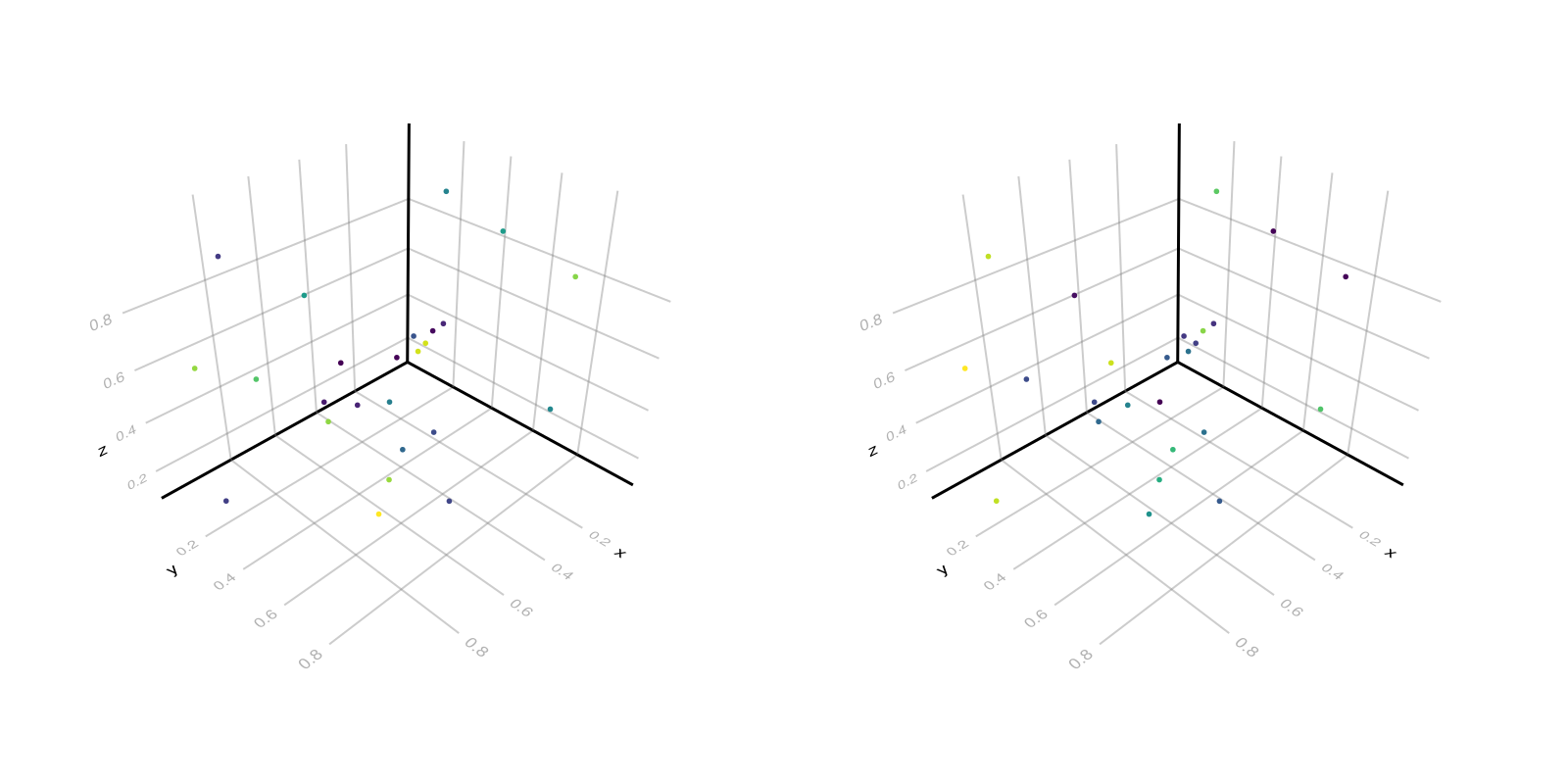

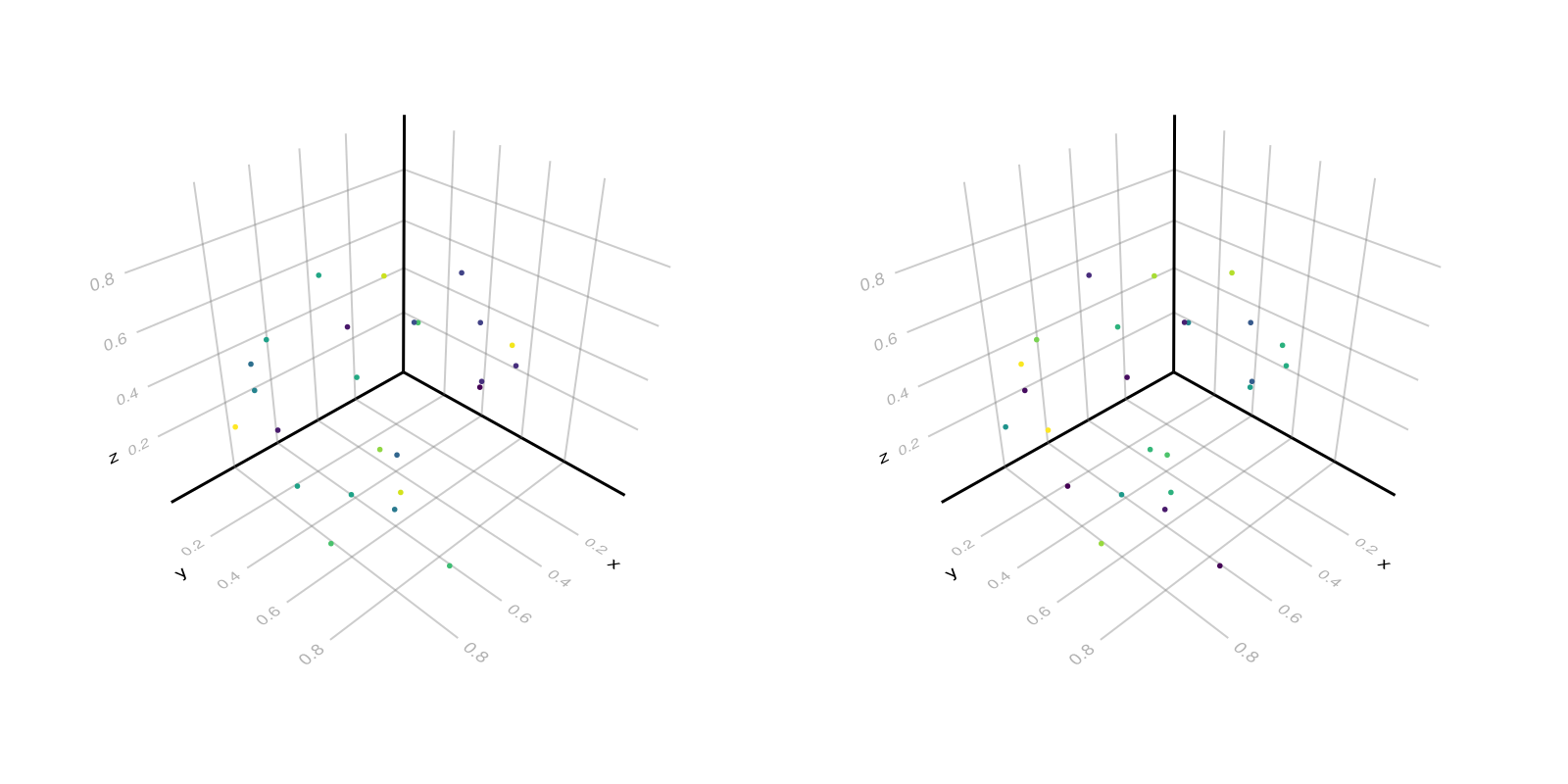

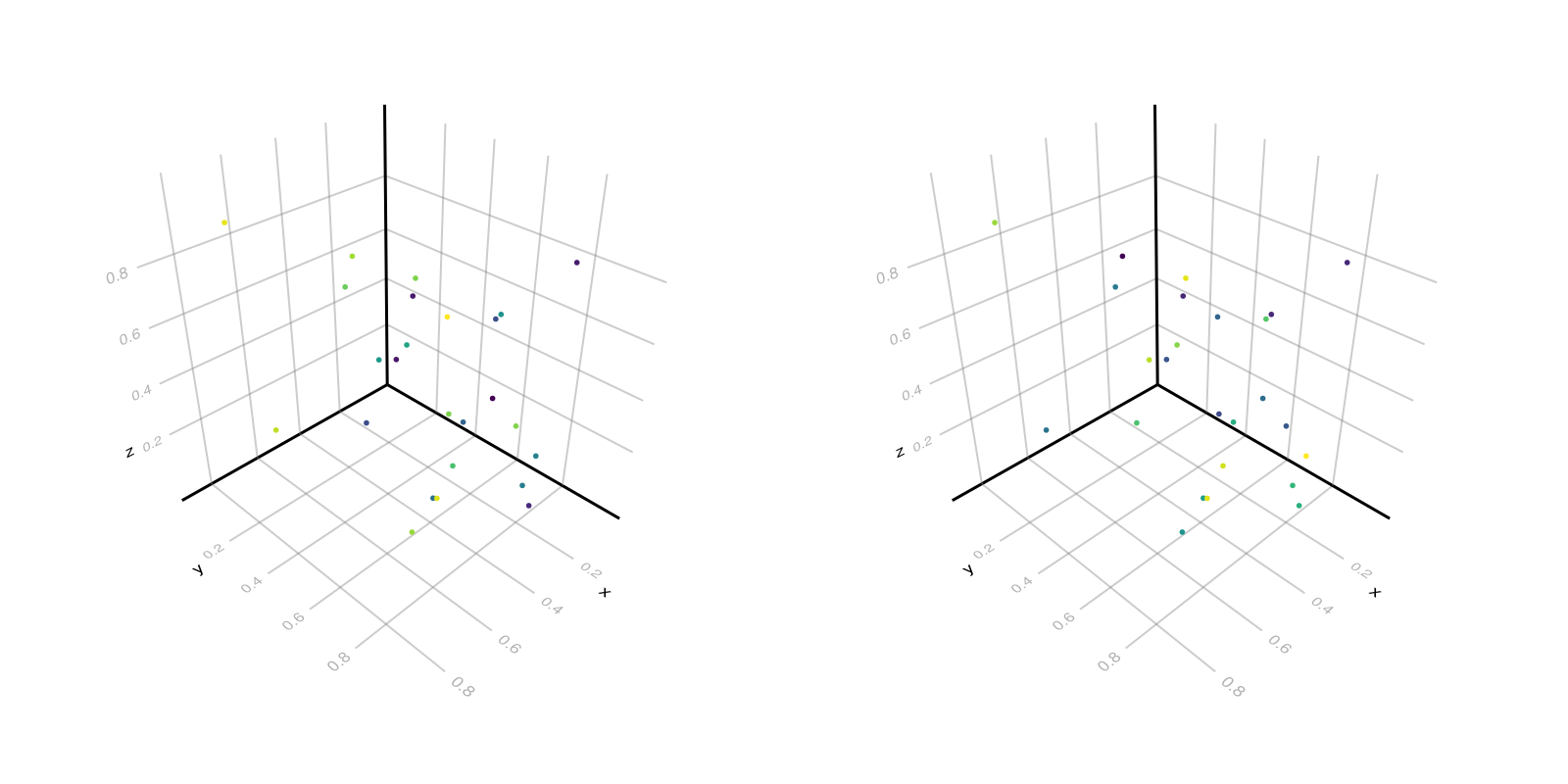

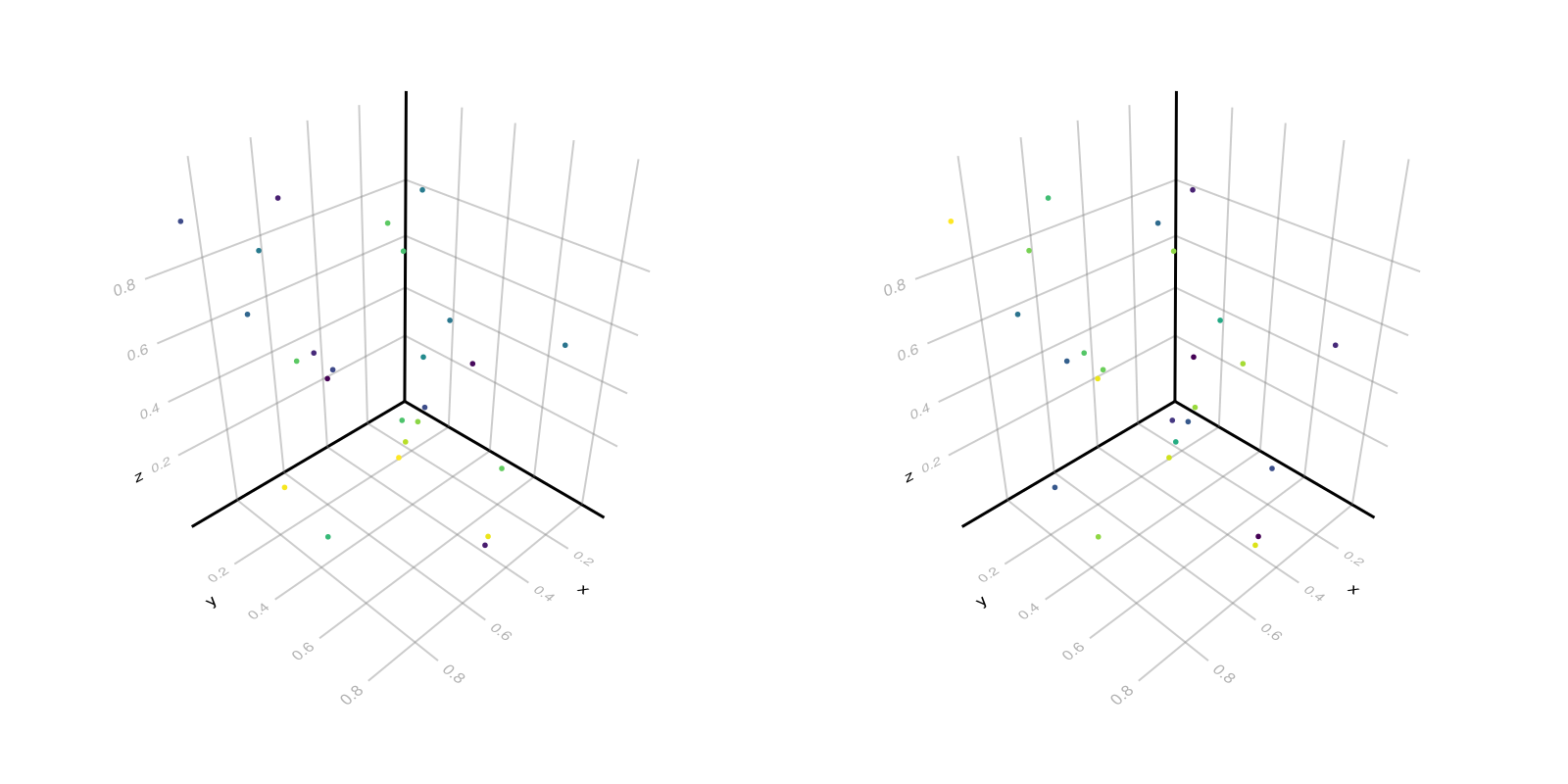

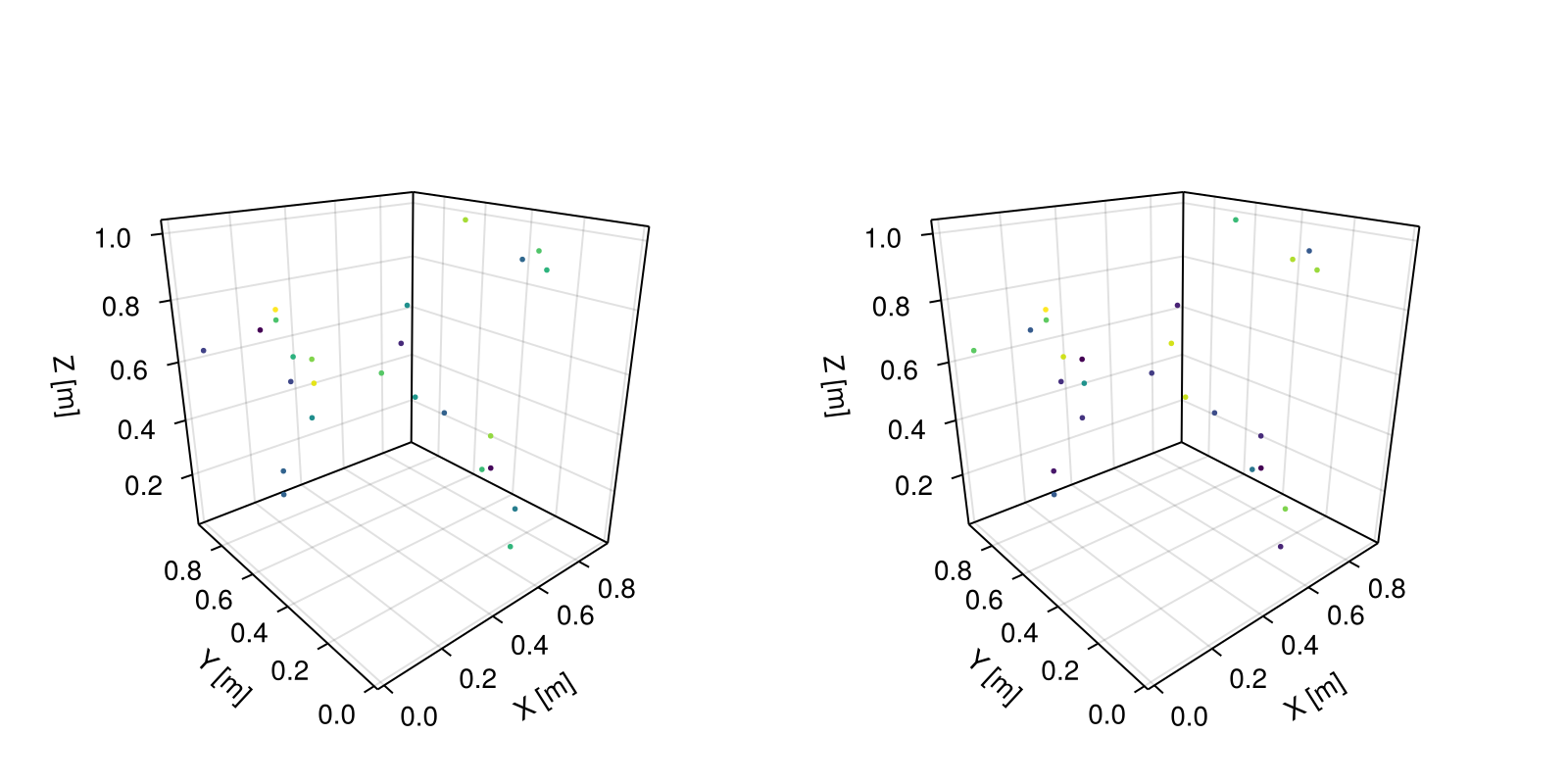

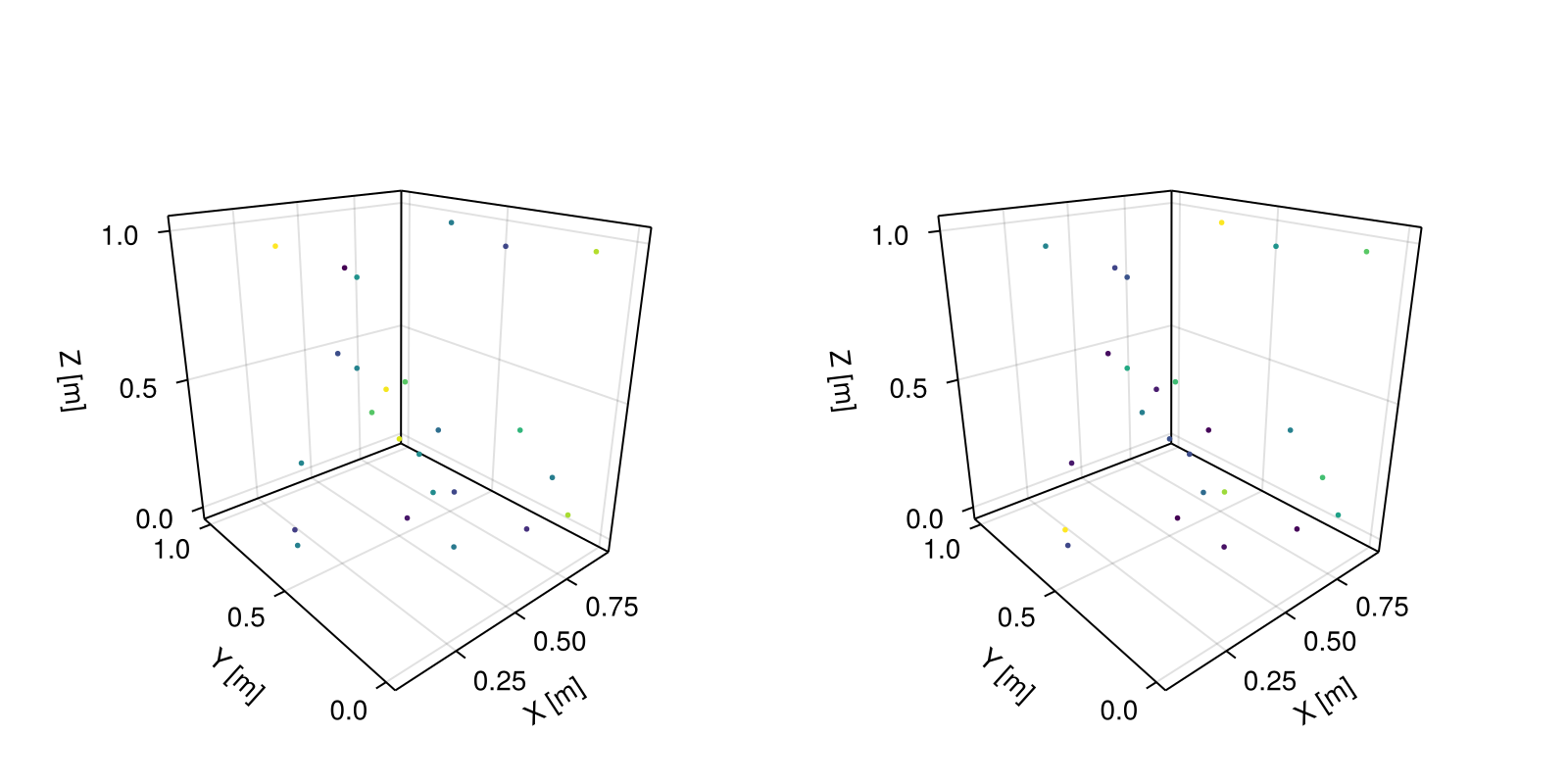

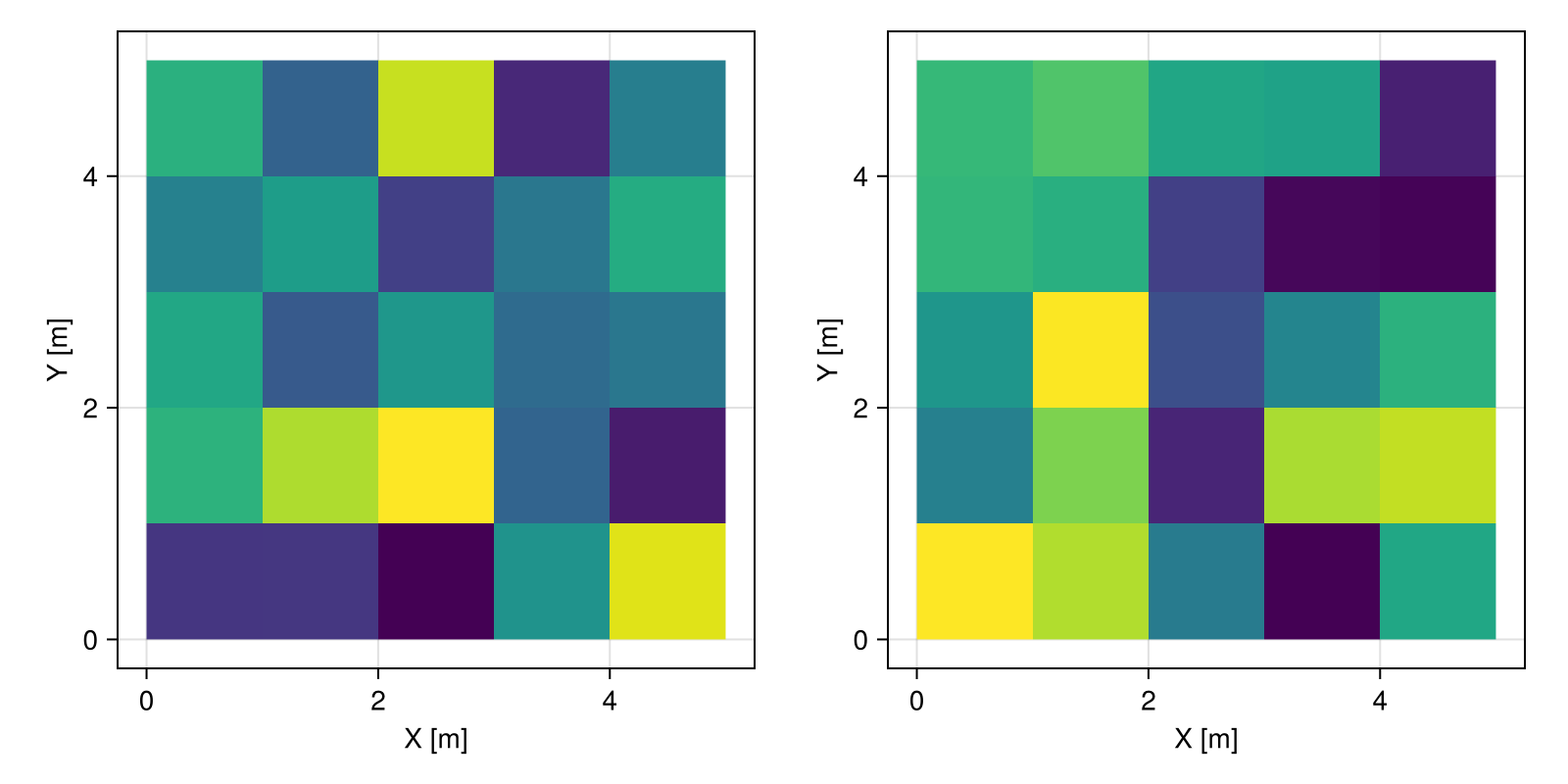

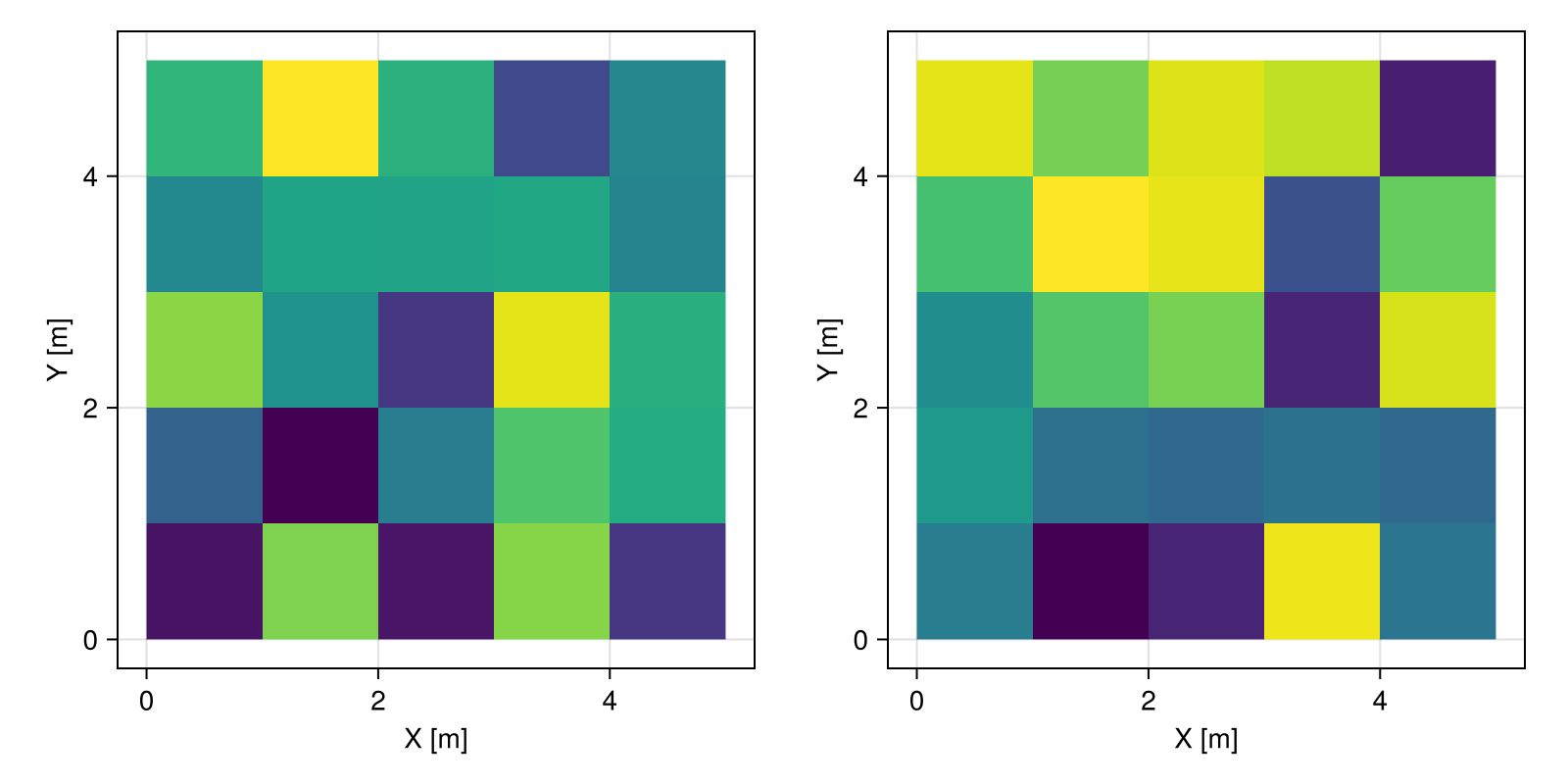

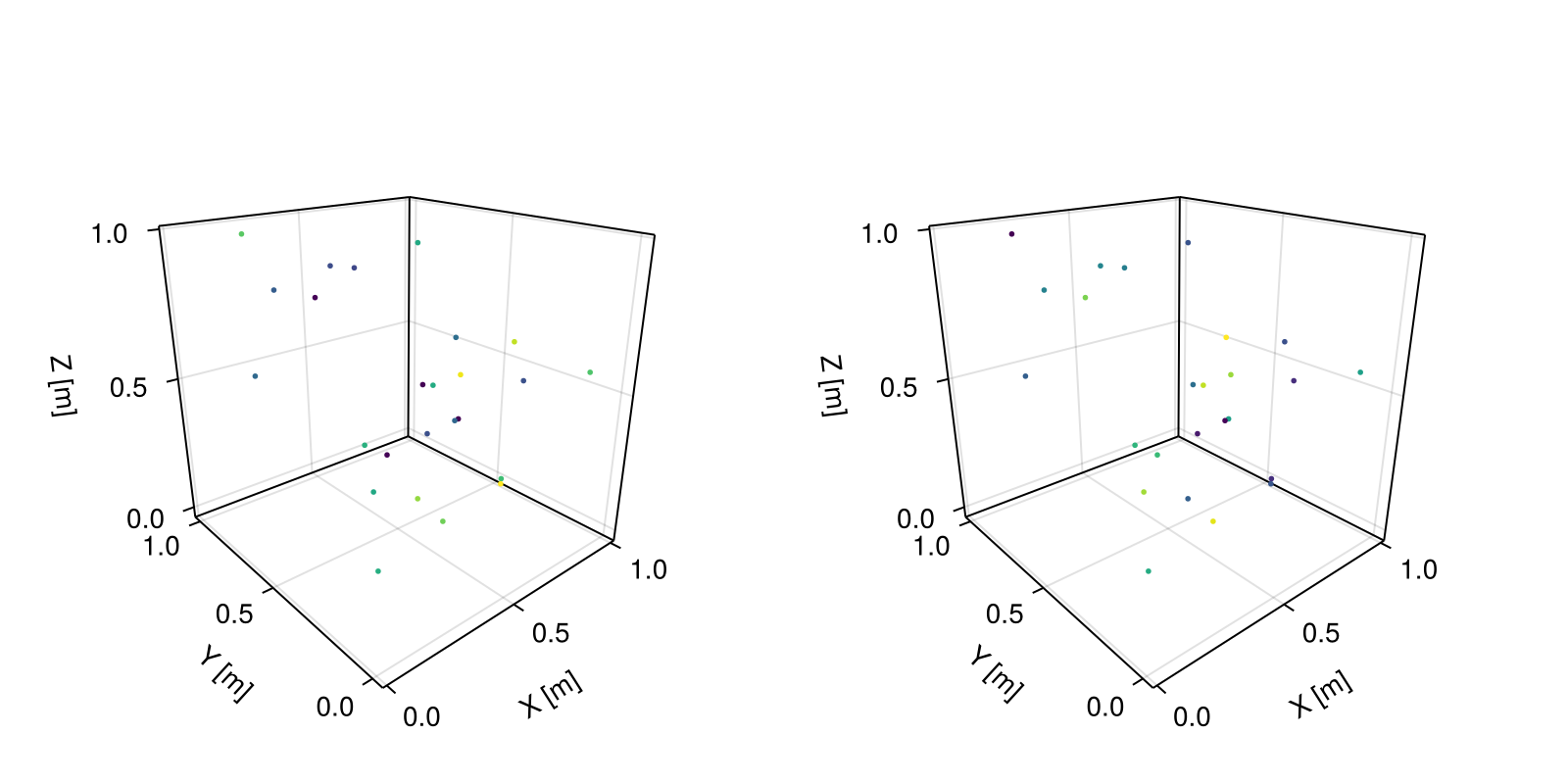

georef((T=vec(T), P=vec(P)), rand(Point, 25)) |> plot

Files

The GeoIO.jl package can be used to load/save geospatial data from/to various file formats:

GeoIO.load — Function

GeoIO.load(fname; repair=true, layer=1, lenunit=nothing, numtype=Float64, kwargs...)

Load geospatial table from file fname stored in any format.

Please use the formats function to list all supported file formats. GIS formats with missing geometries are considered bad practice. In this case, we provide the auxiliary function loadvalues with similar options.

Various repairs are performed on the stored geometries by default, including fixes of orientation in rings of polygons, removal of zero-area triangles, etc. Some of the repairs can be expensive on large data sets. In this case, we recommend setting repair=false. Custom repairs can be performed with the Repair transform from Meshes.jl.

It is also possible to specify the layer to read within the file, the length unit lenunit of the coordinates when the format does not include units in its specification, and the number type numtype of the coordinate values.

Other kwargs options are forwarded to the backend packages and are documented below.

Options

CSV

coords: names of the columns with point coordinates (required option);
Other options are passed to CSV.File, see the CSV.jl documentation for more details;

GSLIB

Other options are passed to GslibIO.load, see the GslibIO.jl documentation for more details;

GeoJSON

Other options are passed to GeoJSON.read, see the GeoJSON.jl documentation for more details;

GeoParquet

Other options are passed to GeoParquet.read, see the GeoParquet.jl documentation for more details;

Shapefile

Other options are passed to Shapefile.read, see the Shapefile.jl documentation for more details;

Formats handled by GDAL (GeoPackage, KML)

Other options are passed to ArchGDAL.read, see the ArchGDAL.jl documentation for more details;

OFF

defaultcolor: default color of the geometries if the file does not have this data (default to RGBA(0.666, 0.666, 0.666, 0.666));

VTK formats (.vtu, .vtp, .vtr, .vts, .vti)

mask: name of the boolean column that encodes the indices of a grid view (default to :mask). If the column does not exist in the file, the full grid is returned;

Common Data Model formats (NetCDF, GRIB)

x: name of the column with x coordinates (default to "x", "X", "lon", or "longitude");
y: name of the column with y coordinates (default to "y", "Y", "lat", or "latitude");
z: name of the column with z coordinates (default to "z", "Z", "depth", or "height");
t: name of the column with time measurements (default to "t", "time", or "TIME");

Examples

# load GeoJSON file
GeoIO.load("file.geojson")

# load GeoPackage file
GeoIO.load("file.gpkg")

# load GeoTIFF file
GeoIO.load("file.tiff")

# load NetCDF file
GeoIO.load("file.nc")

source

GeoIO.loadvalues — Function

GeoIO.loadvalues(fname; rows=:all, layer=1, numtype=Float64, kwargs...)

Load values of geospatial table from file fname stored in any GIS format, skipping the steps to build the domain (i.e., geometry column).

The function is particularly useful when geometries are missing. In this case, the option rows=:invalid can be used to retrieve the values of the rows that were dropped by load. All other kwargs options documented therein for GIS formats are supported, including the layer and the numtype options.

Examples

# load all values of shapefile, ignoring geometries
GeoIO.loadvalues("file.shp")

# load values of shapefile where geometries are missing
GeoIO.loadvalues("file.shp"; rows=:invalid)

source

GeoIO.save — Function

GeoIO.save(fname, geotable; warn=true, kwargs...)

Save geotable to file fname of given format based on the file extension.

Please use the formats function to list all supported file formats.

The function displays a warning whenever the format is obsolete (e.g. Shapefile). The warning can be disabled with the warn keyword argument.

Other kwargs options are forwarded to the backend packages and are documented below.

Options

CSV

coords: names of the columns where the point coordinates will be saved (default to "x", "y", "z");
floatformat: C-style format string for float values (default to no formatting);
Other options are passed to CSV.write, see the CSV.jl documentation for more details;

GSLIB

Other options are passed to GslibIO.save, see the GslibIO.jl documentation for more details;

GeoJSON

Other options are passed to GeoJSON.write, see the GeoJSON.jl documentation for more details;

GeoPackage

layername: name of the layer where the data will be saved (default to "data");
options: dictionary with options that will be passed to GDAL;

GeoParquet

Other options are passed to GeoParquet.write, see the GeoParquet.jl documentation for more details;

Shapefile

Other options are passed to Shapefile.write, see the Shapefile.jl documentation for more details;

MSH

vcolumn: name of the column in vertex table with node data, if nothing the geometries will be saved without node data (default to nothing);
ecolumn: name of the column in element table with element data, if nothing the geometries will be saved without element data (default to nothing);

OFF

color: name of the column with geometry colors, if nothing the geometries will be saved without colors (default to nothing);

STL

ascii: defines whether the file will be saved in ASCII format, otherwise Binary format will be used (default to false);

Common Data Model formats (NetCDF, GRIB)

x: name of the column where the coordinate x will be saved (default to CRS coordinate name);
y: name of the column where the coordinate y will be saved (default to CRS coordinate name);
z: name of the column where the coordinate z will be saved (default to CRS coordinate name);
t: name of the column where the time measurements will be saved (default to "t");

Examples

# set layer name in GeoPackage
GeoIO.save("file.gpkg", layername = "mylayer")

source

GeoIO.formats — Function

formats([io]; sortby=:extension)

Displays in io (defaults to stdout if io is not given) a table with all formats supported by GeoIO.jl and the packages used to load and save each of them.

Optionally, sort the table by the :extension, :load or :save columns using the sortby argument.

source

using GeoIO

zone = GeoIO.load("data/zone.shp")

4×6 GeoTable over 4 GeometrySet
PERIMETER	ACRES	MACROZONA	Hectares	area_m2	geometry
Continuous	Continuous	Categorical	Continuous	Continuous	MultiPolygon
[NoUnits]	[NoUnits]	[NoUnits]	[NoUnits]	[NoUnits]	🖈 GeodeticLatLon{SAD69}
5.8508e6	3.23145e7	Estuario	1.30772e7	1.30772e11	Multi(21×PolyArea)
9.53947e6	2.50594e8	Fronteiras Antigas	1.01412e8	1.01412e12	Multi(1×PolyArea)
1.01743e7	2.75528e8	Fronteiras Intermediarias	1.11502e8	1.11502e12	Multi(1×PolyArea)
7.09612e6	1.61293e8	Fronteiras Novas	6.5273e7	6.5273e11	Multi(2×PolyArea)

Artifacts

The GeoArtifacts.jl package provides utility functions to automatically download geospatial data from repositories on the internet.

using GeoArtifacts

# download artifacts from naturalearthdata.com
earth    = NaturalEarth.naturalearth1("water")
borders  = NaturalEarth.borders()
airports = NaturalEarth.airports()
ports    = NaturalEarth.ports()

# initialize viewer with a coarse "raster"

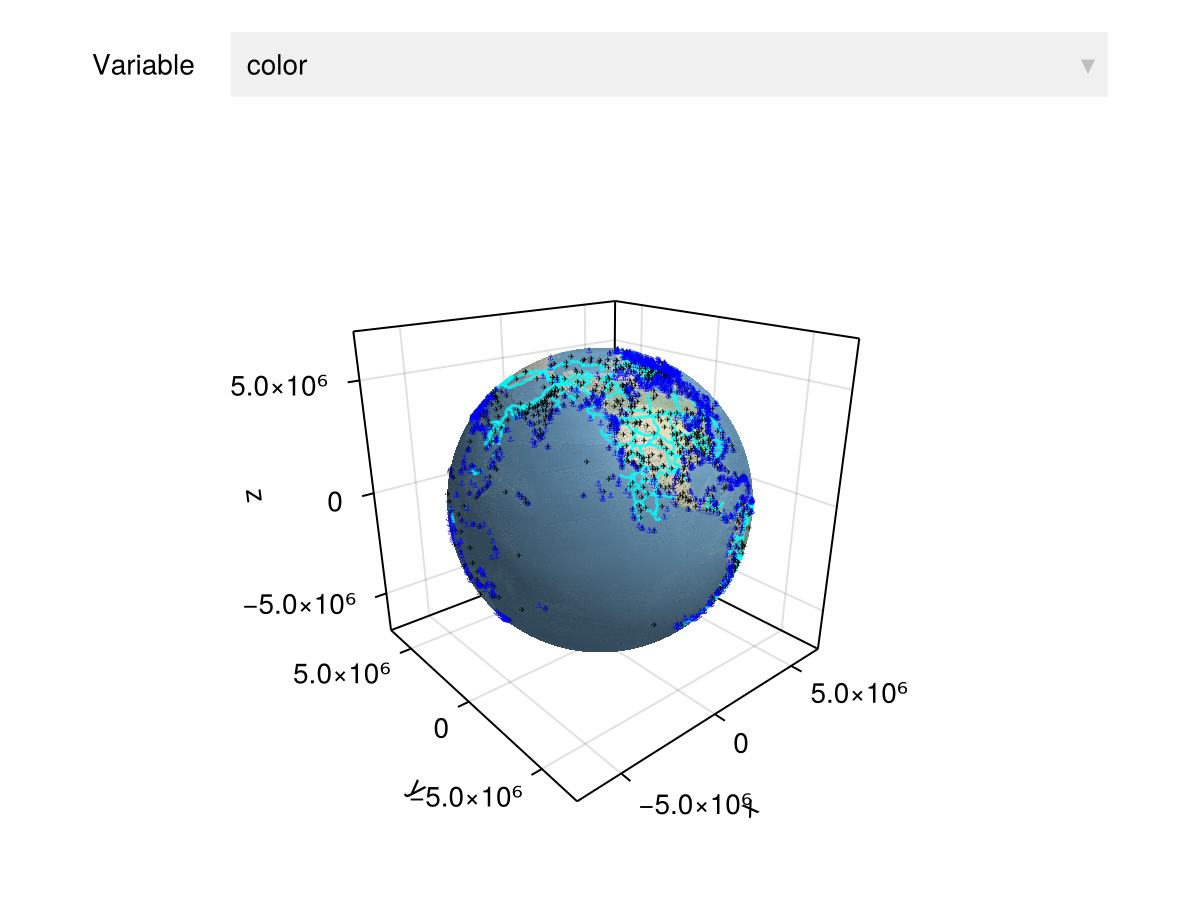

earth |> Upscale(10, 5) |> viewer

# add other elements to the visualization
viz!(borders.geometry, color = "cyan")
viz!(airports.geometry, color = "black", pointsize=4, pointmarker='✈')
viz!(ports.geometry, color = "blue", pointsize=4, pointmarker='⚓')

# display current figure

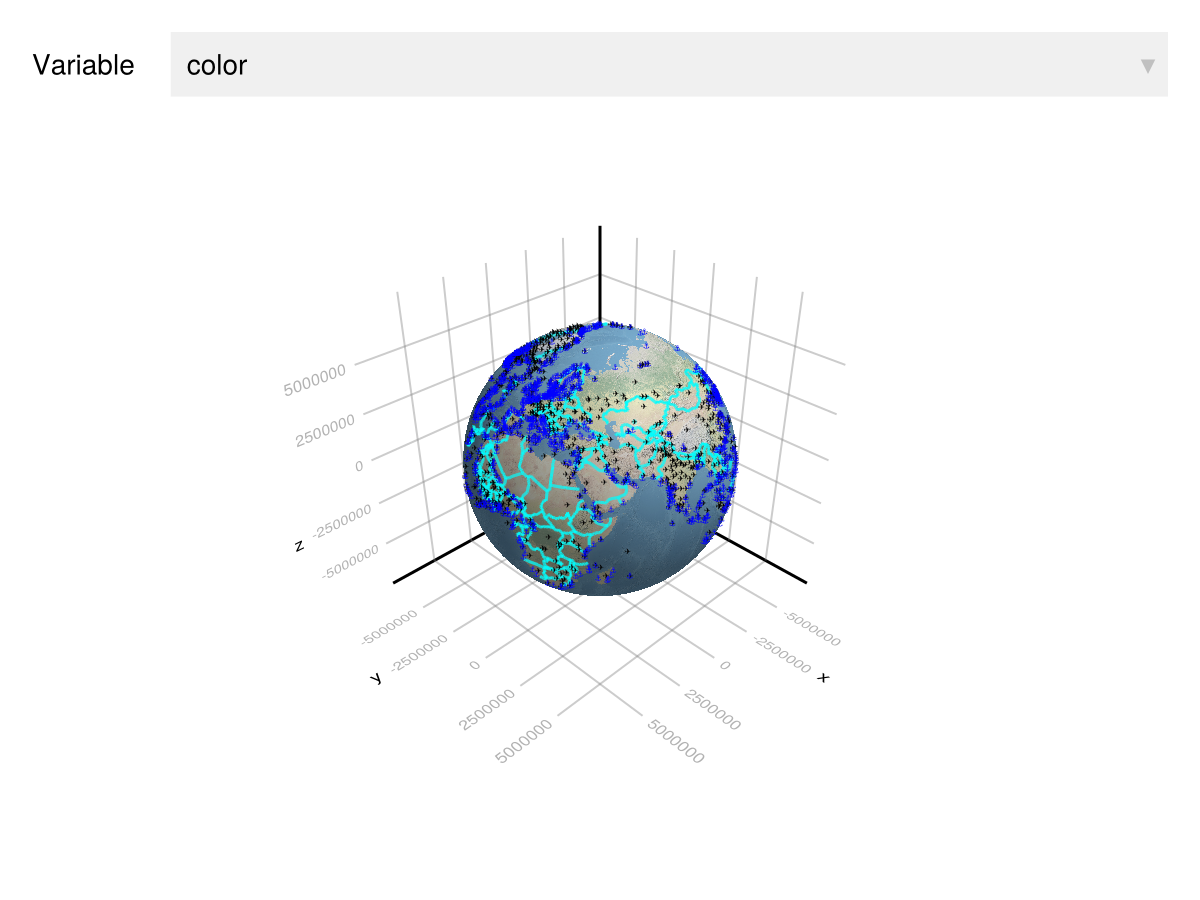

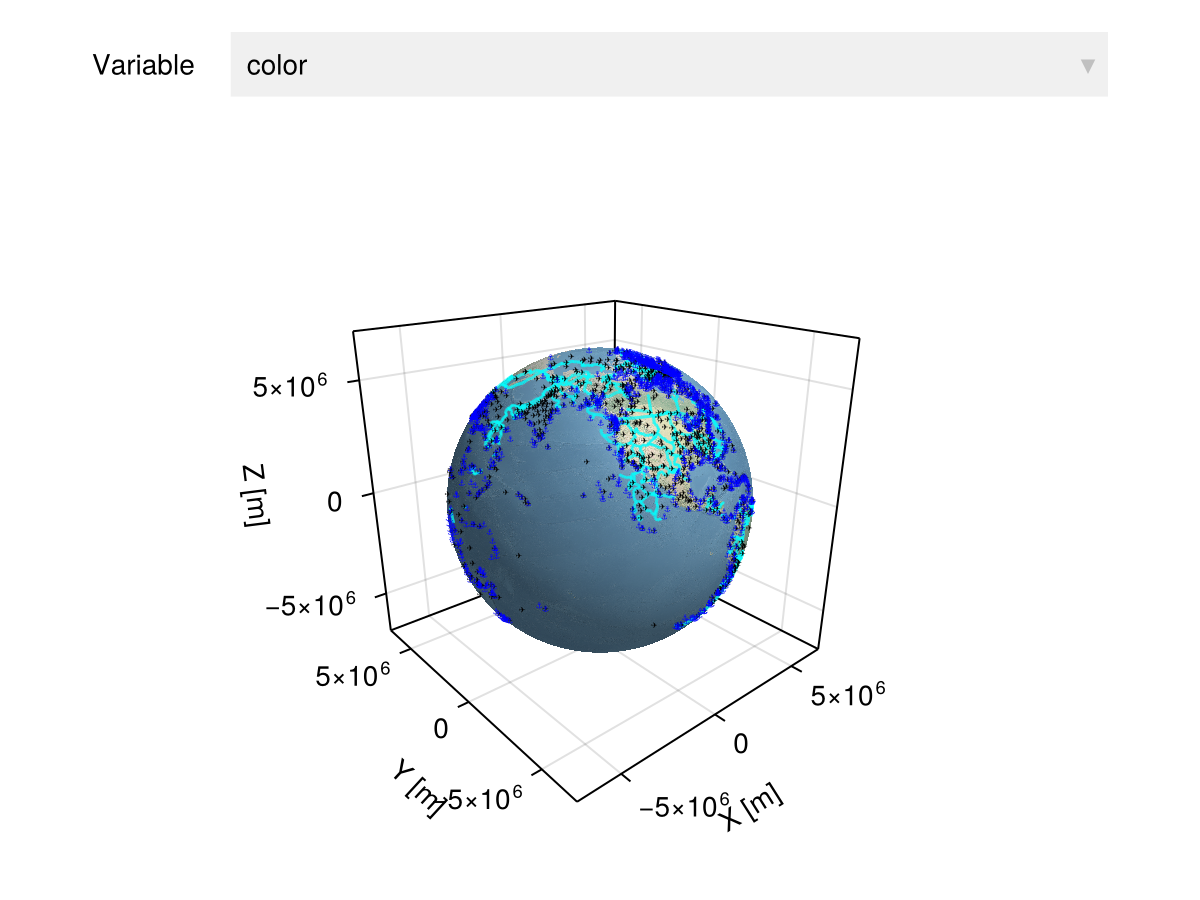

Mke.current_figure()
